Mimas A7 – Artix 7 FPGA Development Board

$199.95 $149.95

Mimas A7 is a serious upgrade to our lower cost Mimas V2 FPGA Development board. Based on Artix 7™ 50T FPGA, Mimas A7 plenty powerful as it is versatile. This FPGA Development Board follows the philosophy of offering a large variety of peripherals on a compact form factor to allow minimal external components to run and evaluate as many designs as possible. Mimas A7 is a great platform for implementing Soft processors such as Microblaze to make it a complete embedded platform. The built in Gigabit Ethernet offers low latency high bandwidth data transfer to host. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters. Onboard HDMI IN/OUT interfaces along with large DDR3 SDRAM makes Mimas A7 a great platform for video capture, processing and rendering. The staple peripherals such as switches and seven segment displays offer great value for learning, prototyping and debugging.

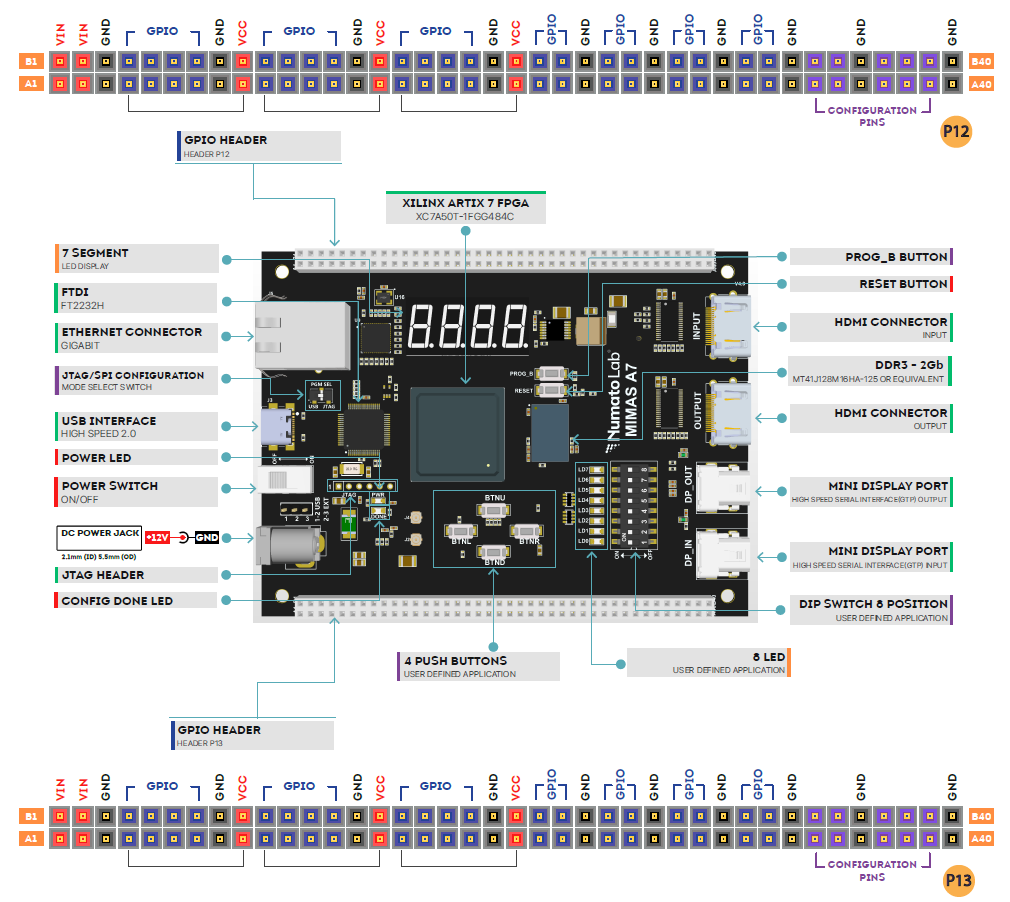

Features

  • Device: Xilinx Artix 7 FPGA (XC7A50T-1FGG484C)
  • DDR3: 2Gb DDR3 (MT41J128M16HA-125 or equivalent)
  • FTDI FT2232H based host interface
  • Built in programming interface. No expensive JTAG adapters needed for programming the board
  • Gigabit Ethernet
  • HDMI IN/OUT interfaces
  • HighSpeed Serial Interface (GTP) available on mini DisplayPort connectors
  • Onboard 128Mb flash memory for FPGA configuration storage and custom user data storage
  • 100MHz LVDS oscillator
  • Micro SD card slot for memory expansion
  • Seven Segment Display and switches for easy learning, prototyping and debugging
  • FPGA configuration via JTAG and USB
  • 80 IOs (40 professionally length matched Differential Pairs) for user defined purposes

In stock (can be backordered)

SKU: NLFX1001 Category:

Description

Mimas A7 is a serious upgrade to our lower cost Mimas V2 FPGA Development board. Based on Artix 7™ 50T FPGA, Mimas A7 plenty powerful as it is versatile offering improved system performance for cost sensitive markets. This FPGA Development Board follows the philosophy of offering a large variety of peripherals on a compact form factor to allow minimal external components to run and evaluate as many designs as possible. Mimas A7 is a great platform for implementing Soft processors such as Microblaze to make it a complete embedded platform. The built in Gigabit Ethernet offers low latency high bandwidth data transfer to host. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters. Onboard HDMI IN/OUT interfaces along with large DDR3 SDRAM makes Mimas A7 a great platform for video capture, processing and rendering. The staple peripherals such as switches and seven segment displays offer great value for learning, prototyping and debugging. This board could be used as an FPGA module to integrate to other larger designs as well.

Features

  • Device: Xilinx Artix 7 FPGA (XC7A50T-1FGG484C)
  • DDR3: 2Gb DDR3 (MT41J128M16HA-125 or equivalent)
  • FTDI FT2232H based host interface
  • Built-in programming interface. No expensive JTAG adapters needed for programming the board
  • Gigabit Ethernet
  • HDMI IN/OUT interfaces
  • High-Speed Serial Interface (GTP) available on mini DisplayPort connectors
  • Onboard 128Mb flash memory for FPGA configuration storage and custom user data storage
  • 100MHz LVDS oscillator
  • Micro SD card slot for memory expansion
  • Seven Segment Display and switches for easy learning, prototyping and debugging
  • FPGA configuration via JTAG and USB
  • 80 IOs (40 professionally length matched Differential Pairs) for user-defined purposes

Applications

  • Product Prototype Development
  • Accelerated computing integration
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
  • Educational tool for Schools and Universities
  • Video processing

Additional information

FPGA

Configuration Options

JTAG, USB

Ethernet

Gigabit

HDMI Inputs

1

HDMI Outputs

1

Host Interface

USB 2.0

Memory

Number Of GPIOs (Max)

80

Number Of Diff Pairs

40

Primary Clock Frequency

High Speed Serial

GTP x4 (on two mini DisplayPort connectors)

Downloads

User Manual
Driver for Mimas A7
Tenagra FPGA Programming Tool

Sample Code

Mimas A7 Microblaze HelloWorld Sample ProjectDownload
Mimas A7 Gigabit Ethernet ProjectDownload
Mimas A7 HDMI Output ProjectDownload
Mimas A7 LEDs + Switches + Pushbutton + 7-Segment Display Sample ProjectDownload
Mimas A7 SD Card ProjectDownload

More Resources

More information about Artix 7 FPGAs (External link)
Xilinx 7 series FPGA datasheet (External link)
