Skoll – Xilinx™ Kintex™-7 USB Ready To Go FPGA Module

SKU: FPGA010

Skoll – Xilinx™ Kintex™-7 USB Ready To Go FPGA Module

SKU: FPGA010

    Current configuration - Edit
  • Header Type and IO Headers: none selected

$399.95

Features

  • Pin compatible with Saturn Spartan 6 FPGA Module and Neso Artix 7 FPGA Module and offers a seamless upgrade path
  • FPGA: XC7K70T in FBG484 package, Speed Grade: -1
  • Designed for OEM Integration
  • ROHS certification available
  • USB, FPGA and DDR3 in very compact form factor
  • Industry standard 100mil (2.54mm) headers for IO access
  • Built in configuration system
  • Single power rail operation
  • XoBus-Lite compatible
  • Documentation, Reference Designs and KB articles
  • Maximum IOs for user defined purposes
    • FPGA – 150 IOs
    • FT2232H – 8 IOs

Applications

  • Product Prototype Development
  • Accelerated computing integration
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
  • Educational tool for Schools and Universities

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Header Type and IO Headers

Skoll – Xilinx™ Kintex™-7 USB Ready To Go FPGA Module

SKU: FPGA010

    Current configuration -
  • Header Type and IO Headers: none selected

$399.95

Skoll is an easy to use FPGA Development board featuring Kintex 7 FPGA. It is specially designed for the development and integration of FPGA based accelerated features to other designs. This development board features Xilinx XC7K70T FPGA with FTDI’s FT2232H Dual-Channel USB device. The high-speed USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No programmer or special downloader cable is needed to download the bitstream to the board. The second FTDI channel can be used to develop custom high data-rate USB based applications. Skoll provides user flexibility in adding their own peripherals through IO Expansion Headers.

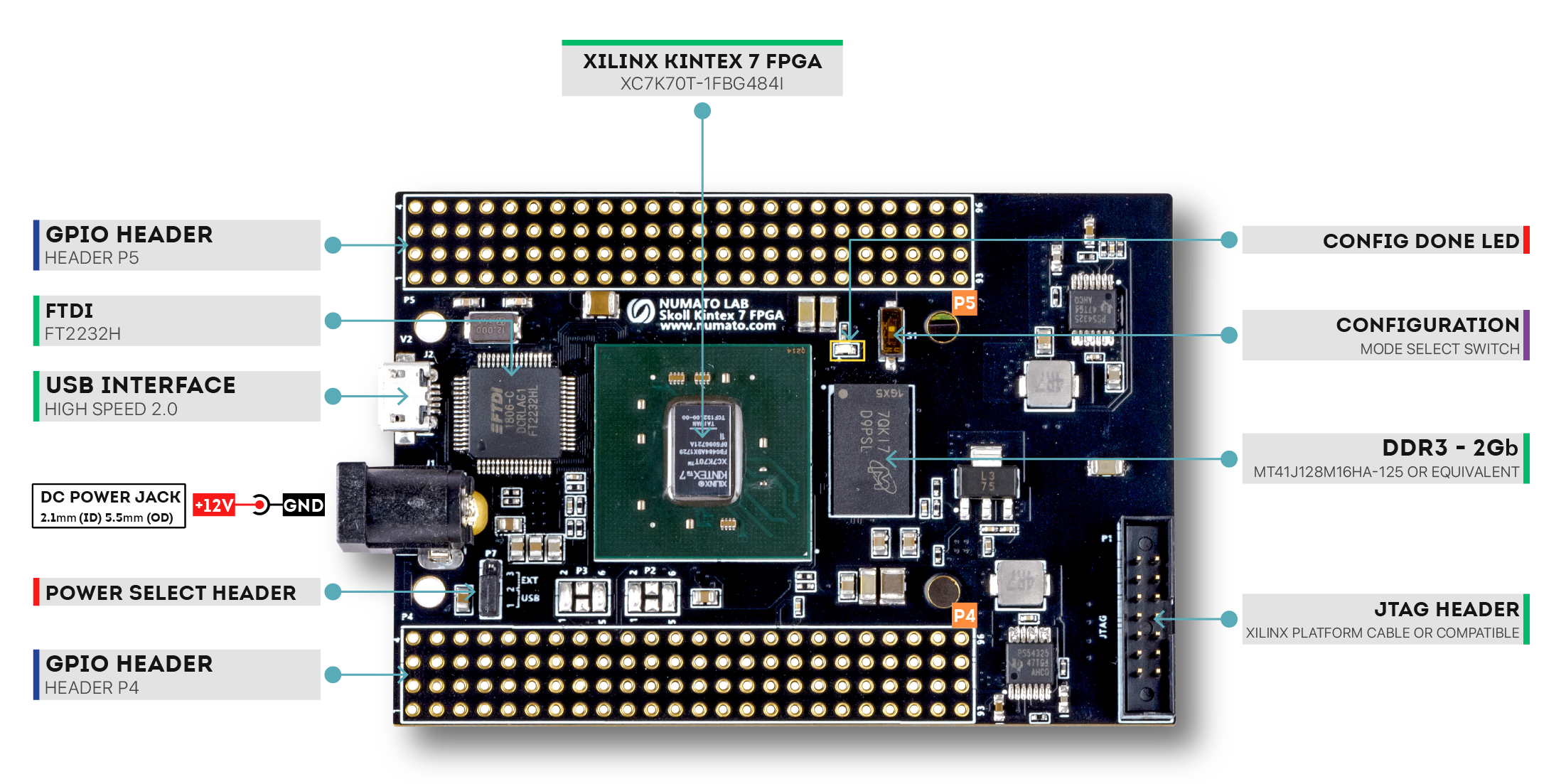

Skoll Kintex-7 FPGA Board - Wiring Diagram

Features

  • FPGA: XC7K70T in FBG484 package, Speed Grade: 1
  • DDR3: 2Gb DDR3 (MT41J128M16HA-125:K)
  • Flash memory: 128 Mb Quad bit SPI flash memory (N25Q128A13EF840E)
  • 100MHz CMOS oscillator
  • High-Speed USB 2.0 interface for On-board flash programming. FT2232H Channel A is dedicated to SPI Flash /JTAG Programming. Channel B can be used for custom applications.
  • Onboard voltage regulators for single power rail operation
  • FPGA configuration via JTAG and USB
  • Maximum IOs for user-defined purposes
  • FPGA – 150 IOs, FT2232H – 8 IOs

Applications

  • Product Prototype Development
  • Accelerated computing integration
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication device development
  • Educational tool for Schools and Universities

Skoll Kintex-7 FPGA Board - Header pinout diagram

General FAQs

Specifications

Attribute Value
Weight 0.12 lbs
Dimensions 5 × 3 × 1 in
Product Dimensions

3.29 x 2.26 x 0.62 in

FPGA

Memory

Primary Clock Frequency

Number Of GPIOs (Max)

Configuration Options

,

Host Interface

Sample Code

Sample Code

NameLanguage/TechnologyIDEHardware Modules Required
16x2 LCD DisplayVerilogXilinx Vivado Saturn IO Breakout Module
Alphanumeric LCD Display Expansion Module
LEDsVerilogXilinx Vivado Saturn IO Breakout Module
LED Expansion Module - 8 LEDs
Push Button SwitchVerilogXilinx VivadoSaturn IO Breakout Module
Push Button Switch Expansion Module
Seven Segment LED DisplayVerilogXilinx Vivado Saturn IO Breakout Module
Seven Segment LED Display Expansion Module
8Bit VGAVerilogXilinx Vivado Saturn IO Breakout Module
VGA Display Expansion Module
CS4344 Stereo AudioVerilogXilinx Vivado Saturn IO Breakout Module
CS4344 Audio Expansion Module
HDMI TransmitterVHDLXilinx Vivado Saturn IO Breakout Module
HDMI Transmitter Expansion Module
