Nereid Kintex 7 PCI Express FPGA Development Board

SKU: FPGA014

Nereid Kintex 7 PCI Express FPGA Development Board

SKU: FPGA014

    Current configuration - Edit
  • pa_fpga: xc7k160t-fbg676

$999.99$2,999.00

Features

  • FPGA: Kintex-7 XC7K160T in -1 FBG676 package (Other devices available at request)
  • 4 lane PCIe Gen2.0 (5GT/s)
  • 4GB DDR3L SODIMM SDRAM M471B5173CB0-YK0 or compatible
  • 128 Mb QSPI flash memory
  • USB to UART serial converter
  • 1 x 100MHz CMOS oscillator, 1x 150MHz LVDS oscillator for users
  • 1 x 150MHz LVDS oscillator for GTP
  • Maximum 174 IOs for user-defined purposes on ANSI/VITA 57.1 Standard compliant FMC HPC connector
  • 4x GTP lanes up to 6.6Gbps on ANSI/VITA 57.1 Standard compliant FMC HPC connector

Applications

  • Parallel Processing and Accelerators
  • Product Prototype Development
  • Development and Testing of custom embedded processors
  • Signal Processing
  • Communication Devices Development
  • Data Acquisition
  • Educational tool for Schools and Universities

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

FPGA

Nereid Kintex 7 PCI Express FPGA Development Board

SKU: FPGA014

    Current configuration -
  • pa_fpga: xc7k160t-fbg676

$999.99$2,999.00

Nereid is an easy to use FPGA Development board featuring Xilinx’s Kintex-7 FPGA with x4 PCIe interface and 4GB DDR3 SDRAM. The board has a Xilinx’s XC7K160T– FBG676 FPGA, and other FPGA configurations are available at request. Nereid features a High Pin Count (HPC) high-speed FMC connector for the purpose of adding additional features to the board by using custom or commercial-off-the-shelf daughter boards.

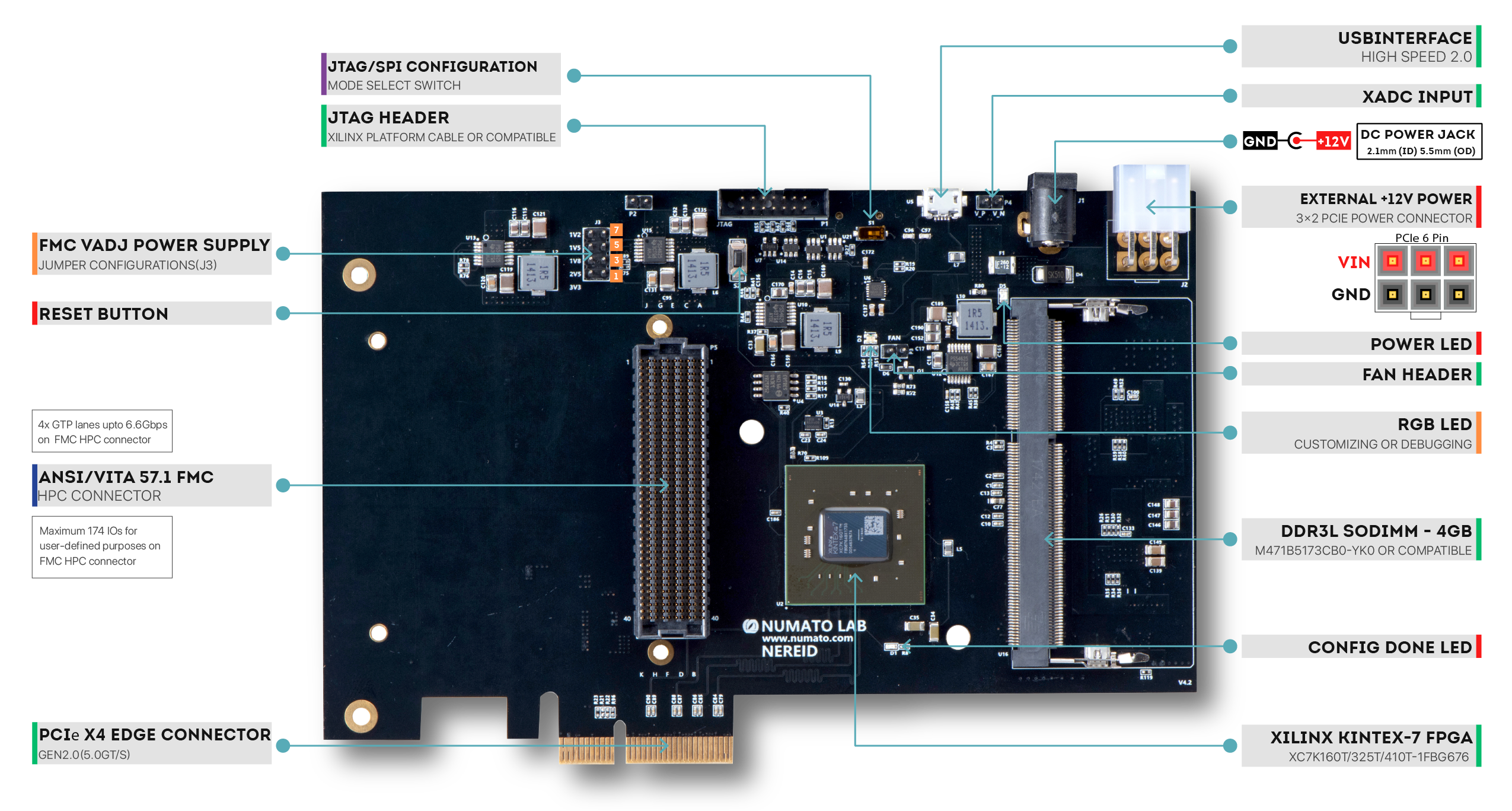

Nereid Kintex 7 FPGA Board - WIring Diagram

Features

  • FPGA: Kintex-7 XC7K160T-1 FBG676 package (Other devices available at request)
  • 4 lane PCIe Gen2.0 (5GT/s) interface at maximum 2GB/s
  • 4GB DDR3L SODIMM SDRAM M471B5173CB0-YK0 1600MHz (included)
  • 128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • USB to UART serial converter
  • 1 x 100MHz CMOS oscillator, 1x 150MHz LVDS oscillator for users
  • 1 x 150MHz LVDS oscillator for GTP
  • ANSI/VITA 57.1 Standard compliant FMC HPC connector
  • Maximum 174 IOs for user-defined purposes on FMC connector
  • Onboard voltage regulators for single power rail operation
  • Can be powered from PCIe slot or from an external power supply
  • JTAG header for programming and debugging
  • All differential pairs are length matched on the board
  • 1 RGB LED for custom use

Applications

  • Parallel processing and accelerators
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication device development
  • Data Acquisition
  • Educational tool for Schools and Universities

* Fan available only on larger FPGA variants.

Product FAQs

General FAQs

Specifications

Attribute Value
Weight 1.5 lbs
Dimensions 12 × 9 × 2 in
FPGA

, ,

Memory

Number Of Clock Sources

3

Communication

x4 PCIe, USB-RS232

Configuration Options

Primary Clock Frequency

Number Of GPIOs (Max)

Non-Volatile Configuration Storage

N25Q128A13ESE40E

Total Number of GTX

4

Differential Pairs Length Matched

Yes

Sample Code

Sample Code

Nereid Microblaze Sample ProjectDownload
Nereid DDR3 Test ProjectDownload
Nereid PCI-Express x4 PIO (Programmed IO) Test ProjectDownload
Nereid PCI-Express x4 Bus Mastering DMA Test


Download
