Prodigy EG Series – 16/32 Channel USB/RTU/TCP Modbus GPIO Module

$199.95$249.95

Prodigy EG16/EG32 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. The USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Support of industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP.

Features

  • 16/32 3.3V GPIOs
  • 8/14 Analog Inputs(Multiplexed with GPIO)
  • USB CDC (Serial) interface that works with Windows, Linux, Mac and more. No USB knowledge required!
  • Compatible with most automation software in the market that supports Modbus RTU/TCP
  • Features such as GPIO Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc..
  • Write your own script or software with the help of a large number of sample code provided in various languages
  • Detachable screw terminals for easy wiring and replacement
  • +12V Power Supply (included)
Clear
SKU: N/A Category:

Description

Prodigy EG16/EG32 is a Digital Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32 GPIO(3.3V) multiplexed with 8/14(Max) Analog Inputs that support it. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. EG16/EG32 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. EG16/EG32 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. EG16/EG32 supports several features such as GPIO Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

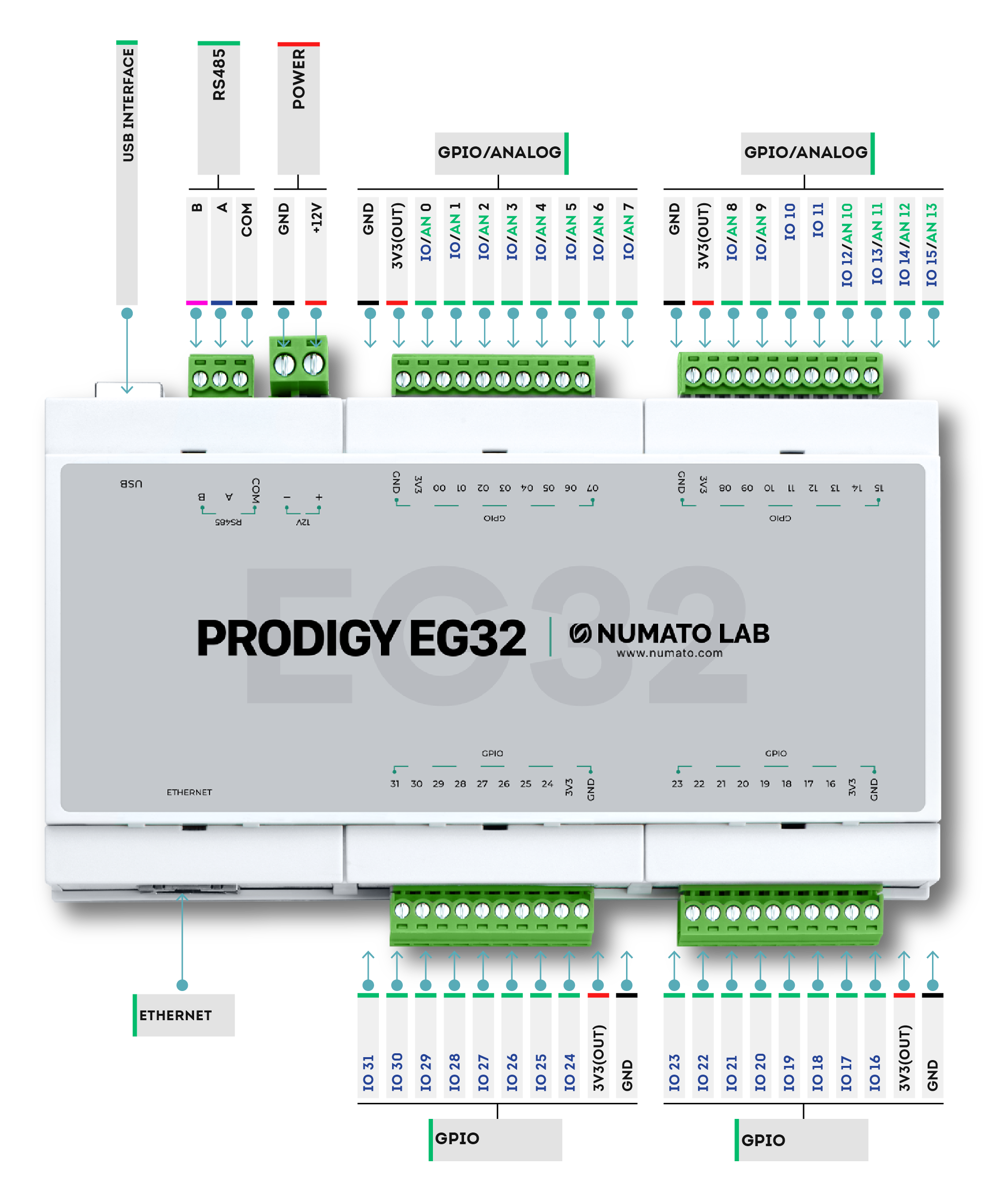

EG16 GPIO Diagram                                                       EG32 GPIO Diagram

Additional information

Weight 3 lbs
Dimensions 11.00 x 8.00 x 3.00 in
Number Of GPIOs (Max)

16, 32

IO Voltage Max

3.3V

Analog Inputs(Max)

8, 14

Analog Input Resolution

12 Bits

Warranty

Host Interface

Ethernet, USB 2.0 CDC

Package Contents

Prodigy EG16/EG32- RTU/TCP x1 | USB A to B Cable x1 | LAN Cable x1(TCP) | 12V Power Supply x1

Downloads

User Manual
Driver for Prodigy
View/Download 3D Model (STEP)-EG32
View/Download 3D Model (STEP)-EG16
EG16 Physical Dimensions2
EG32 Physical Dimensions2
