Prodigy ZRX Series – 16/32/64 Channel USB/RTU/TCP Modbus Relay Module With Analog and Digital Inputs

SKU:

Prodigy ZRX Series – 16/32/64 Channel USB/RTU/TCP Modbus Relay Module With Analog and Digital Inputs

SKU:

    Current configuration - Edit
  • pa_number-of-relays: none selected

$399.95$549.95

Features

  • 16/32/64 SPST Relays rated up to 250V/5A each
  • 8 IOs that supports Digital Input, Digital Output, and 6 Analog Input features
  • USB CDC (Serial) interface that works with Windows, Linux, Mac, and more. No USB knowledge required!
  • Compatible with most automation software in the market that supports Modbus RTU/TCP
  • Features such as Relay Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc..

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Number Of Relays

Prodigy ZRX Series – 16/32/64 Channel USB/RTU/TCP Modbus Relay Module With Analog and Digital Inputs

SKU:

    Current configuration -
  • pa_number-of-relays: none selected

$399.95$549.95

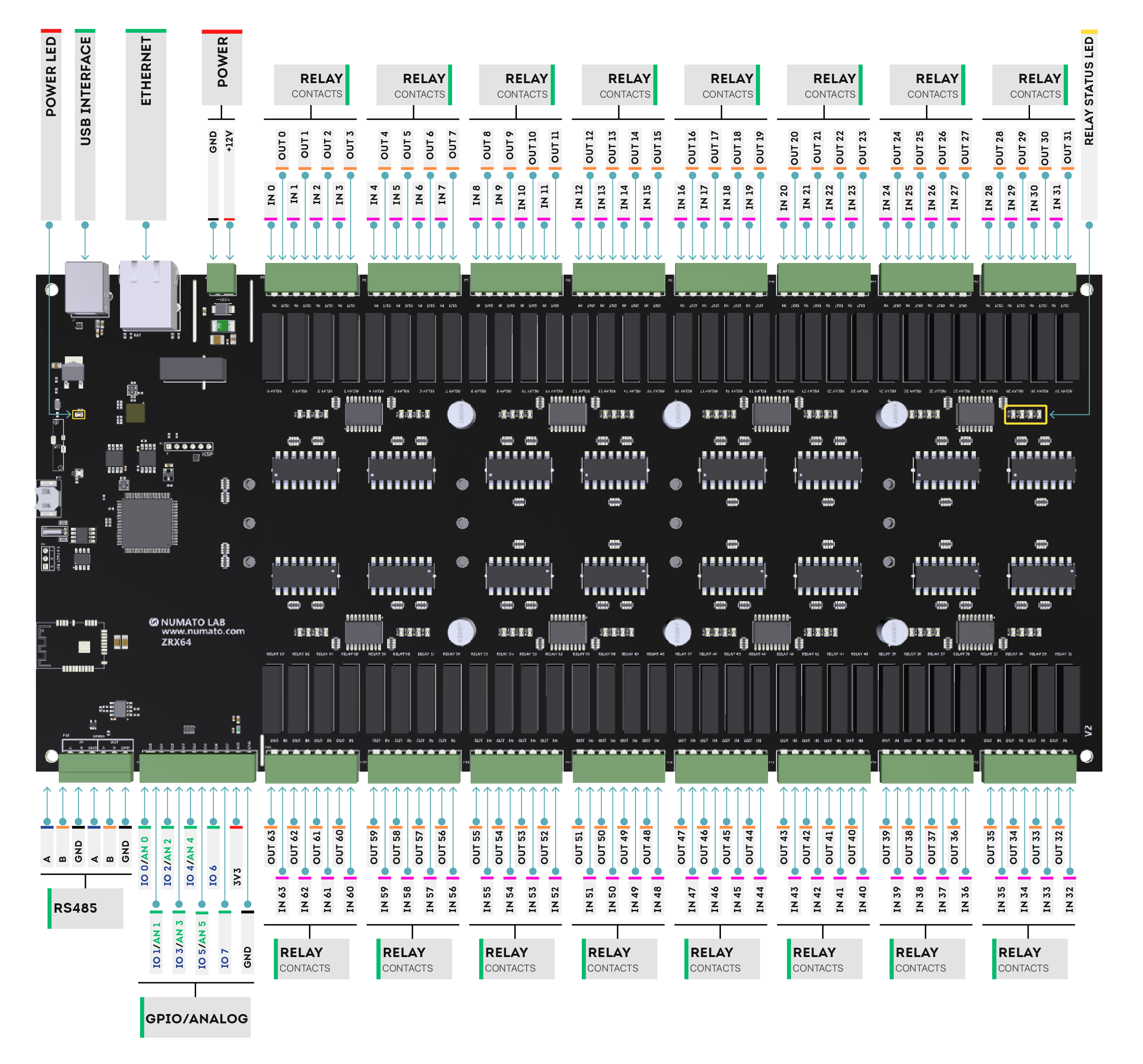

Prodigy ZRX16/ZRX32/ZRX64 is an Input/Output module that supports the Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32/64 Relays (Dry Contacts) and 8 Additional IOs that support Digital Input, Digital Output and 6 Analog Input functions. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. ZRX16/ZRX32/ZRX64 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. ZRX16/ZRX32/ZRX64 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. ZRX16/ZRX32/ZRX64 supports several features such as Relay Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

Prodigy ZGX Series – 16 Channel USB/RTU/TCP Modbus GPIO Module                                                       Prodigy ZGX Series – 32 Channel USB/RTU/TCP Modbus GPIO Module                                                       Prodigy ZGX Series – 64 Channel USB/RTU/TCP Modbus GPIO Module

General FAQs

Specifications

Attribute Value
Weight 3 lbs
Dimensions N/A
Number Of Relays

, ,

Relay Type

Max Relay Current Rating

Number Of GPIOs (Max)

IO Voltage Max

Analog Inputs(Max)

Analog Input Resolution

Host Interface

,

Warranty

Package Contents

Prodigy ZRX16/ZRX32/ZRX64 – RTU/TCP x1, USB A to B Cable x1, LAN Cable x1(TCP), 12V Power Supply x1
