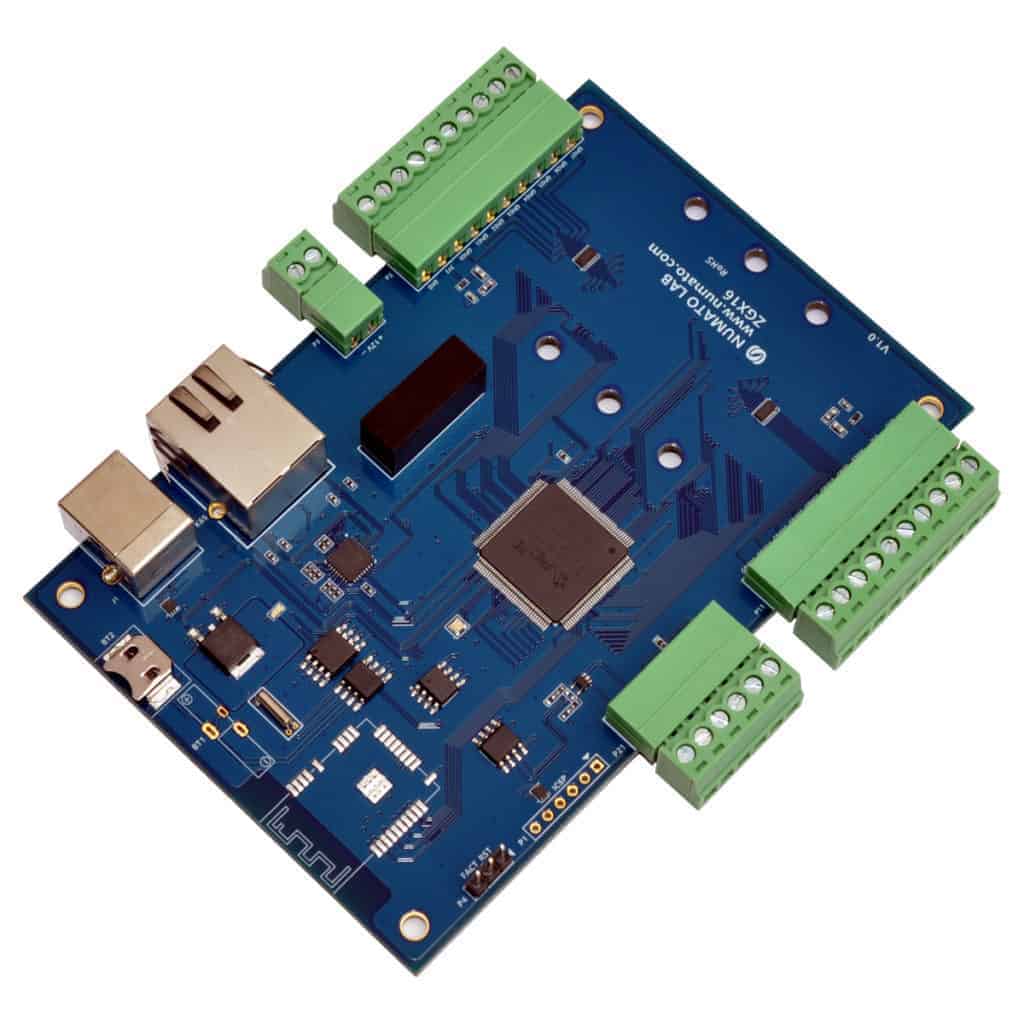

Introduction

Numato Lab’s ZGX16/32/64 and EG16/32 Channel DIN Rail compatible Modbus RTU/TCP GPIO Module with Digital IO and Analog Inputs offers great flexibility at lower cost.  Ease of use and wider operating system compatibility are the primary goals behind this product’s design. Built in USB to serial conversion allows the module to be used without any USB specific knowledge. Industry standard Modbus protocol support allows this product to be used with most automation software that supports Modbus. For power users, this module can be controlled by writing programs in various programming languages of their choice.

Features:

  • Industry standard Modbus protocol support
  • DIN Rail compatible
  • 16/32/64 TTL (3.3V) compatible Digital IOs for ZGX series and 16/32 TTL (3.3V) compatible Digital IOs for EG series devices
  • 8/14/32 analog inputs for ZGX series and 8/14 analog inputs for EG series boards with 12-bit resolution (multiplexed with Digital IOs)
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required
  • Fully isolated design with opto-couplers and built-in DC-DC converter
  • 12V external power supply (included)
  • Can be controlled by using industry standard automation applications or custom applications

Some of the possible uses of this module include

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

This product is compatible with the following operating systems:

  • Windows XP and later versions (Windows 7, 8/8.1, 10 and future versions)
  • Windows 7 Embedded and later
  • Linux
  • Mac OS X
  • Android
  • Or any other operating system that supports USB CDC devices.

And these are some of the languages that can be used for programming:

  • C/C++
  • Visual Basic (VB6, VB2008, VB2010 express and other editions)
  • Visual Basic for Applications (Microsoft Office VBA)
  • Perl
  • Python
  • JAVA
  • Android
  • JavaScript (Node.js)
  • LabVIEW
  • And many more…

ZGX series has 16/32/64 on board General purpose I/Os multiplexed with 8/14/32 Analog Inputs and EG series has 16/32 onboard General purpose I/Os multiplexed with 8/14 Analog Inputs, each connected to individual screw terminals and associated drivers capable of controlling a variety of devices Sensors, LEDs, LCD displays etc… The module communicates with host PC over full speed USB link, RS485, and Ethernet interface. When connected to PC using USB/RS485, the module will appear as a serial port in Windows Device Manager (or a serial tty device in Linux and Mac).

How to Use Prodigy GPIO Modules

Using this product is very easy,  thanks to supporting for industry standard Modbus protocol, the RTU and the TCP/IP Network interface that allows the device to be used with most readily available Data Communication Test Software like QModMaster.  This document has more information about using this device with the following software. But in no way limited to this software though.

  • Windows
    • QModMaster
    • Radzio! Modbus Master Simulator
  • Linux
    • Coming soon
  • Mac OS X

    • Coming soon

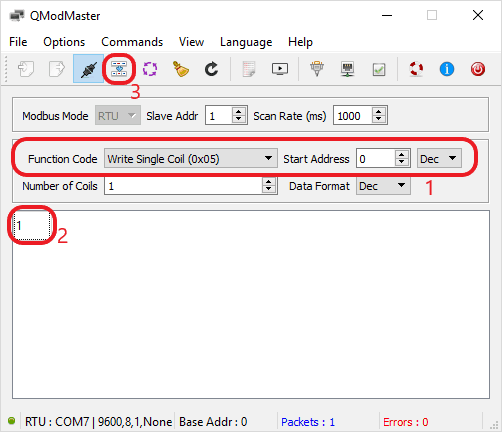

Using this product with RTU involves the following simple steps.

  1. Connect the device using a USB A to B cable or a USB to RS485 converter to the host system
  2. Install driver if applicable
  3. Open the COM port corresponding to the device using software that supports Modbus
  4. Read/Write Coils and Registers
  5. Optionally write a script or custom application to automate your task

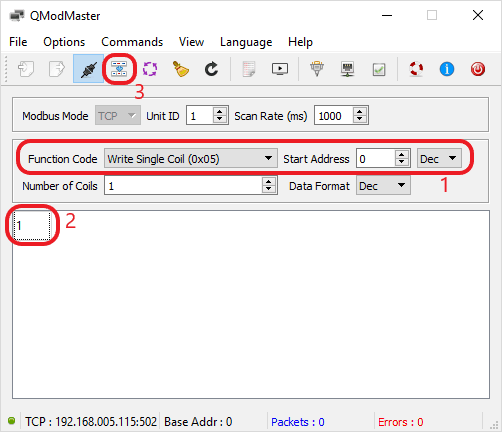

Using this product with TCP/IP Network interface involves the following steps.

  1. Connect the device using a CAT 5e Ethernet Cable(Straight through cable) to the host system
  2. Connect to the IP corresponding to the device using software that supports Modbus TCP
  3. Read/Write Coils and Registers
  4. Optionally write a script or custom application to automate your task

All aspects of the above steps are covered in the following sections including step by step demonstration.

Components/Tools Required

Along with your Prodigy ZGXxx/EGxx device, you will need the items in the list below for easy and fast installation.
1. USB A to B cable (Included)For USB Interface.
2. CAT 5e Ethernet Cable(Straight through cable)For Ethernet Interface.
3. USB to RS-485 ConverterFor RS485 Interface.
4. 12V Power Supply (Included).
5. Medium size Philips screwdriver.

Connection Details

IMPORTANT! Please exercise utmost caution while working with electrical mains or other high voltages. Failure to comply with safety regulations may result in injury and or death.

The picture above shows a basic connection diagram that can be used in most of the situations. The connection diagram is the same for both AC and DC loads. Please make sure to use a freewheeling diode or snubber circuit if the load is inductive. More details about using inductive loads are available elsewhere in this document. Use a USB A to B cable to connect the unit to a PC. It is important to make sure that the wires used to connect loads are sufficiently rated to handle expected load current. Exercise caution while working with high voltages. Short circuits can cause damage to the module and the PC. The following sections identify individual connections in detail.

USB Interface

The onboard full speed USB controller helps a PC/Linux/computer to communicate and control this module seamlessly. Use a USB A to B cable (Included) to connect the unit to a PC. The device can be connected directly to the host PC or connected through a compatible USB hub. For high-performance system integration, it is recommended to connect the device directly to one of the root ports.

RS485 Interface

A USB to RS485 converter helps a PC/Linux/computer to communicate and control this module seamlessly. Use a USB to RS485 converter to connect the unit to a PC. The device can be connected directly to the host PC or connected through a compatible USB hub. For high-performance system integration, it is recommended to connect the device directly to one of the root ports.

Ethernet Interface

32 Channel Ethernet GPIO Module Ethernet PortThe onboard Ethernet port supports Ethernet 10 Mbps transmission speed that helps a computer to communicate and control this module easily. There are two basic network configurations for this board/can be used in two ways.



  1. Direct connection to Local Area Network(LAN) via common straight-through Ethernet cable.
    Eg: Connecting the module to a switch in a network.
  2. Direct connection to a PC through a cross over Ethernet cable. Eg: Connecting the module directly to the PC. Some PC/Laptops can detect and adapt to the cable type. In such situations, a straight through cable also can be used.

GPIO/Analog Inputs

Prodigy ZGXxx device has 16/32/64 General Purpose IO pins and Prodigy EGxx device has 16/32 General Purpose IO pins that can be used for various custom applications. ZGXxx has 8/14/32 Analog Inputs and EGxx has 8/14 Analog Inputs depending on the device. All IO pins support 3.3V TTL signals and the ADC input range is 0 to +3.3V. The ADC can acquire the analog signal at the resolution of 12 bits per sample. It is recommended to use a series resistor with the GPIO/ADC pins when interfacing with other circuits. In output mode, GPIOs can source up to 20mA. So no additional circuitry is needed to drive regular LEDs. A 470 Ohms series resistor is recommended for current limiting when connecting LED to a GPIO.

In contrast to GPIOs, Analog inputs can read voltages at any level between 0 to 3.3V. It is recommended to use a series resistor to protect the input from stray voltages and spikes. The internal Analog to Digital converter supports 12 bits resolution which is adequate for most applications. The table below summarizes the GPIO and Analog to Digital Converter input positions of ZGX16/EG16 on the screw terminals.

GPIOADC
GPIO0ADC0
GPIO1ADC1
GPIO2ADC2
GPIO3ADC3
GPIO4ADC4
GPIO5ADC5
GPIO6ADC6
GPIO7ADC7
GPIO8-
--
--
GPIO14-
GPIO15-

The table below summarizes the GPIO and Analog to Digital Converter input positions of ZGX32/EG32 on the screw terminals.

GPIOADC
GPIO0ADC0
GPIO1ADC1
GPIO2ADC2
GPIO3ADC3
GPIO4ADC4
GPIO5ADC5
GPIO6ADC6
GPIO7ADC7
GPIO8ADC8
GPIO9ADC9
GPIO10-
GPIO11-
GPIO12ADC10
GPIO13ADC11
GPIO14ADC12
GPIO15ADC13
GPIO16-
GPIO17-
--
--
--
GPIO29-
GPIO30-
GPIO31-

And the table below summarizes the GPIO and Analog to Digital Converter input positions of ZGX64 on the screw terminals.

GPIOADC
GPIO0ADC0
GPIO1ADC1
GPIO2ADC2
GPIO3ADC3
GPIO4ADC4
GPIO5ADC5
GPIO6ADC6
GPIO7ADC7
GPIO8ADC8
GPIO9ADC9
GPIO10-
GPIO11-
GPIO12ADC10
GPIO13ADC11
GPIO14ADC12
GPIO15ADC13
GPIO16ADC14
GPIO17ADC15
GPIO18ADC16
GPIO19ADC17
GPIO20ADC18
GPIO21ADC19
GPIO22ADC20
GPIO23ADC21
GPIO24ADC22
GPIO25ADC23
GPIO26ADC24
GPIO27-
--
--
GPIO32ADC25
GPIO33ADC26
GPIO34ADC27
GPIO35ADC28
GPIO36ADC29
GPIO37ADC30
GPIO38ADC31
GPIO39ADC32
GPIO40-
--
--
GPIO60-
GPIO61-
GPIO62-
GPIO63-



DC Power Supply

This product requires an external 12V power supply to function. The power supply unit required is included with the product. Connect the power supply to the connector on the product marked as +12V power. This product uses a single power supply for the digital circuitry and the GPIO coils. An internal isolated DC-DC converter and a set of opto-couplers ensure galvanic isolation between the digital circuitry and the GPIO coil driver circuitry.

Driver Installation

Installing Numato Lab CDC Driver - Windows Desktop and Server Editions

The driver package for Numato Lab’s Prodigy models can be downloaded from the product page at https://numato.com. To install the driver, unzip the contents of the downloaded driver package to a folder. Attach the USB cable to the PC and when asked by Windows device installation wizard, point to the folder where driver files are present. When driver installation is complete, the module should appear in Windows Device Manager as a serial port. The picture below shows a Prodigy ZGX64 visible in Windows Device Manager. For other ZGX/EG devices, the name will be different but how the device is displayed and used is exactly the same.

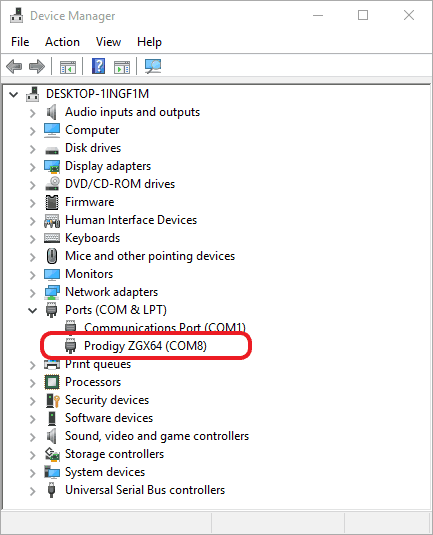

Device Manager

Note down the name of the serial port (COM1, COM2 etc..). This information is required to control the module from the PC.

You may notice that the driver package does not come with a .sys or .exe file as most driver packages do and are expected to be that way. The driver binary necessary in this case is shipped with all copies of Windows Desktop/Server editions and gets installed automatically while Windows is installed for the first time. The .inf and .cat files present in the driver package downloaded from http://numato.com merely associate this pre-existing driver with the attached Numato Lab device.

The following video demonstrates how to install the driver on Windows 10.

Installing on Windows Embedded Editions

Windows Embedded editions do not install the infrastructure necessary for USB CDC by default in favor of a smaller footprint. This will cause the driver install to fail unless the necessary files are manually installed prior to installing the driver. Please follow the steps below to install the prerequisites and driver correctly. These steps are tested on Windows 7 Embedded Edition. The installation procedure may vary for other versions of Windows Embedded. Please contact Microsoft for more information.

  1. Locate winemb-inf-mdmcpq.cab on Win 7 Embedded DVD/ISO image
  2. Copy winemb-inf-mdmcpq.cab to a folder Ex: C:Temp
  3. Run command DISM.exe /online /Add-Package /PackagePath:C:Temp
  4. Wait for Windows to restart (Restart machine manually if DISM does not restart the machine automatically)
  5. After the reboot is complete, plug the device to a USB port and install driver normally (Driver is available for download at the product page)
For more information or for additional help on Windows Embedded editions, please contact Microsoft or your Windows Embedded reseller

Installing on Linux

To use any device that uses USB CDC protocol with Linux, USB CDC driver needs to be compiled into the kernel. Fortunately, most Linux distributions (Ubuntu, Redhat, Debian etc..) has this driver pre-installed. The chances of you requiring to rebuild the kernel to include the USB CDC driver is very slim. When connected to a Linux machine, this product should appear as a serial port under /dev directory. Usually, the name of the device will be ttyACMx or similar. The name may be different depending on the Linux distribution you have. The image below shows the result of ls /dev command on a Linux Mint system with a USB GPIO/Relay device attached.

Device Listing on Linux

In this particular case, the device shows up as ttyACM0 (highlighted in orange color) but it could be ttyACM1 or ttyACM2  etc… depending on the specific system and other connected devices. Once the device is visible under /dev directory, it can be treated just like any other serial device. Commands can be sent to the device using any mechanism that is valid for regular serial ports such as screen command or Serial Terminal Emulation applications. If there are more than one devices connected to the same host computer, each device will be displayed as separate serial devices with unique names. These separate serial devices can be used to control individual devices attached.

Installing on Mac OSX

Mac OSX is usually shipped with USB CDC driver pre-installed. When connected to a Mac computer, this product should appear as a serial port under /dev directory. Usually, the name of the device will be tty.usbserialportx or tty.usbmodemx or similar. The name may be different depending on the Mac OSX version you have. The image below shows the result of ls /dev/*usb* command on a Mac OSX Yosemite system with a USB GPIO/Relay device attached.Listing USB GPIO Devices on Mac OSX

In this particular case, the device shows up as tty.usbmodem141141 (highlighted on orange color) but it could be any name starting tty.usbmodem  or even a completely different name depending on the exact version of operating system and other connected devices. Once the device is visible under /dev directory, it can be treated just like any other serial device. If there are more than one devices connected to the same host computer, each device will be displayed as separate serial devices with unique names. These separate serial devices can be used to control individual devices attached.

The Modbus Interface

Prodigy ZGX/EG series Modbus GPIO Modules use Modbus protocol for its primary interface. Modbus is a simple yet powerful industry standard protocol that was originally developed by Modicon systems for transmitting/receiving information over serial links. Prodigy devices use USB/RS485 and TCP/IP as physical interfaces. Since the device uses the USB interface, it represents itself to the operating system as a classic serial device which makes Modbus a very suitable protocol for this product. This also completely hides the complexities of using USB protocol and thus making Prodigy devices as easy to use as a normal serial device.

When working with Modbus, there are two important aspects of the protocol that the user may need to understand. 1) How to send and receive Modbus packets 2) The Modbus Register Map. One need to learn details on building, sending and receiving Modbus packets only if he/she is engaged in low-level library or application development (and thus not covered in this document). For an end user who wishes to use Prodigy devices with an off the shelf software, understanding of Modbus register map would be sufficient.

Modbus Register Map

Coils

Coils are a single bit data type that represents the output state of a single bit entity such as Relay or a GPO. Please note that Coils are always used to represent an output quantity. Writing to a coil will update the output quantity with the value written. Reading a coil will return the data that was previously written. For example, writing “1” to a coil that represents a GPIO will turn ON the GPO and vice versa. Reading from a Coil that represents a turned OFF GPO will return value “0”. The Address in the table below shows the position of each coil within the Modbus register map. There are set of 16/32/64 coils corresponding to the GPIOs on ZGX16/EG16/ZGX32/EG32/ZGX64. The data address of the Coils can be used to access the corresponding GPO.

No.NameCoil NumberData AddressSizeComments
ZGXxx/EGxx GPOs
1GPO0101GPO0 ON/OFF
2GPO1211GPO1 ON/OFF
3GPO2321GPO2 ON/OFF
4GPO3431GPO3 ON/OFF
5GPO4541GPO4 ON/OFF
6GPO5651GPO5 ON/OFF
7GPO6761GPO6 ON/OFF
8GPO7871GPO7 ON/OFF
9GPO8981GPO8 ON/OFF
10GPO91091GPO9 ON/OFF
11GPO1011101GPO10 ON/OFF
------
------
15GPO1415141GPO14 ON/OFF
16GPO1516151GPO15 ON/OFF
ZGX32/64/EG32 GPOs Continued
17GPO1617161GPO16 ON/OFF
18GPO1718171GPO17 ON/OFF
19GPO1819181GPO18/ ON/OFF
----- -
------
30GPO2930291GPO29 ON/OFF
31GPO3031301GPO30 ON/OFF
32GPO3132311GPO31 ON/OFF
ZGX64 GPOs Continued
33GPO3233321GPO32 ON/OFF
34GPO3334331GPO33 ON/OFF
35GPO3435341GPO34 ON/OFF
------
------
------
61GPO6061601GPO60 ON/OFF
62GPO6162611GPO61 ON/OFF
63GPO6263621GPO62 ON/OFF
64GPO6364631GPO63 ON/OFF

Discrete Inputs

Discrete Inputs are a single bit data type that represents the input state of a single bit entity such as a GPI. For example, by reading the Input bit corresponding to a GPI, the user can get the state of the logic (HIGH/LOW) externally applied to the GPI.

No.NameInput NumberData AddressSizeComments
ZGXxx/EGxx GPIs
1GPI01000101GPI0 Status High/Low
2GPI11000211GPI1 Status High/Low
3GPI21000321GPI2 Status High/Low
4GPI31000431GPI3 Status High/Low
5GPI41000541GPI4 Status High/Low
------
------
------
14GPI1310014131GPI13 Status High/Low
15GPI1410015141GPI14 Status High/Low
16GPI1510016151GPI15 Status High/Low
ZGX32/64/EG32 GPIs Continued
17GPI1610017161GPI16 Status High/Low
18GPI1710018171GPI17 Status High/Low
19GPI1810019181GPI18 Status High/Low
------
------
------
30GPI2910030291GPI29 Status High/Low
31GPI3010031301GPI30 Status High/Low
32GPI3110032311GPI31 Status High/Low
ZGX64 GPIs Continued
33GPI3210033321GPI32 Status High/Low
34GPI3310034331GPI33 Status High/Low
35GPI3410035341GPI34 Status High/Low
------
------
------
62GPI6110062611GPI61 Status High/Low
63GPI6210063621GPI62 Status High/Low
64GPI6310064631GPI63 Status High/Low

Holding Registers

No.NameInput NumberData AddressSize                        AccessComments
GPIO Related Registers
1GPIO Timer Registers4026526448 for ZGX16/EG16
96 for ZGX32/EG32
128 for ZGX64
WR3*16= 24 GPIO timer registers for 16 GPIOs
3*32 = 96 GPIO timer registers for 32 GPIOs
3*64 = 192 GPIO timer registers for 64 GPIOs
2GPO Pullup Value Registers405215201 for ZGX16/EG16
2 for ZGX32/EG32
4 for ZGX64
WRPull-up value register for GPOs
3GPO Pull down Value Registers405255241 for ZGX16/EG16
2 for ZGX32/EG32
4 for ZGX64
WRPull-down value register for GPOs
4GPO Open drain Value Registers405295281 for ZGX16/EG32
2 for ZGX32/EG32
4 for ZGX64
WROpen drain value register for GPOs
5GPO Fail Safe Value Registers405335322 for ZGX16/EG16
4 for ZGX32/EG32
8 for ZGX64
WRFail safe value register for GPOs
6GPO Power ON Value Registers405415402 for ZGX16/EG16
4 for ZGX32/EG32
8 for ZGX64
WRPower ON value register for GPOs
Watchdog Configuration Area
7Watchdog Holding Registers406136123WRWatchdog Config, timer, timeout value registers
Device Configuration Area
8User ID4805180502WRTwo registers (4 bytes) for storing custom user data.
9USB Configuration Area4810181003WRSlave ID, Baud rate, protocol config value registers for USB Interface
10RS485 Configuration Area4816581642WRSlave ID, Baud rate value registers for RS485 Interface
11Ethernet Configuration Area48229822823WR & ROHost name, IP address, MAC etc... for Ethernet Interface

Input Registers

No.NameInput NumberData AddressSizeAccessComments
Device Info Area
1Vendor ID3800180001RO
2Product ID3800280011RO
3OEM Vendor ID3800380021RO
4OEM Product ID3800480031RO
5HW major version and Minor version3800580041ROHardware revision information.
6Firmware major, minor version3800680051ROFirmware revision information
7Register Map major, minor version3800980081ROMajor and Minor versions for Modbus register map
★ RO – Read Only ★ WO – Write Only ★ WR – Write/Read

Register Formats

Let’s look at how to write values to each register.

Holding registers and its format are explained in the table below:-

No.RegisterRegister FormatComments
GPIO Timer Registers
1GPIO Timer Value Registers- 2*16 bit Registers for 32 bit timer value for GPIOs.Register 1 - Lower Bytes of Timer value.
Default Value - 0
Minimum Value to be written - 10h
Register 2 - Higher Bytes of Timer Value.
Default Value - 0
2GPIO Timer Config Register- 16 bit register

- Bit 0 - Enable Timer

- Bit 1:2 - Timer Type

- Bit 3:4 - Timer Action
Bit 0 :-
0 - Stops Timer
1 - Starts Timer
Default Value - 0
------------------------
Bit 1:2 :-
00 - Single shot Timer
01 - Periodic Timer
Default Value - 0
------------------------
Bit3:4 :-
00 - GPIO OFF
01 - GPIO ON
10 - GPIO Toggle
11 - Reserved
Default Value - 0
3GPO Pull-Up Value Registers- 16 bit Register for 16 GPOs
- Each bit for each GPO
Each bit to enable/Disable pull-up for the GPOs.
0 - Pull-Up Disabled
1 - Pull- Up Enabled
Default Value - 0
4GPO Pull-down Value Registers- 16 bit Register for 16 GPOs
- Each bit for each GPO
Each bit to enable/Disable pull-down for the GPOs.
0 - Pull-Down Disabled
1 - Pull- Down Enabled
Default Value - 0
5GPO Open Drain Value Register- 16 bit Register for 16 GPOs
- Each bit for each GPO
Each bit to enable/Disable open drain for the GPOs.
0 - Open drain Disabled
1 - Open drain Enabled
Default Value - 0
6GPO Fail Safe Value Registers- 16 bit Register for 8 GPOs
- Bit 0:7 - Each bit for each GPO
- Bit 8:15 - Each bit for Input/Output mode of GPOs
Bit 0:7 :-
Each bit represents GPO status.
0 - GPO OFF
1 - GPO ON
Default Value - 0
------------------------
Bit 8:15 :-
Each bit represents the Input/Output mode of corresponding GPOs
0 - Output
1 - Input
Default Value - 0
7GPO Power ON Value Registers- 16 bit Register for 8 GPOs
- Bit 0:7 - Each bit for each GPO
- Bit 8:15 - Each bit for Input/Output mode of GPOs
Bit 0:7 :-
Each bit represents GPO status.
0 - GPO OFF
1 - GPO ON
Default Value - 0
------------------------
Bit 8:15 :-
Each bit represents the Input/Output mode of corresponding GPOs
0 - Output
1 - Input
Default Value - 0
Watchdog Holding Registers
8Watchdog config Register -16 bit register to Enable/Disable watchdog timer
- Bit 0 - ON Bit
- Bit 1 - Mode Select Bit
- Bit 2:15 - Reserved
Bit 0 :-
0 - Disable Watchdog Timer
1 - Enable Watchdog Timer
Default Value - 0
------------------------
Bit 1 :-
0 - Default Mode
1 - Manual Mode(Reserved)
Default Value - 0
------------------------
Bit 2:15 :-
XX - Reserved
Default Value - 0
9Watchdog timer Value Register - 16 bit Register for watchdog timer value.Fail safe occurs when this value reaches the timeout value.
Default Value - 0
10Watchdog timeout Value - 16 bit Register for watchdog timeout value. Represents at what time the fail safe should occur.
Default Value - 0
Common Configuration Holding Registers
11User ID Holding Register- 2*16 bit registers for User ID
4 bytes for User ID.
Default Value - 0
USB Configuration Holding Registers
12Slave ID- 16 bit register for USB Slave IDDefault Value - 1
13Baud Rate- 16 bit register for USB baud rateBaud rate can be 9600, 19200, 38400, 57600, 115200
Default Value - 57600
14Protocol Configuration- 16 bit register for swap between protocols(RTU,JSON,XML)
- Bit 0:2 - Config Bit
Bit 0 :-
0 - Disable RTU
1 - Enable RTU
Default Value - 1
Bit 1 :-
0 - Disable JSON
1 - Enable JSON
Default Value - 0
------------------------
Bit 2 :-
0 - Disable XML
1 - Enable XML
Default Value - 0
RS485 Configuration Holding Registers
15Slave ID- 16 bit register for RS485 Slave IDDefault Value - 1
16Baud Rate- 16 bit register for RS485 baud rateBaud rates - Values
----------- ---------
9600 - 10 or 0x000A
19200 - 11 or 0x000B
38400 - 12 or 0x000C
57600 - 13 or 0x000D
115200 - 14 or 0x000E
Default Value - 10 or 0x000A
Ethernet Configuration Holding Registers
17Host Name- 8*16 bit registers for host nameHost name length is limited to 16 characters
18IP address- 2*16 bit registers for IP AddressIP V4 properties of Ethernet interface.
19IP Mask- 2*16 bit registers for IP Mask
20Default Gateway- 2*16 bit registers for Default Gateway
21Primary DNS- 2*16 bit registers for Primary DNS
22Secondary DNS- 2*16 bit registers for Secondary DNS
23DHCP Enable-16 bit register for DHCP
Enable
- Bit 0 - Enable Bit
- If enabled, Get IP address automatically, or static IP configuration.
- Disable DHCP to write IPV4 properties.
Bit 0 :-
0 - Disable DHCP
1 - Enable DHCP
Default Value - 1
------------------------
Bit 1:15 :-
X - Reserved
Default Value - 0
24TCP Port- 16 bit registers for TCP PortTCP port for Ethernet connection
Default Value - 502
25MAC Address- 3*16 bit Read Only registers for MAC AddressMAC address of Ethernet interface
★ IP V4 properties of the Ethernet interface will be writable only if the DHCP is disabled.

Similarly, input registers’ format is as follows:-

No.RegisterRegister FormatComments
1Vendor ID- 16 bit Register for Vendor IDDefault Value - 0x2A19
2Product ID- 16 bit Register for Product IDZGX64 - 0x2601 or 0x2604
ZGX32 - 0x2602 or 0x2605
ZGX16 - 0x2603 or 0x2606
EG32   - 0x2101 or 0x2103
EG16   - 0x2102 or 0x2104
Default Value - Depends on the Product
3OEM Vendor ID- 16 bit register for OEM Vendor IDDefault Value - 0
4OEM Product ID- 16 bit register for OEM Product IDDefault Value - 0
5HW major version and Minor version- 16 bit register for Hardware major and minor versionHardware revision information.
Default Value - 1
6Firmware major, minor version- 16 bit register for Firmware major and minor versionFirmware revision information.
Default Value - 1
7Firmware bugfix/patch level- 16 bit register for Firmware bugfix/patch levelFirmware bugfix/patch level
Default Value - 0
8PNV data format major, minor version- 16 bit register for PNV data format major, minor versionPNV data format major, minor version
Default Value - 1
9Register Map major, minor version- 16 bit register for Register map major and minor versionMajor and Minor versions for Modbus register map
Default Value - 1

Controlling Prodigy ZGXxx/EGxx using off the shelf software

Prodigy ZGX/EG devices’ support for Modbus protocol makes it easier to use with virtually any software that supports Modbus. This section of the document demonstrates how to use Prodigy ZGX/EG devices with some of the software that is available in the market.

Windows

qModMaster

QModMaster is a free software that emulates Modbus master and can be used to access any device that is Modbus compatible. QModMaster can be downloaded for free at https://sourceforge.net/projects/qmodmaster/. Follow the steps below to see how to use Prodigy ZGX/EG devices with QModMaster using RTU and TCP.

Download and install QModMaster.

To control the device via Modbus RTU, follow the simple steps given below:

Step 1:

Run QModMaster and select “Modbus RTU” from Options menu. Enter Serial Port name and other settings as in the image below and click OK. Serial Port name must match the port name assigned to the device by the Operating System.

qModMaster RTU Settings for ZGXxx

Step 2:

  1. Select RTU as Modbus mode.
  2. Select proper Slave ID of the device.
  3. Then, click the “Connect” button to connect to the device.

qModMaster Open Port

Step 3:

  1. Select “Write Single Coil” function code in the Function Code combo box, enter the Data Address of the first GPO (GPO Index 0) in the Start Address box.
  2. Enter value 1 (corresponds to GPO High state) in the data cell.
  3. Now click the Read/Write button to send the new value to the device.

If everything works fine, you will see the circuitry connected to the GPIO will be activated. To read the status of a GPO, the same sequence apply but select the “Read Coils” function code instead.

qModMaster Make GPO High

Similarly, to control the device via Modbus TCP, follow the steps below:

Step 1:

Run QModMaster and select “Modbus TCP” from Options menu. Enter the IP Address of the device and TCP port number as in the image below and click OK.
qModMaster TCP Settings for ZGXxx
Step 2:

  1. Select TCP as Modbus mode.
  2. Then, click the “Connect” button to connect to the device.

qModMaster TCP Open Connection

Step 3:

  1. Select “Write Single Coil” function code in the Function Code combo box, enter the Data Address of the first GPO (GPO Index 0) in the Start Address box.
  2. Enter value 1 (corresponds to GPO High state) in the data cell.
  3. Now click the Read/Write button to send the new value to the device.

If everything works fine, you will see the circuitry connected to the GPIO will be activated. To read the status of a GPO, the same sequence apply but select the “Read Coils” function code instead.
qModMaster Make GPO High

Additional Information

Analog to Digital Converters (ADCs)

Prodigy ZGX/EG devices do support Analog to Digital Conversion on some of the GPIO terminals. A list of GPIOs that supports analog function in this product is listed elsewhere in this document. GPIOs doesn’t need to be configured especially in order to use them as analog inputs. Simply reading the Analog Input Register corresponding to the IO will automatically put the IO into Analog Input mode and read the analog value. Resolution of the ADC on this product is 12 bits. The input voltage range of the ADC is 0 – 3.3V.

GPIO with Switches

USBGpio Switch connection diagramIt is possible to read the position of a switch that is connected to a GPIO. An SPST or SPDT switch is recommended to use with GPIOs. Push switches that maintain the contacts closed only for a very short time so using them is discouraged. The fundamental idea of using a switch with GPIO is to have the switch cause a voltage level change at the GPIO pin when pressed. Usually, this is achieved by using an external pull-up resistor along with the switch. The pull up resistor is connected between the GPIO and VDD and the switch is connected between the GPIO and ground. When the switch is not pressed, the pull-up resistor will cause the GPIO to stay at VDD voltage level. When the switch is pressed, the GPIO is short-circuited to ground and stays at zero voltage. This change in voltage and thus the position of the switch can be read by simply reading the Discrete Input bit corresponding to the GPIO.

Technical Specifications

ParameterValueUnit
Number of GPIOs16/32/64 for ZGX series
16/32 for EG series
Number of analog inputs (Multiplexed with GPIOs)8/14/32 for ZGX series
8/14 for EG series
Power supply voltage (External)12V
IO Specifications
Maximum IO source current20mA
Maximum IO sink current20mA
GPIO input low voltage 0.8V
GPIO input high voltage 2V
GPIO output low voltage 0V
GPIO output high voltage 3.3V
ADC Specifications
Resolution12bits
Full scale range0 – 3.3V
Reference voltage3.3V
Other Information
USB Vendor ID0x2A19
USB Product IDZGX64 - 0x2601 or 0x2604
ZGX32 - 0x2602 or 0x2605
ZGX16 - 0x2603 or 0x2606
EG32 - 0x2101 or 0x2103
EG16 - 0x2102 or 0x2104

Frequently Asked Questions (FAQs)

Q. What are the serial parameters I need to use when communicating with this board?
A. Since this module uses USB as the underlying transport mechanism, most of the serial parameters do not affect the communication. You can leave all parameters to any legal value (Eg:9600,19200,38400 etc… for baud rate) except Flow control. Flow control needs to be set to “None”.

Q. Where do I find the driver for this product?
A. Visit http://numato.com and navigate to the product page. There will be a link to download windows driver. Linux does not require driver installation since in most cases they are shipped with the driver pre-installed.

Q. Why there is no .sys or .exe file in the Windows driver package I downloaded?
A. This product uses USB CDC driver binary which is already present on Windows. All Windows versions (with the exception of Embedded Editions) has this driver binary installed by default. The .inf and .cat files present in the zip file helps Windows identify the device properly and associate the appropriate driver (.sys) to the device

Q. Does this product work with Linux?
A. Yes, this product works with Linux. Please see more details on how to use this product with Linux elsewhere in this document.

Q. Does this product work with Mac OSX?
A. Yes, this product works with Mac OSX. Please see more details on how to use this product with Mac elsewhere in this document.

Q. What is the software that this product work with?
A. This product works with almost any software that has support for standard Modbus. Some examples can be found elsewhere in this document. Different software is written by different developers with different purposes in mind. So you may encounter some software that may not work with this product. But usually, alternatives are available in most if not all cases.

Q. I’m using x language for programming. How do I find out if this language can be used to program and control the GPIO module?
A. Find out if the language of interest supports some kind of APIs/Functions/Components for serial communication. If it does, most likely you should be able to use that language with this module. It may also be possible to find libraries such as libModbus that offers high-level APIs. Using such libraries can speed up development quite a bit.

Q. I need a customized version of this product, can Numato Lab do the customization for me?
A. Yes, we can definitely do customization but there may be minimum order requirements depending on the level of customization required. Please write to [email protected] for a quote.

Q. Where can I buy this product?
A. All Numato products can be ordered directly from our web store http://www.numato.com. We accept major credit cards and Paypal and ship to almost all countries with a few exceptions. We do have distributors in many countries where you can place your order. Please find the current list of distributors at http://numato.com/distrib.

Suggest Edit
