Styx: How to use Xilinx Zynq PS PLL Clocks in FPGA Fabric

11968 views June 22, 2017 rohitsingh 22

Introduction

Styx Zynq Module features a Zynq 7020 from Xilinx in CLG484 package. The unique feature of Zynq-7000 series is that they are complete System on Chip (SoC) with an FPGA die which makes it a very powerful combination. Styx Zynq Module comes in the same form factor as our Saturn Spartan 6 FPGA Module and so allows for a seamless upgrade in most cases.

One difference between Saturn vs Styx which one might notice is in the clock oscillators of both modules: Saturn has 100MHz clock oscillator whereas Styx has 33.33MHz clock oscillator. This is not where the difference ends. On Saturn, the clock is directly connected to FPGA’s GCLK pin allowing for the designs to directly use the clock by specifying the clock’s location in the user constraints file. On the other hand, Styx has a quite different clocking mechanism due to which we cannot directly assign a clock pin location in user constraints file. The 33.33MHz clock is connected to the hard-silicon part of Zynq SoC and drives different PLLs from which all clocks for the SoC core and its peripherals are derived. The Programmable Logic (PL) section of Zynq can also source a total of 4 different clocks from this clocking hardware.

In this article, we will see how to generate a 100MHz clock from the PS (Processing System) section of Zynq and use in FPGA fabric.

Prerequisites:

This article assumes you have access to the following:

  1. Xilinx Vivado Design Suite 2016.1 or higher
  2. Styx Zynq FPGA Module
  3. Xilinx Platform Cable USB II JTAG

Description

The 33.33MHz clock on Styx module is connected to the hard-silicon part of Zynq SoC at Pin location F7 (on CLG484 package) named PS_CLK (Processing System Clock). This clock drives an elaborate clocking hardware inside the Zynq SoC as shown in the image below:

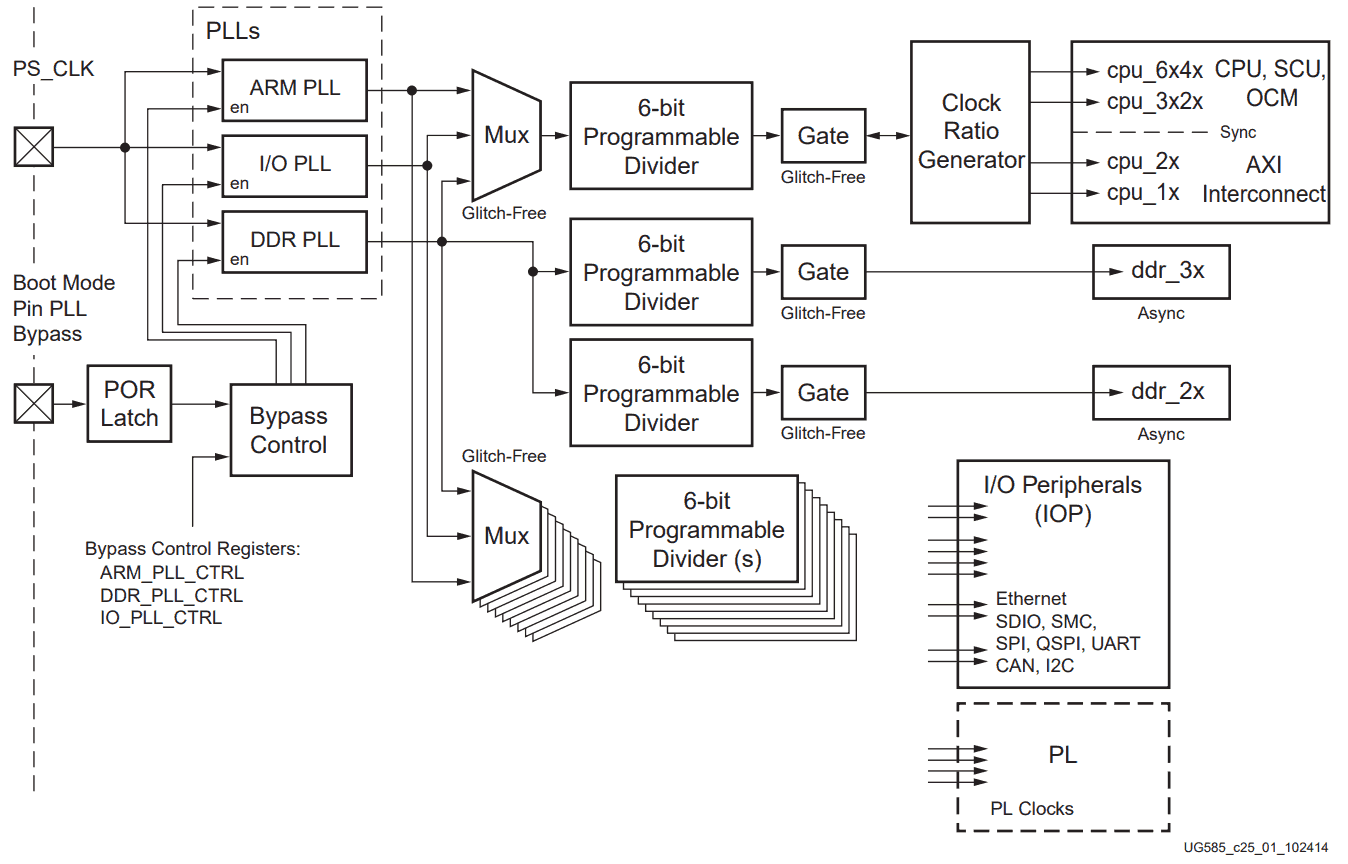

Zynq PS Clock System Block Diagram, Source: Zynq TRM, Copyright: Xilinx, Inc

In the bottom right corner of the above image, you can see that Programmable Logic(PL, i.e the FPGA) section of the Zynq SoC has 4 clocks available from the clocking hardware. Each of these clocks has independent paths and are assumed to be totally asynchronous to each other. Each of these 4 clocks is sourced from either of the 3 PLLs, via a glitch-free multiplexer, and then pass through a 6-bit programmable frequency divider, and finally go into the PL section Zynq SoC.

We can utilize this clocking hardware to generate clocks for use in our HDL designs running on PL section of Zynq. Rest of this article will attempt to explain how to do this practically.

Here is what we are going to do:

  • We will take a Verilog design which requires a 100MHz clock to work as per its specification. This could be a design which was created for Saturn for example, and now we need to upgrade to Styx.
  • Use Vivado to configure and generate a 100MHz clock from Zynq PS IP block.
  • Finally, we will use the 100MHz clock sourced from Zynq PS as the clock input for our Verilog module.

Steps

Step 1

Create a new project named “styxClockTest” for Styx board in Vivado. Follow steps 1 to 5 of this article to create a new project targeted specifically for Styx Board using Numato Lab’s Vivado Board Support files for Styx.

Step 2

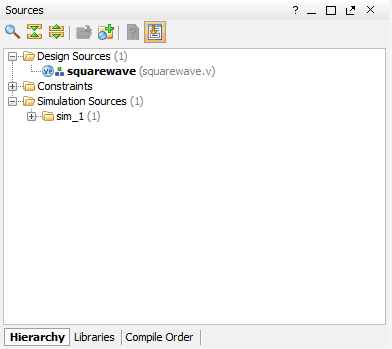

Press “Alt+A” key combination. This will bring up “Add Sources” window. Choose “Add or create design sources” and click “Next”.  In the next step, click “Create File” and enter in the name of the file as “squarewave.v”. Click “OK” and then “Finish”.



A new dialog window “Define Module” will pop up. Just click “OK” followed by “Yes” for the questions asked. The new source file will be listed in the “Sources” tab.

Step 3

Open the squarewave.v file in the Vivado editor by double-clicking it from the sources window. Select all text created by Vivado and delete it. The squarewave.v file should be blank now. Next, copy the complete below Verilog code into the squarewave.v file and save it.

`timescale 1ns / 1ps

module square_wave_gen(
	input clk,
	input rst_n,
	output sq_wave
);

	// Input clock is 100MHz
	localparam CLOCK_FREQUENCY = 100000000;

	// Counter for toggling of clock
	integer counter = 0;

	reg sq_wave_reg = 0;
	assign sq_wave = sq_wave_reg;

 always @(posedge clk) begin

		if (!rst_n) begin
			counter <= 8'h00;
			sq_wave_reg	 <= 1'b0;
		end

		else begin

			// If counter is zero, toggle sq_wave_reg
			if (counter == 8'h00) begin
				sq_wave_reg <= ~sq_wave_reg;

				// Generate 1Hz Frequency
				counter <= CLOCK_FREQUENCY/2 - 1;
			end

			// Else count down
			else
				counter <= counter - 1;
			end
		end

endmodule

The above code generates a Square Wave of frequency 1Hz. It assumes an input clock to be of 100MHz. So, we need to provide a 100MHz clk input to this Verilog module. We will do that later in this article.

Step 4

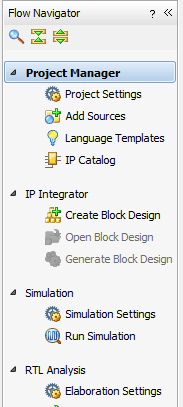

Under “Flow Navigator”, click “Create Block Design”

Name the block design as “styx” and click “OK”

Step 5

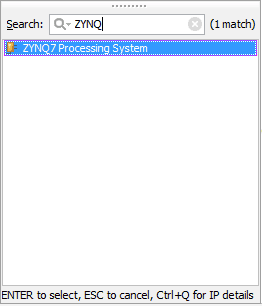

Go to Diagram window, right click and select “Add IP” from the popup menu. Search for ZYNQ7 Processing System. Add ZYNQ7 Processing System to block design by double-clicking. A Zynq7 Processing System IP block will be added in the block design.

Step 6

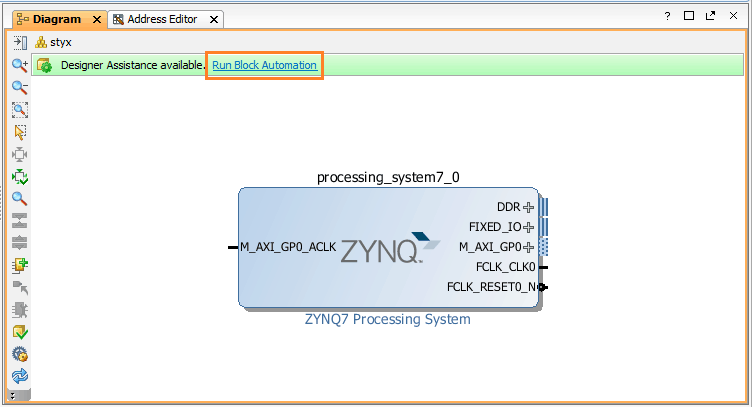

Click on “Run Block Automation” option on the green bar.

styx_block_automation_1

Step 7

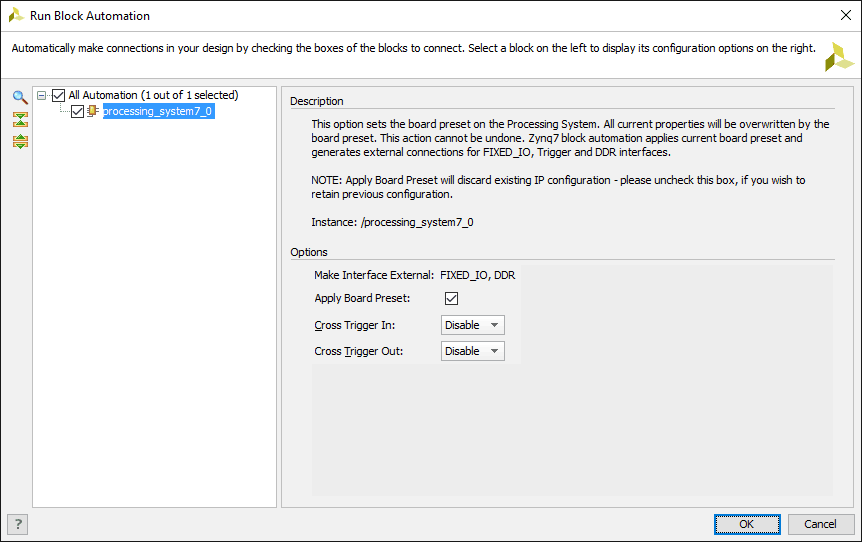

In the “Run Block Automation” window, leave the default options as in image below and click OK.

styx_block_automation_2

When Block Automation is executed, Vivado will use the settings in the Board Support files for Styx provided by Numato Lab to configure the FCLK_CLK0 clock for 100MHz frequency. We can now use this clock for our RTL designs.

Step 8

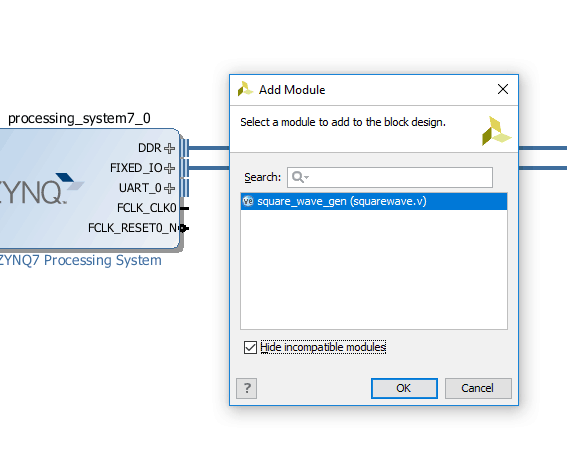

Again right-click in the Diagram Window and select “Add Module…”. Select “square_wave_gen” from the options and click “OK”.



Step 9

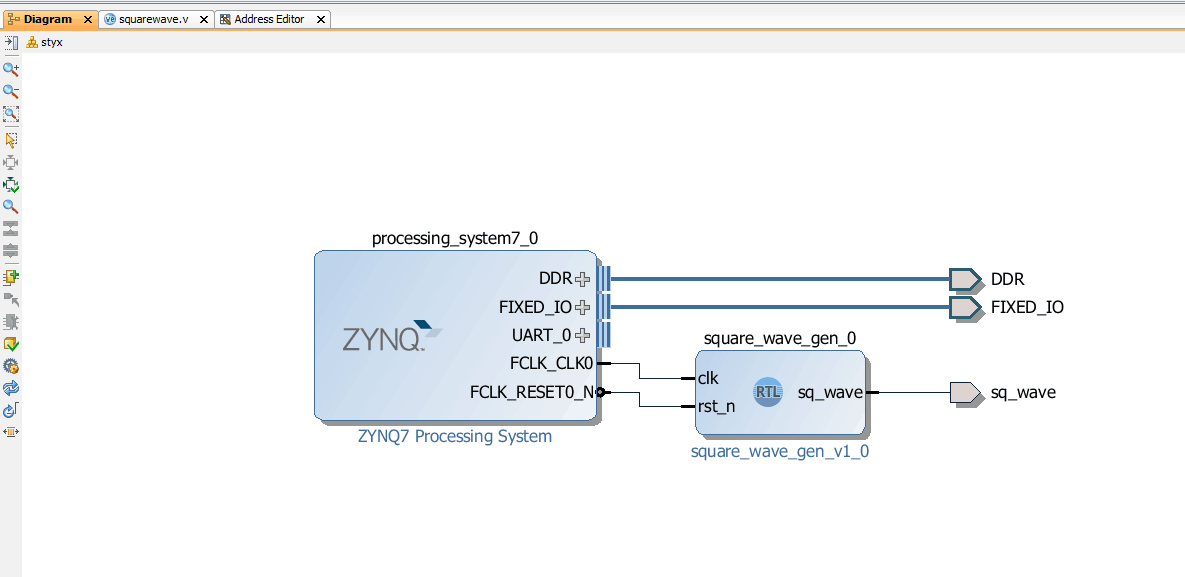

Connect Clock and Reset signals from Zynq block to Square Wave Module. Make the sq_wave port as an external port by right-clicking on it and selecting “Make External”. The resultant design should look like this:

Save the block design.

Step 10

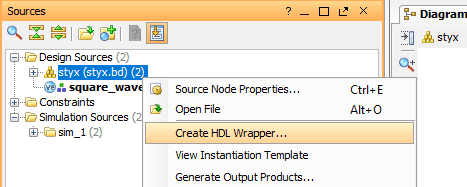

In the sources window, right-click on styx block design file and select “Create HDL Wrapper…”

Click OK on the window which pops up.

Step 11

In the sources window, right-click and choose “Edit Constraints Sets…”. Click “Create File” and name it as “styx_sq_wave.xdc”. Then, click OK to let Vivado create the constraint file. In this file, we will add location constraint for `sq_wave` output port which we had created.

Open the “styx_sq_wave.xdc” file and copy below contents into it. Finally, save the constraints file.

set_property -dict {PACKAGE_PIN J22 IOSTANDARD LVCMOS33} [get_ports sq_wave]

We have used first available GPIO on header P4 on Styx as 1Hz square wave output signal.

Step 12

Click “Generate Bitstream” and click “Yes” in any subsequent dialog windows that may pop up.

Step 13

Once bitstream generation is successfully completed, one would normally expect to be able to program the FPGA on Zynq right away to get his/her RTL design working. This would have been true if the design wasn’t using any Zynq PS specific functionality. But, in our case, we are sourcing clock from Zynq PS section. For this to work, we need to first configure the correct registers on Zynq to set up clocking infrastructure for 100MHz output on FCLK_CLK0.

To do this, we need to use Xilinx SDK which ships with Vivado Suite. Go to File -> Export -> Export Hardware... Check “Include bitstream” and click OK.

Now, go to File -> Launch SDK. Click OK in the dialog window which pops up.



Step 14

Put your Styx in JTAG Boot Mode and connect USB cable as well as Xilinx Platform USB Cable II JTAG and power up. In the SDK window, go to File -> Application Project. Type any project name and click Next. Choose “Empty Application” from the Available Templates list, and click Finish. SDK will generate an empty application project, along with a bsp project required for the application project.

Step 15

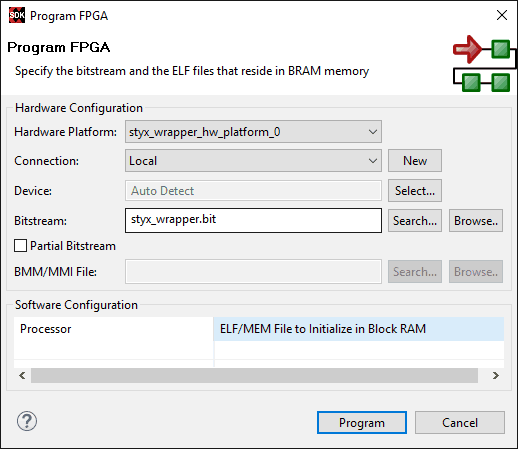

Now we need to program the bitstream first. Then we will initialize the Zynq SoC. Go to Xilinx Tools -> Program FPGA and click “Program” in the Program FPGA window.

styx_program_fpgastyx_program_fpga_1



Step 16

After FPGA is successfully programmed with the bitstream, we need to initialize the processor. For initializing the processor, we simply run the empty application on the ARM processor of the Zynq SoC. SDK will automatically run the ps7_init.tcl initialization TCL script before running the empty application.

So, right-click on the empty application project, go to Run As -> Launch on Hardware (System Debugger) or Launch on Hardware (GDB).

Step 17

Once the program is launched on hardware, we should now get a 1Hz square wave on the GPIO pin 5 (J22) of Styx GPIO Header P4. Go ahead confirm this with an oscilloscope, or logic analyzer, or even a simple multimeter!

That’s it! We are now using the 100MHz clock sourced from SoC PLL for our RTL designs!
