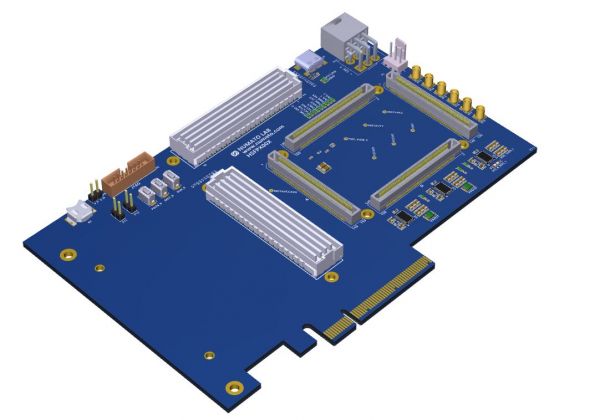

HSFPX00X Carrier Board

HSFPX00X Carrier Board

SKU: NLHSFPX00X

Features

  • 4 Edge Rate® Rugged High-Speed Female connector
  • 8 lane PCIe Gen2.0 (5.0GT/s)
  • 2 FMC connector with a maximum of 130 IOs for user-defined purposes
  • 6 SMA connectors for 3 external differential clocks
  • JTAG header for programming and debugging

Applications

  • Product Prototype Development
  • Development and Testing of custom embedded processors
  • Educational tool for Schools and Universities
  • Communication Devices Development

Request For Quote

The HSFPX00X is carrier board for connecting module with Edge Rate® Rugged High-Speed Male connector like Numato Lab’s HSFPX002 FPGA module. The HSFPX00X carrier board features High Pin Count (HPC) high-speed FMC connector conforming to ANSI/VITA 57.1 Standard for the purpose of adding additional features to the board by using custom or commercial off-the-shelf daughter boards and a x8 PCIe interface.

Features

  • 4 Edge Rate® Rugged High-Speed Female connector
  • 8 lane PCIe Gen2.0 (5.0GT/s)
  • USB 3.1 Gen 1 @ 5Gbps (USB Type-C connector)
  • 2 FMC connector with a maximum of 130 IOs for user-defined purposes
  • 6 SMA connectors for 3 external differential clocks
  • Can be powered from PCIe slot or from an external power supply
  • JTAG header for programming and debugging
  • Dimension: 167.65mm x 111.15mm

Applications

  • Product Prototype Development
  • Development and Testing of custom embedded processors
  • Educational tool for Schools and Universities
  • Communication Devices Development

General FAQs

Specifications

Attribute Value
Dimensions

6.6 x 4.37 in

Communication

x8 PCIe, USB-RS232

External Clock Inputs

6x SMA

Power Supply (External)

12V

Number of FMC Daughter Module Connectors

2

Mating Connector for FMC Daughter modules

0459704715
