Alphanumeric LCD Display Expansion Module

Alphanumeric LCD Display Expansion Module

SKU: EXPLCD002

Features

  • 16×2 Alphanumeric LCD Display
  • Display backlight
  • Trim-pot for contrast adjustment
  • 2×6 pin expansion connector

Applications

  • Product Prototype Development
  • Development and testing of custom Projects

This product is now obsolete!

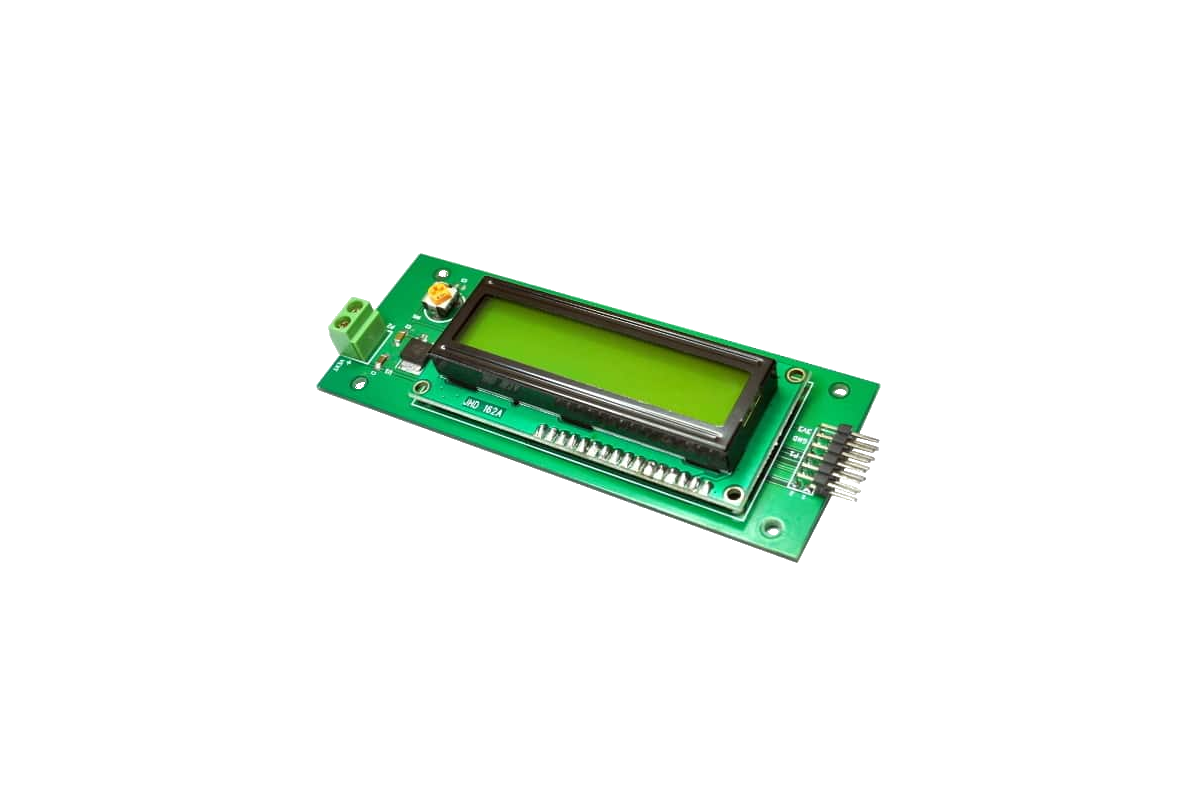

This expansion module features a 16×2 Alphanumeric LCD Module which can be added to your custom project using a 2×6 pin connector. It is designed to be used with Numato Lab’s FPGA/Microcontroller boards featuring 2×6 pin Expansion connectors. This module can be used with other boards as well by using manual wiring. This product is compatible with most of the Numato Lab’s FPGA boards.

Features

  • 16×2 Alphanumeric LCD Display
  • Display backlight
  • Trim-pot for contrast adjustment
  • 2×6 pin expansion connector
  • Dimension: 118mm X 45mm

Applications

  • Product Prototype Development
  • Development and testing of custom Projects

General FAQs

Specifications

Attribute Value
Weight 0.11 lbs
Dimensions 5 × 3 × 1 in
Product Dimensions

4.64 x 1.76 x 0.66 in

Display Type

Alphanumeric LCD

Character Organization

16 x 2

Sample Code

Sample Code

NameLanguage/TechnologyIDEDownload link
16x2 LCD DisplayVerilogXilinx ISEDownloadl
