8 Channel Ethernet Relay Module

SKU: 8ETHRL001

8 Channel Ethernet Relay Module

SKU: 8ETHRL001

    Current configuration - Edit
  • Relay Coil Voltage: none selected

$89.95$99.00

Features

  • 8 onboard 12V/ 24V SPDT relays that can handle up to 10A
  • 10 TTL (3.3V)Compatible GPIOs.
  • 10 Analog Input Channel(Multiplexed with GPIOs) with 10-Bit Resolution
  • 10BASE-T Ethernet Communication.
  • Supports DHCP and static IP
  • Password protected Web console and Telnet communication interface.
  • Supports DHCP and static IP
  • Unique MAC Address

Applications

  • Automated test fixtures
  • Home and industrial automation
  • Remote device monitoring and control
  • Remote data logging

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Relay Coil Voltage

8 Channel Ethernet Relay Module

SKU: 8ETHRL001

    Current configuration -
  • Relay Coil Voltage: none selected

$89.95$99.00

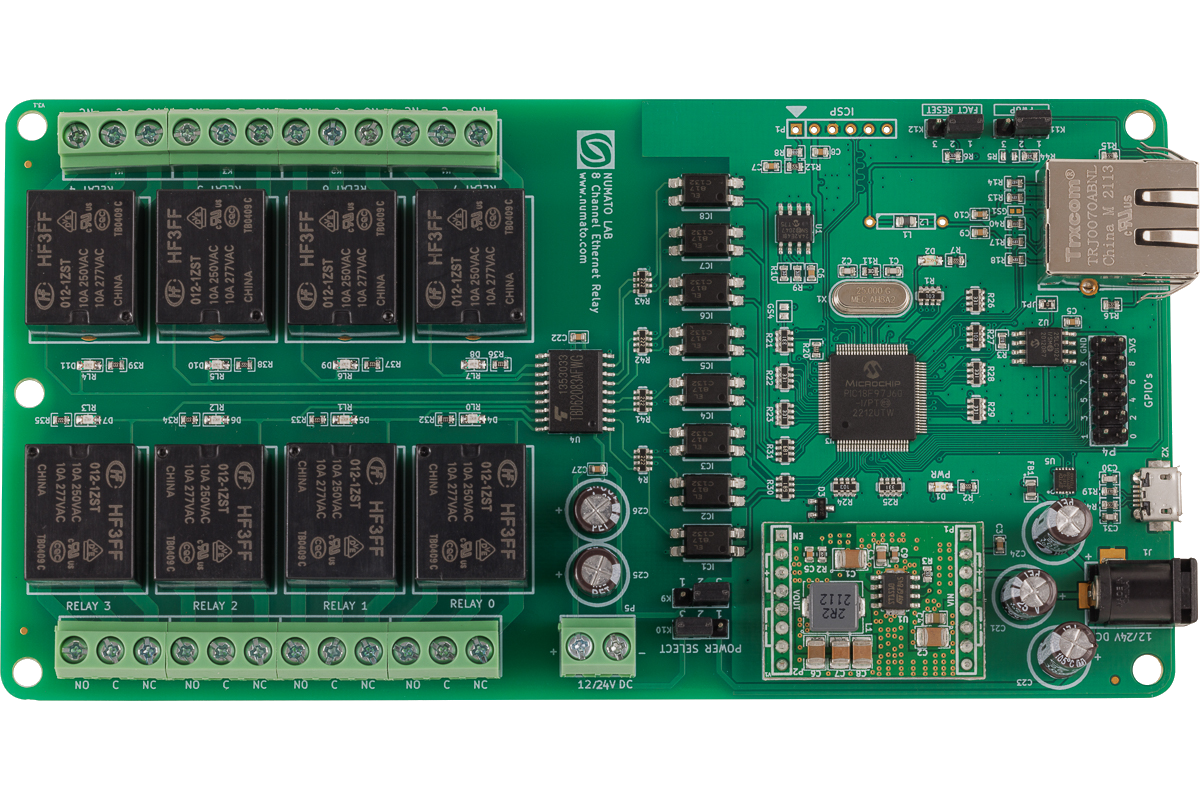

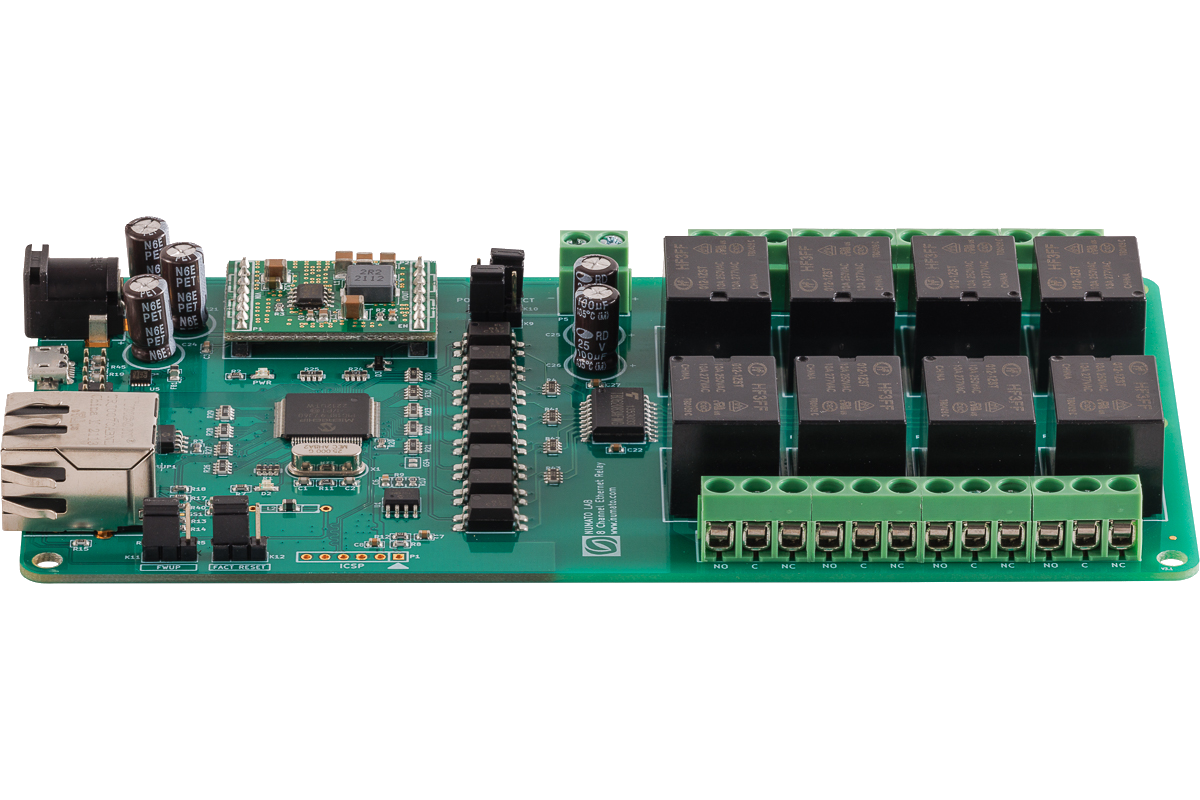

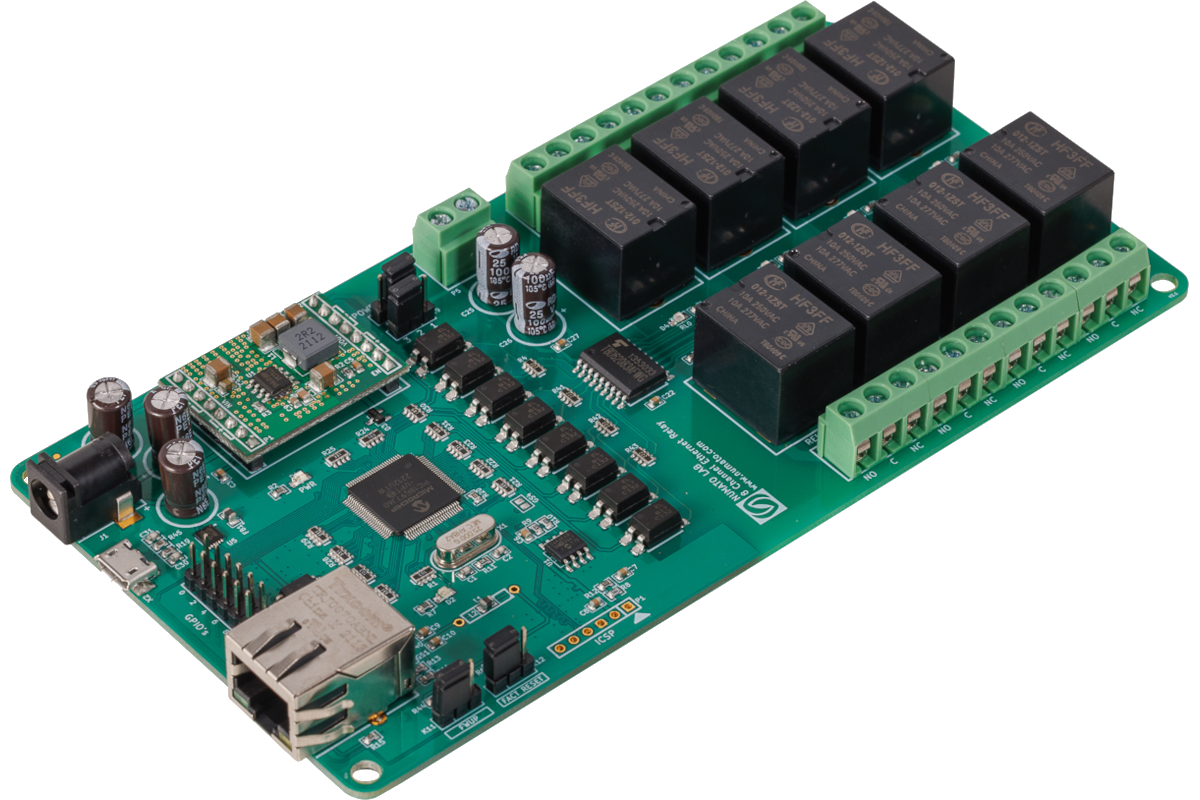

Numato Lab 8 Channel Ethernet Relay module allows controlling electrical devices remotely through Ethernet using easy to use Web interface or TELNET interface and can be programmed using almost any language.  With 8 onboard 12V/ 24V SPDT Relays that supports up to 10A, 10 Digital IOs, and 10 multiplexed Analog inputs, this product avoids the need of buying additional Digital IO and Analog input modules. This product works with any operating system that has a browser or has a TELNET tool. This includes Windows, Linux, Mac OSX, Android, etc..

Each relay/gpio can be individually controlled through the built-in easy to use web interface or through any popular terminal emulator that supports TELNET protocol. The 8 Channel Ethernet Relay module is shipped with a unique MAC address. These devices also support assigning and retrieving custom identification string that can be used for identifying individual devices when there is a large number of devices connected on the same network. All relay terminals are available on screw terminals which makes connecting external devices very easy.

Features

  • 8 onboard 12V/ 24V SPDT relays that can handle up to 10A
  • 10 Digital IOs and 10 Analog inputs (multiplexed with Digital IOs)
  • 10bit ADC resolution for Analog Inputs
  • Plugs directly to the router or PC
  • Supports DHCP and static IP
  • Easy to use Web interface with point and click Relay/GPIO control (please see pictures below)
  • Human readable commands over TELNET. Works with any off the shelf TENET client(please see pictures below)
  • Programmable with almost any language
  • Built-in unique MAC address and the configurable identification string

Applications

  • Automated test fixtures
  • Home and industrial automation
  • Remote device monitoring and control
  • Remote data logging

ethernetrelay8status

Easy to use web interface with point and click to control relays and GPIOs. A common status page displays the status of all relays and GPIOs in one location. This makes monitoring the device status without moving to different pages. Dedicated interfaces for Relays and GPIOs for configuration and control. Each relay can be controlled independently by simply clicking the toggle button. Individual GPIOs can be configured as Digital Input, Digital Output or Analog input. When a GPIO is configured as Digital Input or Analog Input, that GPIO is monitored periodically and the current status is updated immediately.

ethernetrelay8-mactelnetsmallFor those who want finer control, this product offers a TELNET interface. The TELNET interface helps controlling individual relays and GPIOs using any off the shelf TELNET client programs such as TeraTerm, Putty, HyperTerminal or even with built-in TELNET clients shipped with various operating systems such as Windows, Linux, and Mac OSX. The interface uses simple human-readable commands that can be executed from a command prompt just like entering commands at Windows or Linux command prompt. Response from the device if any, will be displayed in human-readable text.

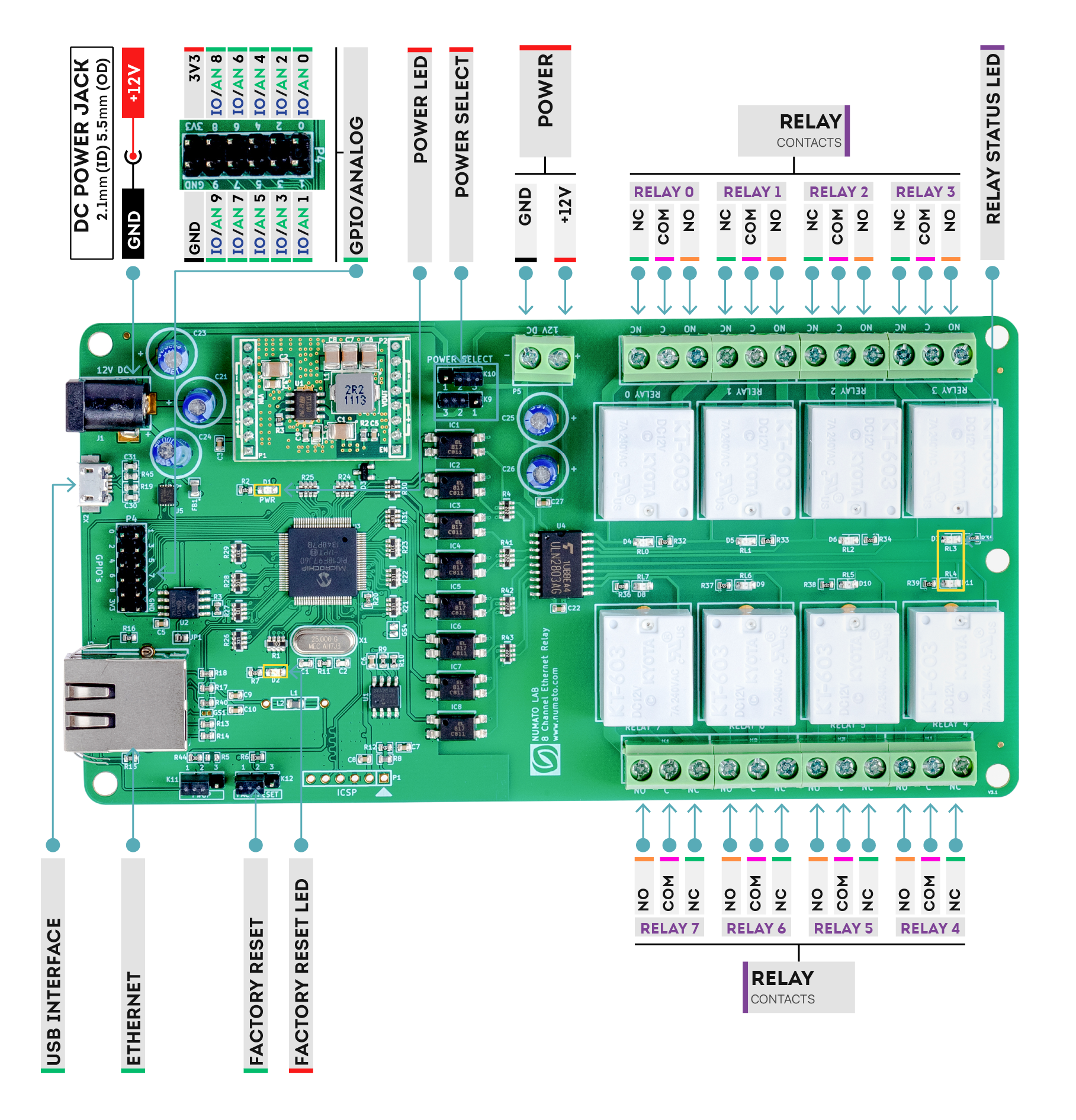

ethernetrelay8pythonLooking for automation or want to control relays and GPIOs from your custom application? We’ve got that covered too. TELNET is a widely supported open protocol and it is easy to write a custom script or application by using the TELNET library provided by most programming platforms or even by using raw TCP/IP sockets. For example, connecting to 8 Channel Ethernet Relay Module and  reading version information using Python 3.x can be accomplished in less than a dozen lines of code8 Channel Ethernet Relay Module - Wire Diagram

General FAQs

Specifications

Attribute Value
Weight 0.55 lbs
Dimensions 10 × 5 × 2 in
Product Dimensions

6.40 x 3.30 x 0.78 in

Number Of Relays

8

Relay Coil Voltage

12V, 24V

Relay Type

Max Relay Current Rating

10A

Number Of GPIOs (Max)

Analog Inputs(Max)

Analog Input Resolution

Communication

10BASE-T Ethernet

User Interface

,

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
JavaNetBeansNAAnyDownload
PerlPerlCommand LineWindowsDownload
PythonPythonCommand LineWindowsDownload
RubyRubyCommand LineWindowsDownload
