2 Channel Bluetooth Relay Module

2 Channel Bluetooth Relay Module

SKU: BTRL002

Original price was: $62.99.Current price is: $50.50.

Features

  • 2 onboard 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 8 TTL (3.3V) Compatible GPIOs.
  • 7 Analog Input Channels.
  • 10 Bit Analog Input Resolution.
  • Onboard USB Connector for firmware upgrade.
  • Class 2 Bluetooth Version with 10m Bluetooth Range

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Request For QuoteWanna Customize? Drop Us A Line!

2 Channel Bluetooth Relay Module is great for controlling your devices over the Bluetooth link without any RF design knowledge. This module is designed to plug into your design seamlessly. Individual relay can be controlled by simple commands. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as Hyper Terminal and PUTTY for controlling the module with a simple set of human-readable commands. For power users, this module can be controlled by writing programs in various programming languages. Numato’s 2 Channel Bluetooth Relay Module provides exceptional value for money.

This board has two onboard 12V relays that can switch up to 7A load. The relays are controlled by a Microchip PIC Microcontroller over Bluetooth link and come with built-in firmware that supports simple commands to control relays and read relay status. This board can easily be controlled by writing a simple serial port application in VC++, VB, VBA (Word, Excel, etc), Perl, Python, etc. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. A USB connector is available onboard for firmware upgrade.

Features

  • 2 onboard 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 8 TTL (3.3V) Compatible GPIOs.
  • 7 Analog Input Channels.
  • 10 Bit Analog Input Resolution.
  • Onboard USB Connector for firmware upgrade.
  • Class 2 Bluetooth Version with 10m Bluetooth Range

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Supporting Operating Systems

  • Windows XP and later
  • Linux
  • Mac
  • And any other operating system that supports Bluetooth devices

Languages that can be used for programming

  • C/C++
  • Visual Basic (VB6, VB2008, VB2010 express and other editions)
  • Visual Basic for Applications (Microsoft Office VBA)
  • Perl
  • Python
  • JAVA
  • And many more…

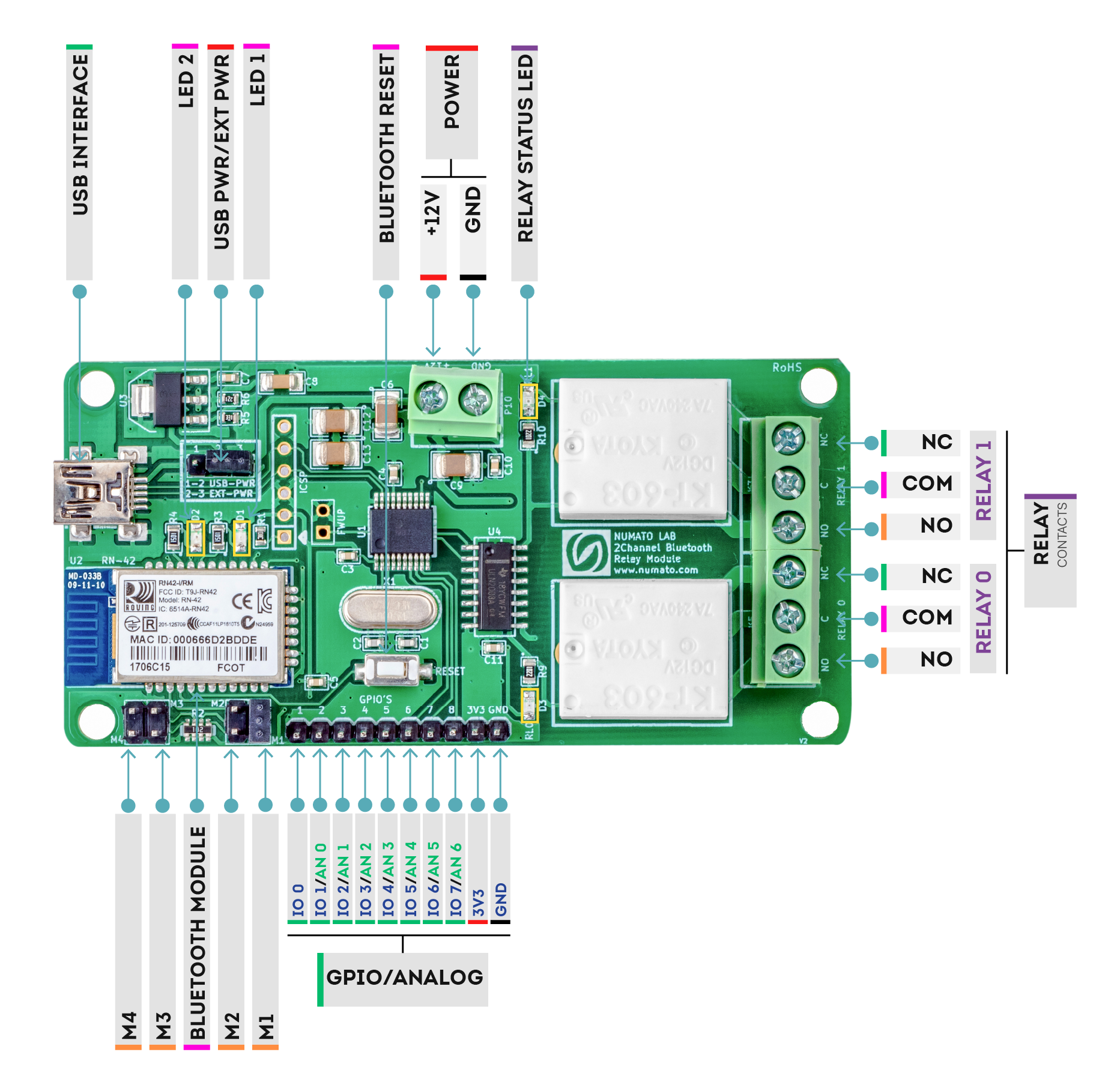

2 Channel Bluetooth Relay Module - Wire Diagram

General FAQs

Specifications

Attribute Value
Weight 0.2 lbs
Dimensions 5 × 3 × 1 in
Product Dimensions

3.54 x 1.75 x 0.78 in

Number of Relays

2

Relay Type

Max Relay Current Rating

7A

Number Of GPIOs (Max)

Analog Inputs(Max)

Analog Input Resolution

Communication

Bluetooth

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
