8 Channel USB Solid State Relay Module

SKU: SSR80001

8 Channel USB Solid State Relay Module

SKU: SSR80001

    Current configuration - Edit
  • Relay Type: Solid State DC

$119.95

Features

  • 8 onboard Solid State Relays.
  • 3A Maximum Switching Current.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Digital circuitry can be powered from USB or external power supply.
  • Can be controlled using standard serial console applications or custom applications.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Relay Type

8 Channel USB Solid State Relay Module

SKU: SSR80001

    Current configuration -
  • Relay Type: Solid State DC

$119.95

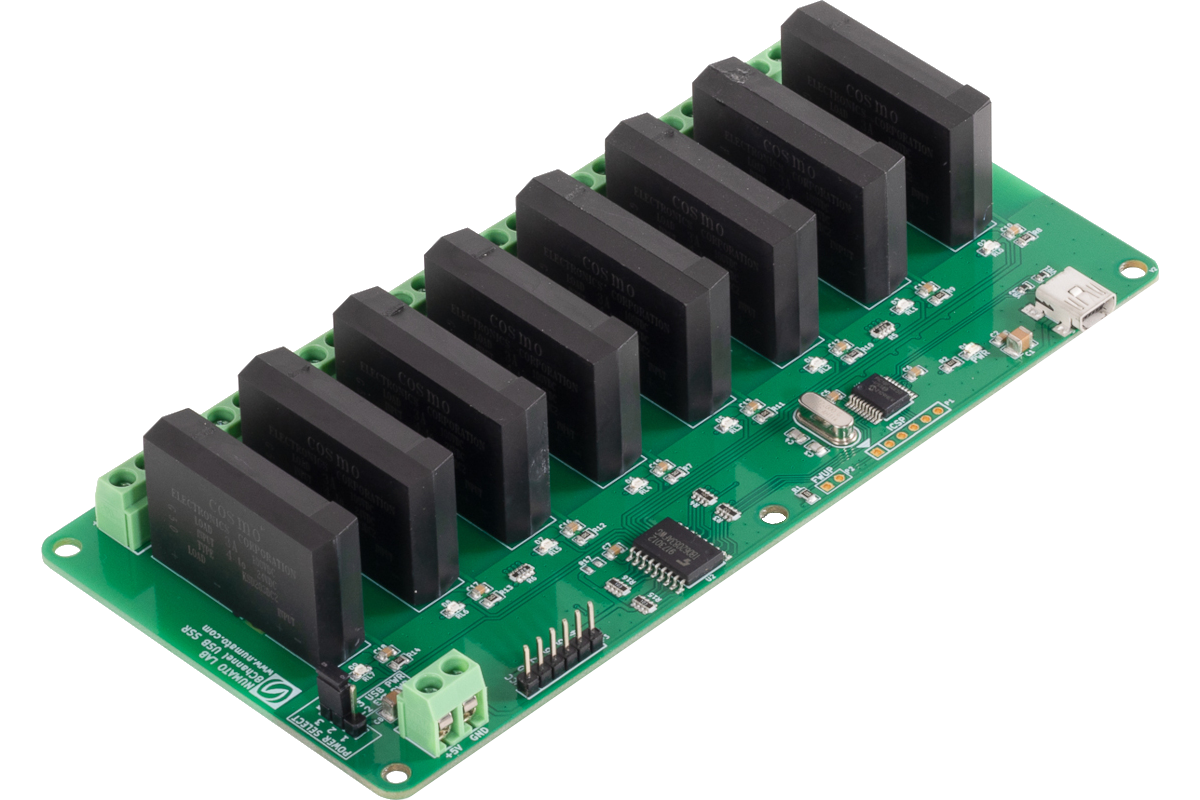

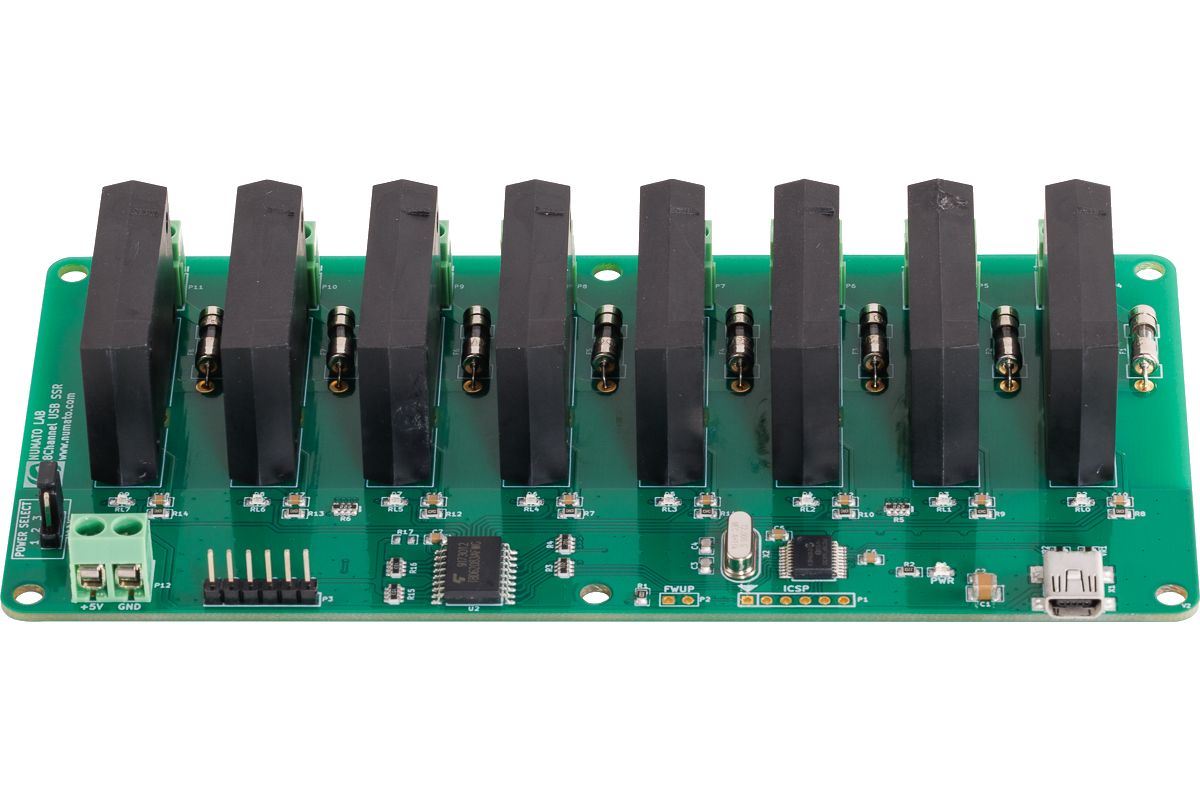

Numato Lab’s 8 Channel USB Solid State Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This module plugs into your design seamlessly. Individual relay can be controlled by simple commands. This product has eight onboard Solid State  Relays that can switch up to 3A load. The relays are controlled by USB capable Microchip PIC Microcontroller (PIC18F14K50) and come with built-in firmware that supports simple commands to control relays and read relay status. The board, when attached to a PC/Laptop shows up as a serial port and all you need to control the board is a serial terminal application like HyperTerminal or Putty. This board can easily be controlled by writing a simple serial port application in VC++, VB, VBA (Word, Excel, etc), Perl, Python, etc.

Features

  • 8 onboard Solid State Relays.
  • 3A Maximum Switching Current.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Digital circuitry can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Supporting operating Systems

  • Windows XP
  • Windows 7
  • Windows 8/8.1
  • Windows 10
  • Linux
  • Mac OS X
  • Android

General FAQs

Specifications

Attribute Value
Weight 0.6 lbs
Dimensions 10 × 5 × 2 in
Product Dimensions

6.25 x 3.02 x 1.18 in

Number of Relays

8

Relay Type

Solid State AC, Solid State DC

Max Relay Current Rating

3A

Communication

USB

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
VBAMS Excel 2010 GUIWindowsDownload
VBAMS Word 2010GUIWindowsDownload
Visual Basic JustBASICNAWindowsDownload
JavascriptNode.jsCommand LineWindowsDownload
AutoItAutoItNAWindowsDownload
LabviewLabviewSimple GUIAnyDownload
PerlPerlCommand LineLinuxDownload
PerlPerlCommand LineWindowsDownload
