8 Channel Bluetooth GPIO Module

$44.95

Numato’s 8 Channel Bluetooth GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through Bluetooth. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device.

Features

  • 8 TTL (3.3V) compatible GPIOs available.
  • 6 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output.
  • Can be controlled by using standard serial console applications or custom applications.
  • On board controller can be reprogrammed for custom applications

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

In stock (can be backordered)

SKU: BTIO001X Category:

Description

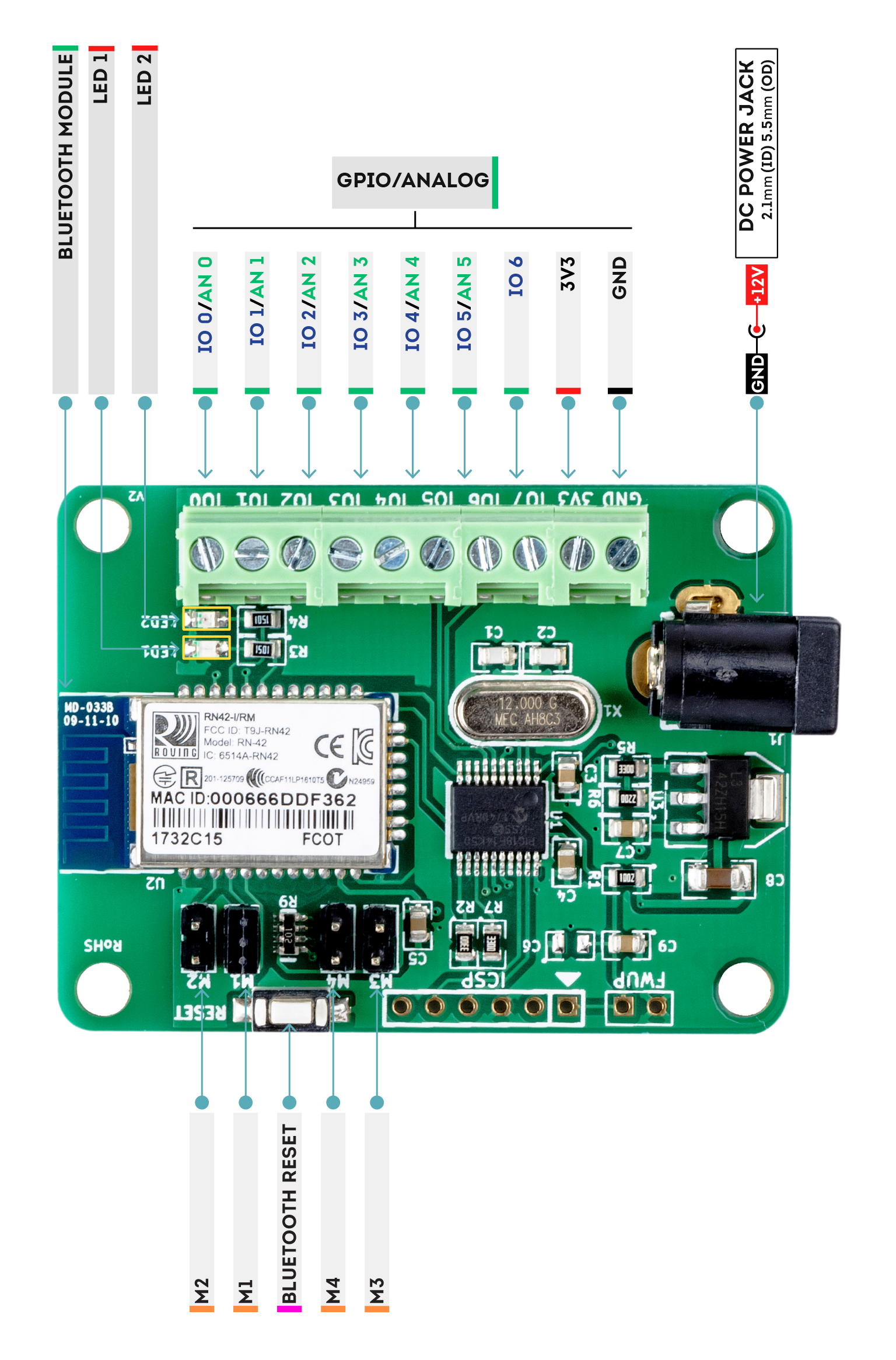

Numato’s 8 Channel Bluetooth GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through Bluetooth. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. 8 TTL compatible GPIOs available and 6 Analog input channels (shared with GPIOs).

Features

  • 8 TTL compatible GPIOs available.
  • 6 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output.
  • 20ma Source/Sink capacity.
  • Can be controlled by using standard serial console applications or custom applications.
  • On board controller can be reprogrammed for custom applications

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Additional information

Weight 0.35 lbs
Dimensions 5.00 x 3.00 x 2.00 in
Communication

Bluetooth

Number Of GPIOs (Max)

8

Number of ADC Inputs:

6 (Multiplexed with IOs)

RoHS:

Yes

Downloads

User Manual
View/Download 3D Model (STEP)

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload
CVCExpress2008Command LineWindowsDownload
CVCExpress2010Command LineWindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C#Visual Studio 2012GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
