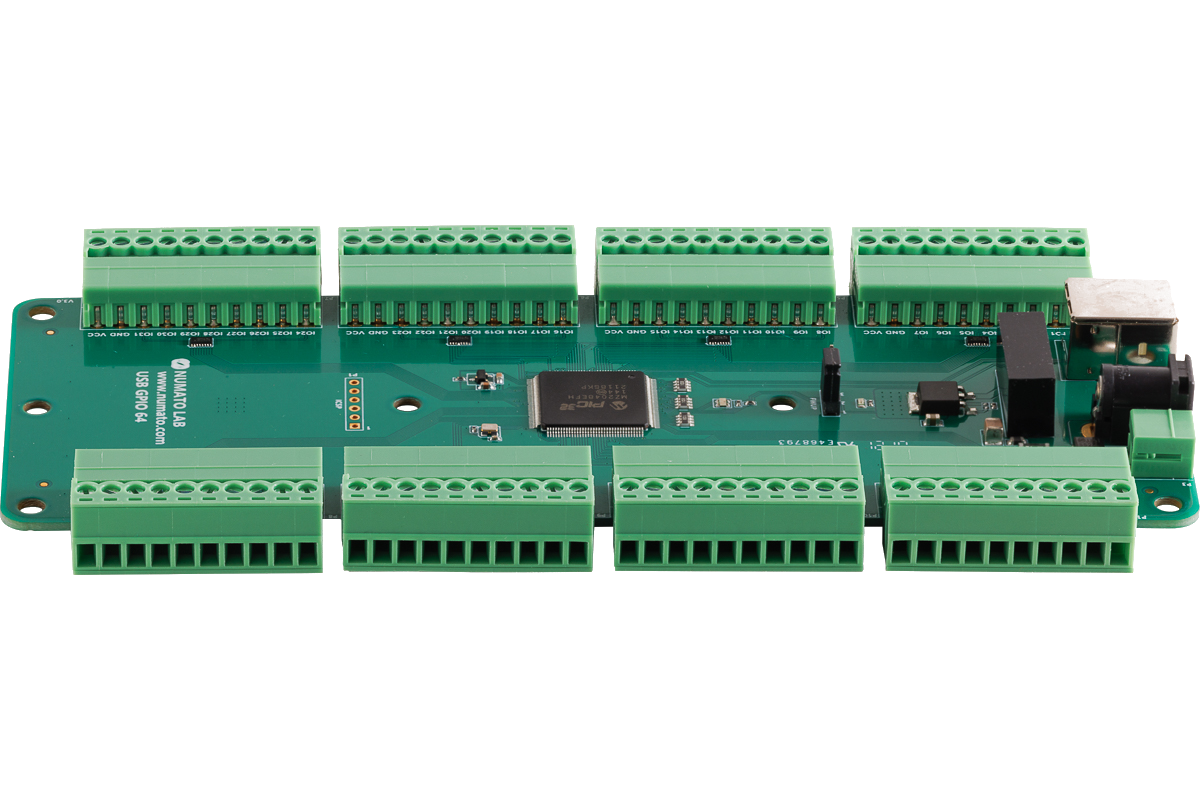

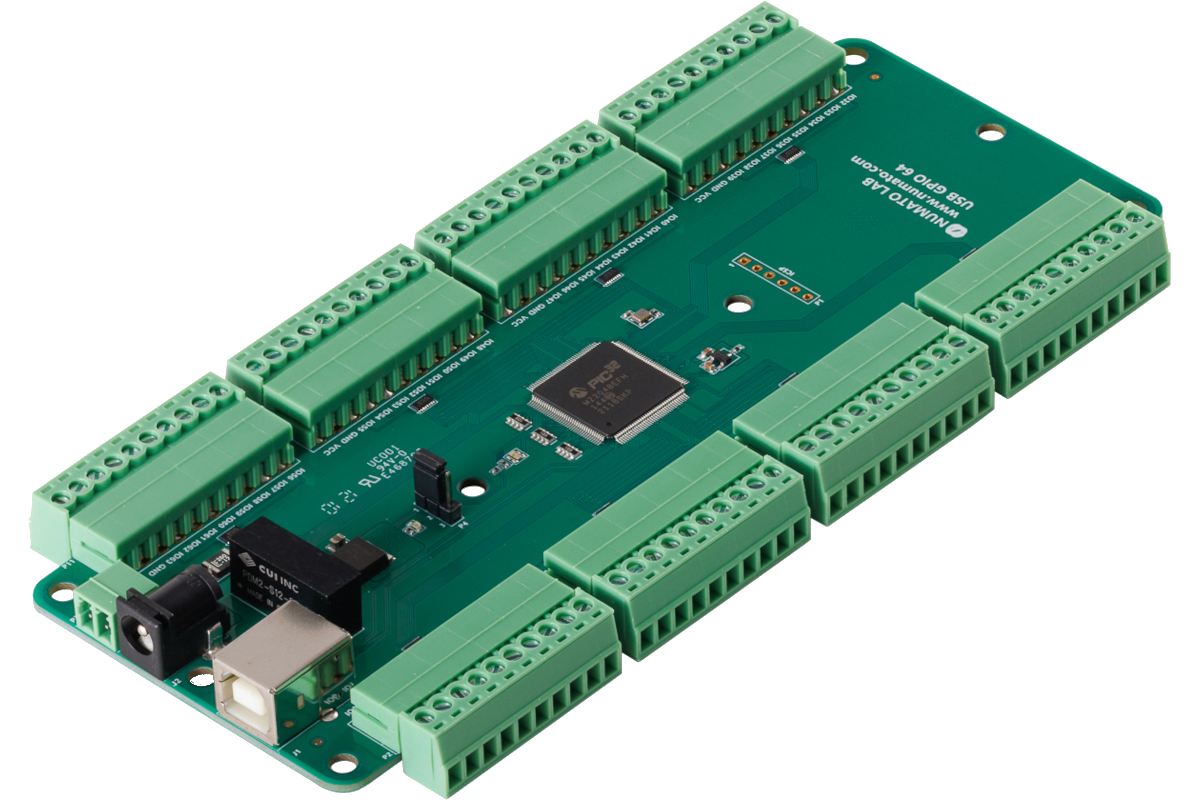

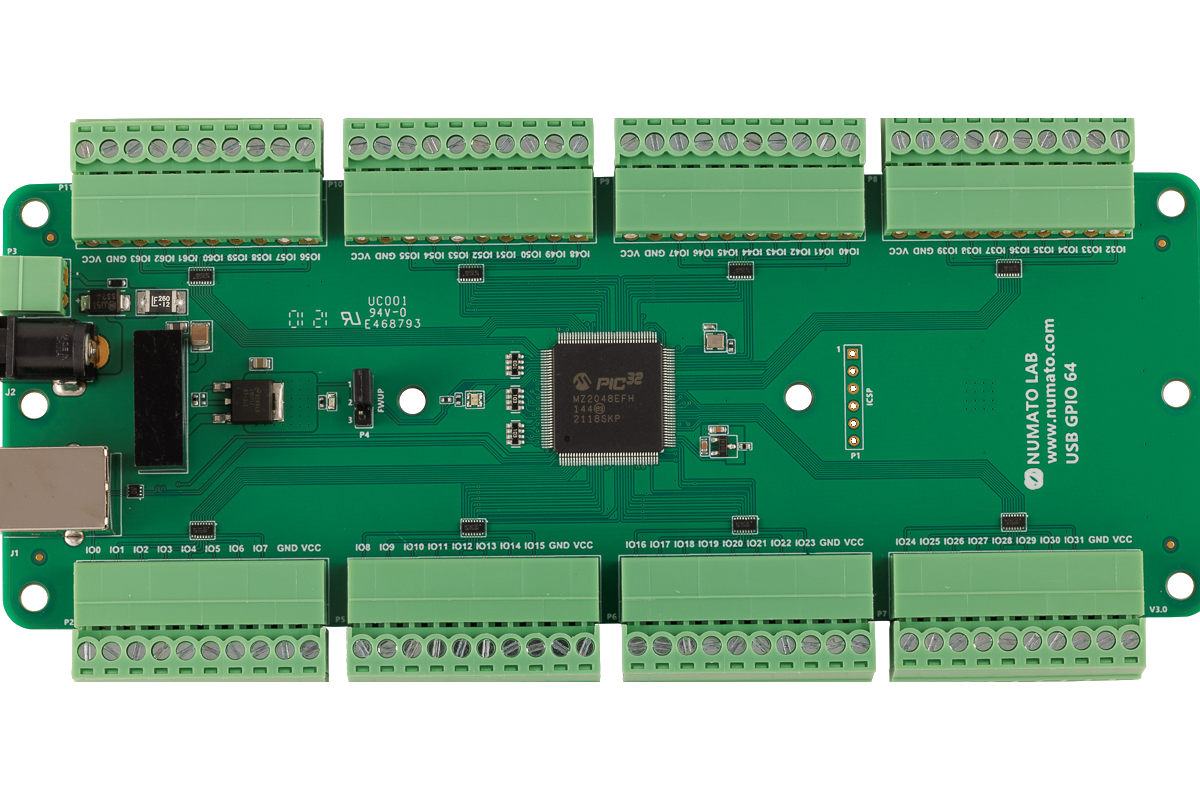

64 Channel USB GPIO Module With Analog Inputs

$149.95

Numato Lab's 64 Channel USB GPIO Module helps connecting real world devices to your computer easily through USB. No USB specific knowledge is required to set up and use this module.

Features

  • 64 TTL (3.3V)compatible GPIOs available.
  • 24 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output.
  • Can be controlled by using standard serial console applications or custom applications.
  • On board controller can be reprogrammed for custom applications
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required
  • All IOs available on easy to access screw terminals
  • Can be powered from USB or external power supply
SKU: GP640001 Category:

Description

Numato Lab’s 64 Channel USB GPIO Module helps connecting real world devices to your computer easily through USB. No USB specific knowledge is required to set up and use this module. Numato Lab’s GPIO devices provide an interface that looks like a Serial Port on your Operating System and thus effectively hiding the complexity of USB. All that you need to operate GPIOs is a standard Serial Terminal Emulator such as HyperTerminal/Teraterm or your favorite programming language such a C/C++, Python, Perl etc… Besides providing standard General Purpose IOs, this product has multiple Analog Inputs as well. These Analog inputs can be used to read Analog quantities such as temperature, pressure etc.. with the help of appropriate sensors.

Features

  • 64 TTL(3.3V) compatible GPIOs available
  • 24 Analog input channels (Pins shared with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output.
  • 20 mA Source/Sink capacity.
  • Can be controlled by using standard serial console applications or custom applications.
  • On board controller can be reprogrammed for custom applications

Applications

  • Building automated test fixtures
  • Add more IOs and Analog channels to industrial/modular computers
  • Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
  • Add IOs to Android based systems (Smartphones, Tabs and custom devices)

Supporting operating systems

  • Windows XP
  • Windows 7
  • Windows 8/8.1
  • Windows 10
  • Linux
  • Mac OS X
  • Android

Additional information

Weight 0.30 lbs
Dimensions 8.00 x 3.00 x 1.00 in
Number Of GPIOs (Max)

64

Analog Inputs

24

Analog Input Resolution

10 Bits

IO Voltage Max

3.3V

Communication

USB

Downloads

Numato Lab USB CDC Driver
User Manual
Schematics
View/Download 3D Model (STEP)

Accessories

USB A to USB B CableUSB A to USB B CableUSB type A to B cable. Can be used with many USB products available from Numato Lab.

Knowledge Base

Understanding readall/writeall commands for GPIO Modules
The basics of using USB GPIO modules with Node.js

Sample code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
VBAMS Excel 2010 GUIWindowsDownload
VBAMS Word 2010GUIWindowsDownload
Visual Basic JustBASICNAWindowsDownload
JavascriptNode.jsCommand LineWindowsDownload
AutoItAutoItNAWindowsDownload
LabviewLabviewSimple GUIAnyDownload
PerlPerlCommand LineLinuxDownload
PerlPerlCommand LineWindowsDownload
