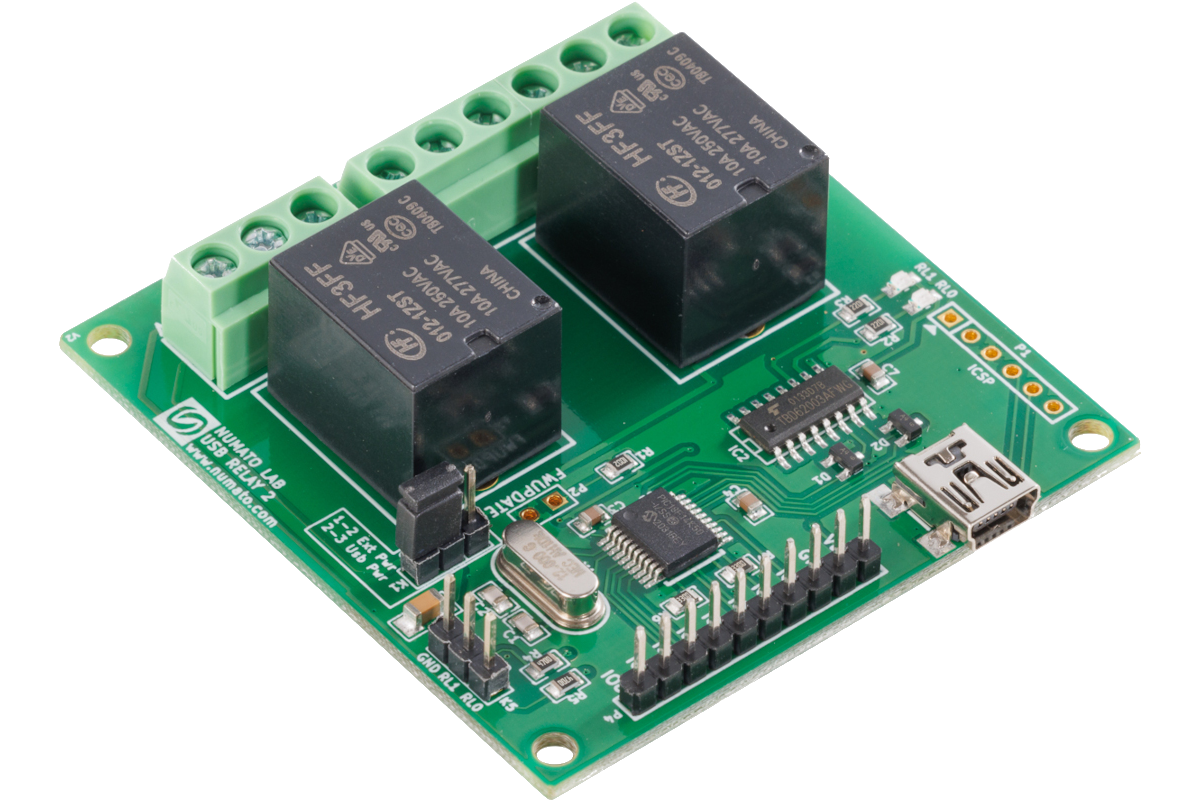

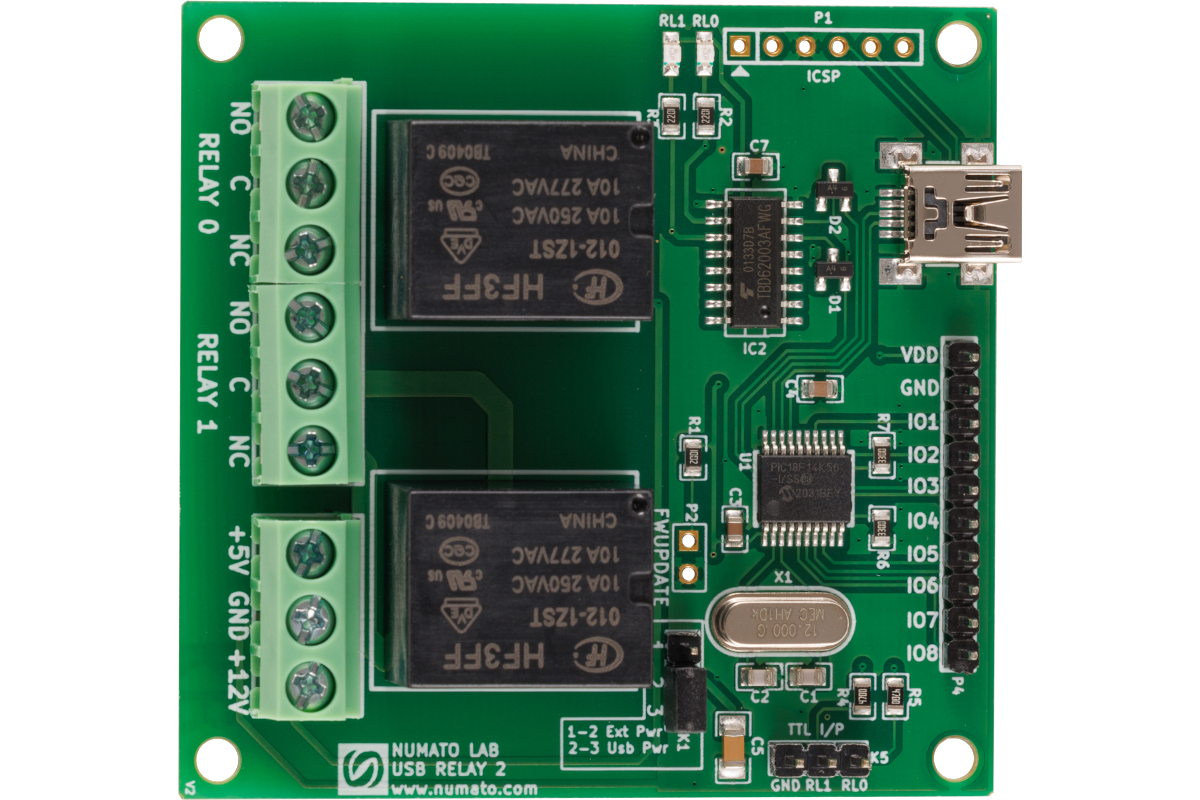

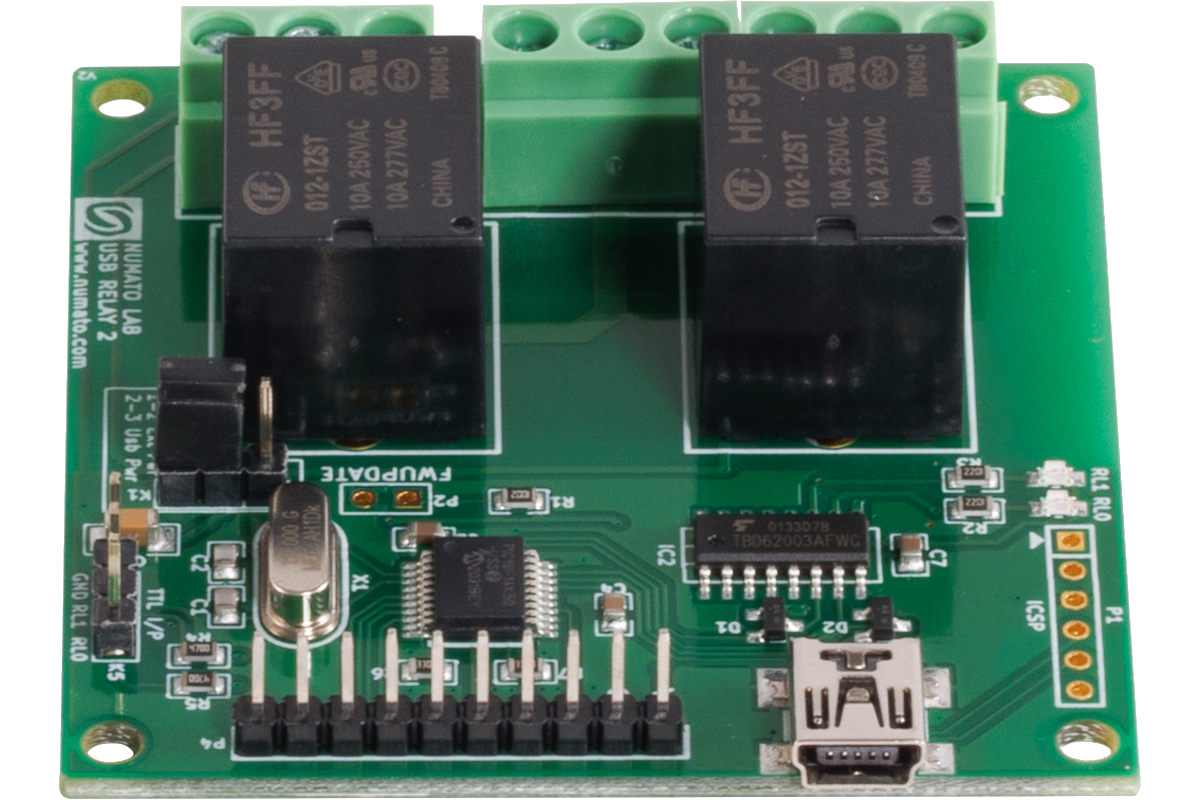

2 Channel USB Relay Module

2 Channel USB Relay Module

SKU: RL20001

$29.95

Features

  • 2 onboard 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 8 TTL (5V)Compatible GPIOs.
  • 6 Analog Input Channel(Multiplexed with GPIOs) with 10-Bit Resolution.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

URMC2 2 Channel USB Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This module plugs into your design seamlessly. Individual relay can be controlled by simple commands. Numato’s URMC2 2 Channel USB Relay Module provides exceptional value for money.

It has two onboard 12V relays that can switch up to 10A load. The relays are controlled by USB capable Microchip PIC Microcontroller (PIC18F14K50) and come with built-in firmware that supports simple commands to control relays and read relay status. The board, when attached to a PC/Laptop shows up as a serial port and all you need to control the board is a serial terminal application like HyperTerminal or Putty. This board can easily be controlled by writing simple serial port applications in VC++, VB, VBA (Word, Excell, etc), Perl, Python, etc.

Features

  • 2 onboard 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 8 TTL (5V)Compatible GPIOs.
  • 6 Analog Input Channel(Multiplexed with GPIOs).
  • 10 Bit Analog Input Resolution.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Digital circuitry can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Supporting Operating Systems

  • Windows XP and later
  • Windows 7 Embedded and later
  • Linux
  • Mac OS X
  • Android
  • or any other operating system that supports USB CDC devices.

Languages that can be used for programming

  • C/C++
  • Visual Basic (VB6, VB2008, VB2010 express and other editions)
  • Visual Basic for Applications (Microsoft Office VBA)
  • Perl
  • Python
  • JAVA
  • Android
  • Javascript(Node.js)
  • And many more…

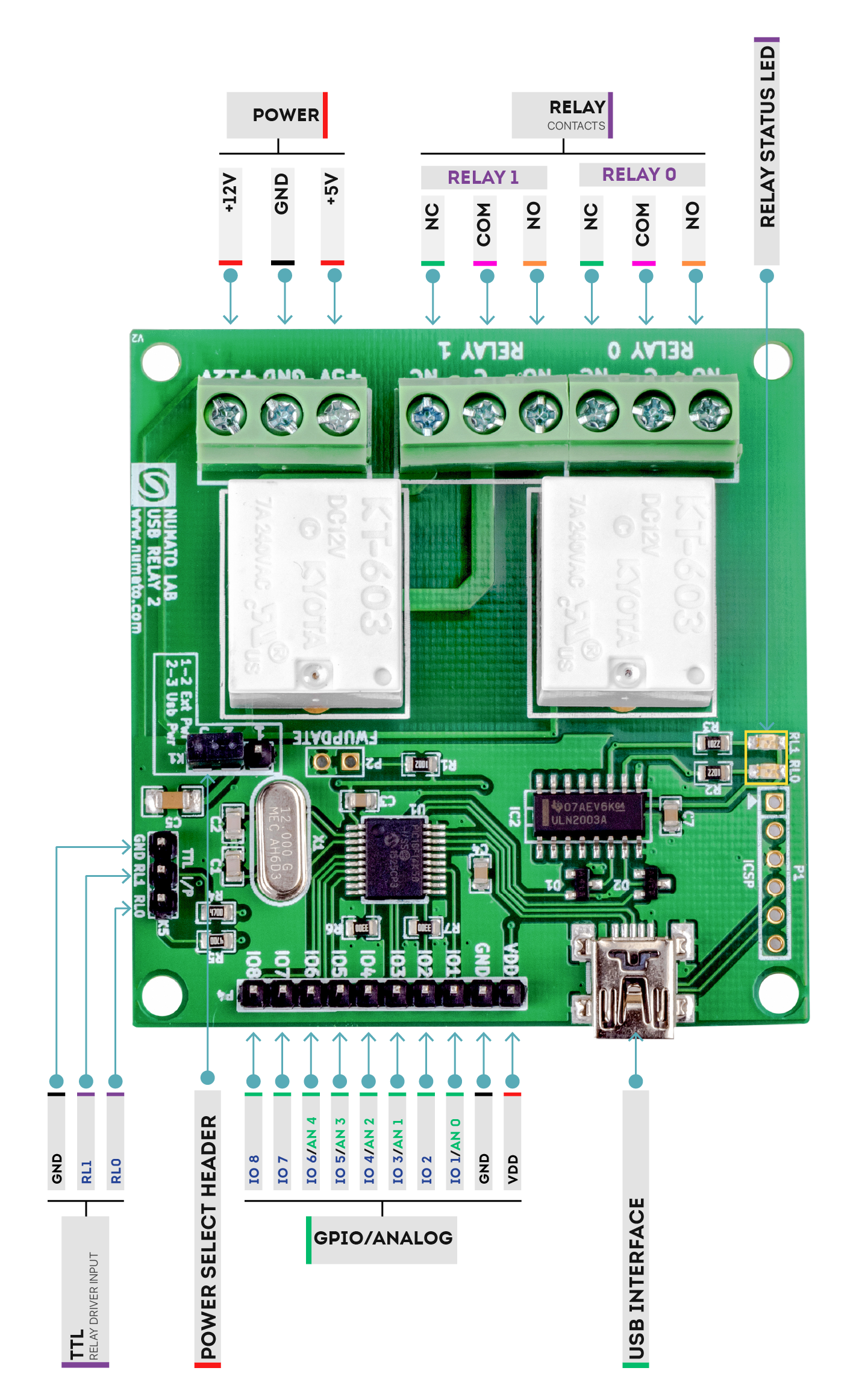

2 Channel USB Relay Module - Wire Diagram

General FAQs

Specifications

Attribute Value
Weight 0.2 lbs
Dimensions 5 × 3 × 1 in
Product Dimensions

2.48 x 2.40 x 0.59 in

Number Of Relays

2

Relay Type

Max Relay Current Rating

10A

Number Of GPIOs (Max)

Analog Inputs(Max)

Analog Input Resolution

Communication

USB

USB Connector

Mini B

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
VBAMS Excel 2010 GUIWindowsDownload
VBAMS Word 2010GUIWindowsDownload
Visual Basic JustBASICNAWindowsDownload
JavascriptNode.jsCommand LineWindowsDownload
AutoItAutoItNAWindowsDownload
LabviewLabviewSimple GUIAnyDownload
PerlPerlCommand LineLinuxDownload
PerlPerlCommand LineWindowsDownload
