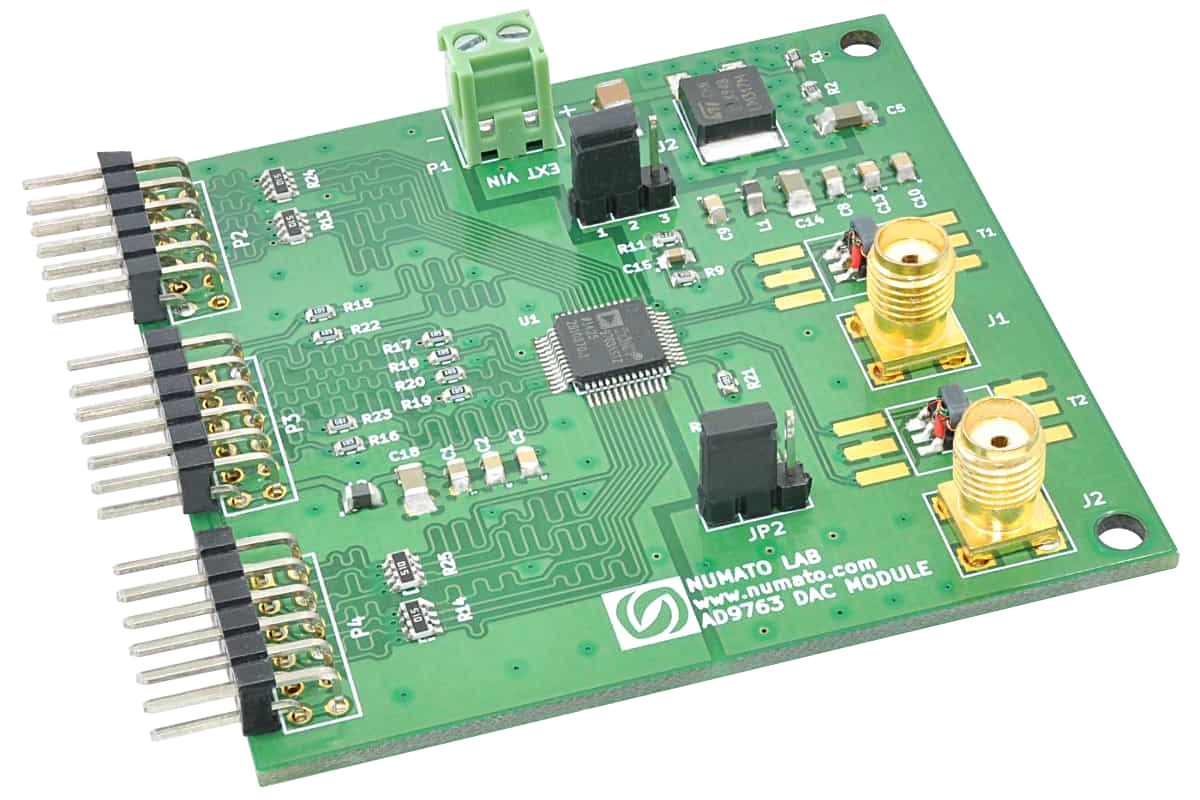

AD9763 DAC Expansion Module

$44.95

The AD9763 DAC module features AD9763, a dual-port, high speed, 2-channel, 10-bit CMOS Digital to Analog converter. The AD9763 offer exceptional ac and dc performance while supporting update rates of up to 125 MSPS. This module is designed to be used with Numato Lab’s FPGA/Micro-controller boards featuring a 2×6 pin Expansion connector. It can also be used with other boards and connector types by using manual wiring.
Features

  • Three 2×6 Expansion connectors
  • Dual 10bit 125MSPS DACs
  • Power dissipation: 380 mW @ 5 V

Applications

  • Quadrature Modulation
  • Digital Synthesis
SKU: AD9763DAC01 Categories: ,

Description

The AD9763 DAC module features AD9763, a dual-port, high speed, 2-channel, 10-bit CMOS Digital to Analog converter. The AD9763 offer exceptional ac and dc performance while supporting update rates of up to 125 MSPS. This module is designed to be used with Numato Lab’s FPGA/Micro-controller boards featuring a 2×6 pin Expansion connector. It can also be used with other boards and connector types by using manual wiring.

Features

  • Three 2×6 expansion connectors
  • Dual 10bit 125MSPS DACs
  • Power dissipation: 380 mW @ 5 V
  • Dimension: 64mm x 62mm

Applications

  • Quadrature Modulation
  • Digital Synthesis

Additional information

Weight 0.15 lbs
Dimensions 5.00 x 3.00 x 2.00 in
Digital to Analog Converter

AD9763

Number of Channels

2

Max Update Rate

125MSPS

Resolution

10bits

Downloads

User Manual
