EagleCore ZU-Plus MPSoC SOM

ROHS Compliant
Quote / Customize Product
  • Device: Zynq UltraScale+™ MPSoC
  • SDRAM: 2GB DDR4
  • Oscillator: 33.33 MHz (PS), 100MHz (PL)
  • eMMC: 8GB Storage (expandable up to 64 GB)
  • Flash Memory: Dual parallel 1Gb SPI flash memories
  • 1 x Gigabit Ethernet PHY
  • Device: Zynq UltraScale+™ MPSoC
  • SDRAM: 2GB DDR4
  • Oscillator: 33.33 MHz (PS), 100MHz (PL)
  • eMMC: 8GB Storage (expandable up to 64 GB)
  • Flash Memory: Dual parallel 1Gb SPI flash memories
  • 1 x Gigabit Ethernet PHY
  • USB-OTG PHY
  • EEPROM
  • 4 x High speed GTR lanes
  • 3 x Q PAIRS DIFFERENTIAL PAIR MEZZANINE CONNECTORS
  • Programming & Debugging: JTAG programming, USB Programming
  • 1 RGB LED for custom use
  • IOs for user-defined purposes XCZU3TEG & XCZU3TCG
    • HP – 46 IOs
    • HD – 63 IOs
    • MIO – 9 IOs
    • GTH – 4
  • GTH – 4 IOs for user-defined purposes XCZU3EG & XCZU3CG – available on-demand
    • HP – 92 IOs
    • HD – 63 IOs
    • MIO – 9 IOs
  • MIO – 9 IOs IOs for user-defined purposes XCZU4EV-1SFVC784I – available on-demand
    • HP – 92 IOs
    • HD – 63 IOs
    • MIO – 9 IOs
    • GTH – 4

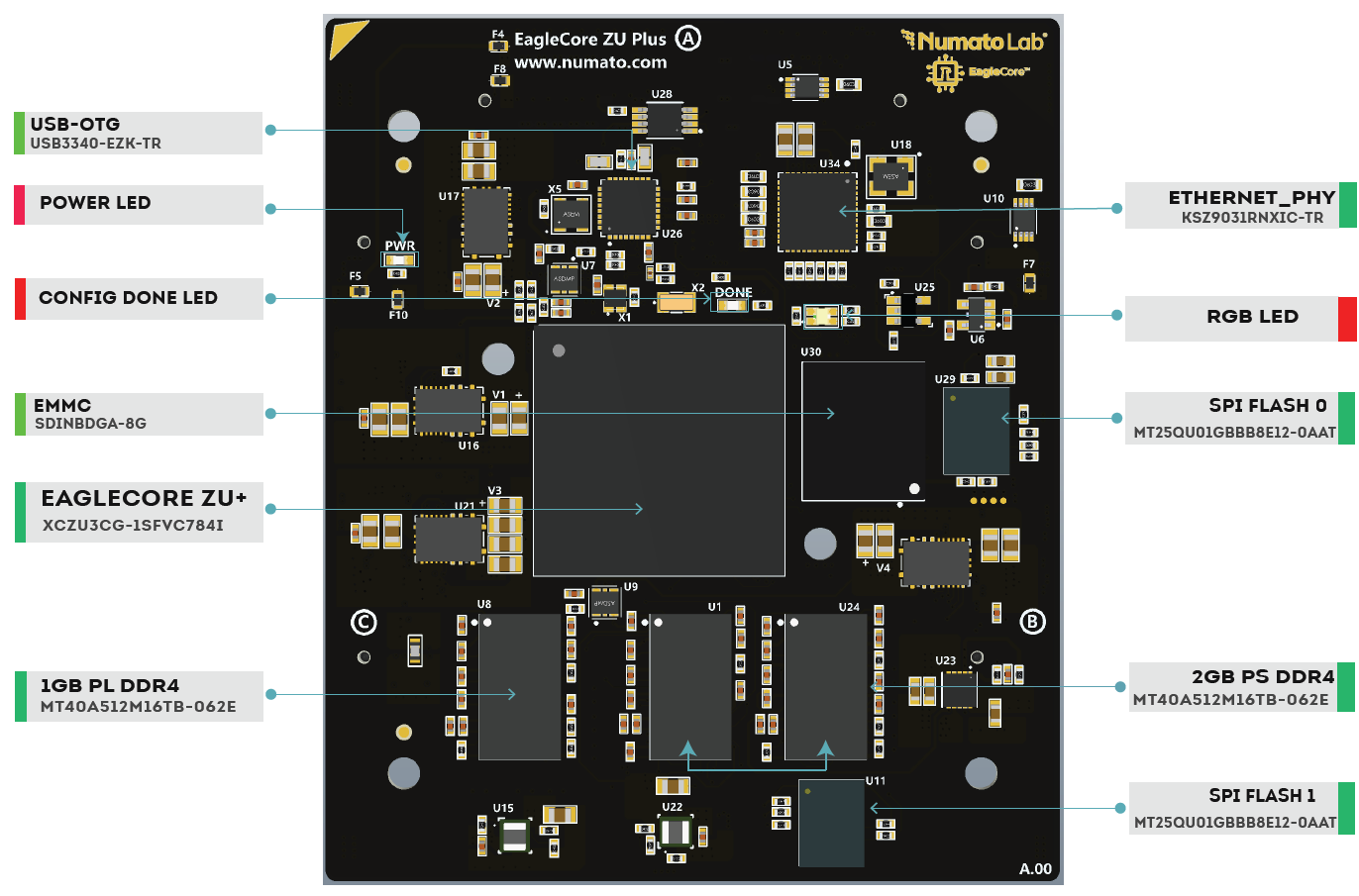

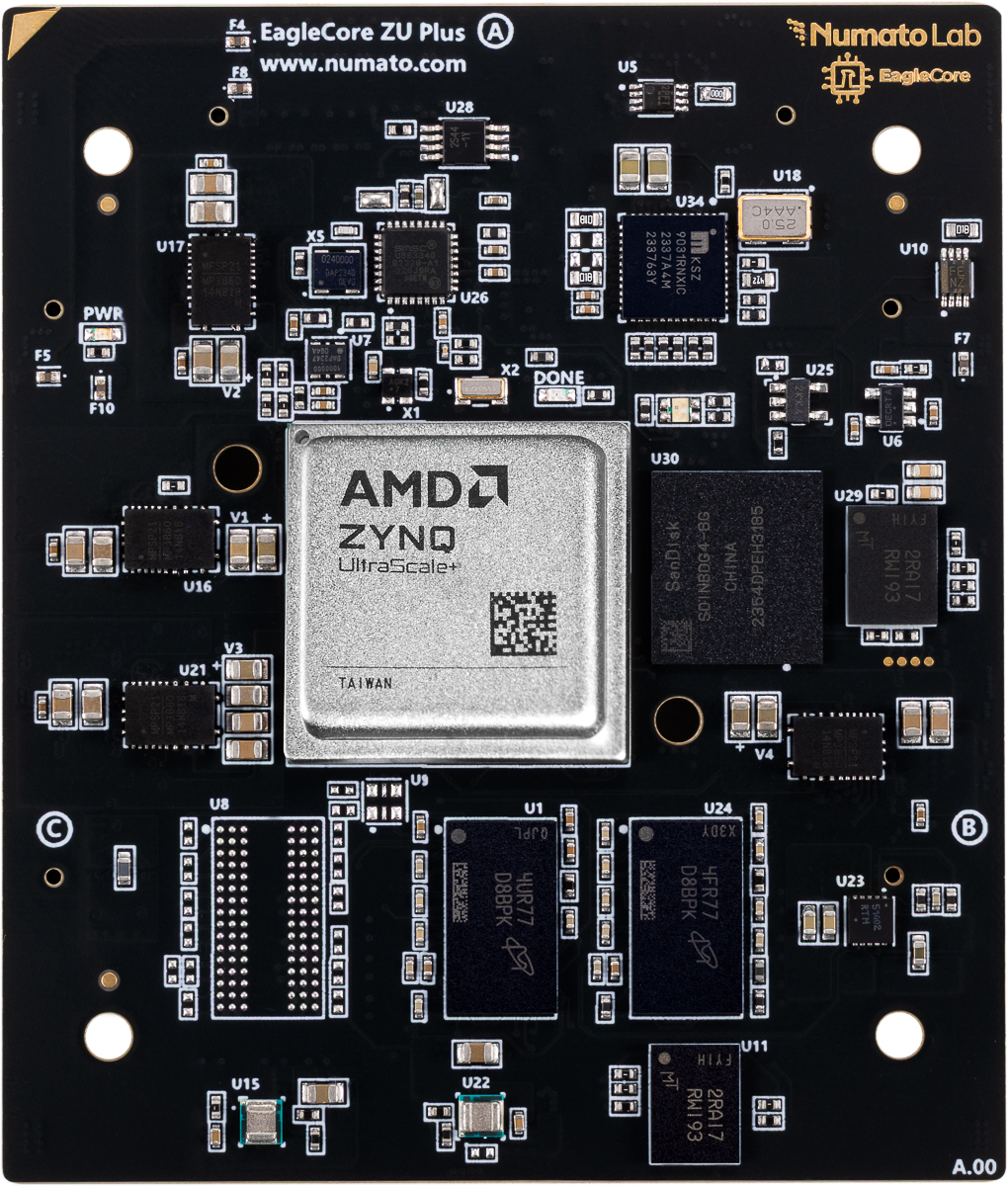

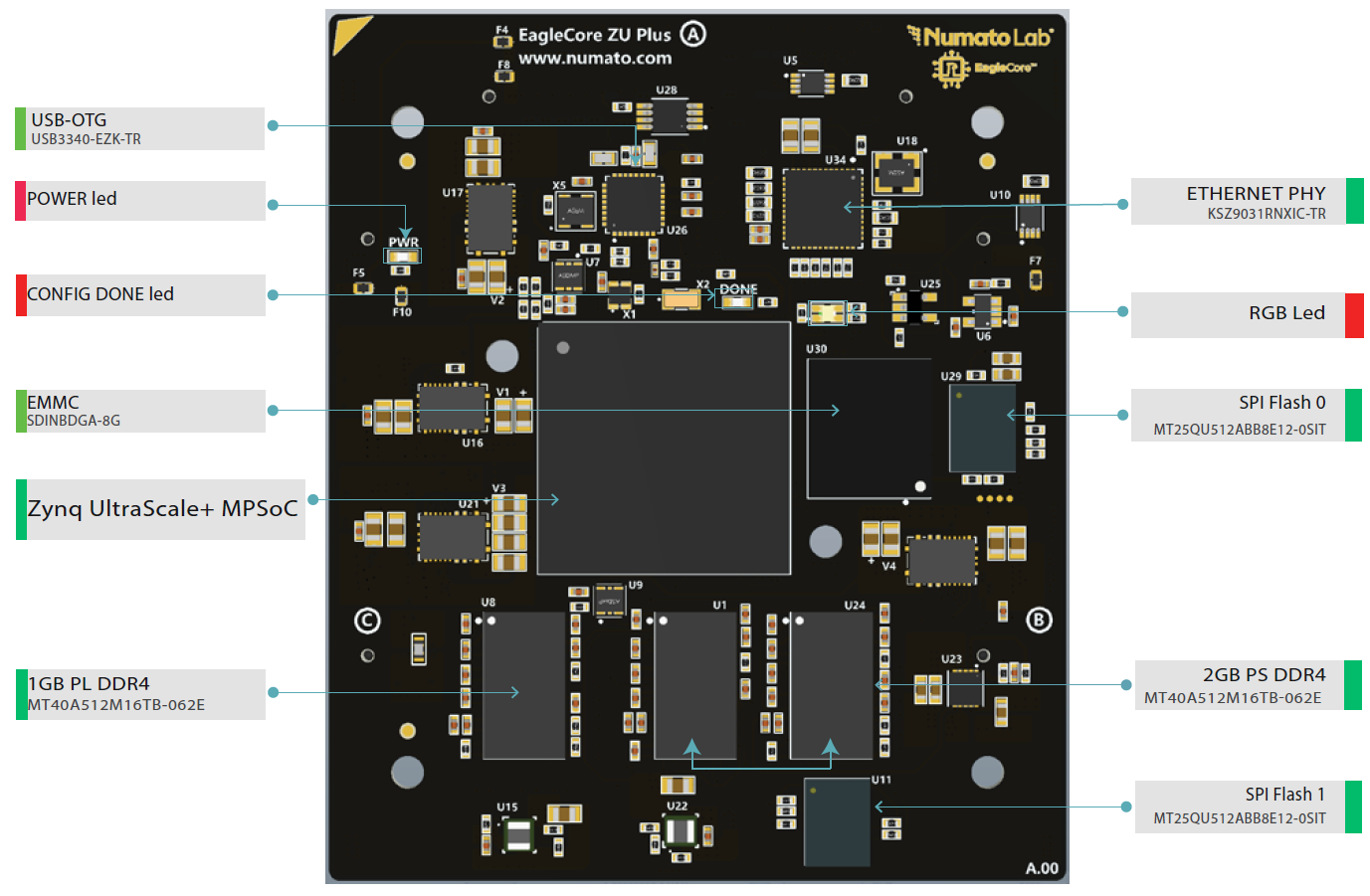

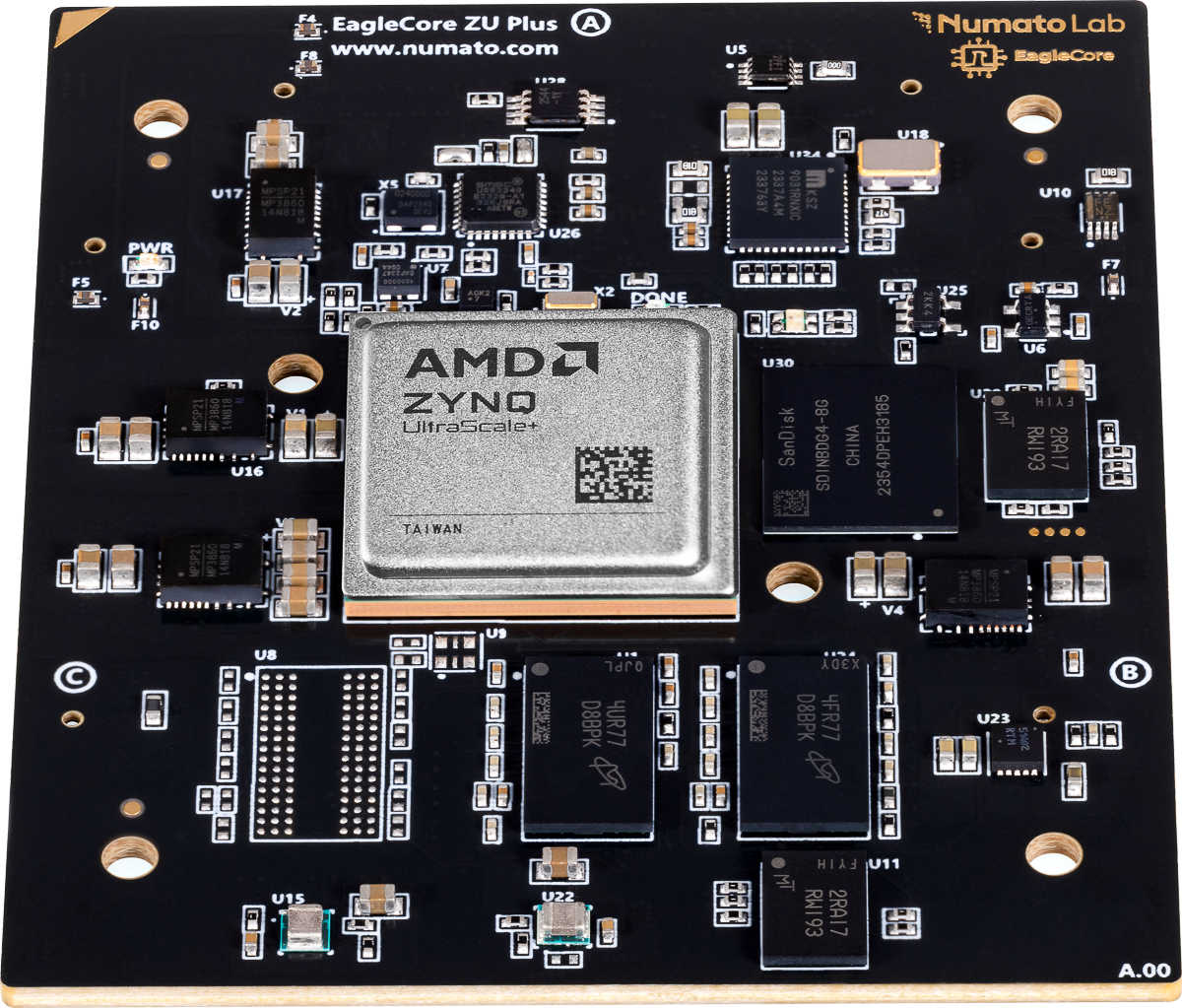

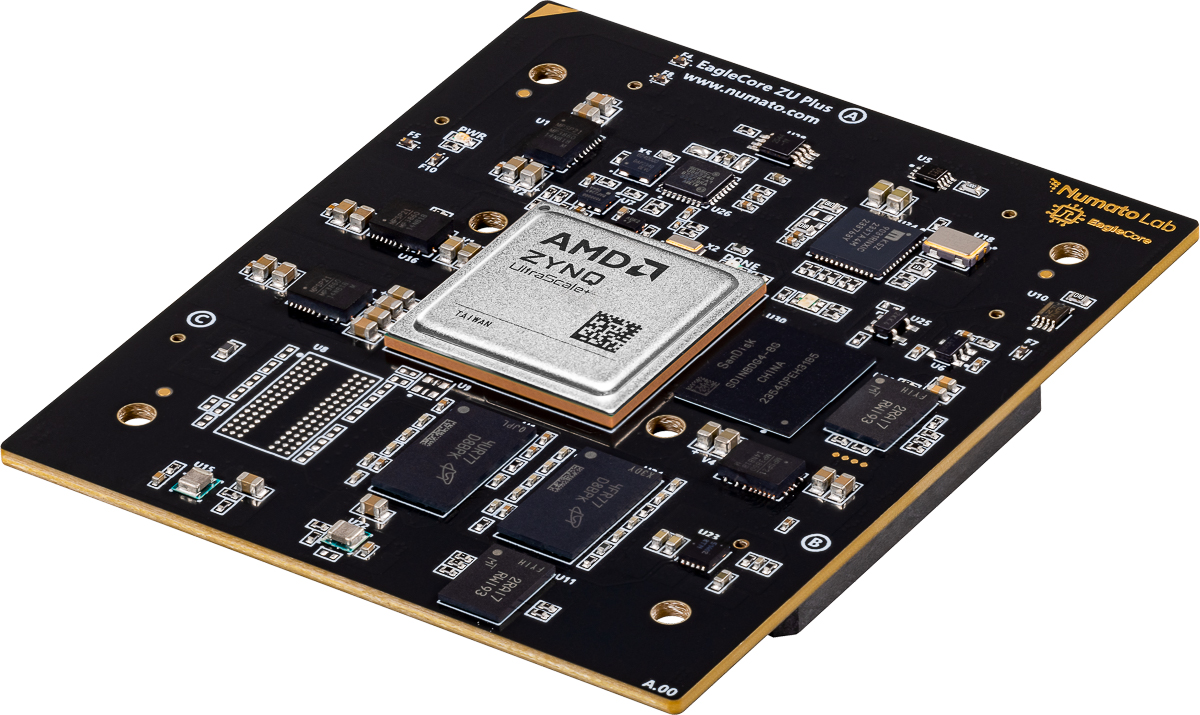

The EagleCore ZU-Plus MPSoC SOM, which uses the part number XCZU3TEG-1SFVC784I, belongs to the UltraScale+ MPSoC family developed by AMD. This series also includes compatible part numbers such as XCZU3TCG-1SFVC784I, XCZU3CG-1SFVC784I, XCZU3EG-1SFVC784I, and XCZU4EV-1SFVC784I. These SoCs combine the processing power of multiple ARM Cortex-A processors with the programmable logic fabric of a field-programmable gate array (FPGA), offering robust performance and flexibility for a wide range of applications.

Additionally, the EagleCore ZU-Plus MPSoC SOM includes RTC (Real-Time Clock) functionality, ensuring precise timekeeping for applications requiring accurate time management. This combination of ARM processing capabilities, FPGA programmable logic, and RTC functionality makes it particularly well-suited for fields where high performance and versatility are crucial.

AMD provides a comprehensive development ecosystem, including the Vivado Design Suite and the Vitis unified software platform, which allows developers to effectively leverage both the ARM and FPGA components and PetaLinux designed for building, customizing, and deploying embedded Linux systems.



Applications

  • Product Prototype Development
  • Accelerated computing integration
  • Custom Embedded platform
  • Signal Processing
  • Communication devices development
  • Educational tool for Schools and Universities
