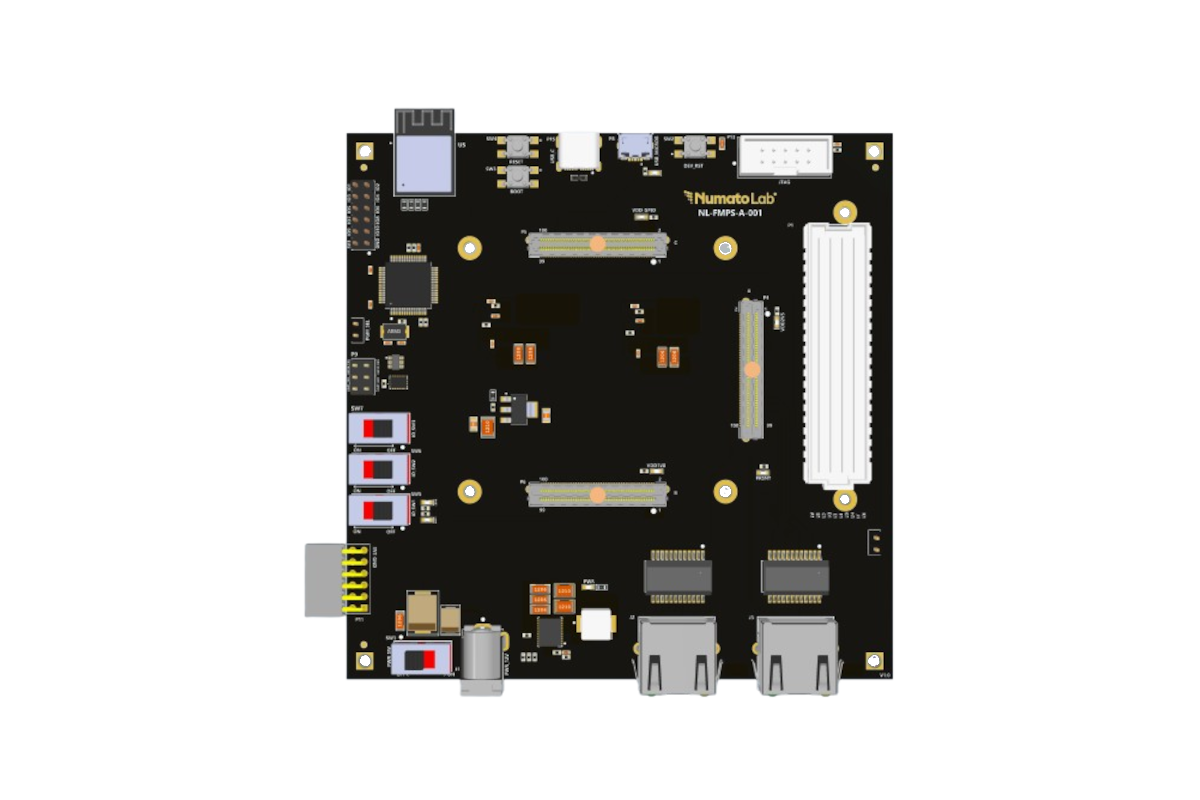

EagleCore PolarFire SoC SOM Carrier
The EagleCore PolarFire SoC SOM Carrier is equipped with Samtec Razor Beam LSHM Series connectors, allowing seamless integration with Microchip SOM modules, including the EagleCore PolarFire SoC. It also features a High Pin Count (HPC) high-speed FMC connector with four SERDES lines, enabling the expansion of the board’s capabilities through custom or off-the-shelf daughter boards. Additionally, the carrier board includes several other features aimed at enhancing functionality and providing greater flexibility for users.
Features
- 3 x Samtec Razor Beam LSHM Series connectors
- FTDI FT2232H for FPGA and Host communication
- 2 x RJ45 JACK
- USB Type-C connector
- USB micro-B connector for OTG communication
- 12V DC power supply
- Microchip-compatible JTAG Header for programming and debugging.
- FMC connector with a maximum of 100 IOs for a user-defined purpose
- FMC HPC connector with a maximum of 4 x SERDES lines
- ESP32
- 6×2 Header for user-configurable purpose
Applications
- Artificial Intelligence (AI)
- Industrial Automation
- Embedded Vision
- High-Performance Computing (HPC)
- Aerospace and Defense
- Communication and Networking
