4 Port Gigabit Ethernet FMC Module

0 views February 11, 2019 kavya-konda 0

Introduction

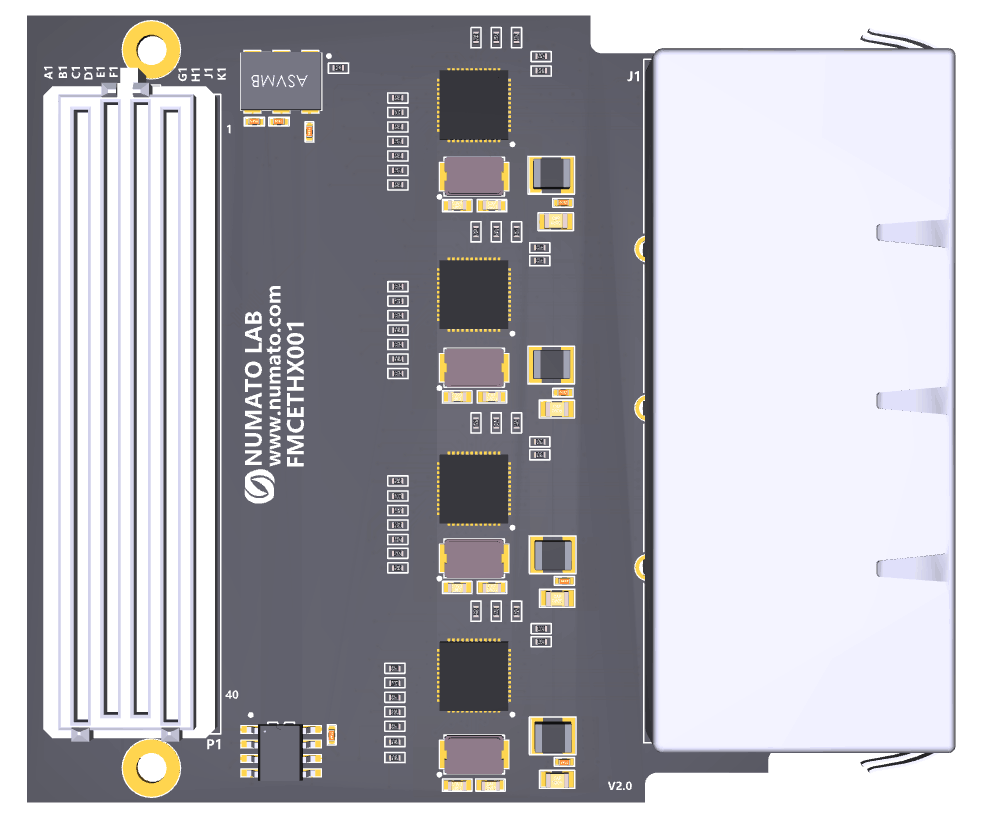

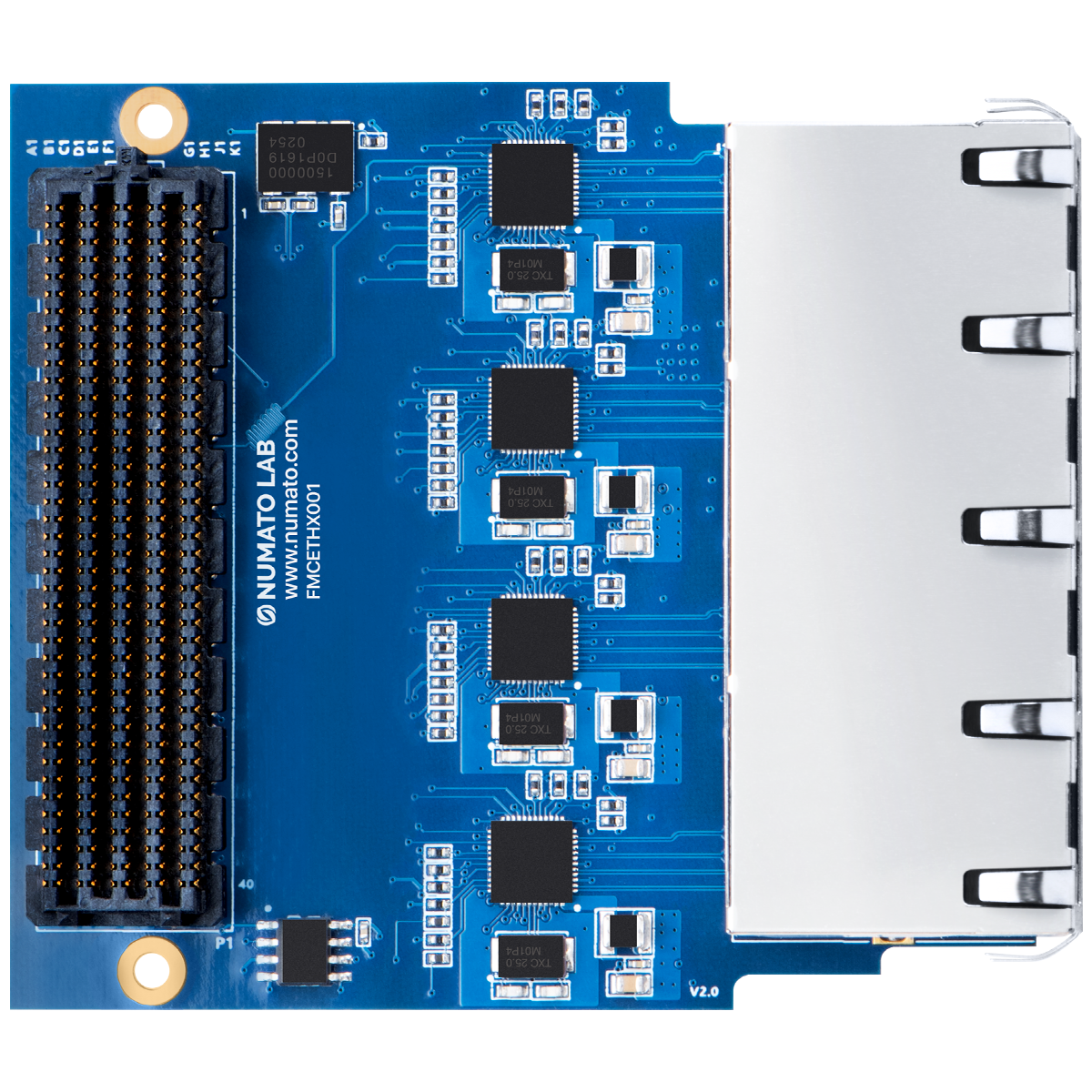

The FMCETHX001 Ethernet Expansion Module is an easy to use module featuring RTL8211E-VB-CG which is a highly integrated Ethernet transceiver that complies with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards.

This FMCETHX001 Ethernet Expansion Module has 4 Gigabit Ports- each individually capable of providing robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps and also all the 4 ports are capable of working simultaneously. The FMC module is ANSI/VITA 57.1 standards compliant. This expansion module supports 3.3V signaling for RGMII.

The Reduced Gigabit Media-Independent Interface (RGMII) is used to interface Ethernet MAC on FPGA with Gigabit Ethernet PHY chips (RTL8211E) on 4 Port Gigabit Ethernet FMC Module. RGMII provides a media-independent interface so that there is compatibility between MAC and PHY irrespective of the hardware used. This expansion module is compatible with Numato Lab’s FPGA boards such as Nereid Kintex 7 FPGA Board, Proteus Kintex 7 FPGA Board and Tagus Artix 7 FPGA Board.

Applications

  • Network Interface Adapter
  • Embedded Telecom Applications
  • Digital Media Adapters /Servers
  • Ethernet hub
  • Ethernet switch.
  • Gigabit Router

Board Features

  • 4 High-Performance 10/100/1000Mbps Ethernet Transceiver
  • Dimension: 76.50mm x 69.00mm

How to use the module

The following section describes how to use this module.

Components/Tools Required

Along with the module, you may use any of the boards below, or any other FMC compatible FPGA board.

  1. Numato Lab Nereid Kintex 7 FPGA Board
  2. Numato Lab Tagus Artix 7 FPGA Board
  3. Numato Lab Proteus Kintex 7 FPGA Board

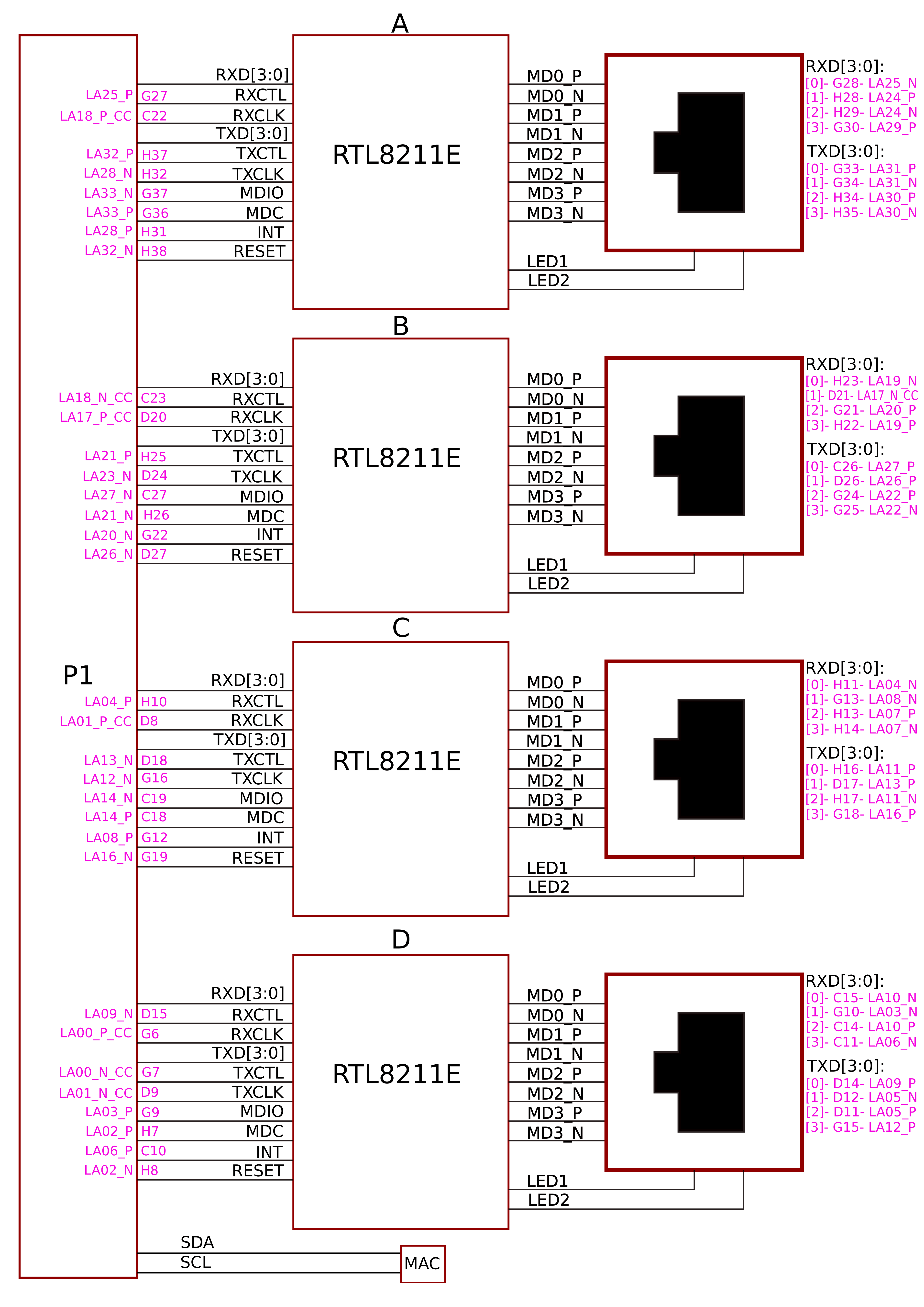

Connection Diagram



This diagram should be used as a reference only. For detailed information, see the schematics at the end of this document. Details of individual connectors are as below.

Connection Details

Header P1

SL.No
Pin Details
FMC Pin NameFMC Pin Location
Trace Length(mm)
1ETH_RXD0_0
RXD[0]G2849.022
2ETH_RXD1_0
RXD[1]H2849.022
3ETH_RXD2_0
RXD[2]H2949.022
4ETH_RXD3_0
RXD[3]G3049.022
5ETH_RXCTL_0
RXCTLG2749.022
6ETH_RXCLK_0
RXCLKC2249.032
7ETH_TXD0_0
TXD[0]G3349.022
8ETH_TXD1_0
TXD[1]G3449.022
9ETH_TXD2_0
TXD[2]H3449.023
10ETH_TXD3_0TXD[3]H3549.022
11ETH_TXCTL_0TXCTLH3749.022
12ETH_TXCLK_0
TXCLKH3249.022
13ETH_MDIO_0
MDIOG3749.022
14ETH_MDC_0
MDCG3649.022
15ETH_INT_0
INTH3149.022
16ETH_RESET_0
RESETH3849.022
17
ETH_RXD0_1
RXD[0]H2349.022
18ETH_RXD1_1
RXD[1]D2149.022
19ETH_RXD2_1
RXD[2]G2149.022
20ETH_RXD3_1
RXD[3]H2249.022
21ETH_RXCTL_1RXCTLC2349.03
22ETH_RXCLK_1
RXCLKD2049.022
23ETH_TXD0_1
TXD[0]C2649.022
24ETH_TXD1_1
TXD[0]D2649.027
25ETH_TXD2_1
TXD[0]G2449.027
26ETH_TXD3_1
TXD[0]G2549.022
27ETH_TXCTL_1
TXCTLH2549.022
28ETH_TXCLK_1
TXCLKD2449.022
29ETH_MDIO_1
MDIOC2749.022
30ETH_MDC_1
MDCH2649.022
31ETH_INT_1
INTG2249.022
32ETH_RESET_1
RESETD2749.022
33ETH_RXD0_2
RXD[0]H1153.848
34ETH_RXD1_2
RXD[1]G1353.848
35ETH_RXD2_2RXD[2]H1353.848
36ETH_RXD3_2
RXD[3]H1453.848
37ETH_RXCTL_2
RXCTLH1053.896
38ETH_RXCLK_2
RXCLKD853.871
39ETH_TXD0_2
TXD[1]H1653.848
40ETH_TXD1_2
TXD[1]D1753.868
41ETH_TXD2_2
TXD[2]H1753.849
42ETH_TXD3_2
TXD[3]G1853.848
43ETH_TXCTL_2
TXCTLD1853.848
44ETH_TXCLK_2
TXCLKG1653.848
45ETH_MDIO_2
MDIOC1953.585
46ETH_MDC_2
MDCC1853.848
47ETH_INT_2
INTG1253.848
48ETH_RESET_2
RESETG1953.848
49ETH_RXD0_3
RXD[0]C1556.389
50ETH_RXD1_3
RXD[1]G1056.388
51ETH_RXD2_3
RXD[2]C1456.388
52ETH_RXD3_3
RXD[3]C1156.396
53ETH_RXCTL_3
RXCTLD1556.388
54ETH_RXCLK_3
RXCLKG656.388
55ETH_TXD0_3
TXD[0]D1456.388
56ETH_TXD1_3
TXD[0]D1256.388
57ETH_TXD2_3
TXD[0]D1156.397
58ETH_TXD3_3
TXD[0]G1556.388
59ETH_TXCTL_3
TXCTLG756.388
60ETH_TXCLK_3
TXCLKD956.388
61ETH_MDIO_3
MDIOG956.388
62ETH_MDC_3
MDCH756.388
63ETH_INT_3
INTC1056.393
64ETH_RESET_3
RESETH856.388

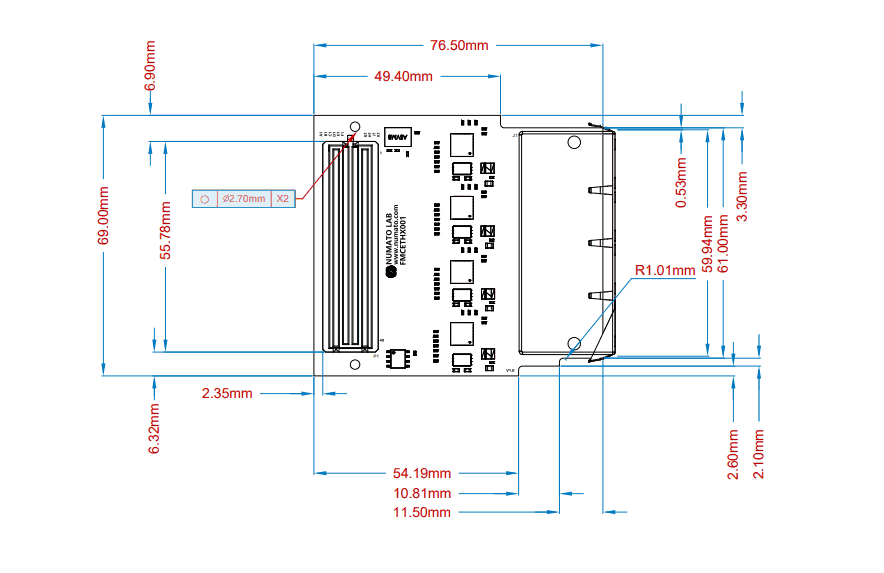

Mechanical Dimensions
