Proteus Kintex 7 USB 3.1 Development Board

$999.00$2,799.95

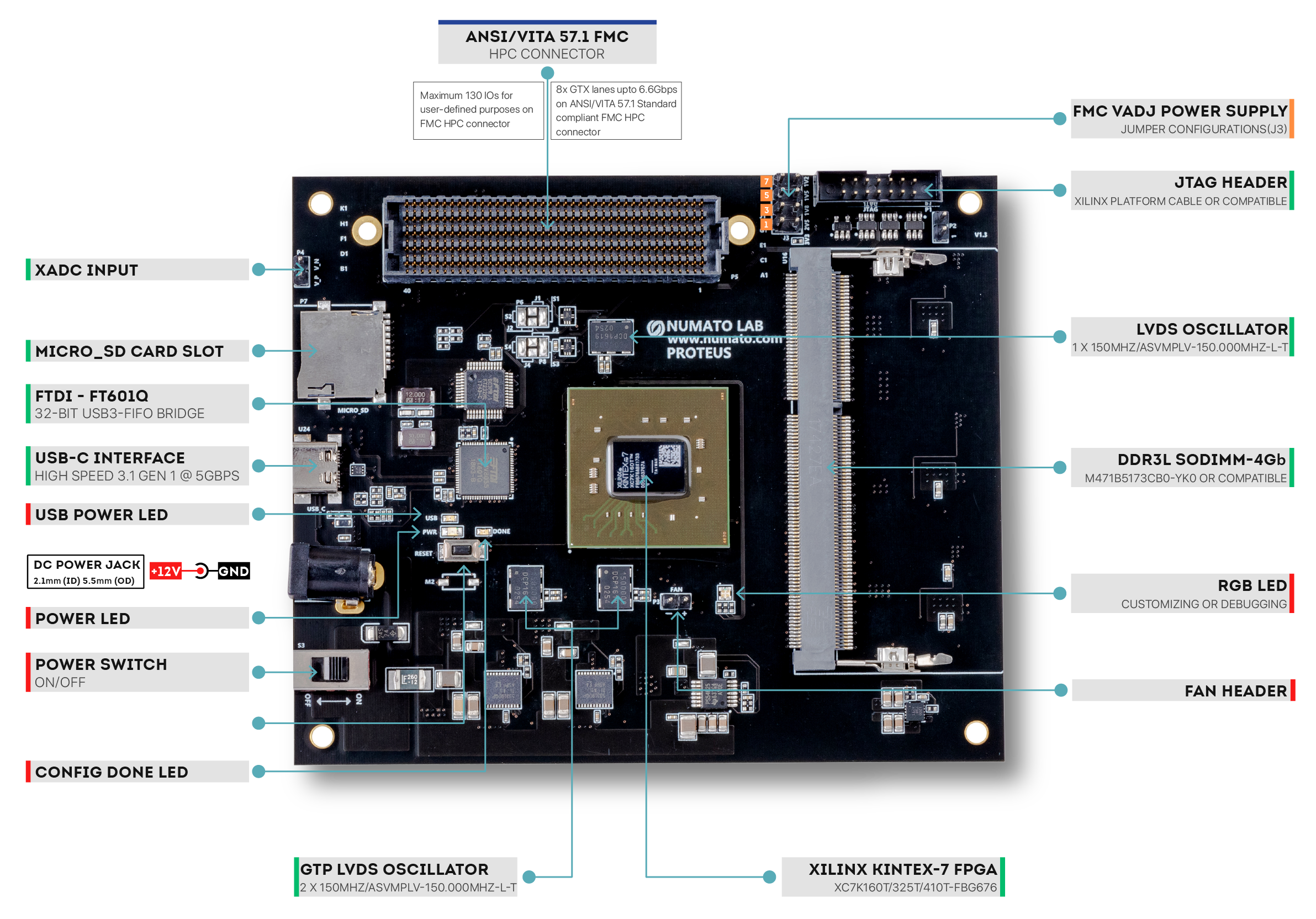

Proteus is an easy to use FPGA Development board featuring the Xilinx Kintex-7 FPGA with 4GB DDR3L SDRAM. This board contains the Xilinx XC7K160T– FBG676 FPGA. The high-speed USB 3.1 interface (USB-C connector) provides fast and easy configuration download to the onboard SPI flash. There is no need for a programmer or special downloader cable to download bitstream to the board. The board features a High Pin Count (HPC), high-speed FMC connector for aiding the addition of additional features to the board by utilizing custom or commercial off-the-shelf daughter boards. Proteus provides user the flexibility of adding their own peripherals through IO Expansion Headers.

Features

  • FPGA Xilinx Kintex-7 XC7K160T– FBG676 package; Speed Grade: 2.
  • 4GB DDR3L SODIMM SDRAM M471B5173CB0-YK0 or compatible
  • 128 MB QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • 1 x 100MHz CMOS oscillator, 1x 150MHz LVDS oscillator for users
  • 2 x 150MHz LVDS oscillator for GTP
  • USB 3.1 Gen 1 @ 5Gbps (USB Type-C connector)
  • Onboard voltage regulators for single power rail operation
  • 12V DC power supply
  • Maximum 130 IOs for user-defined purposes on FMC connector
  • 8 x GTX lanes upto 6.6Gbps on ANSI/VITA 57.1 Standard compliant FMC HPC connector
  • Micro SD Card
  • A Push Button for the reset pin
  • JTAG header for programming and debugging.
  • 1 RGB LED for custom use.
Clear
SKU: NLFX1004 Category:

Description

Proteus is an easy to use FPGA Development board featuring the Xilinx Kintex-7 FPGA with 4GB DDR3L SDRAM. This board contains the Xilinx XC7K160T– FBG676 FPGA. The high-speed USB 3.1 interface (USB-C connector) provides fast and easy configuration download to the onboard SPI flash. There is no need for a programmer or special downloader cable to download a bitstream to the board. The board features a High Pin Count (HPC), high-speed FMC connector for aiding the addition of additional features to the board by utilizing a custom or commercial off-the-shelf daughter boards. Proteus provides the user the flexibility of adding their own peripherals through IO Expansion Headers.

Features

  • FPGA Xilinx Kintex-7 XC7K160T– FBG676 package; Speed Grade: 2.
  • 4GB DDR3L SODIMM SDRAM M471B5173CB0-YK0 or compatible
  • 128 MB QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • 1 x 100MHz CMOS oscillator, 1x 150MHz LVDS oscillator for users
  • 2 x 150MHz LVDS oscillator for GTP
  • USB 3.1 Gen 1 @ 5Gbps (USB Type-C connector)
  • Onboard voltage regulators for single power rail operation
  • 12V DC power supply
  • Maximum 130 IOs for user-defined purposes on FMC connector
  • 8 x GTX lanes upto 6.6Gbps on ANSI/VITA 57.1 Standard compliant FMC HPC connector
  • Micro SD Card
  • A Push Button for the reset pin
  • JTAG header for programming and debugging.
  • 1 RGB LED for custom use.

Applications

  • Product Prototype Development
  • Communication Device Development
  • Accelerated Computing Integration
  • Development and Testing of Custom embedded processors
  • Signal Processing
  • Educational tool for Schools and Universities

Proteus Kintex-7 FPGA Board - Block Diagram

Additional information

Weight 2.5 lbs
FPGA

, ,

Memory

Number Of GPIOs (Max)

130

Configuration Options

JTAG, USB

Non-Volatile Configuration Storage

N25Q128A13ESE40E

Number of Clock Sources

3

Total Number of GTX

8

Differential Pairs Length Matched

Yes

Communication

USB 3.1

Primary Clock Frequency

Downloads

User Manual
Proteus Configuration Tool: Tenagra FPGA Management Suite
Driver for Proteus

Sample Code

Proteus Microblaze HelloWorld Sample ProjectDownload
Proteus DDR3 Test ProjectDownload
Proteus FT601 Test ProjectDownload
