USB GPIO Modules

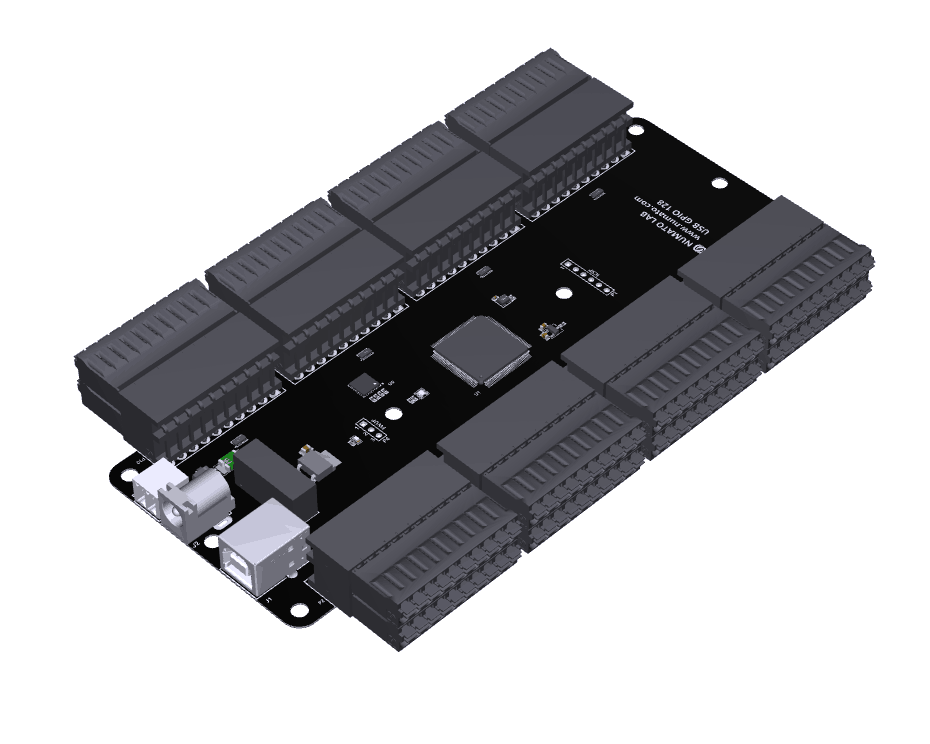

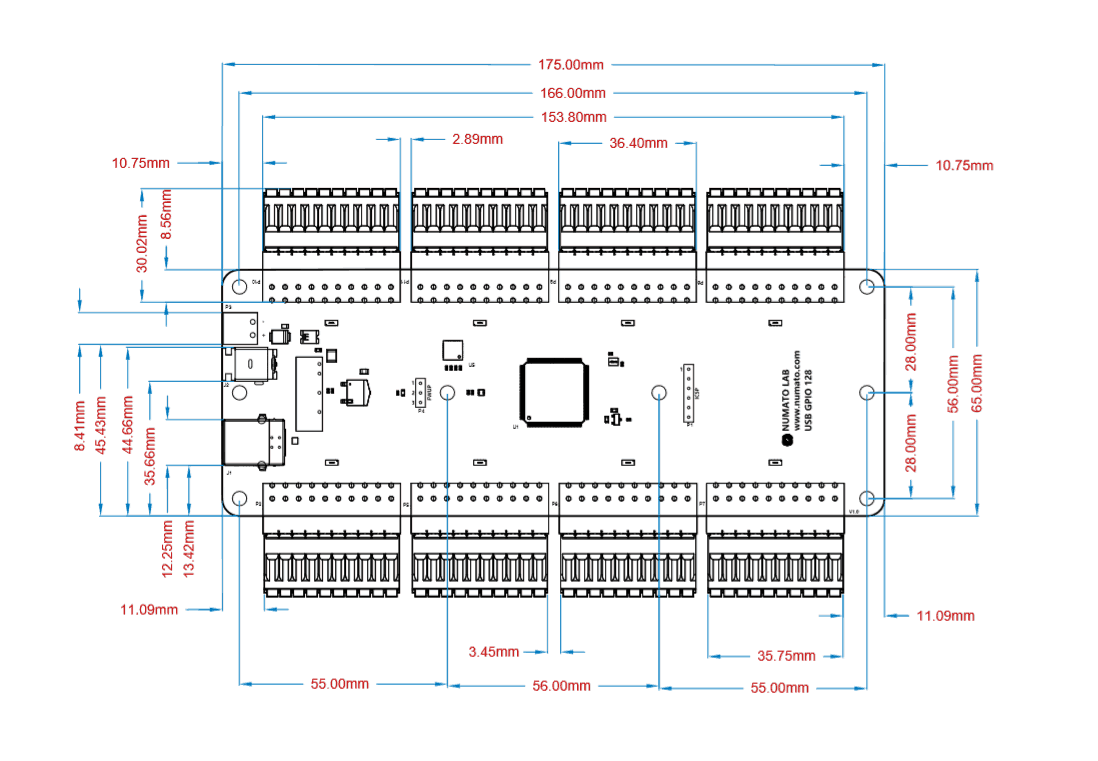

Numato Lab’s 128 Channel USB GPIO Module is a versatile product for controlling electrical and electronic devices remotely from a PC over the USB link. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. Built-in USB to serial conversion allows the module to be used without any USB specific knowledge. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as Hyper Terminal and PUTTY for controlling the module with a simple set of human-readable commands. For power users, this module can be controlled by writing programs in various programming languages.

Features:

• 128 TTL (3.3V) compatible GPIOs
• 32 analog inputs with 12-bit resolution (multiplexed with digital IOs)
• USB interface with CDC support. As easy as using a serial port, no USB knowledge required
• All IOs available on easy to access screw terminals
• Can be powered from USB or external power supply
• Can be controlled by using standard serial console applications or custom applications

Some of the possible uses of this module include:

• Home Automation
• Lighting Control
• Garden Equipment Control
• Industrial Automation
• Test Fixtures
• DIY and Hobby

This product is compatible with the following operating systems:

• Windows XP and later versions (Windows 7, 8/8.1, 10 and future versions)
• Windows 7 Embedded and later
• Linux
• Mac OS X
• Android
• Or any other operating system that supports USB CDC devices.

And these are some of the languages that can be used for programming:

• C/C++
• Visual Basic (VB6, VB2008, VB2010 express and other editions)
• Visual Basic for Applications (Microsoft Office VBA)
• Perl
• Python
• JAVA
• Android
• Javascript (Node.js)
• And many more…

This module has 128 on-board General purpose I/Os multiplexed with 32 Analog Inputs, each connected to individual screw terminals and associated drivers capable of controlling a large number of devices. The analog inputs (multiplexed with GPIOs) can be accessed over USB interface for extended functionality. The module communicates with host PC over the full-speed USB link. When connected to PC, the module will appear as a serial port in Windows Device Manager (or a serial tty device in Linux and Mac).

Using this product is very easy, thanks to the human-readable and easy to use command set and the USB CDC interface that allows the device to be used with most readily available serial terminal software such as Tera Term or HyperTerminal. This document has more information about using this device with the following Serial terminal software. But in no way limited to this software though.

• Windows
  • HyperTerminal
  • Tera Term
• Linux
  • GNU Screen
  • PuTTY
• Mac OS X
  • Screen Command
  • CoolTerm
  • goSerial

Using this product involves the following simple steps.

1. Connect the device to a USB port on the host system
2. Install driver (Only needed for Windows. Driver available for download on the product page.)
3. Open the COM port corresponding to the device using a Serial Terminal software
4. Enter commands (Very similar to entering commands at DOS prompt or Bash prompt)
5. Optionally write a script or application to automate your task (More info on custom programming/scripting is available in this document)

All aspects of the above steps are covered in the following sections including step by step demonstration.

Along with the module, you may need the items in the list below for easy and fast installation.
1. USB A to USB B cable.
2. Small screwdriver.

The on-board full-speed USB controller helps a PC/Linux/computer to communicate and control this module seamlessly. Use a USB A to USB B cable to connect with a PC. Please visit http://www.numato.com to buy cables and accessories for this product. By default, the logic section of the module is powered from USB so make sure not to overcrowd unpowered USB hubs (the picture on the right shows USB B connector).

This module uses +5V power supply to function properly. By default, the board is configured to use +5V supply from USB.  In most cases, USB ports are capable of providing enough current for the module. So an external power is not required unless the USB port is unable to supply enough current.  If needed, connect a +12V power supply to the ‘V-Ext’ terminal on the module. Make sure to connect the power supply incorrect polarity. It has on-board DC Barrel Jack Adapter, we can directly connect the power supply which has a Barrel Jack connector (See the image on right).

The module has 128 General Purpose IO pins that can be used for various custom applications. Some of these pins can be used as Analog to Digital Converter inputs as well. All IO pins support 3.3V TTL signals and the ADC input range is 0 to +3.3V. The ADC can acquire analog signal at the resolution of 12 bits per sample. It is recommended to use a series resistor with the GPIO/ADC pins when interfacing with other circuits. In output mode, GPIOs can source up to 25mA. So no additional circuitry is needed to drive regular LEDs. A 470 Ohms series resistor is recommended for current limiting when connecting LED to a GPIO.

In contrast to GPIOs, Analog inputs can read voltages at any level between 0 to 3.3V volts. It is recommended to use a series resistor to protect the input from stray voltages and spikes. The internal Analog to Digital converter supports 12 bits resolution which is adequate for most applications. The table below summarizes the GPIO and Analog to Digital Converter input positions on the screw terminals.

The driver package for Numato Lab’s products can be downloaded from the product page at Numato Lab. To install the driver, unzip the contents of the downloaded driver package to a folder. Attach the USB cable to the PC and when asked by Windows device installation wizard, point to the folder where driver files are present. When the driver installation is complete, the module should appear in Windows Device Manager as a serial port. The picture below shows a 128 Channel USB GPIO Module visible in Windows Device Manager. For other devices, the name will be different but how the device is displayed and used is exactly the same.

Note down the name of the serial port (COM1, COM2, etc..). This information is required to control the module from the PC.

You may notice that the driver package does not come with a .sys or .exe file as most driver packages do and are expected to be that way. The driver binary necessary in this case is shipped with all copies of Windows Desktop/Server editions and gets installed automatically while Windows is installed for the first time. The .inf and .cat files present in the driver package downloaded from http://numato.com merely associate this pre-existing driver with the attached Numato Lab device.

The following video demonstrates how to install the driver on Windows 10.

Windows Embedded editions do not install the infrastructure necessary for USB CDC by default in favor of a smaller footprint. This will cause the driver to install to fail unless the necessary files are manually installed prior to installing the driver. Please follow the steps below to install the prerequisites and driver correctly. These steps are tested on Windows 7 Embedded Edition.

1. Locate winemb-inf-mdmcpq.cab on Win 7 Embedded DVD/ISO image
2. Copy winemb-inf-mdmcpq.cab to a folder Ex: C:Temp
3. Run command DISM.exe /online /Add-Package /PackagePath:C:Temp
4. Wait for Windows to restart (Restart machine manually if DISM does not restart the machine automatically)
5. After reboot is complete, plug the device to a USB port and install driver normally (Driver is available for download at the product page)

Mac OSX is usually shipped with USB CDC driver pre-installed. When connected to a Mac computer, this product should appear as a serial port under /dev directory. Usually the name of the device will be tty.usbserialportx or similar. The name may be different depending on the Mac OSX version you have. The image below shows the result of ls /dev/*usb* command on a Mac OSX Yosemite system with a USB GPIO/Relay device attached.

In this particular case, the device shows up as tty.usbmodem141141 (highlighted on orange color) but it could be any name starting tty.usbmodem or even a completely different name depending on the exact version of operating system and other connected devices. Once the device is visible under /dev directory, it can be treated just like any other serial device. Commands can be sent to the device using any mechanism that is valid for regular serial ports such as screen command or Serial Terminal Emulation applications. If there are more than one devices connected to the same host computer, each device will be displayed as separate serial devices with unique names. These separate serial devices can be used to control individual devices attached.

Most Android versions has built in driver that supports external USB Devices. Due to the presence of built-in driver any external USB device including Numato Lab’s USB GPIO/Relay products connected to Android based gadget will be enumerated by Android OS. Such enumerated devices can be listed/viewed by using apps such as USB Device Info. The image below shows info about a Numato Lab USB device printed by USB Device Info app.

Devices detected by Android can be controlled by using any off the shelf Serial Terminal App such as USB Serial Terminal Lite.

One of the most powerful features of this module is the simple easy to use command set it supports. This command set hides the complex USB protocol and gives a very simple interface to access the features of the module. The following sections give details of the command set and how to use the command set.

This product supports a very simple command set that is designed to be less cryptic and easy to use manually (using serial terminal emulation programs) or through a program written in many supported languages.

List of currently supported commands.

Using this module with Hyper Terminal is very easy. Please follow the steps below.

• Connect the module to the computer, install the driver and note down the name of the new serial port that appears in the device manager.
• Open Hyper Terminal and select the serial port corresponding to the GPIO module. Click OK.

• A new window will pop up where the serial port settings can be changed. In this window, leave all settings to defaults except Flow Control which needs to be set to “None” and click OK.

• If everything goes well, you should be presented with a blank screen. Press ENTER key and the command prompt should appear. Commands listed in the table above can be entered here now.

For example, here is the response for “ver” command.

Using the GPIO module with Teraterm is just as easy. Please follow the steps below.

• Run Teraterm application and select the port corresponding to the GPIO module in the “New connection” dialog and click OK.

• Press ENTER key on the main window and a command prompt should appear as in the image below.

• Enter the command at the command prompt. Example “ver” command and response is in the image below.

GNU Screen is a full-screen Window Manager that works with Serial Terminals as well. This makes GNU Screen a very handy tool to communicate with Numato Lab’s USB GPIO/Relay modules and other products. Please visit this document for details on how to install GNU Screen on your Linux machine. Run the command screen /dev/ttyACM0 as shown in the image below. Please don’t forget to replace the device name with the retrieved device name from your system. Use sudo or set appropriate permissions for the device where necessary.

When the screen command is executed, you will be presented with an empty screen. Press ENTER key to see the command prompt. At the command prompt enter any command supported by the device. All commands must be completed by ENTER key press. Please see the list of available commands in the product documentation. The image below shows a few sample commands executed through the screen program and corresponding results.

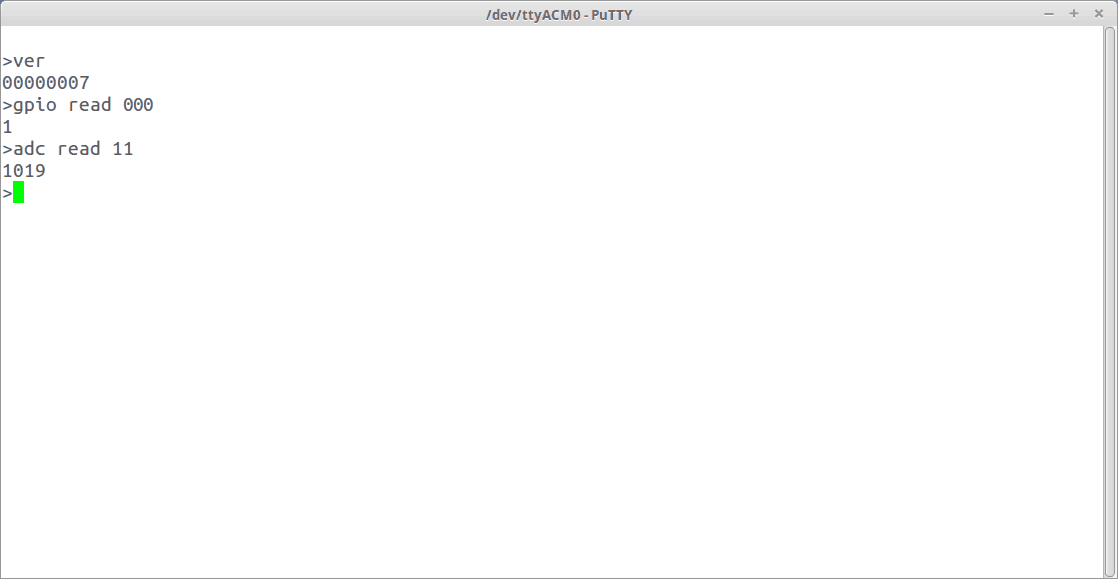

PuTTY is a free SSH/TELNET client that works with Serial Terminals as well. This makes PuTTY a very handy tool to communicate with Numato Lab’s USB GPIO/Relay modules and other products. Please visit this document for details on how to install PuTTY on your Linux machine. Start PuTTY by running the command putty at the terminal or double-clicking the PuTTY icon. Use sudo or set appropriate permissions for the device where necessary. You will see a screen similar to the below image when PuTTY is started.

Leave settings as shown in the images above. Please don’t forget to replace the device name with the device name retrieved from your system. Click the Open button to start PuTTY session. PuTTY will start with an empty screen. Press ENTER key to show the command prompt. At the command prompt enter any command supported by the device. All commands must be completed by ENTER key press. Please see the list of available commands in the product documentation. The image below shows a few sample commands executed through PuTTY and corresponding results.

Mac OSX provides a built-in command/program called screen that can be used to communicate with any serial device attached to a Mac device. The screen program is a lightweight Terminal Emulator that is very easy to use. Run the command screen /dev/tty.usbmodem141141 as shown in the image below. Please don’t forget to replace the device name with the device name retrieved from your system.

When the screen command is executed, you will be presented with an empty screen. Press ENTER key to see the command prompt. At the command prompt enter any command supported by the device. All commands must be completed by ENTER key press. Please see the list of available commands in the product documentation. The image below shows a few sample commands executed through the screen program and corresponding results.

CoolTerm is a free Serial Port Terminal application available for Mac OSX. Download and install CoolTerm on your Mac and run.

Select the appropriate serial port corresponding to your attached device. In the image below /dev/tty.usbmodem141141 is selected. Please don’t forget to select the correct port name corresponds to your device and leave all other settings as in the image below. Once all correct settings are selected, click the OK button to open the port.

If the port opened successfully, you will be presented with an empty screen. Press ENTER key to see the command prompt. At the command prompt enter any command supported by the device. All commands must be completed by ENTER key press. Please see the list of available commands in the product documentation. The image below shows a few sample commands executed using the CoolTerm and corresponding results.

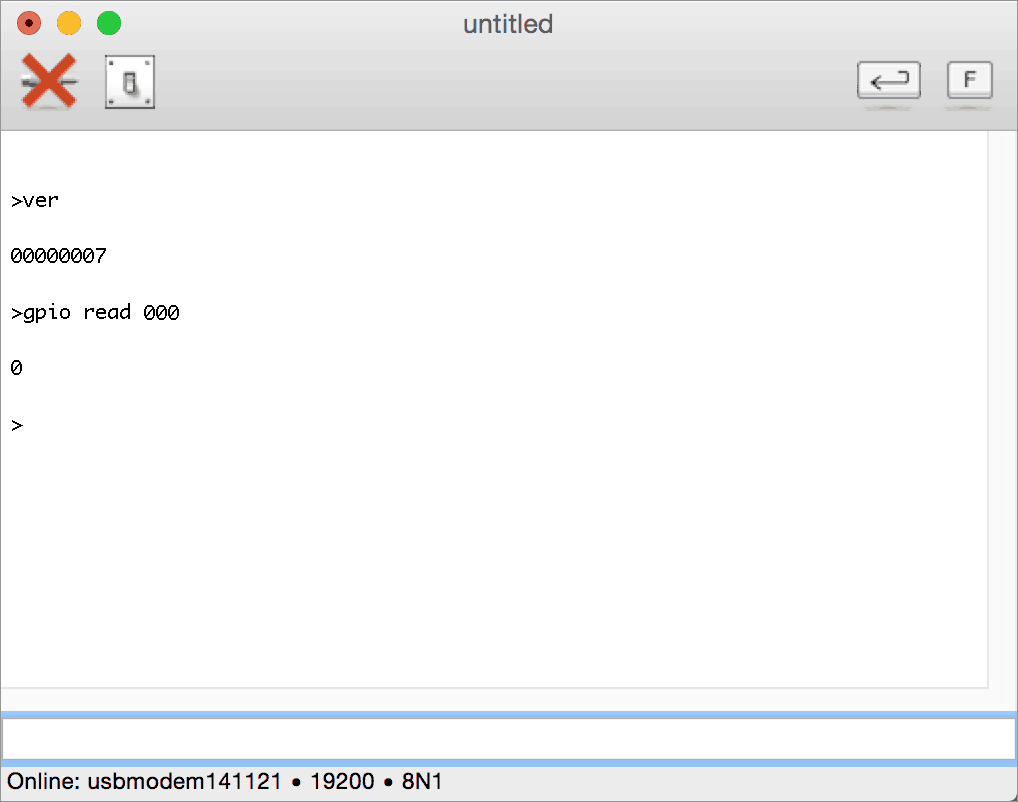

goSerial is a free Serial Port Terminal application available for Mac OSX. Download and install goSerial on your Mac and run.

Select the appropriate serial port corresponding to your attached device. In the image below /dev/tty.usbmodem141141 is selected. Please don’t forget to select the correct port name corresponds to your device and leave all other settings as in the image below. Once all correct settings are selected, click the OK button to open the port.

If the port opened successfully, you will be presented with an empty screen. Press ENTER key to see the command prompt. At the command prompt enter any command supported by the device. All commands must be completed by ENTER key press. Please see the list of available commands in the product documentation. The image below shows a few sample commands executed using the goSerial and corresponding results.

Device detected by Android can be controlled by sending commands using USB Serial Terminal Lite. Once connected to the device, enter commands to the command window and press the send button to execute. The commands and the results will be printed in the log window.

This GPIO module can be controlled using custom programs written in many languages. Almost any language can be used as long as it supports some sort of serial communication method. Some of the supported languages include

• C/C++
• Visual Basic
• Visual Basic for Applications (Microsoft Office VBA)
• Perl
• Python
• JAVA
• And a lot more…

The APIs need to be used may be different depending on the target operating system even when the same language is used. For example, when using C/C++ on Windows, Win32 Serial Communication APIs along with File IO APIs (CreateFile, ReadFile, WriteFile, etc…) needs to be used (see Microsoft Developer Page on serial communications). But when C/C++ is used on Linux operating system “termios”, APIs can be used for serial communication. Please refer to your compiler/language documentation for more details about serial port communication.

Specific details of programming may vary depending on the language and operating system of choice. But the fundamental steps for writing a program to control the GPIO module can be more or less the same. Here is the list of steps that you may need to follow while writing your own program.

1. Open the serial port for communication.
2. Set port parameters. Most of the parameters can be left to defaults except Flow Control, which needs to be set to “none”.
3. To send a command to the module, use an API equivalent to write/writefile and pass the buffer/string containing the command. It is important to append Carriage Return (ASCII 13) to emulate the ENTER key.
4. If return data is expected (Eg: “ver” command), try to read the characters from the serial port input buffer. APIs equivalent to Read/ReadFile can be used to read data from the module. Please note that the return data will include the command itself (since the module echoes everything back), the result, carriage return, and the “>” symbol.

Please visit the product page for available sample programs.

Microsoft Visual C++ is a C++ compiler/IDE from Microsoft. Express editions of Visual C++ are free to download and use for commercial and non-commercial purposes. Visual C++ Express is perfectly suitable for writing full fledged applications for Windows and certainly can be used for writing custom applications for Numato Lab’s GPIO/Relay modules. This section talks about C implementation but using the device with C++ is very similar except that you may use object oriented programming techniques where necessary, but APIs and their usage will be same.

Accessing Numato Lab’s GPIO/Relay modules using Visual C++ 2010 Express will require the following implemented.

1. Open the serial port representing the device and obtain a handle to the port using CreateFile() Windows API. This handle can be used to communicate with the device.
2. Use Writefile() Windows API to write commands to the device
3. Use ReadFile() Windows API to read response from the device

The reader is encouraged to become familiar with the Windows APIs CreateFile(), WriteFile() and ReadFile() to make it easier to understand the code snippets presented here.

To open the port representing the attached device, we need to look up the port name from Windows Device Manager (Please see image to the right). The complete name of the device is not required, only the COMn part is required. If the port number is 9 or below (for example, COM9, COM2 etc..) the port name can be used as is in the program. If the port number is 10 or above (for example, COM10, COM35 etc..) , a different syntax needs to be used. The required syntax is .COMn (for example, COM35 cannot be used as is, rather .COM35 must be used). This syntax works with all port numbers including 9 and below. Microsoft has an informative KnowledgeBase article on this subject. The developer is recommended to visit this article before proceeding.

Once the port name is discovered, the CreateFile() Windows API can be used to open the port.

wchar_t PortName[] = L"\.COM35";

hComPort = CreateFile(PortName, GENERIC_READ | GENERIC_WRITE, 0, 0, OPEN_EXISTING, 0, 0);

if (hComPort == INVALID_HANDLE_VALUE)
{
    printf("Error: Unable to open the specified portn");
    return 1;
}

If you are wondering why there are more back slashes in the code as part of the port name, please read through http://en.wikipedia.org/wiki/Escape_sequences_in_C for more information.

If the above code is executed successfully, a handle to the port will be available in the variable hComPort. This handle can be used to further communicate with the port/device.

Communication with the device usually falls in to two categories.

1. Writing to the device (For example, sending a command)
2. Reading from the device (Fr example, reading the result of a previously sent command)

Setting/Clearing a GPIO is an example of Write operation. To set a GPIO (GPIO0 in this example), we will need to send the command gpio set 000. It is not sufficient to send the command alone, but the command must be terminated using Carriage Return symbol so the device can recognize the end of the command and execute it. The following code writes gpio set 000 command to the device. Please take special note of the line where CR character (0x0D) is added.

/* Copy the command to the command buffer */
strcpy(cmdBuffer, "gpio set 000");

/* Append 0x0D to emulate ENTER key */
cmdBuffer[12] = 0x0D;

/* Write the command to the GPIO module. Total 13 bytes including 0x0D  */

printf("Info: Writing command  to the GPIO modulen");

if(!WriteFile(hComPort, cmdBuffer, 13, &numBytesWritten, NULL))
{
    CloseHandle(hComPort);
    printf("Error: Unable to write to the specified portn");
    return 1;
}

printf("Info:  Command sent successfulyn");

Reading from the device is very similar. One can use the Windows API ReadFile() to read results back from the device. The following code snippet attempts to read data from the device. Please note the third parameter which is the number of bytes to be read. This parameter must be set to a number larger than the number of bytes expected from the device. Please note that the bytes returned from the device is not merely the result rather it includes the original command itself, command prompt and newline character etc.. This is because the device will echo all the data sent to it along with the command prompt character (>) along with the result to provide a seamless experience when used with a serial terminal software. So the number of bytes to read (third parameter) must be calculated accordingly. The easiest way to do this is to send the command manually using a Serial Terminal software and count the number of resulting data. These additional bytes can be filtered out in the software by using string manipulation functions or Regex.

The following code snippet shows how to read bytes from the device.

/*Read back the response*/
if(!ReadFile(hComPort, responseBuffer, 16, &numBytesRead, NULL))
{
    CloseHandle(hComPort);
    printf("Error: Unable to write to the specified portn");
    return 1;
}

Since the device always responds to a command initiated by the host and does not send any data on its own, for all practical purposes, a read operation is usually preceded by a write operation where a command is sent to the device. The code snippet below shows a complete Write/Read sequence. This code attempts to send adc read 01 command to the device and read the result back.

/* Copy the command to the command buffer */
strcpy(cmdBuffer, "adc read 01");

/* Append 0x0D to emulate ENTER key */
cmdBuffer[11] = 0x0D;

/* Write the command to the GPIO module. Total 12 bytes including 0x0D  */

printf("Info: Writing command  to the GPIO modulen");

if(!WriteFile(hComPort, cmdBuffer, 12, &numBytesWritten, NULL))
{
    CloseHandle(hComPort);
    printf("Error: Unable to write to the specified portn");
    return 1;
}

printf("Info:  Command sent successfulyn");

/*Read back the response*/
if(!ReadFile(hComPort, responseBuffer, 16, &numBytesRead, NULL))
{
    CloseHandle(hComPort);
    printf("Error: Unable to write to the specified portn");
    return 1;
}

The data returned will always have the original command itself, command prompt and newline character etc.. in addition to the result. This additional data can be filtered out using string manipulation techniques or Regex. The following code snippet extracts the actual analog data returned from the device.

/* Add a null character at the end of the response so we can use the buffer
   with string manipulation functions.
 */
responseBuffer[numBytesRead] = '

This section describes how to write custom programs using JavaScript to control the USB GPIO device.

Node.JS has become one of the most popular frameworks for network and web-based applications. Node.JS has the ability to work with Serial Ports when appropriate modules are installed and this makes Node capable of communicating with Numato Lab‘s USB devices. Node.JS works on Windows, Linux, and Mac OS X. Install Node.JS, NPM and the SerialPort module for Node. More information on how to install this application can be found on the links below.

• How to install Node.JS
• How to install npm
• How to install Serial Port module for Node

Once all the above prerequisites are installed, we can start writing the JavaScript code.

The very first step is to load the Serial Port module and create an object that represents the serial port corresponding to the device. The following code does this. The exact value of the baud rate doesn’t matter as long as it is a legal value. Also, use device names such as COM6 on Windows and device node name such as /dev/ttyACM0 on Linux/Mac.

var SerialPort = require("serialport");

//On Windows use the port name such as COM4 and on Linux/Mac, use the device node name such as /dev/ttyACM0
var port = "com6";

var portObj = new SerialPort(port, {
    baudRate: 19200,
    autoOpen: false
});

This object can be used to open the port and communicate with the device. The objects Open() method opens the port for communication.

portObj.open(function (error){
    if ( error ) {
        console.log('Failed to open port: ' + error);
    } else {
   //Communicate with the device
}

The write() method can be used to write commands to the device if the port is already opened. The following code snippet shows how.

portObj.write("gpio set 000r", function(err, results){
    if(error){
        console.log('Failed to write to port: '+ error);
    }
});

The Serial Port modules data event can be used to receive a response from the device. The following code snippet prints all data received from the device. The data received can be further processed to retrieve the required information such as analog value or GPIO status.

portObj.on('data', function(data){
    console.log('Data Returned by the device');
    console.log('--------------------');
    console.log(String(data));
    console.log('--------------------');
});

Finally, a previously opened port can be closed by using the close() method.

portObj.close();

The following complete Node.JS code will open the port and send commands to the GPIO device to turn on GPIO 0 and turn it off after a few seconds.

var SerialPort = require("serialport");
var port = "com6";

//Create a new Serial object
var portObj = new SerialPort(port, {
    baudRate: 19200,
    autoOpen: false
});

portObj.on('data', function(data){
    console.log('Data Returned by the device');
    console.log('--------------------');
    console.log(String(data));
    console.log('--------------------');
});

portObj.open(function (error){
    if ( error ) {
        console.log('Failed to open port: ' + error);
    } else {
        console.log('Writing command gpio set 000 to port');
	portObj.write("gpio set 000\r", function(err, results){
	    if(error){
	        console.log('Failed to write to port: '+ error);
	    }
        });

	setTimeout(
            function(){
                console.log('Waiting for two seconds');
            }
        ,10);

	setTimeout(
	    function(){
	        console.log('Writing command gpio clear 000 to port');
	        portObj.write("gpio clear 000\r", function(err, results){
		    if(error){
		        console.log('Failed to write to port: '+ error);
		    }
	        });

	        setTimeout( function(){process.exit(code=0);}, 1000);
            }
	,2000);
    }
});

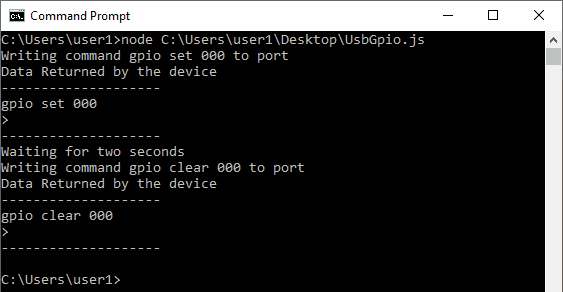

The image below shows the above script running on Windows. Please note the data returned by the device. The device echoes everything that is sent to it in addition to command prompt and an optional result of the operation.

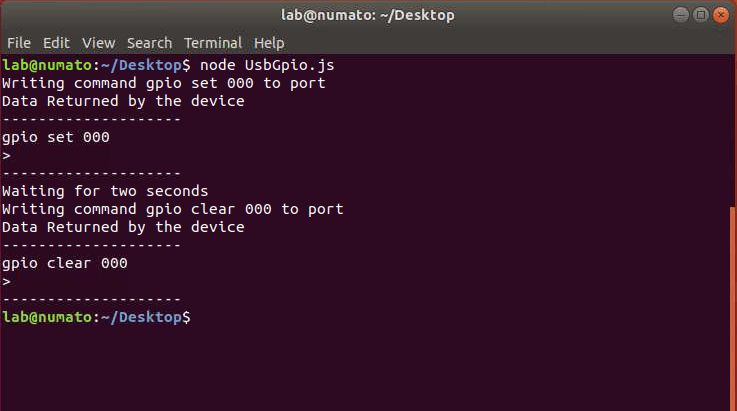

The image below shows the same script running on Linux Mint.

And Mac OS X (This screenshot is taken on Yosemite)

Latest files can be downloaded from our GitHub repository.

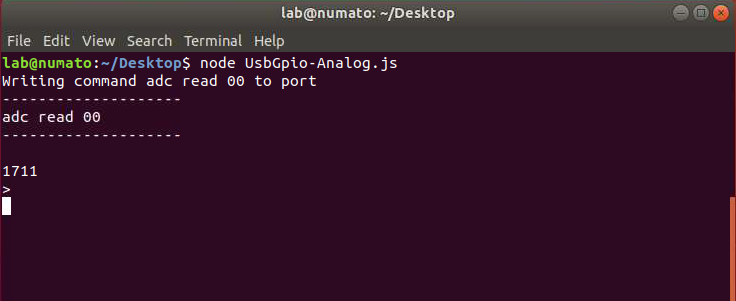

Analog inputs can be read using the same methods provided by the SerialPort module. Only the specific command needs to change and optionally parse the response from the device to extract the actual analog data. The code below shows how to send the command adc read 00 and parse the response to extract the analog data. The data we are interested in is the count returned by the device. javascript’s substr() string function can be used for precise data extraction. Finally, the data, which is still a string is converted to an integer by using Number() function.

var SerialPort = require("serialport");
var port = "com6";

//Create a new Serial object
var portObj = new SerialPort(port, {
    baudRate: 19200,
    autoOpen: false
});

portObj.on('data', function(data){
    console.log('--------------------');
	console.log(String(data));
});

portObj.open(function (error){
    if ( error ) {
        console.log('Failed to open port: ' + error);
    } else {
        console.log('Writing command adc read 00 to port');
        portObj.write("adc read 00\r", function(err, results){
            if(error){
                console.log('Failed to write to port: '+ error);
            }
        });
    }
});

The image below shows the above script running on Windows.

Same script on Linux.

And Mac OS X (This screenshot is taken on Yosemite)

128 Channel USB GPIO Module do support Analog to Digital Conversion on some of the GPIO terminals. A list of GPIOs that supports analog function in this product is listed in GPIO/Analog Inputs in this document. There is no special command required to execute to switch between analog and digital mode. Executing “adc” command will set the GPIO to analog mode and executing “gpio” command will set the GPIO back to digital mode on the fly. Resolution of the ADC is 12 bits unless otherwise noted. The input voltage range of the ADC is 0 – VDD (this product uses 3.3V power supply, so the range will be 0 – 3.3V). The result will be returned as a number starting at zero and ending at 4095. Zero indicates zero volts at the ADC input and 4095 indicates VDD (3.3V for this product) at ADC input.

It is possible to read the position of a switch that is connected to a GPIO. A SPST or SPDT switch is recommended to use with GPIOs. Push switches do maintain the contacts closed only for a very short time so using them is discouraged. The fundamental idea of using a switch with GPIO is to have the switch cause a voltage level change at the GPIO pin when pressed. Usually this is achieved by using an external pull-up resistor along with the switch. The pull up resistor is connected between the GPIO and VDD and the switch is connected between the GPIO and ground. When the switch is not pressed, the pull-up resistor will cause the GPIO to stay at VDD voltage level. When the switch is pressed, the GPIO is short circuited to ground and stays at zero voltage. This change in voltage and thus the position of the switch can be read using “gpio read” command.

Q. What are the serial parameters I need to use when communicating with this board?
A. Since this module uses USB as the underlying transport mechanism, most of the serial parameters do not affect the communication. You can leave all parameters to any legal value (Eg: 2400, 4800, 9600 etc… for baud rate) except Flow control. Flow control needs to be set to “None”.

Q. Where do I find driver for this product?
A. Visit http://numato.com and navigate to the product page. There will be a link to download windows driver. Linux does not require driver installation since in most cases they are shipped with the driver pre-installed.

Q. Why there is no .sys or .exe file in the Windows driver package I downloaded?
A. This product uses USB CDC driver binary which is already present on Windows. All Windows versions (with the exception of Embedded Editions) has this driver binary installed by default. The .inf and .cat files present in the zip file helps Windows identify the device properly and associate appropriate driver (.sys) to the device

Q. Does this product work with Linux?
A. Yes, this product works with Linux. Please see more details on how to use this product with Linux elsewhere in this document.

Q. Does this product work with Mac OSX?
A. Yes, this product works with Mac OSX. Please see more details on how to use this product with Mac elsewhere in this document.

Q. What are the serial terminal software that this product work with?
A. This product works with a lot of different Serial Terminal software. Some examples can be found elsewhere in this document. Different Serial Terminal software are written by different developers with different purposes in mind. So you may encounter some software that may not work with this product. But usually alternatives are available in most if not all cases.

Q. The GPIO looses its previously set value when trying to read the status. Why it is so?
A. When a gpio is to output a value (high/low), that particular GPIO is put to output mode. When you are trying to read the GPIO, it needs to be put in input mode. In input mode, the GPIO will go to high impedance state and thus looses the previously set value.

Q. I’m using x language for programming. How do I find out if this language can be used to program and control the GPIO module?
A. Find out if the language of interest supports some kind of APIs/Functions/Components for serial communication. If it does, most likely you should be able to use that language with this module.

Q. What is the connector marked as ICSP on this module?
A. This connector is used to program the on-board microcontroller. This connector is primarily intended for factory use.

Q. I need a customized version of this product, can Numato do the customization for me?
A. Yes, we can definitely do customization but there may be minimum order requirements depending on the level of customization required. Please write to [email protected] for a quote.

Q. Where can I buy this product?
A. All Numato products can be ordered directly from our web store http://www.numato.com. We accept major credit cards and Paypal and ship to almost all countries with a few exceptions. We do have distributors in many countries where you can place your order. Please find the current list of distributors at http://numato.com/distrib.
