Introduction

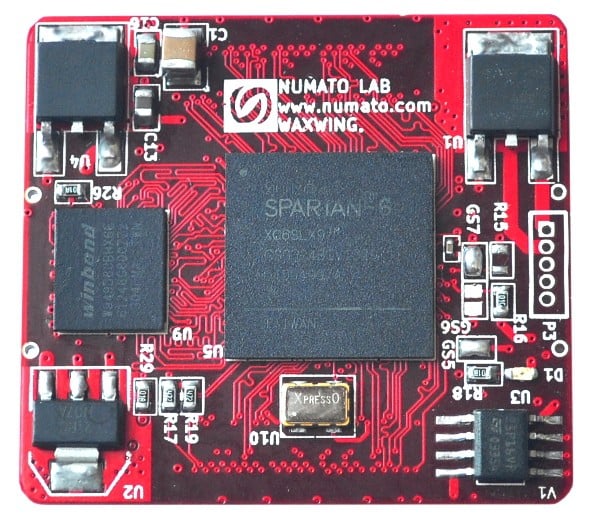

waxwingmini

Waxwing is an easy to use FPGA module featuring Xilinx Spartan-6 FPGA. This module features Xilinx XC6SLX series FPGA in CSG324 package. This module takes care of FPGA, Configuration, DDR and power so you can invest more time and effort on your application specific aspects of the hardware development. The module is pre-populated with 512Mb DDR memory and 128Mb SPI flash for FPGA configuration. A large number of IOs and important signals including JTAG are available on the high pin count low profile connectors (DF40C-90DP) on the back side. Numato has made available carrier boards and development boards that can be used for evaluation and development with this FPGA module. At only 40mm x 36.5mm size, this module packs a lot of power in such a small footprint. Customization services available for OEM customers. Please contact us for more details.

Applications

  • Product Prototype Development
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
  • Educational tool for Schools and Universities
  • Volume production

Board features

  • FPGA: Spartan-6 XC6S LX9, LX16, LX25 or LX45 in CSG324 package
  • DDR: 166MHz 512Mb LPDDR
  • Flash memory: 128 Mb SPI flash memory (N25Q128A13ESE40E)
  • Two 90-pin 0.4mm Hirose board-to-board connectors (DF40C-90DP)
  • 100MHz CMOS oscillator
  • All differential pairs are length matched on the module
  • Maximum 134 IOs for user defined purposes XC6SLX9 – 118 IOs XC6SLX16 – 134 IOs XC6SLX25 – 134 IOs XC6SLX45 – 134 IOs
  • On-board voltage regulators for single power rail operation
  • Only 40mm x 36.5mm (1.58” x 1.4”) in size
  • JTAG and SPI signals available on connector for configuration

How to Use Waxwing Spartan 6 Mini Module

Components/Tools Required

Along with the module, you may need the items in the list below for easy and fast installation.

1. Waxwing Carrier Board or Waxwing Basic Development Board (sold separate).
2. DC Power supply.

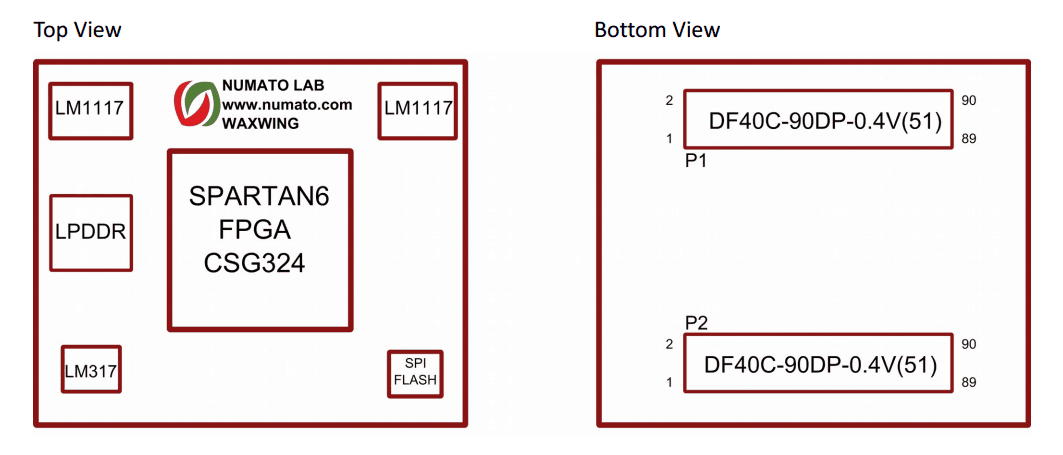

Connection Diagram

waxwingmini-condiagram

This diagram should be used as a reference only. For detailed information, see Waxwing schematics at the end of this document. Details of individual connectors are as below.

GPIOs

This device is equipped with a maximum 134 user GPIO pins that can be used for custom applications. All differential pairs are length matched on the module for better signal integrity.

Header P1

Header
Pin No.
Spartan-6
(CSG324)
Pin No.
Pin Description Header
Pin No.

Spartan-6
(CSG324)
Pin No.
Pin Description
1
NA VCCIN 2 NA VCCIN
3
NA VCCIN 4 NA VCCIN
5 NA VCCIN 6 NA VCCIN
7 NAVCCIN
8 NA VCCIN
9
R3 IO_L62P_D5_2 10 U3 INITB
11 T3 IO_L62N_D6_2 12 V2
PROGB
13 T4
IO_L63P_2 14 R5 IO_L48P_D7_2
15 V4 IO_L63N_2 16 T5 IO_L48N_RDWR_B_VREF_2
17 R7 IO_L46P_2 18 T6 IO_L45P_2
19 GND GND 20 GND GND
21
T7 IO_L46N_2 22 V6 IO_L45N_2
23 U5 IO_L49P_D3_2 24 P7 IO_L47N_2
25 V5 IO_L49N_D4_2 26 N6 IO_L47P_2
27
V7 IO_L43N_2 28 N7 IO_L44P_2
29 U7 IO_L43P_2
30 P8 IO_L44N_2
31
V8 IO_L41N_VREF_2 32 N8 IO_L40N_2
33
U8 IO_L41P_2 34 M8 IO_L40P_2
35 GND GND 36 GND GND
37 R8
IO_L31P_GCLK31_D14_2 38 R11 IO_L16P_2
39 T8 IO_L31N_GCLK30_D15_2 40 T11 IO_L16N_VREF_2
41 T9 IO_L32P_GCLK29_2 42 R10 IO_L29P_GCLK3_2
43
V9 IO_L32N_GCLK28_2 44 T10 IO_L29N_GCLK2_2
Header
Pin No.
Spartan-6
(CSG324)
Pin No.
Pin Description Header
Pin No.

Spartan-6
(CSG324)
Pin No.
Pin Description
45
N10 IO_L20P_2 46 M14 IO_L53P_1
47 P11IO_L20N_2 48 N14 IO_L53N_VREF_1
49 L12 IO_L40P_GCLK11_M1A5_1 50 T12 IO_L19P_2
51 L13 IO_L40N_GCLK10_M1A6_1

52 V12 IO_L19N_2
53 GND GND 54 GND GND
55
N11 IO_L15N_2 56 N15
IO_L50P_M1UDQS_1
57
M11
IO_L15P_2 58 N16 IO_L50N_M1UDQSN_1
59
T14 IO_L12P_D1_MISO2_2 60 P15 IO_L74P_AWAKE_1
61 V14 IO_L12N_D2_MISO3_2 62 P16 IO_L74N_DOUT_BUSY_1
63
N18 IO_L48N_M1DQ9_1 64 U17 IO_L52P_M1DQ14_1
65
N17 IO_L48P_HDC_M1DQ8_1 66 U18 IO_L52N_M1DQ15_1
67 V11 IO_L23N_2 68 M18 IO_L47N_LDC_M1DQ1_1
69 U11 IO_L23P_2 70 M16 IO_L47P_FWE_B_M1DQ0_1
71 GND GND 72 GND GND
73 V13 IO_L14N_D12_2
74 P18 IO_L49N_M1DQ11_1
75 U13 IO_L14P_D11_2 76 P17 IO_L49P_M1DQ10_1
77 V15 IO_L5N_2 78 V16 IO_L2N_CMPMOSI_2
79 U15 IO_L5P_2 80 U16 IO_L2P_CMPCLK_2
81 T17
IO_L51P_M1DQ12_1 82 T18 IO_L51N_M1DQ13_1
83
T13 SPI-SDI 84 V17 DONE
85 R13 SPI-SDO 86 V3 SPI-CS
87 R15 SPI-SCK 88
R16 SUSPEND
89
GND GND 90 GND GND

Header P2

Header
Pin No.

Spartan-6
(CSG324)
Pin No.
Pin Description Header
Pin No.
Spartan-6
(CSG324)
Pin No.
Pin Description
1
NA VCCIN 2 NA VCCIN
3 NA VCCIN 4 NA VCCIN
5 NA VCCIN 6 B2 IO_L2P_0
7
NA VCCIN 8 A2 IO_L2N_0
9 D8IO_L11P_0 10 B3 IO_L4P_0
11
C8 IO_L11N_0 12 A3 IO_L4N_0
13
D6 IO_L3P_0 14 C5 IO_L6P_0
15
C6 IO_L3N_0 16 A5 IO_L6N_0
17 NA GND 18 NA GND
19
B6 IO_L8P_0 20 B4 IO_L5P_0
21
A6 IO_L8N_VREF_0 22 A4 IO_L5N_0
23 D11 IO_L36P_GCLK15_0 24 C7 IO_L10P_0
25
C11 IO_L36N_GCLK14_0 26 A7 IO_L10N_0
27
B8 IO_L33P_0 28 D9 IO_L34P_GCLK19_0
29
A8 IO_L33N_0 30 C9 IO_L34N_GCLK18_0
31 H16 IO_L37N_A6_M1A1_1 32 B9 IO_L35P_GCLK17_0
33 H15 IO_L37P_A7_M1A0_1 34 A9 IO_L35N_GCLK16_0
35
NA GND 36 NA GND
37
C10 IO_L37P_GCLK13_0 38 C13 IO_L50P_0
39 A10 IO_L37N_GCLK12_0 40 A13 IO_L50N_0
41 C14 IO_L65N_SCP2_0 42
F9 IO_L38N_VREF_0
43 D14 IO_L65P_SCP3_0 44 G9 IO_L38P_0
45 F13 IO_L63P_SCP7_0 46
C15 IO_L64P_SCP5_0
47 E13 IO_L63N_SCP6_0
48 A15 IO_L64N_SCP4_0
49 F15 IO_L1P_A25_1 50 B11 IO_L39P_0
51
F16 IO_L1N_A24_VREF_1 52 A11 IO_L39N_0
Header
Pin No.
Spartan-6
(CSG324)
Pin No.
Pin Description Header
Pin No.
Spartan-6
(CSG324)
Pin No.
Pin Description
53
NA GND 54 NA GND
55 E16 IO_L33P_A15_M1A10_1 56 B12 IO_L41P_0
57 E18 IO_L33N_A14_M1A4_1 58 A12 IO_L41N_0
59
B16 IO_L66P_SCP1_0 60 B14 IO_L62P_0
61 A16 IO_L66N_SCP0_0 62 A14 IO_L62N_VREF_0
63 D17 IO_L31P_A19_M1CKE_1 64 F14 IO_L30P_A21_M1RESET_1
65 D18 IO_L31N_A18_M1A12_1 66 G14 IO_L30N_A20_M1A11_1
67
H13 IO_L36P_A9_M1BA0_1 68 C17 IO_L29P_A23_M1A13_1
69
H14 IO_L36N_A8_M1BA1_1 70 C18 IO_L29N_A22_M1A14_1
71
NA GND 72 NA GND
73 G16 IO_L38P_A5_M1CLK_1 74 L17 IO_L46P_FCS_B_M1DQ2_1
75
G18 IO_L38N_A4_M1CLKN_1 76 L18 IO_L46N_FOE_B_M1DQ3_1
77 K12 IO_L34P_A13_M1WE_1 78 F18 IO_L35N_A10_M1A2_1
79
K13 IO_L34N_A12_M1BA2_1 80 F17 IO_L35P_A11_M1A7_1
81
L15 IO_L42P_GCLK7_M1UDM_1 82 L14 IO_L61P_1
83 L16 IO_L42N_GCLK6_TRDY1_M1LDM_1
84 M13 IO_L61N_1
85
B18 TMS 86 D15 TDI
87 A17 TCK 88 D16 TDO
89 GND GND 90 GND GND

No Connect Pins In LX9(CSG324)

SL No.
Header No. Pin No On The Header Spartan-6 (CSG324)
1
P1 24 P7
2 P1 26 N6
3
P1 28 N7
4
P1 30 P8
5 P1 32 N8
6 P1 34 M8
7
P1 45 N10
8 P1 47 P11
9 P1 50 T12
10
P1 52 V12
11
P1 55 N11
12
P1 57 M11
13
P1 77 V15
14 P1 79 U15
15 P2 38 C13
16
P2 40 A13

Technical Specifications

Parameter *ValueUnit
Basic Specifications
Number of GPIOs
134 (Max)
On-board oscillator frequency (FXO-HC536R)
100 MHz
LPDDR: 166MHz 512 Mb
SPI Flash Memory (N25Q128A13ESE40E) 128 Mb
Power supply voltage (External)
5 - 7 V
FPGA Specifications
Internal supply voltage relative to GND –0.5 to 1.32 V
Auxiliary supply voltage relative to GND –0.5 to 3.75 V
Output drivers supply voltage relative to GND –0.5 to 3.75 V
Hirose Connector Specifications(DF40C-90DP-0.4V(51))
Number of Positions
90
Number of Rows
2
Pitch
0.4 mm
Height 1.5 mm
Mated Stacking Heights 1.5,3,4 mm
Current Rating(Amps)(Max.)
0.3 Amp
Mating Receptacles DF40HC(4.0)-90DS-0.4V(51)
DF40HC(3.0)-90DS-0.4V(51)
DF40C-90DS-0.4V(51)

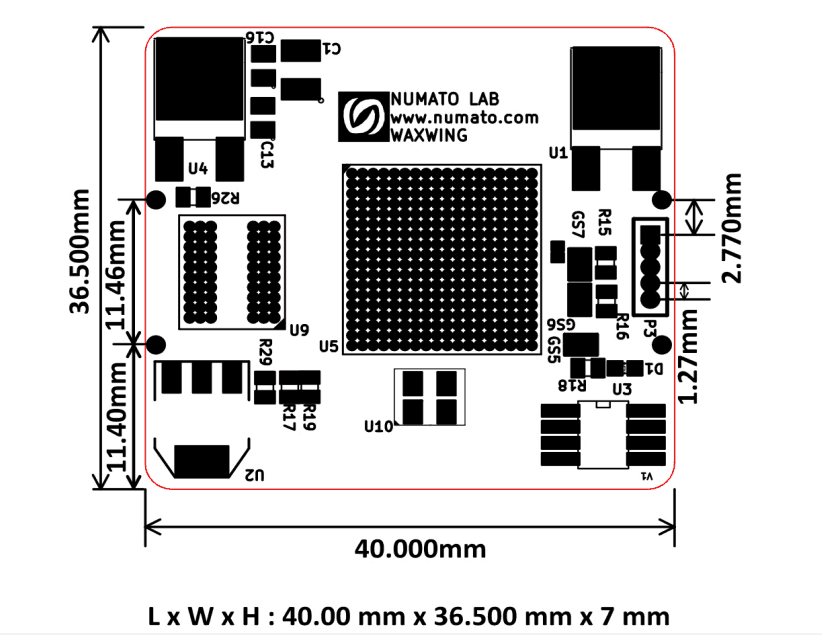

Mechanical Dimensions

waxwingmini-dimensions
