Galatea PCI Express Spartan 6 FPGA Development Board

1716 views February 18, 2016 admin 0

Introduction

sp6n02_6__56096.1437709703.1280.1280

Galatea is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA with x1 PCIe interface and two 1Gb DDR3 SDRAM devices. This board features Xilinx XC6SLX45T – FGG484 FPGA. Other FPGA configurations are available at request. Two high speed expansion connectors are available on board for the purpose of adding additional features to the board by using custom or offthe-shelf daughter boards. A rich set of off-the-shelf expansion modules are available at http://numato.com.

Applications

  • Product Prototype Development
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
  • Data Acquisition
  • Educational tool for Schools and Universities

Board features

  • FPGA: Spartan-6 XC6SLX45T in -3FGG484 package (Other devices available at request)
  • 1 lane PCIe Gen1 interface • 2 x DDR3: 1Gb SDRAM MT41J128M16
  • 128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • USB to UART serial converter
  • 3 x 100MHz CMOS oscillator
  • 2 x 150MHz CMOS oscillator for GTP
  • 2 x GTP available on 2x SATA connectors
  • MicroSD adapter for bulk data storage
  • All differential pairs are length matched on the module
  • Maximum 112 IOs for user defined purposes on FX18 Hirose connectors
  • On-board voltage regulators for single power rail operation
  • Can be powered from PCIe slot or from an external power supply
  • JTAG and SPI headers for programming and debugging
  • 44 Length matched LVDS33 differential pairs
  • 12 Length matched LVDS1V5 differential pairs
  • 2x SMA connectors for Clock or other signal input

How to Use Galatea PCI Express Spartan 6 FPGA Development Board

Components/Tools Required

Along with the module, you may need the items in the list below for easy and fast installation.

1. 12 V DC Power Supply (not needed if the board is placed on a motherboard)
2. A Xilinx Platform Cable USB II compatible JTAG programmer
3. USB Male A to Micro B cable (optional)

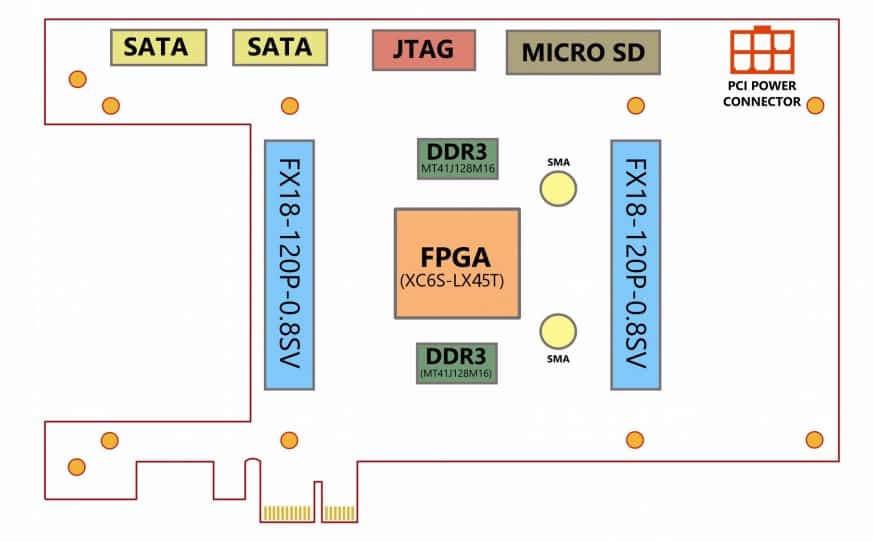

Connection Diagram

galateapci-connectiondiagram

This diagram should be used as a reference only. For detailed information, see Galatea schematics at the end of this document. Details of individual connectors are as below.

Micro SD

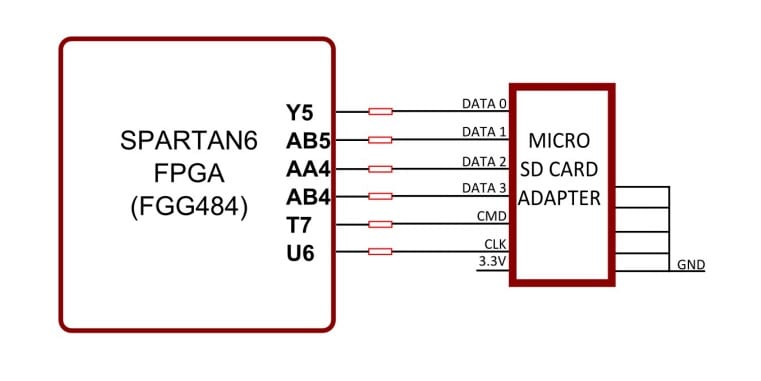

This board features a Micro SD adapter on-board. By installing a Micro SD card and appropriate IP, you can add data logging, media storage and other file storage to your design. The FPGA IOs connected to SD card adapter is shown below.

galateapci-microsd

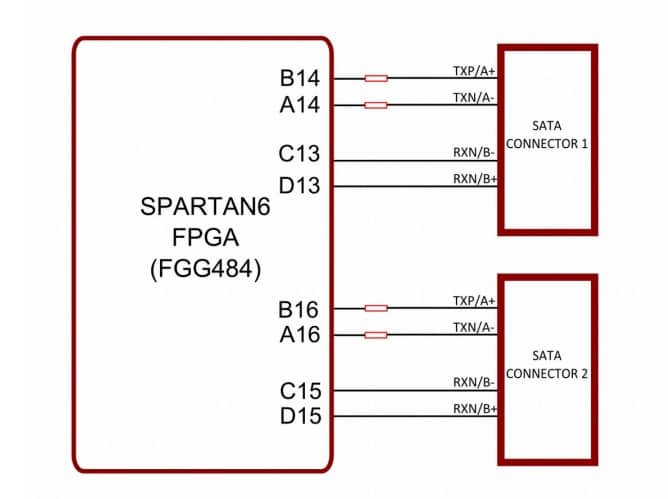

GTP Transceivers on SATA Connectors

Galetea features two SATA connectors on-board which are connected to two of the four available GTP Transceivers on the FPGA. These GTP lines can be used for high speed communication protocols with appropriate IP. IO details in the image below.

galateapci-gtp

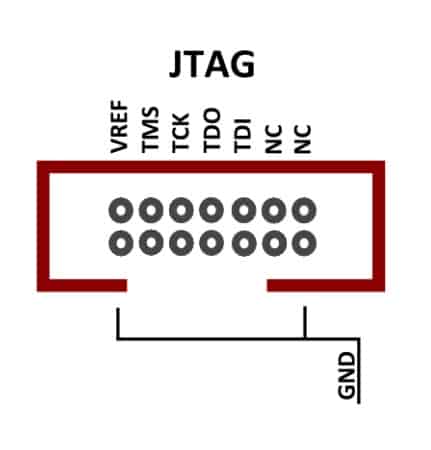

JTAG

JTAG connector allows the FPGA’s JTAG registers to be accessed using a JTAG cable compatible with Xilinx Platform Cable USB. Use this header to attach JTAG cable for programming and debugging.

galateapci-jtag

Connector/Device Pinouts

PCIe Connector

Pin No.Pin NameSpartan-6 (FGG484) Pin No.
A13 PCIE_CLK_Q0_PA10
A14PCIE_CLK_Q0_NB10
A16PCIE_TX0_PB6
A17PCIE_TX0_NA6
A14PCIE_RX0_PD7
A15PCIE_RX0_NC7
A11PCIE_PERST_NF10

QSPI (N25Q128A13ESE40E)

Pin No. Pin Name Spartan-6 (FGG484) Pin No.
1SPI_CS_N
AA3
2SPI_DO_DIN_MISO1
AA20
3SPI_D1_MISO2 R13
5SPI_MOSI_CSI_N_MISO0
AB20
6SPI_CLK
Y20
7SPI_D2_MISO3
T14

SMA

Pin Name Spartan-6 (FGG484) Pin No.
EXCLK0 U12
EXCLK1 T12



GPIOs

This device is equipped with a maximum 112 user GPIO pins that can be used for custom applications. All differential pairs are length matched on the module for better signal integrity.

Header P4

Header
Pin No.
Spartan-6
(FGG484)
Pin No.
Pin Description Header
Pin No.
Spartan-6
(FGG484)
Pin No.
Pin Description
1-GND17J17 IO_L19N_1
2C11MGTREFCLK1P_101 18-GND
3D11MGTREFCLK1N_10119H16 IO_L9P_1
4-GND20H17
IO_L9N_1
5D9 IMGTRXP1_10121-GND
6C9 MGTRXN1_10122B21 IO_L10P_1
7-GND23B22 IO_L10N_1
8B8 MGTTXP1_101 24-GND
9A8 MGTTXN1_10125J7
IO_L81P_3
10-GND26H8
IO_L81N_3
11TMS27-GND
12TCK28H12 IO_L35P_GCLK17_0
13TDO29G11 IO_L35N_GCLK16_0
14TDO30-GND
15-GND31H10
IO_L33P_0
16J16 IO_L19P_1 32H11 IO_L33N_0
33-GND63G4
IO_L58N_3
34G8 IO_L32P_064-GND
35F9 IO_L32N_0 65F3
IO_L60P_3
36-GND66E4
IO_L60N_3
37C5 IO_L32N_067-GND
38A5 IO_L8N_VREF_068D2
IO_L59P_3
39-GND69D1
IO_L59N_3
40H13 IO_L38P_070-GND
41G13 IO_L38N_VREF_071H6 IO_L80P_3
42-GND72G7 IO_L80N_3
43F7 IO_L7P_073-GND
44F8 IO_L7N_0 74F14 IO_L36P_GCLK15_0
45-GND75F15 IO_L36N_GCLK14_0
46D4 IO_L2P_076-GND
47D5IO_L2N_077H14
IO_L49P_0
48-GND
78 G15 IO_L49N_0
49B2 IO_L3P_0 79 - GND
50A2 IO_L3N_0 80 E5 IO_L4P_0
51 - GND 81 E6 IO_L4N_0
52 B3 IO_L5P_0 82 - GND
53 A3 IO_L5N_0 83 E16 IO_L37P_GCLK13_0
54 - GND 84 F16 IO_L37N_GCLK12_0
55
C4 IO_L6P_0 85 - GND
56
A4 IO_L6N_0 86 C17 IO_L50P_0
57 - GND 87 A17 IO_L50N_0
58 C3 IO_L1P_HSWAPEN_0 88 - GND
59
D3 IO_L1N_VREF_0 89 G16 IO_L51P_0
60 - GND 90 F17 IO_L51N_0
61 - GND 91 - GND
62
H4 IO_L58P_3 92 D18 IO_L62P_0
93 D19 IO_L62N_VREF_0 107 - GND
94 - GND 108 - GND
95 B18 IO_L63P_SCP7_0 109 - GND
96
A18 IO_L63N_SCP6_0 110 - 5V
97 - GND 111 - 5V
98 C19
IO_L64P_SCP5_0 112 - GND
99 A19 IO_L64N_SCP4_0 113 - 12V
100 - GND 114 - 12V
101 B20 IO_L65P_SCP3_0 115 - GND
102 A20 IO_L65N_SCP2_0 116 - 1V2
103 - GND 117 - 1V2
104
D17 IO_L66P_SCP1_0 118 - 3V3
105 C18 IO_L66N_SCP0_0 119 - 3V3
106
- GND 120 - GND

Header P5

Header
Pin No.
Spartan-6
(FGG484)
Pin No.
Pin Description Header
Pin No.
Spartan-6
(FGG484)
Pin No.
Pin Description
1 -
GND 13 - TDO
2 - NC 14 - TDO
3 - NC 15 - GND
4 - GND 16 AA2 IO_L10P_3
5 - NC 17 AA1 IO_L10N_3
6
- NC 18 - GND
7 - GND 19 U4 IO_L24P_3
8
- NC 20 T4 IO_L24N_3
9 - NC 21 - GND
10 - GND 22 W4 IO_L2P_3
11 - TMS 23 Y3 IO_L2N_3
12 - TCK 24 - GND
25 P5 IO_L9P_3 55 Y16 IO_L17P_2
26
P4 IO_L9N_3 56 W15 IO_L17N_2
27
- GND 57 - GND
28 AA12 IO_L31P_GCLK31_D14_2 58 W17 IO_L5P_2
29 AB12 IO_L31N_GCLK30_D15_2 59
Y18 IO_L5N_2
30
- GND 60 - GND
31 W10 IO_L44P_2 61 - GND
32 Y10 IO_L44N_2 62 V5 IO_L8P_3
33
- GND 63 V3IO_L8N_3
34
AA10 IO_L41P_2 64 - GND
35 AB10 IO_L41N_VREF_2
65 P6 IO_L25P_3
36 - GND
66P7 IO_L25N_3
37
W9 IO_L48P_D7_2 67 - GND
38 Y8 IO_L48N_RDWR_B_VREF_2 68
N6 IO_L23P_3
39 - GND 69 N7 IO_L23N_3
40
V13 IO_L18P_2 70 - GND
41 W13 IO_L18N_2 71 T6 IO_L7P_3
42 - GND 72 T5 IO_L7N_3
43 T10 IO_L46P_2 73 - GND
44 U10 IO_L46N_2 74R11 IO_L22P_2
45 - GND 75 T11 IO_L22N_2
46 Y15 IO_L21P_2 76
- GND
47 AB15 IO_L21N_2 77 T15 IO_L23P_2
48 - GND 78 U15 IO_L23N_2
49 U16 IO_L4P_2 79 - GND
50 V15 IO_L4N_VREF_2 80 W14 IO_L20P_2
51 - GND 81 Y14 IO_L20N_2
52
AA16 IO_L19P_2 82 - GND
53 AB16 IO_L19N_2 83 Y11 IO_L32P_GCLK29_2
54 -
GND 84 AB11 IO_L32N_GCLK28_2
85
- GND 103 - GND
86 U9 IO_L50P_2 104 W6 IO_L60P_2
87 V9 IO_L50N_2 105 Y6 IO_L60N_2
88
- GND106 - GND
89 T8 IO_L57P_2 107- GND
90
U8 IO_L57N_2 108 - GND
91
- GND 109 - GND
92
AA8 IO_L45P_2 110 - 5V
93 AB8 IO_L45N_2 111 - 5V
94
- GND 112 - GND
95 Y7 IO_L47P_2
113- 12V
96 AB7 IO_L47N_2 114 - 12V
97 - GND 115- GND
98 V7
IO_L58P_2 116 - NC
99 W8 IO_L58N_2 117 - NC
100
- GND 118 - 3V3
101 R9 IO_L59P_2 119 - 3V3
102
R8 IO_L59N_2 120 - GND

Configuring Galatea Using JTAG

Galatea Spartan 6 FPGA Board features an on-board JTAG connector which facilitates easy reprogramming of SRAM and on-board SPI flash through JTAG programmer like “XILINX Platform cable USB”. Programming Galatea using JTAG requires “XILINX ISE iMPACT” software which is bundled with XILINX ISE Design Suite. The FPGA SRAM can be programmed using the .bit file generated from your project. To program the SPI flash we need to generate a “.mcs” file which must be generated from the “.bit” file. Steps for generating “.mcs” file are as below. Programming FPGA SRAM does not require a “.mcs” file to be generated.

Generating “.mcs” file for Galatea

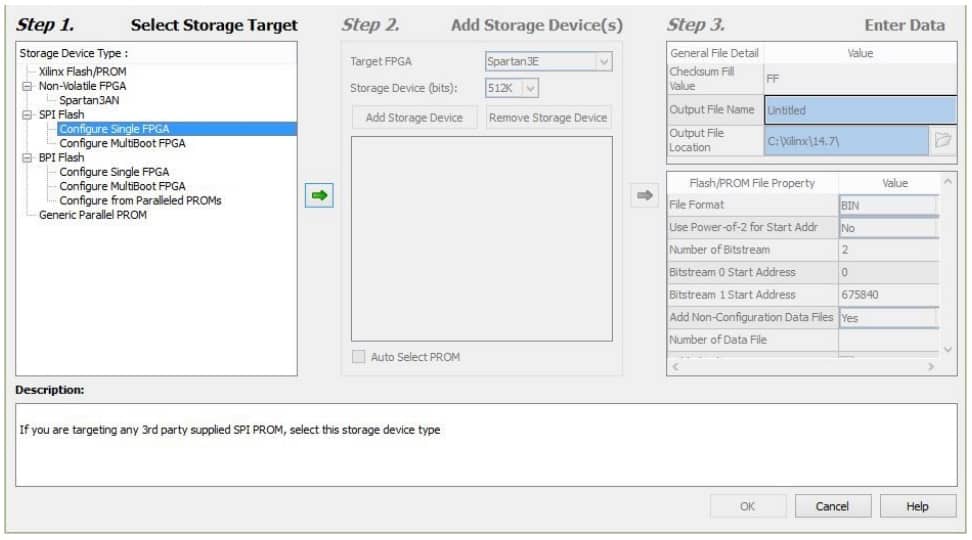

Step 1: Open ISE iMPACT. Click on “Create PROM file(PROM file formatter)”. In the dialog box, select “Configure Single FPGA” in storage device type. Then click on the green arrow on the right side.

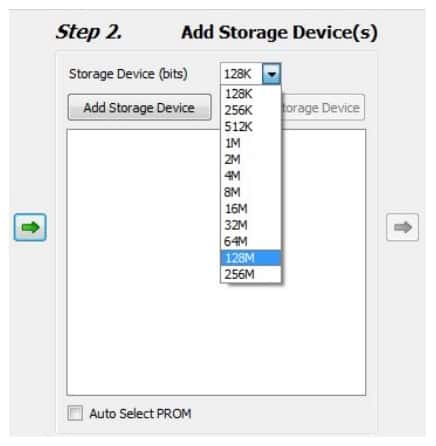

Step 2: Select 128M in Storage Device (bits). Now click on “Add Storage Device”, then the green arrow on the right side.

Step 3: Set an output file name and the output file location (a “.mcs” extension will be generated at this location and the file will be required later for programming the FPGA), then click OK twice, then select the “.bit” file we already generated then click Open and click NO when it prompts to add another device file.

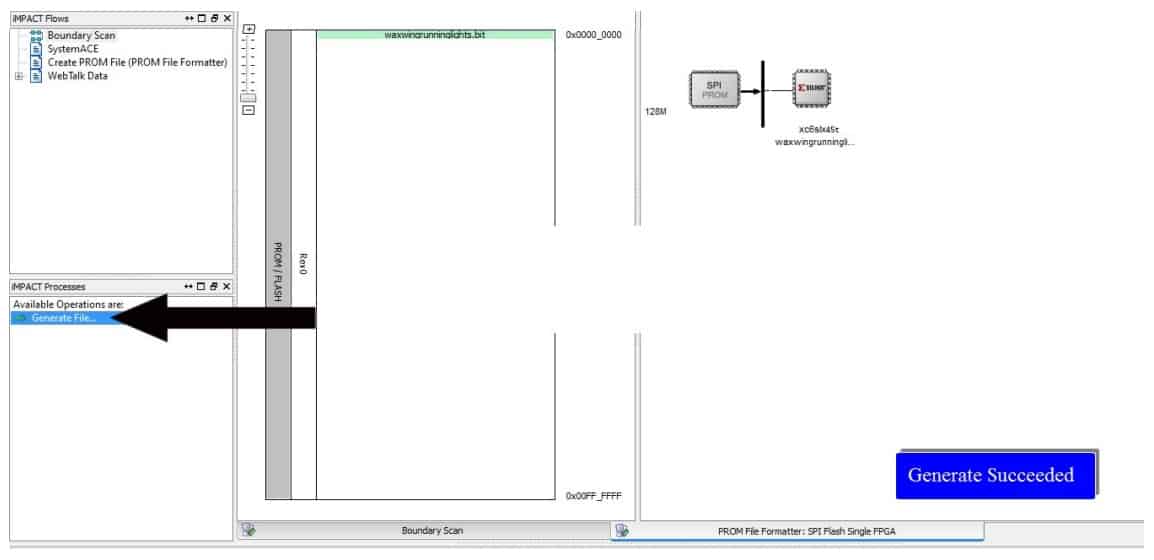

Step 4: Double click on “Generate File” option under iMPACT processes window. “Generate Succeeded” message will be displayed as shown in the image below if the “.mcs” the file is generated successfully.

Programming SPI Flash Using ISE iMPACT

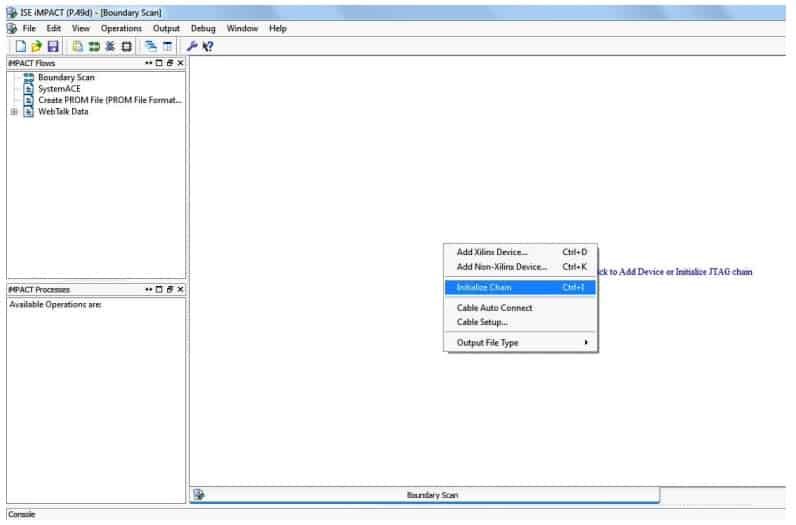

Step 1: Open ISE iMPACT. Click on “Boundary Scan” in the iMPACT flows window on the left top corner. Then right click on the window panel on the right. Select “Initialize Chain”.

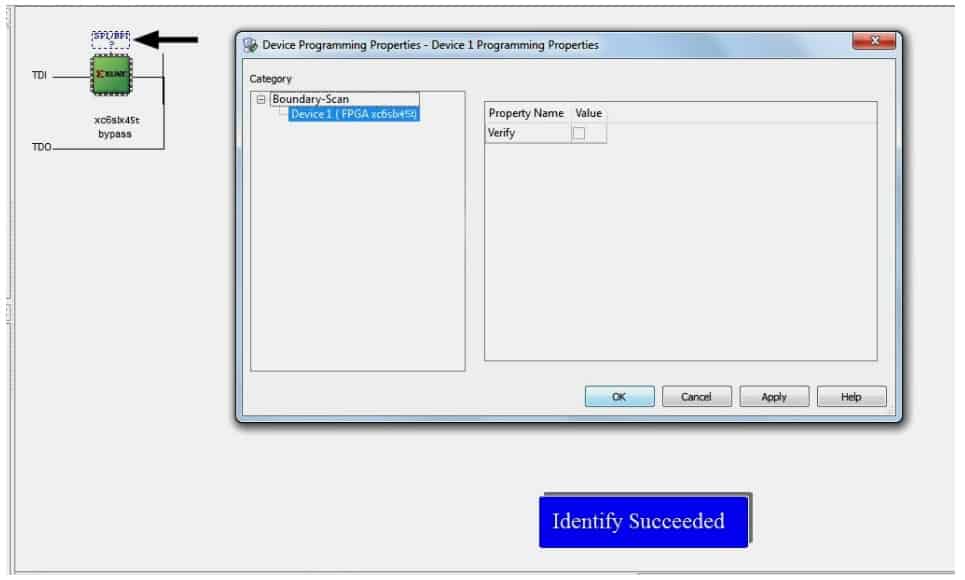

Step 2: If the device is detected properly you will see a pop up window as shown below, Click OK. Then right click on the SPI/BPI (next to the black arrow in the below fig.), select Add SPI/BPI Flash.

Step 3: Select the “.mcs” file we already created and click OK. Now choose “N25Q128” in the dialogue box that appears, then click OK.

galateapci-programspistep3

Step 4: Click on “Flash” and then double click on Program option in iMACT processes window. If programming is successful, a confirmation message will be displayed.

Technical Specifications

Parameter *ValueUnit
Basic Specifications
Number of GPIOs (Max)112
On-board oscillator frequency (FXO-HC536R)
100 (x 3) MHz
DDR3:
1 (x2) Gb
SPI Flash Memory (N25Q128A13ESE40E) 128 Mb
Power supply voltage (External)
12 V
FPGA Specifications
Internal supply voltage relative to GND –0.5 to 1.32 V
Auxiliary supply voltage relative to GND
–0.5 to 3.75 V
Output drivers supply voltage relative to GND
–0.5 to 3.75 V
Connector Header Specifications (FX18-120P-0.8SV)
Number of Positions 120
Number of Rows
2
Pitch
0.80 mm
Height 8.65 mm
Mated, Stacking Heights 15, 20 mm
Current Rating(Max.) 3 Amp
Mating Receptacles FX18-120S-0.8SV15
FX18-120S-0.8SV20
FX18-120S-0.8SH

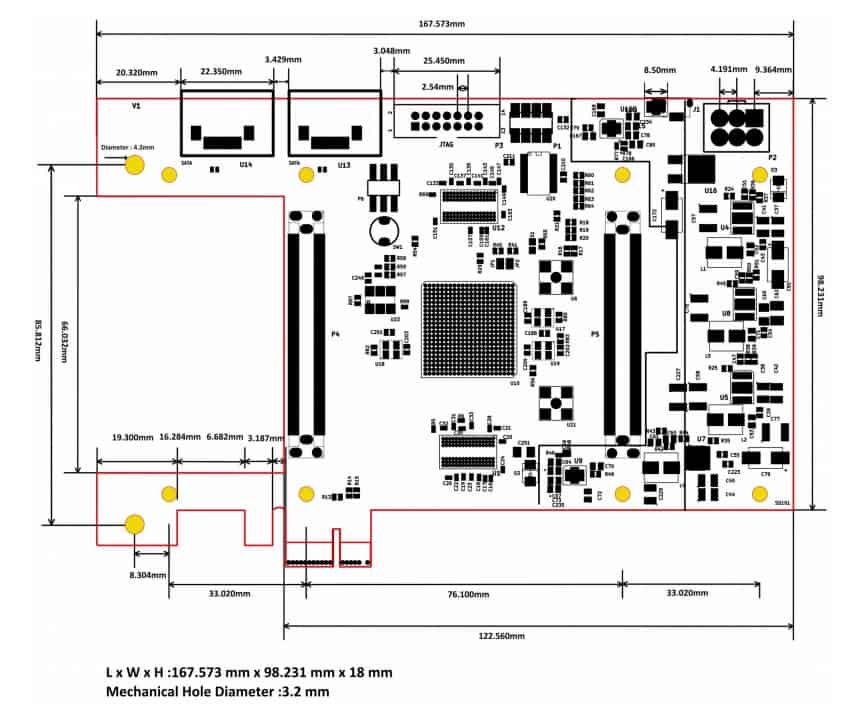

Mechanical Dimension
