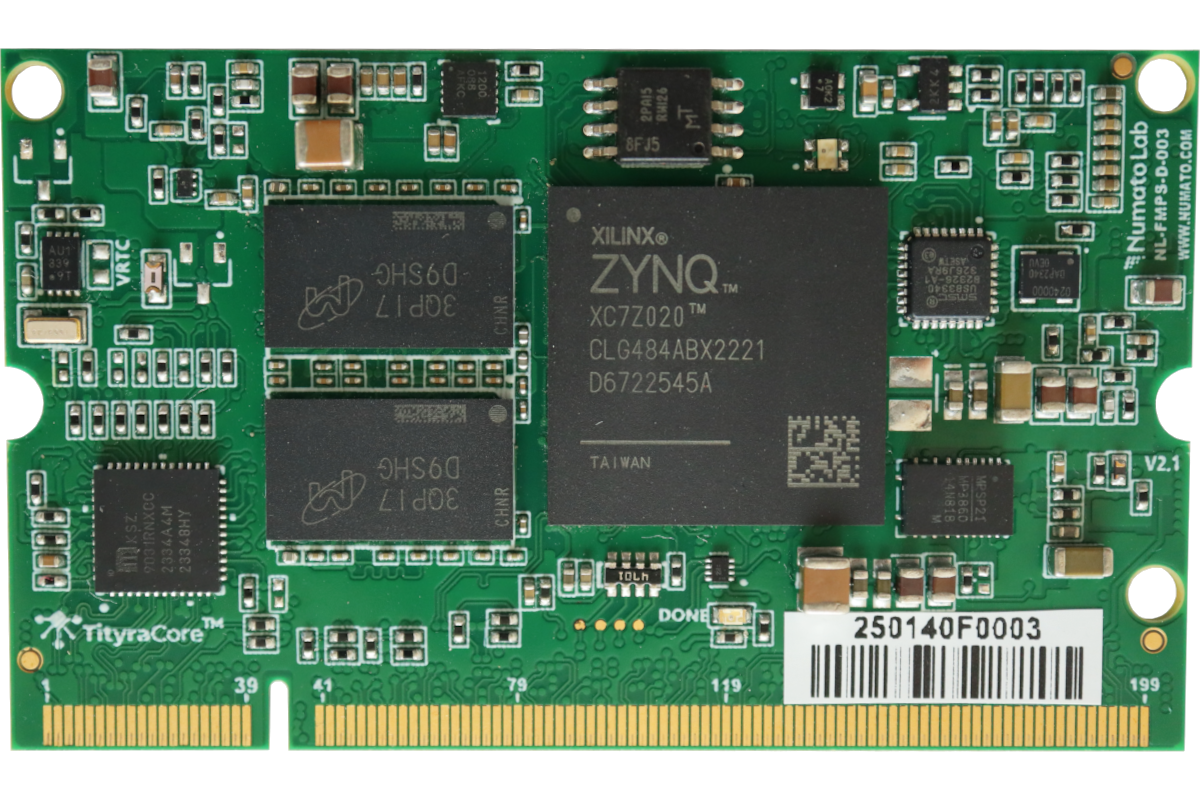

TityraCore Z7 SoC SoDIMM incorporates the AMD Zynq XC7Z020 chip, seamlessly integrating programmable logic with a dual-core ARM Cortex-A9 processor. This integration provides a potent blend of hardware and software processing capabilities, all within a single chip. Zynq series features a hard System on Chip (SoC) with an ARM core. The range of peripherals offered includes an extensive array of functionalities, such as UARTs, Ethernet controllers, USB ports, timers, interrupt controllers, and various other features. It has a seamless integration of the Processing System(PS) with the Programmable Logic (PL) in which the interaction between them is enabled by a high-bandwidth interface, ensuring communication and efficient data transfer between them. TityraCore Z7 SoC SoDIMM is specifically designed for the development and integration of FPGA-based accelerated features into other larger designs. It opens up a vast realm of possibilities for implementing innovative solutions across various applications.

Features

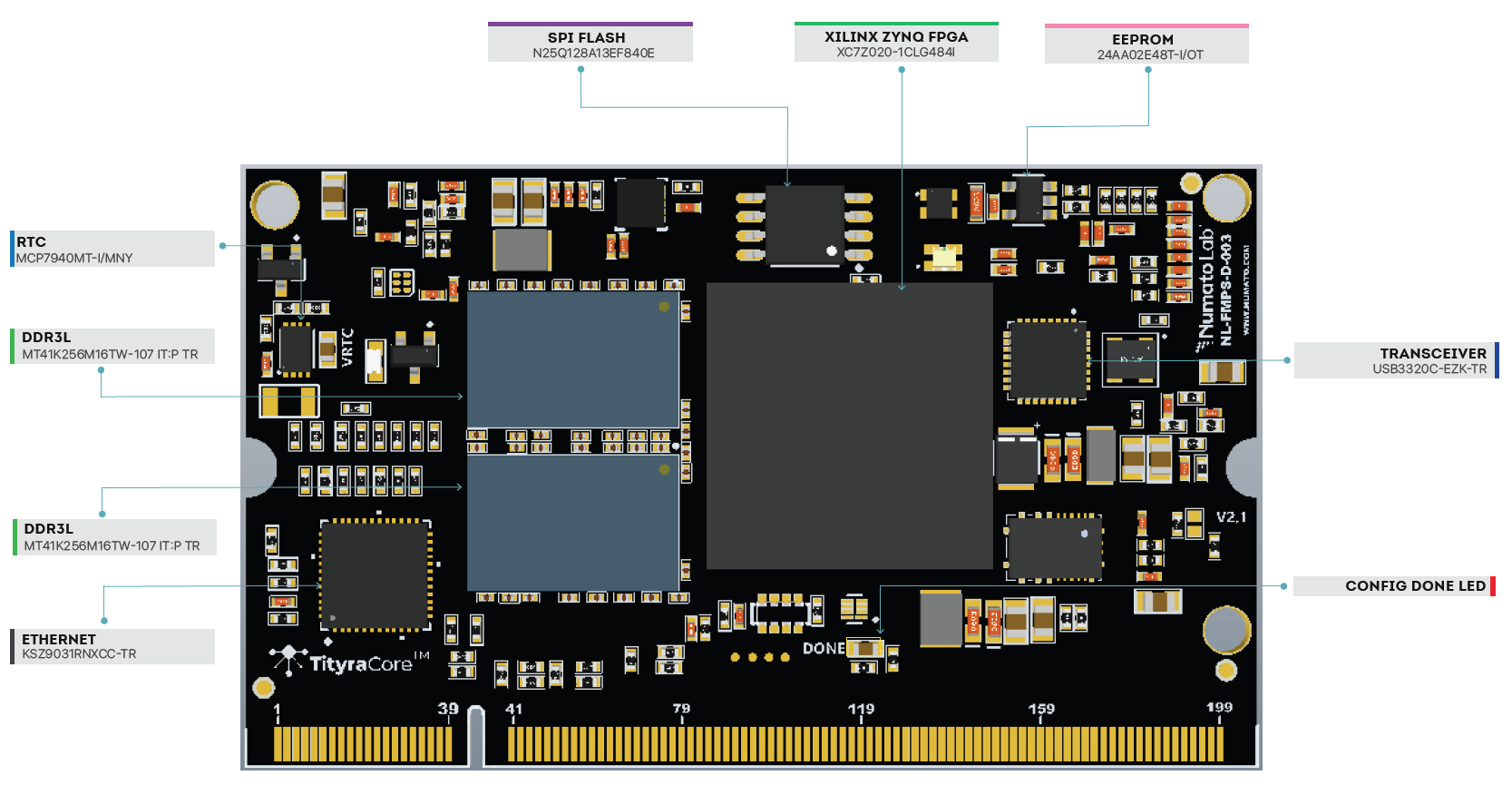

• Device: XC7Z020 in CLG484 package, Speed Grade: -1
• SDRAM: 2 GB DDR3L (MT41K256M16TW-107 IT:P TR or equivalent)
• Flash memory: 128 Mb Quad bit SPI flash memory (N25Q128A13EF840E)
• 33 MHz CMOS oscillator
• 50 MHz CMOS oscillator
• Gigabit Ethernet, Real Time Clock, CAN BUS, MAC ID
• MIPI interfacing
• High-Speed USB 2.0 OTG interface.
• JTAG and USB programming
• Micro SD card for memory expansion
• 8 Gb eMMC

Applications

• Product Prototype Development
• Accelerated computing integration
• Custom Embedded platform
• Signal Processing
• Communication devices development
• Educational tool for Schools and Universities
