DDR3: 2Gb DDR3 (MT41J128M16HA-125:K or equivalent)1 lane PCIe Gen2.0(5.0GT/s)
128 Mb QSPI flash memory for Configuration and optional data storage
USB to UART serial converter
1 x 100MHz CMOS oscillator
Onboard voltage regulators for single-power rail operation
MicroSD adapter for bulk data storage
FPGA: AMD Artix-7 XC7A200T in -2 FBG484I package
1 lane PCIe Gen2.0(5.0GT/s)
DDR3: 2Gb DDR3 (MT41J128M16HA-125:K or equivalent)
128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
USB to UART serial converter
1 x 100MHz CMOS oscillator
Maximum 68 IOs for user-defined purposes on ANSI/VITA 57.1 Standard-compliant FMC LPC connector
1x GTP lanes up to 6.6Gbps on ANSI/VITA 57.1 Standard-compliant FMC LPC connector
1 RGB LED for custom use
1x Trusted Platform Module (ATXXXXXX )
Dual SFP Cages
MicroSD adapter for bulk data storage
Onboard voltage regulators for single-power rail operation
Can be powered from a PCIe slot or an external power supply
JTAG header for programming and debugging
All differential pairs are length matched on the board

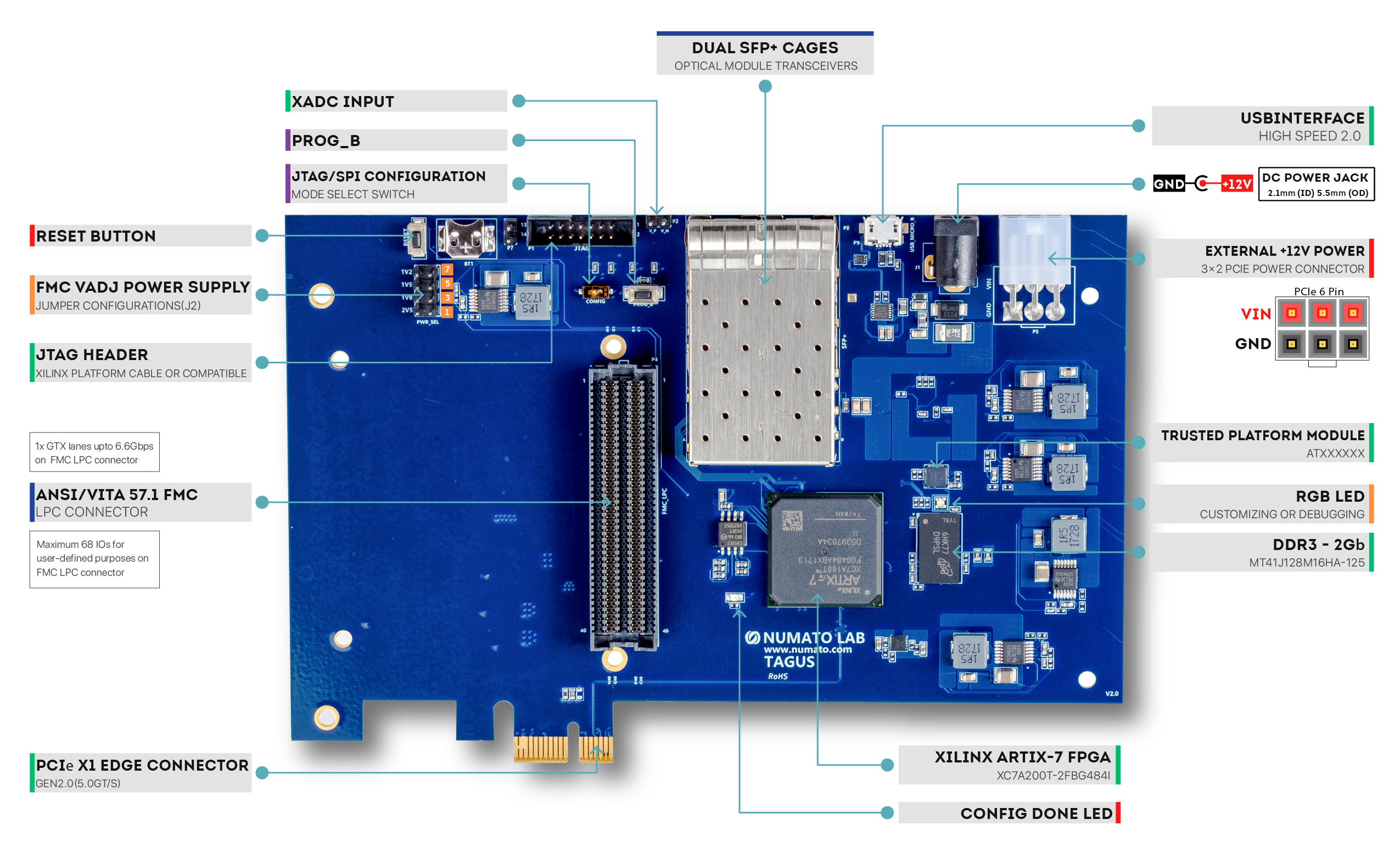

Tagus is an easy-to-use FPGA Development board featuring AMD Artix-7 FPGA with x1 PCIe interface, Trusted Platform Module (ATXXXXXX), Dual SFP cages, and 2Gb DDR3 SDRAM. This board features AMD XC7A200T– FBG484I FPGA. The board features Low Pin Count (LPC) high-speed FMC connector conforming to ANSI/VITA 57.1 Standard to add additional features to the board by using custom or commercial off-the-shelf daughter boards.
Applications
Parallel Processing and Accelerators
Product Prototype Development
Development and Testing of custom-embedded processors
