RXE002 – 4 Channel USB/RTU/TCP Modbus Relay Module With Digital Outputs, Analog and Digital Inputs

Coming soon…

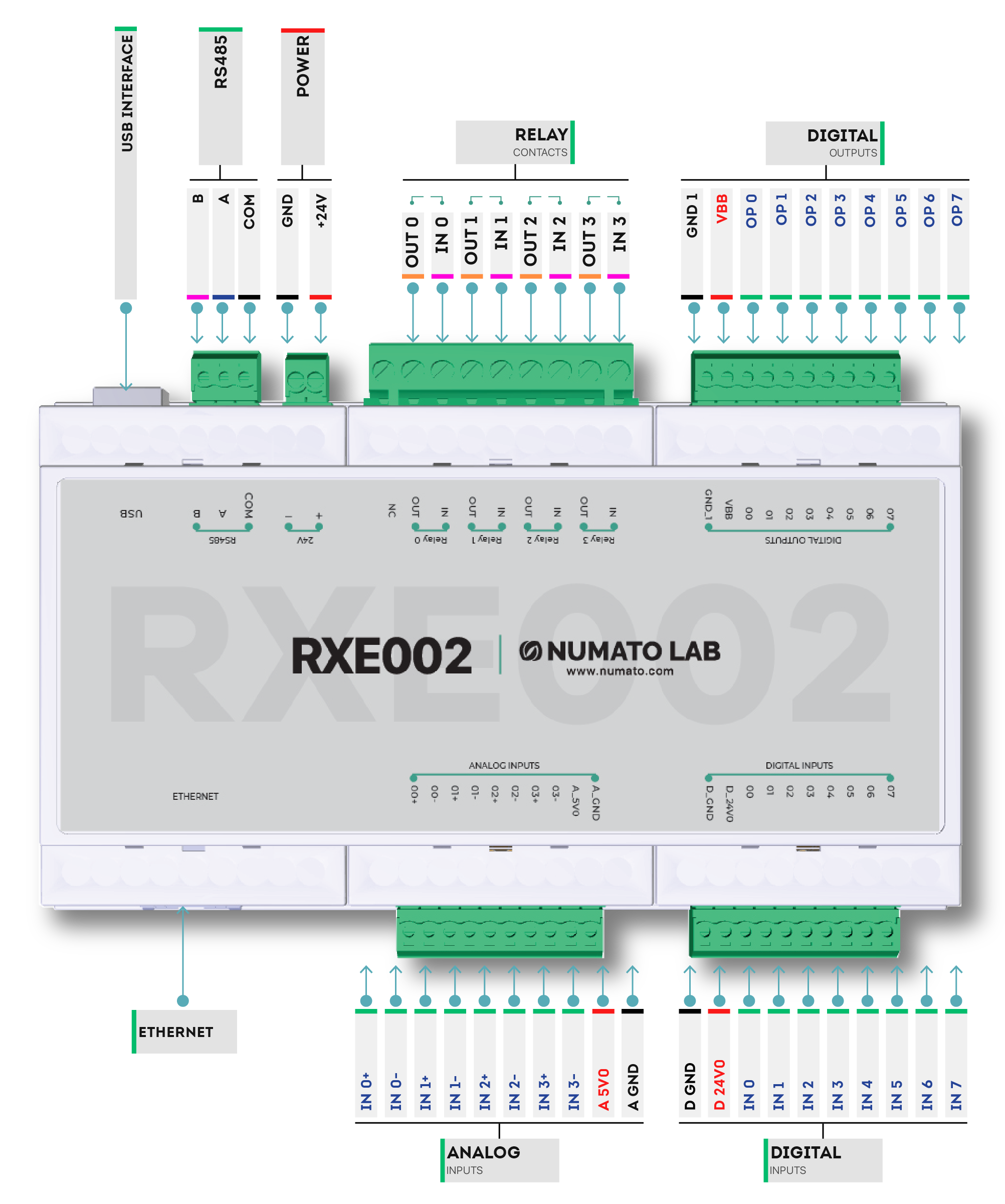

RXE002 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 4 Relays (Dry Contacts) and 8 Digital Inputs, 8 Digital Outputs and 4 Analog Inputs. All the Analog Inputs have polarity and support 4 to 20mA Current-Loop, which makes this device more useful in industries. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP.  RXE002 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. RXE002 acts as a Modbus slave device. Flexible DIN Rail mounting system allows easy installation and removal with screws. RXE002 supports several features such as Relay Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

Features

  • 4 SPST Relays rated up to 250V/7A each
  • 8 Digital Inputs supports Maximum Input Voltage of 30V
  • 8 Digital Outputs
  • 4 Analog Inputs with 16-bit resolution and supports 4 to 20mA current-loop
  • USB CDC (Serial) interface that works with Windows, Linux, Mac and more. No USB knowledge required!
  • Compatible with most automation software in the market that supports Modbus RTU/TCP
  • Features such as Relay Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc.
  • Write your own script or software with the help of a large number of sample code provided in various languages
  • Detachable screw terminals for easy wiring and replacement
  • +24V Power Supply (included)
SKU: NLRXE002-A Category:

Description

RXE002 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 4 Relays (Dry Contacts) and 8 Digital Inputs, 8 Digital Outputs and 4 Analog Inputs. All the Analog Inputs have polarity and support 4 to 20mA Current-Loop, which makes this device more useful in industries. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP.  RXE002 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. RXE002 acts as a Modbus slave device. Flexible DIN Rail mounting system allows easy installation and removal with screws. RXE002 supports several features such as Relay Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

Features

  • 4 SPST Relays rated up to 250V/7A each
  • 8 Digital Inputs supports Maximum Input Voltage of 30V
  • 8 Digital Outputs
  • 4 Analog Inputs with 16-bit resolution and supports 4 to 20mA current-loop
  • USB CDC (Serial) interface that works with Windows, Linux, Mac and more. No USB knowledge required!
  • Compatible with most automation software in the market that supports Modbus RTU/TCP
  • Features such as Relay Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc.
  • Write your own script or software with the help of a large number of sample code provided in various languages
  • Detachable screw terminals for easy wiring and replacement
  • +24V Power Supply (included)

Additional information

Number Of Relays

Relay Type

Max Relay Current Rating

7A

Number of Dgital Outputs

8

Digital Output Voltage Source

Internal (Onboard) Voltage : 24V
External Voltage(VBB) : 30V

Number of Digital Inputs

8

Digital Input Voltage Max

30V

Analog Inputs(Max)

4

Analog Input Resolution

16 Bits

Host Interface

Ethernet, USB 2.0 CDC

Warranty

Package Contents

24V power supply x1, RXE002 x1, USB A to B cable x1
