Prodigy UR Series – 8/16 Channel USB Modbus Relay Module With Analog and Digital Inputs

$199.00$299.00

Prodigy UR08/UR16 is a USB Relay output module that supports Modbus protocol. The USB Serial (CDC) host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi  an easy task. Support of industry standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus/RTU.

Features

  • 8/16 Relays rated up to 250V/5A each
  • 8 IOs that supports Digital Input, Digital Output and Analog Input features
  • USB CDC (Serial) interface that works with Windows, Linux, Mac and more. No USB knowledge required!
  • Compatible with most automation software in market that supports Modbus RTU
  • Features such as Relay Timer, Watchdog timer for fail safe operation, Configurable Power On states etc..
  • Write your own script or software with help of large number of sample code provided in various languages
  • Detachable screw terminals for easy wiring and replacement
  • Flame-resistant enclosure with DIN Rail and Wall Mounting support
  • +12V Power Supply (included)
Clear
SKU: N/A Category:

Description

Prodigy UR08/UR16 is an Input/Output module that supports Modbus protocol with a serial interface over USB. This product has 8/16 Relays (Dry Contacts) and 8 Additional IOs that supports Digital Input, Digital Output and Analog Input functions. The USB host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for the industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus/RTU. UR08/UR16 when connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. UR08 acts as a Modbus slave device at slave address 1. UR08/UR16 are enclosed in a flame-resistant enclosure with support for DIN rail mounting. Flexible DIN Rail mounting system allows easy installation and removal without screws or other mechanisms. UR08/UR16 supports several features such as Relay Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

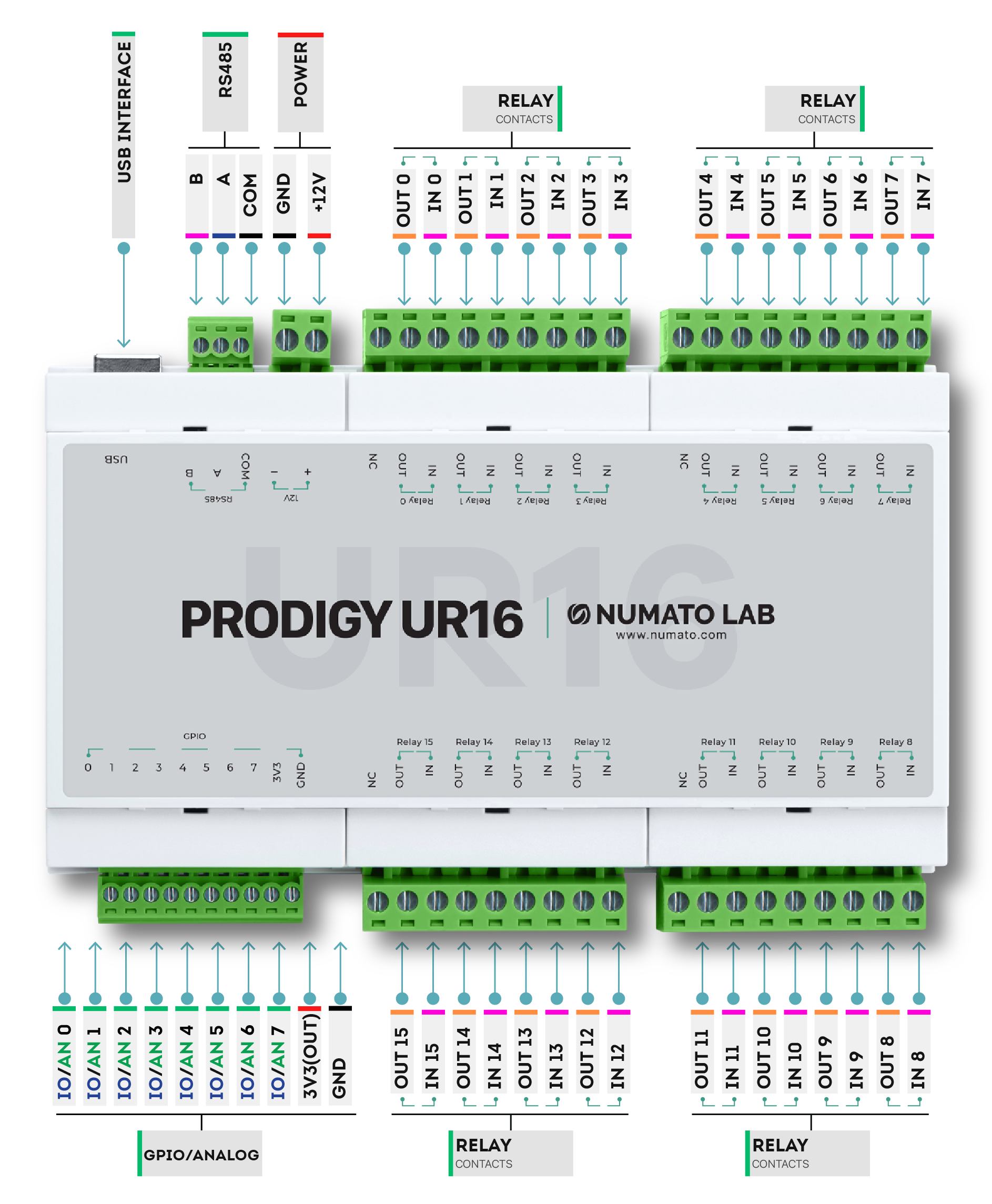

UR08 Relay Diagram                                                       UR16 Relay Diagram

Additional information

Weight 2 lbs
Dimensions 11.00 x 8.00 x 3.00 in
Analog Input Resolution

12 Bits

Analog Inputs(Max)

8

Host Interface

USB 2.0 CDC

IO Voltage Max

3.3V

Max Relay Current Rating

5A

Number Of GPIOs (Max)

8

Number Of Relays

,

Relay Type

Package Contents

Prodigy UR08/UR16 x1
USB A to B Cable x1
12V Power Supply x1

Downloads

User Manual
Driver for Prodigy
View/Download 3D Model (STEP)-UR16
View/Download 3D Model (STEP)-UR08
UR16 Physical Dimensions
UR08 Physical Dimensions
