Introducing the Mimas AU-Plus Development Module – Your Gateway to FPGA Innovation!

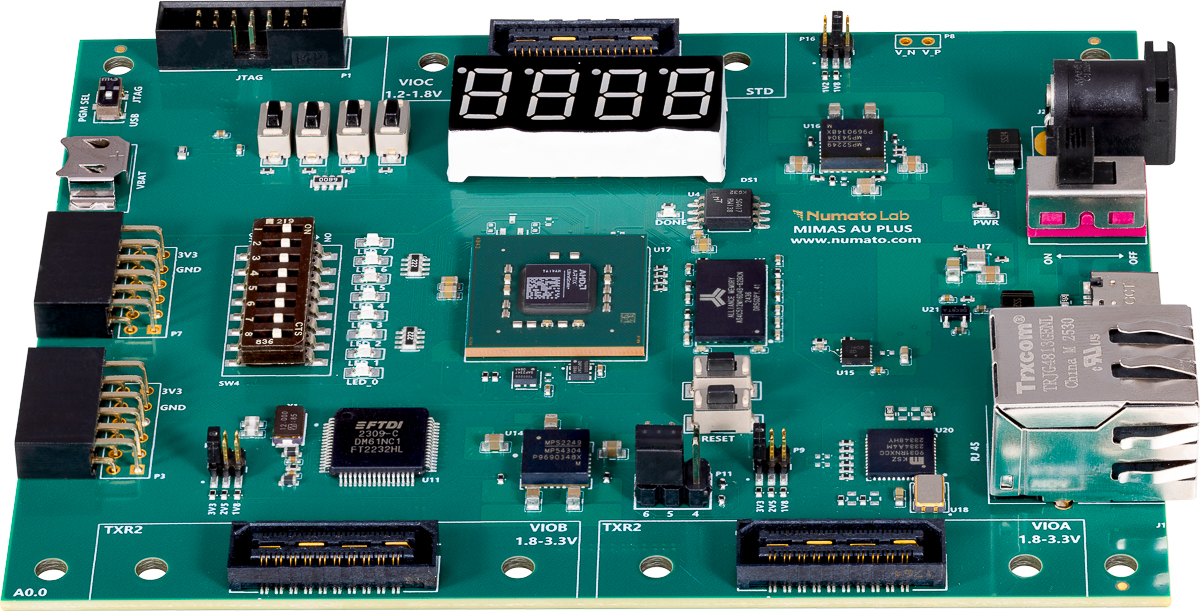

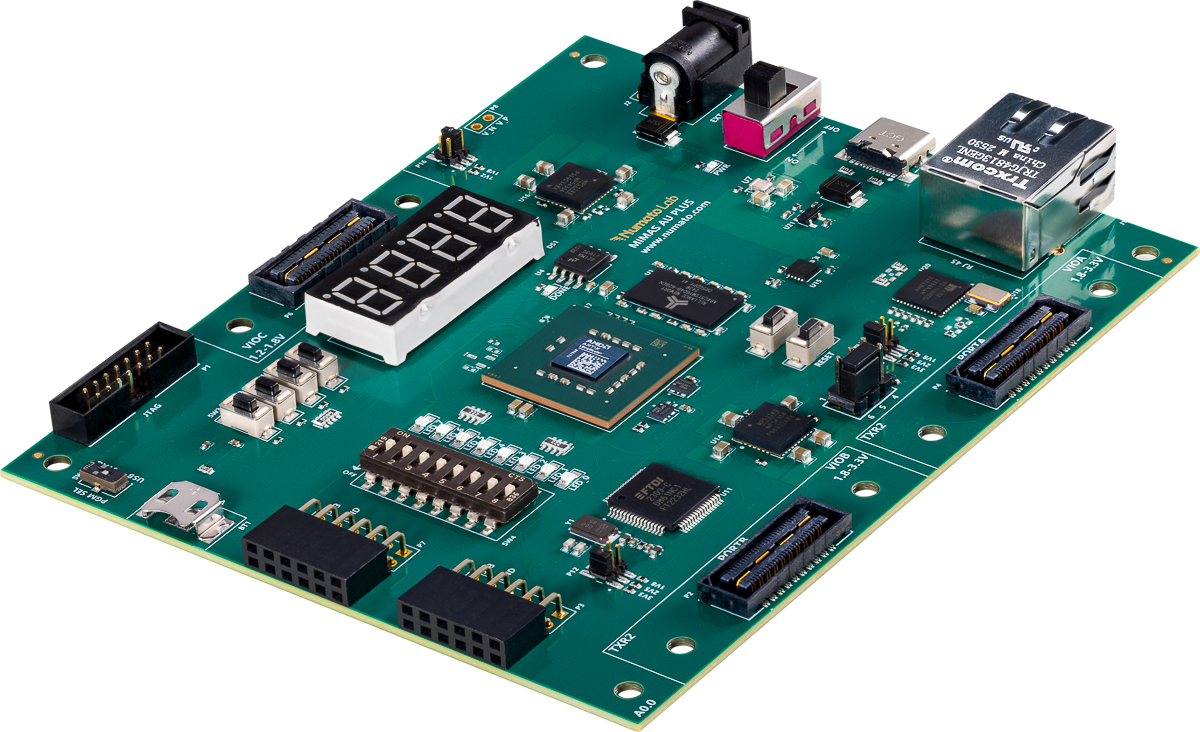

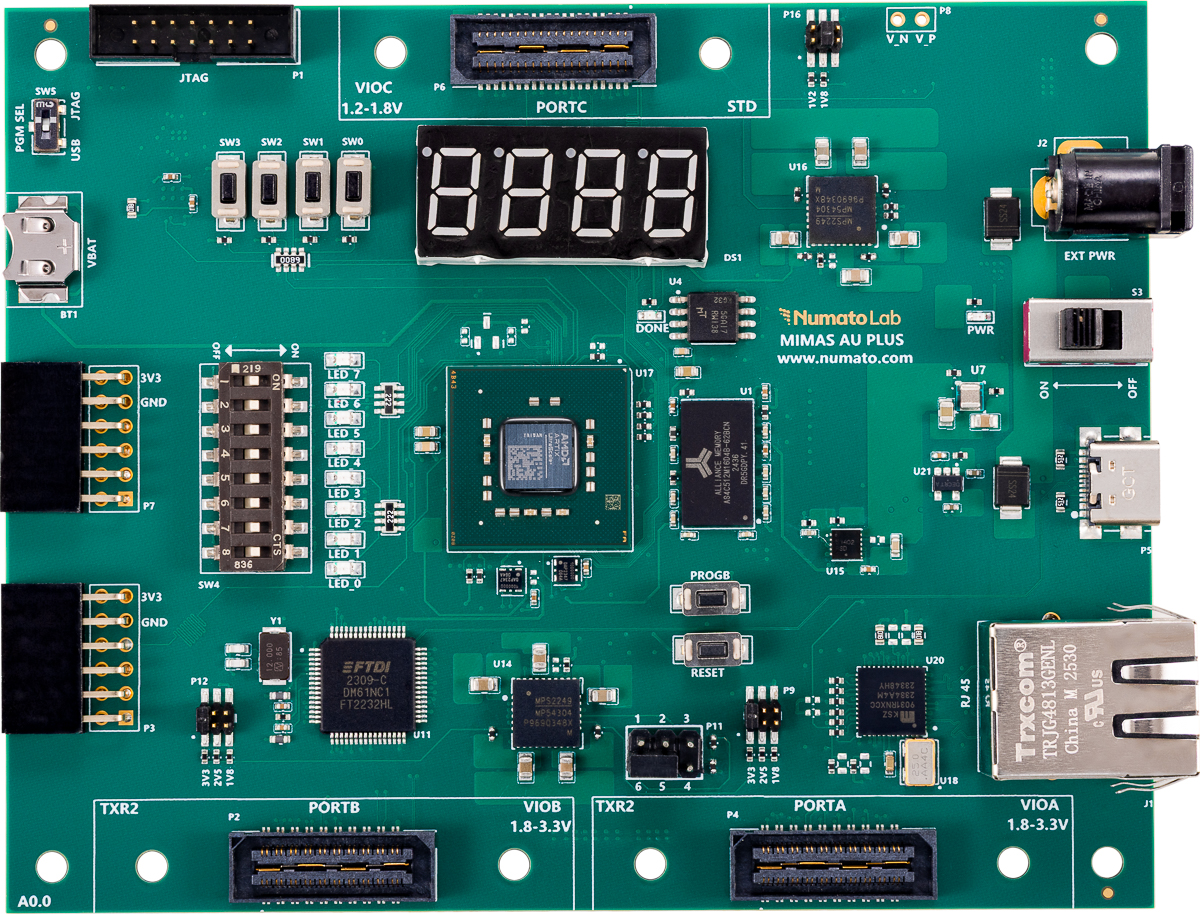

Mimas AU-Plus Development Module is an easy-to-use FPGA Development Module featuring Artix Ultrascale+ FPGA (XCAU7P-1SBVC484 package). The FT2232H brings versatile USB-to-serial connectivity, while DDR4 support enhances data processing efficiency. The inclusion of Gigabit Ethernet facilitates seamless networking, opening doors to IoT and cloud computing applications. Storage is swift and reliable with QSPI flash. The addition of SYZYGY and PMOD connectors enhances flexibility, allowing easy interfacing with sensors and peripherals for customized projects.
In essence, the AU-Plus Development Module is a compact, feature-rich solution for FPGA development, empowering both seasoned developers and enthusiasts to explore limitless possibilities in embedded systems and digital design.

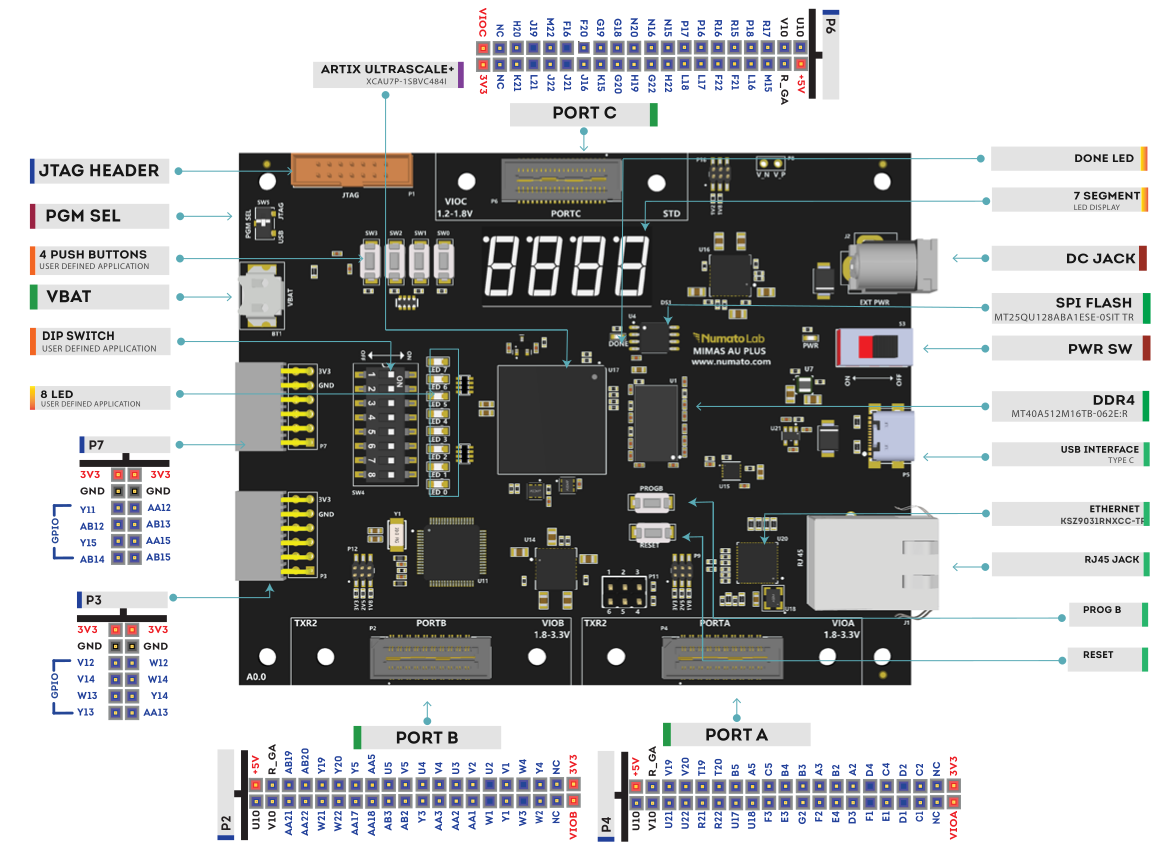

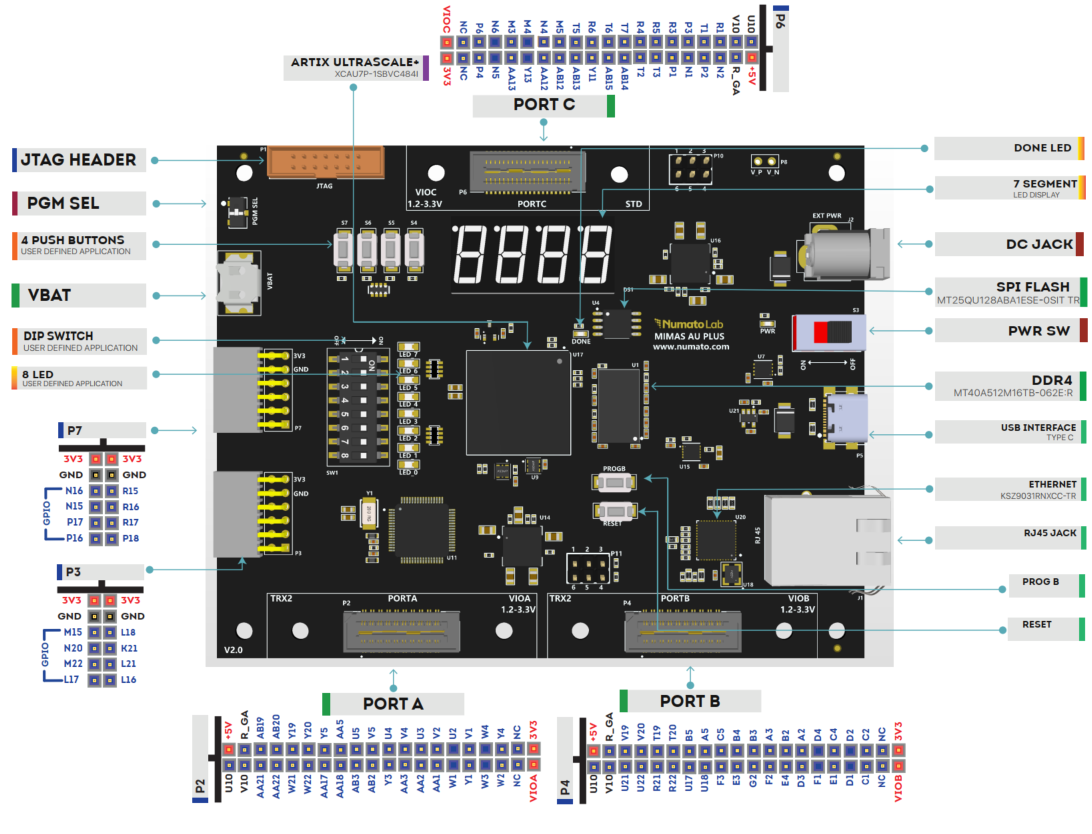

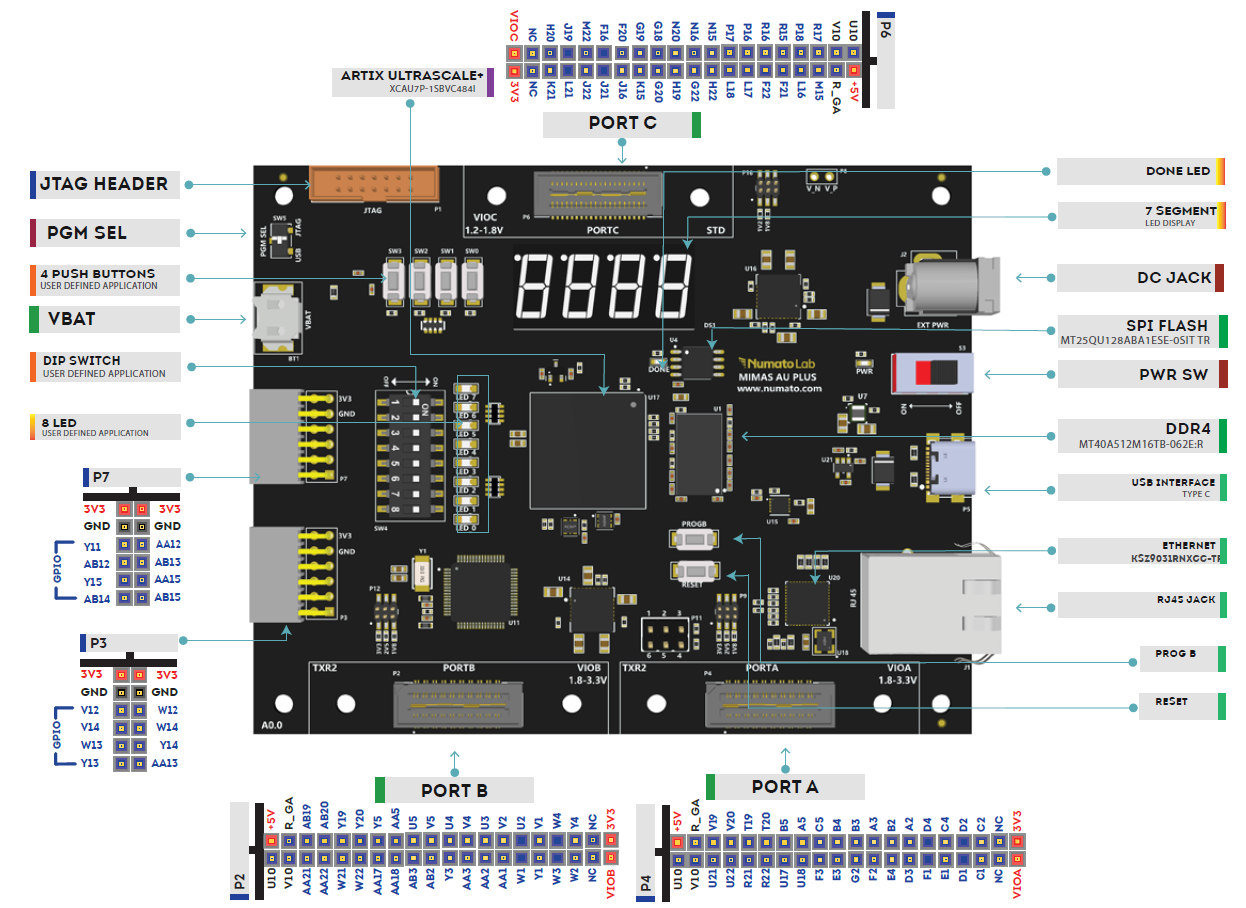

Features
- Device: AMD Artix Ultrascale+ FPGA (XCAU7P-1SBVC484).
- SDRAM – DDR4.
- Flash Memory: 1 Gb SPI flash memory.
- 1 x Gigabit Ethernet PHY.
- FTDI FT2232H based host interface.
- 100MHz CMOS oscillator (Fabric clock).
- 100MHz DDR4 Reference Clock.
- FPGA configuration via JTAG and USB.
- 2x TXR-2 and 1x standard SYZYGY connector.
- 2x PMOD.
- 8 LEDs, 4 Push Buttons, 8 DIP switches and 7 Segment display for user-defined purposes.
Downloads
Specifications
Attribute | Value |
---|---|
FPGA | |
Primary Clock Frequency | |
Memory | |
Non-Volatile Configuration Storage | 128 Mb SPI flash memory |
Number Of GPIOs (Max) | |
Total Number of GTP | 4 (PCIe Gen 3, 4 lanes) |
Number of PMODs | 2 |
Configuration Options | |
Operating Temperature | 0 °C to 70 °C |
HTS | 8542.39.0001 |
ECCN | 3A991.d |
