Mimas A7 Mini FPGA Development Board

$99.00 $89.00

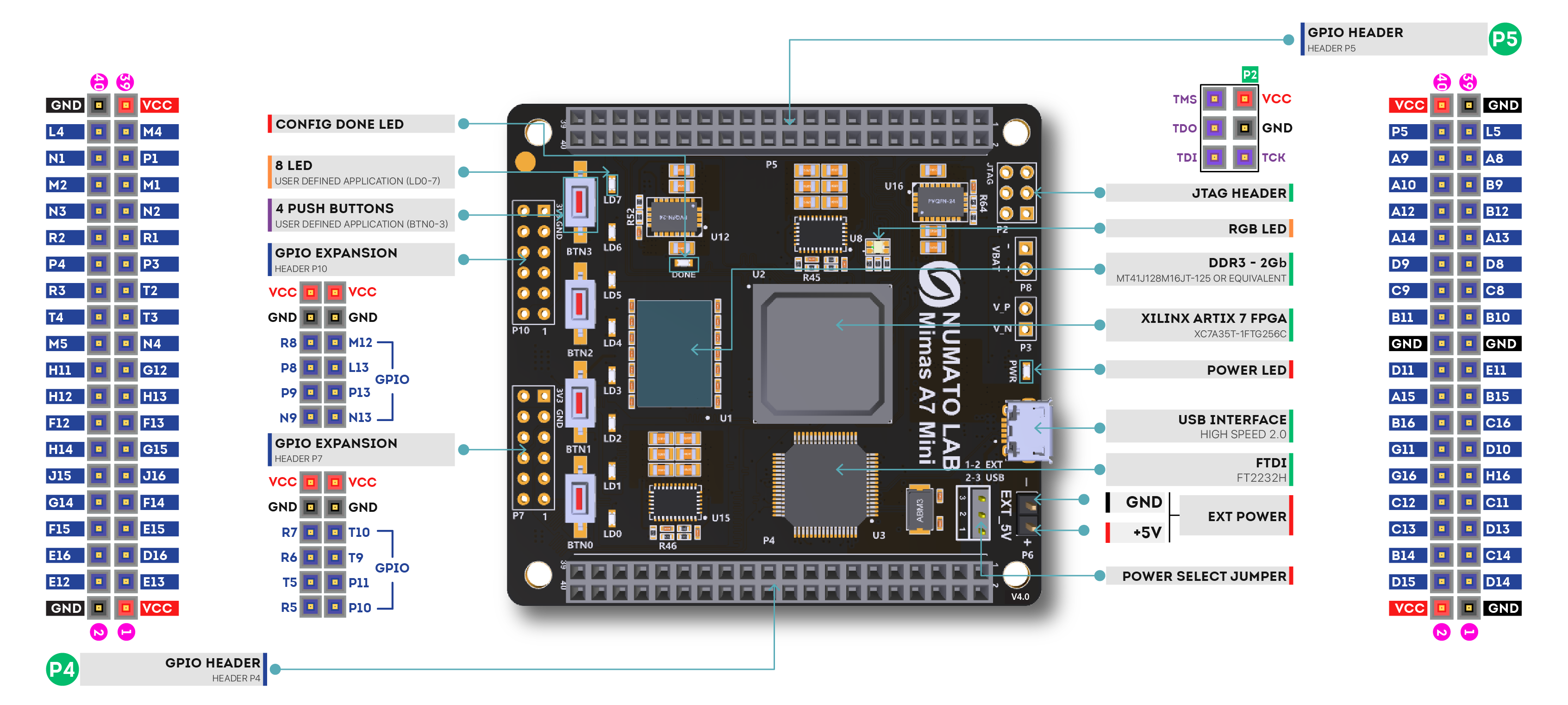

Mimas A7 Mini is an easy to use FPGA Development board featuring Artix 7 FPGA (XC7A35T – FTG256C package) with FTDI’s FT2232H Dual-Channel USB device. It is an Artix-7 based replacement and upgrade of Mimas Spartan 6 FPGA Board. It is specially designed for the development and integration of FPGA based accelerated features to other designs. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters.

Features

  • Device: Xilinx Artix 7 FPGA (XC7A35T-1FTG256C)
  • DDR3: 2Gb DDR3 (MT41J128M16JT-125 or equivalent)
  • Built-in programming interface. No expensive JTAG adapters needed for programming the board
  • Onboard 128Mb flash memory for FPGA configuration storage and custom user data storage
  • High-Speed USB 2.0 interface for On-board flash programming. FT2232H Channel B is dedicated for JTAG Programming. Channel A can be used for custom applications
  • 100MHz CMOS oscillator
  • 8 LEDs, 1 RGB LED and 4 Push Buttons for user-defined purposes
  • FPGA configuration via JTAG and USB
  • Maximum IOs for user-defined purposes
  •           —FPGA – 70 IOs (35 professionally length matched Differential Pairs) and two 2×6 Expansion Headers

Shipping starts from September 2019 onwards…

Available on backorder

Category:

Description

Mimas A7 Mini is an easy to use FPGA Development board featuring Artix 7 FPGA (XC7A35T – FTG256C package) with FTDI’s FT2232H Dual-Channel USB device. It is an Artix-7 based replacement and upgrade of Mimas Spartan 6 FPGA Board. It is specially designed for the development and integration of FPGA based accelerated features to other designs. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters.

Features

  • Device: Xilinx Artix 7 FPGA (XC7A35T-1FTG256C)
  • DDR3: 2Gb DDR3 (MT41J128M16JT-125 or equivalent)
  • Built-in programming interface. No expensive JTAG adapters needed for programming the board
  • Onboard 128Mb flash memory for FPGA configuration storage and custom user data storage
  • High-Speed USB 2.0 interface for On-board flash programming. FT2232H Channel B is dedicated for JTAG Programming. Channel A can be used for custom applications
  • 100MHz CMOS oscillator
  • 8 LEDs, 1 RGB LED and 4 Push Buttons for user-defined purposes
  • FPGA configuration via JTAG and USB
  • Maximum IOs for user-defined purposes
  •   —FPGA – 70 IOs (35 professionally length matched Differential Pairs) and two 2×6 Expansion Headers

Applications

  • Product Prototype Development
  • Accelerated computing integration
  • Development and testing of custom embedded processors
  • Communication devices development
  • Educational tool for Schools and Universities

Additional information

Dimensions 6.00 x 4.00 x 1.00 in
FPGA

Memory

Configuration Options

JTAG, USB

Host Interface

USB 2.0

Primary Clock Frequency

Number Of GPIOs (Max)

70

Number Of Diff Pairs

35

Downloads

User Manual
Driver for Mimas A7 Mini Module
Tenagra FPGA Management Suite
Schematics
XDC File For Vivado Designs
View/Download 3D Model (STEP)

Sample Code

Mimas A7 Mini Microblaze HelloWorld Sample Project
Mimas A7 Mini Top Module Sample Project
