Introducing the Elbert S7 FPGA Development Board: Unleash Your Creativity with Compact Power.

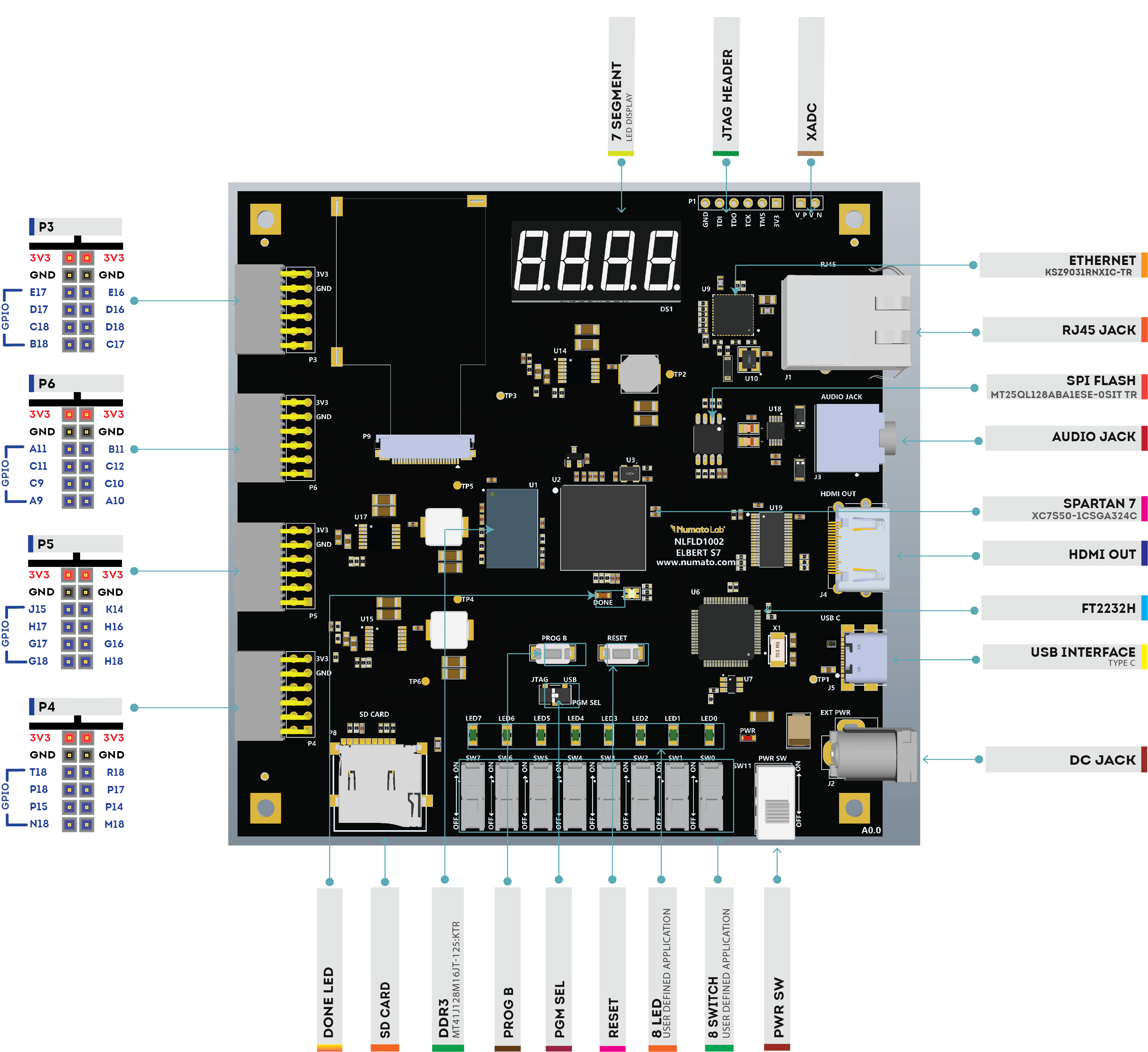

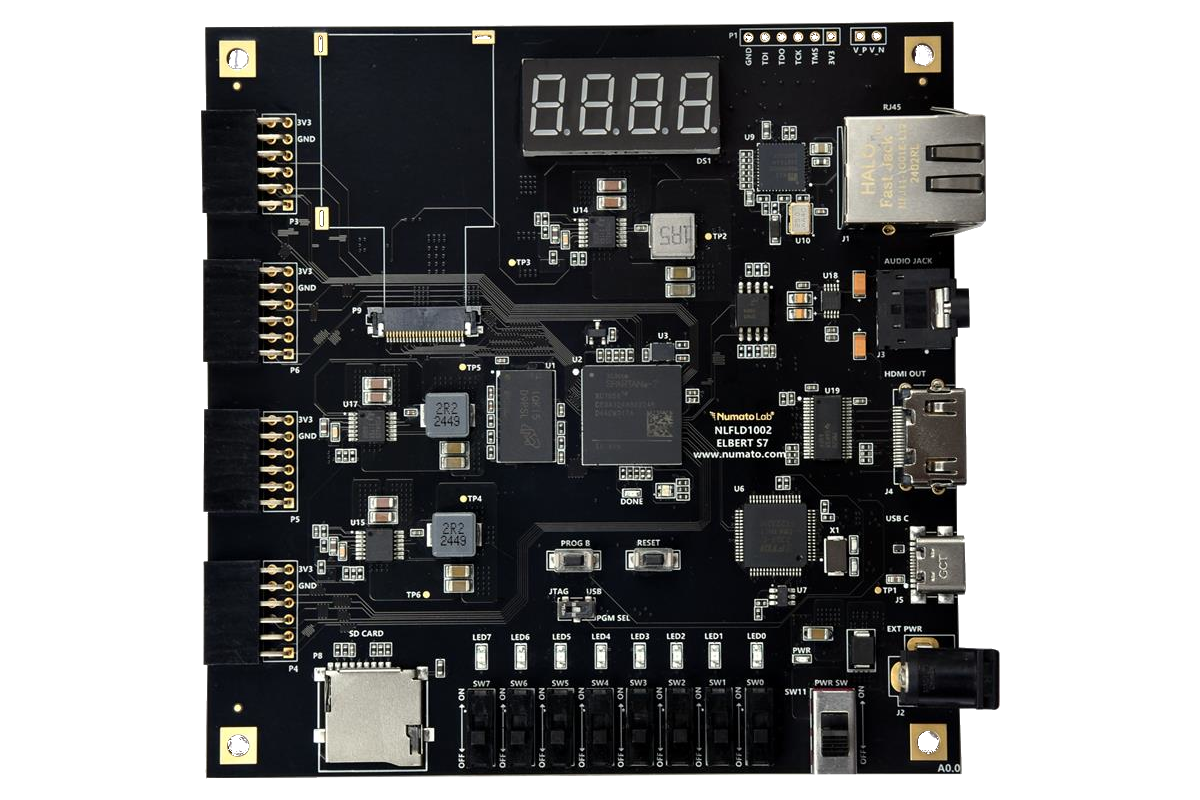

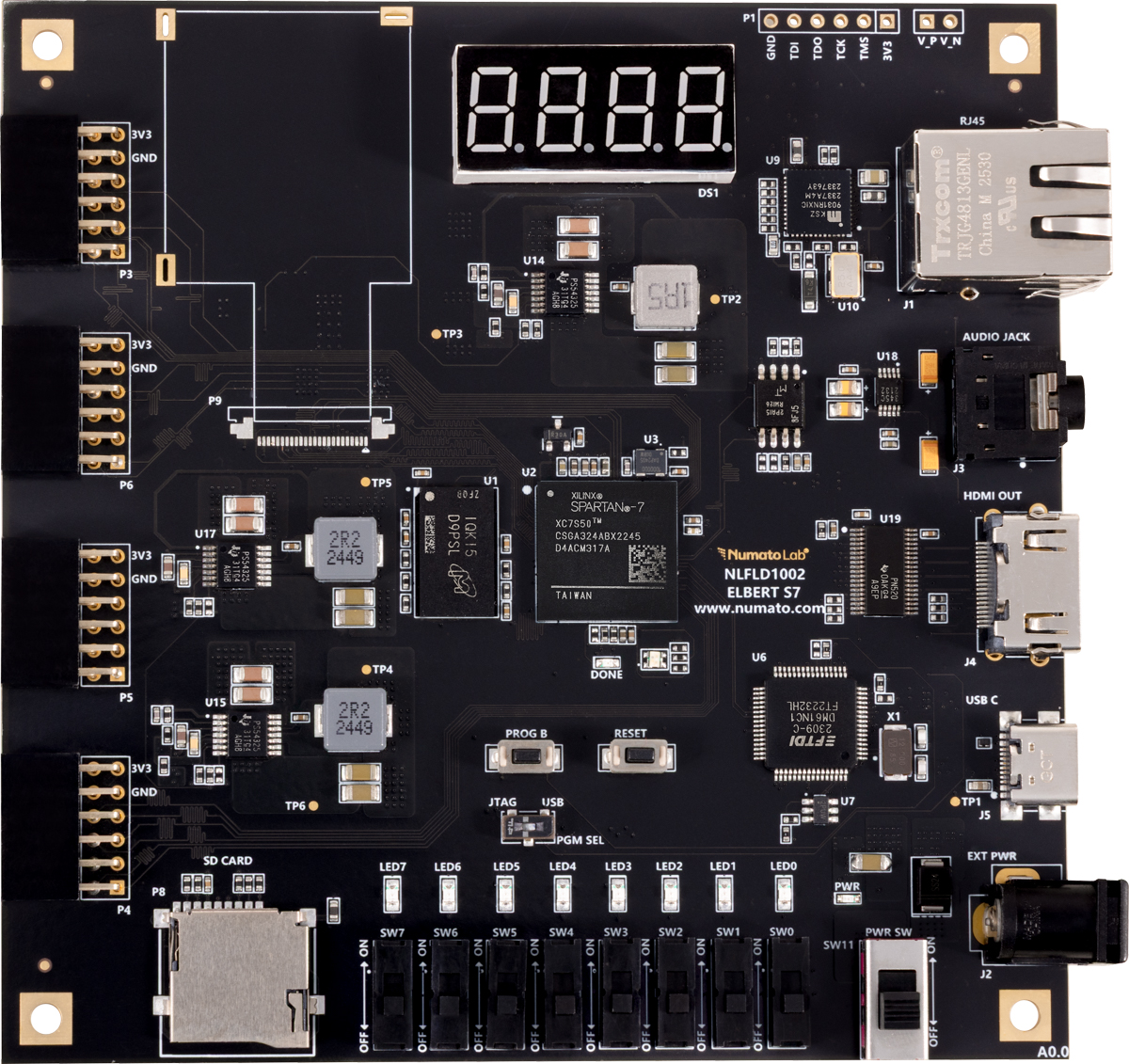

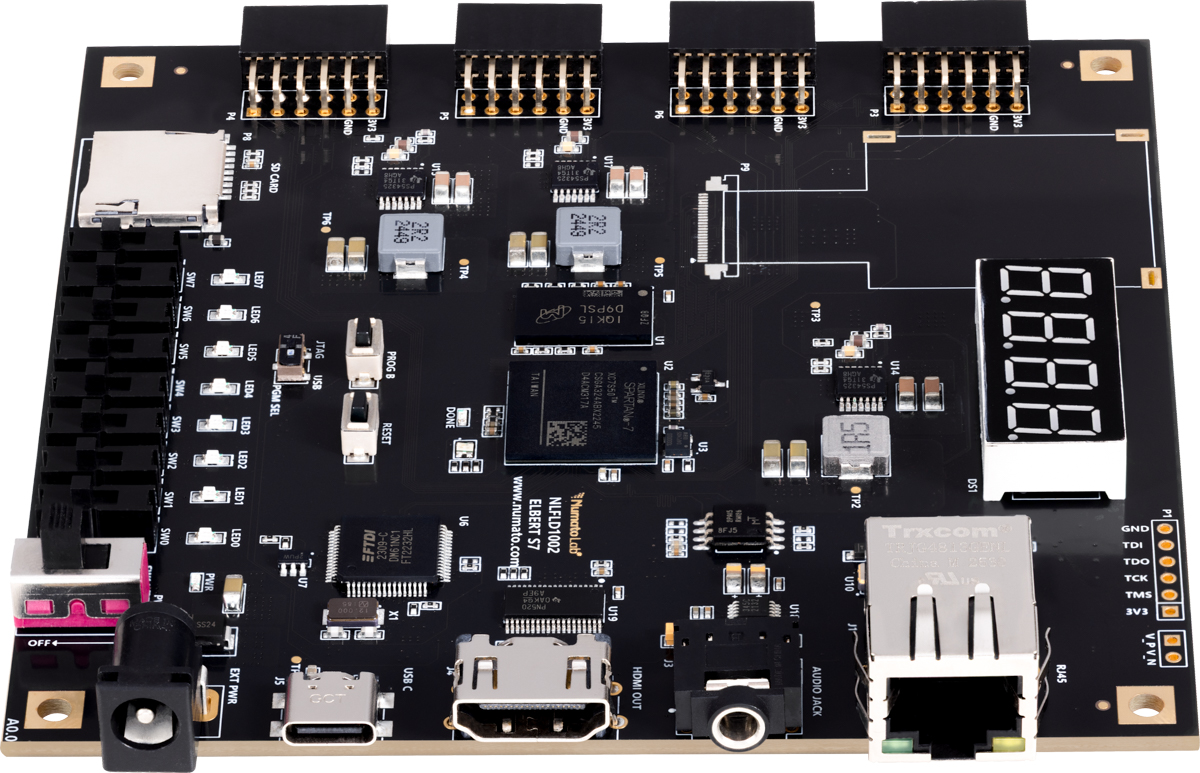

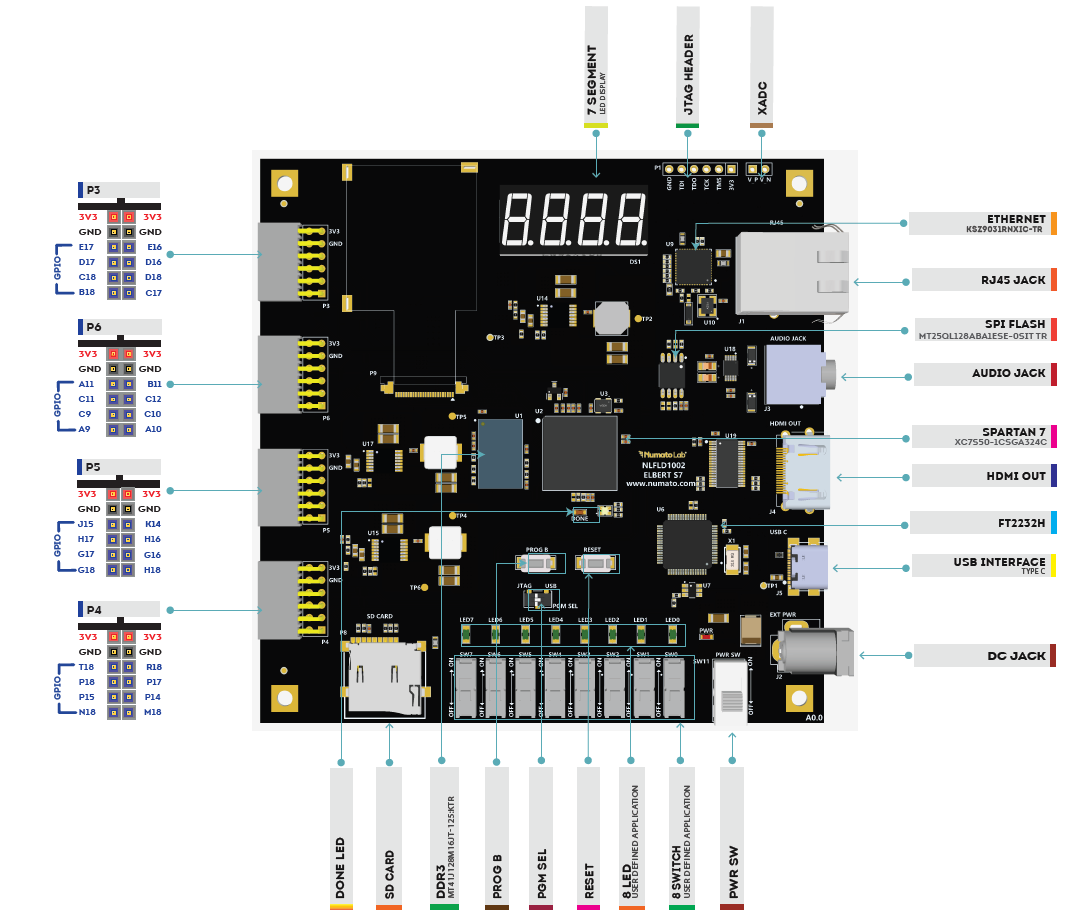

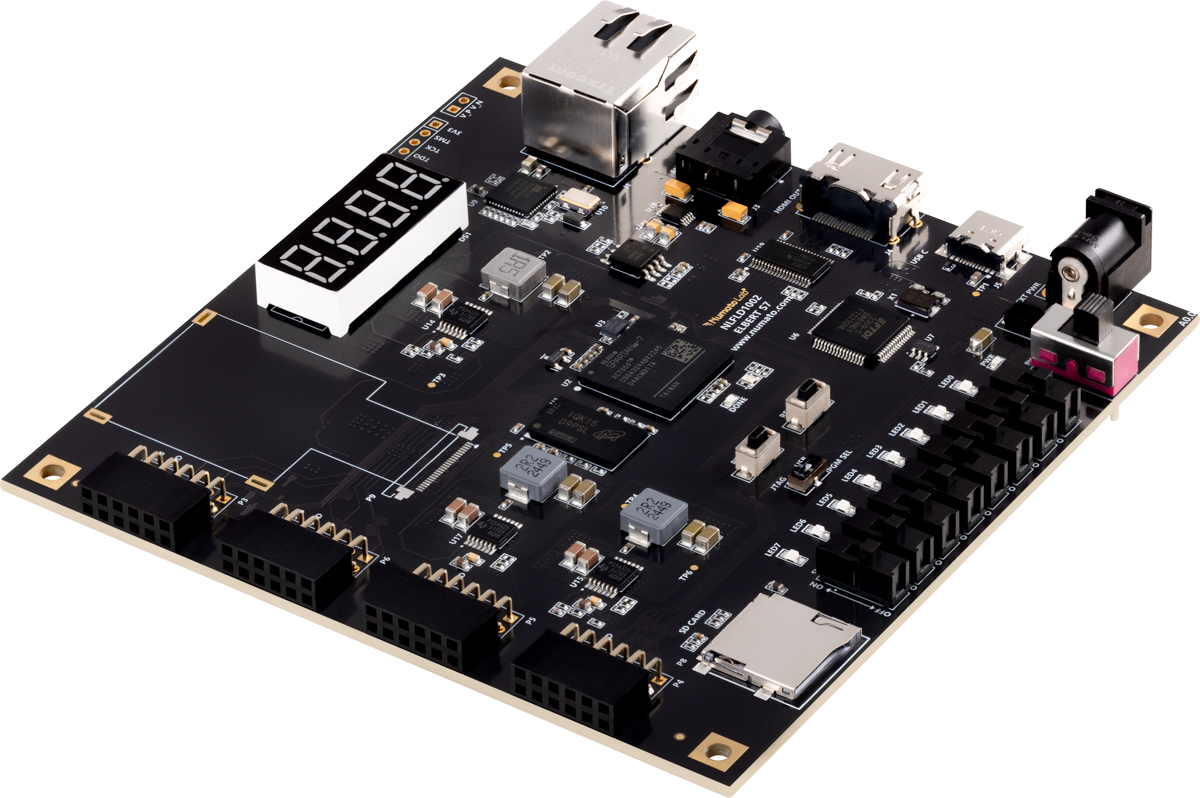

Elbert S7 is a versatile FPGA development board featuring the Spartan-7 FPGA (XC7S50 – 1CSG324C package), designed for a wide range of applications. This compact and user-friendly board includes QSPI flash for efficient data storage, an FTDI FT2232H for seamless communication, and multiple peripherals for enhanced functionality. It comes equipped with 8 LEDs, 8 switches for user interaction, a seven-segment display, an SD card slot, HDMI Tx, Gigabit Ethernet, an audio jack, and a TFT display. Additionally, four PMOD headers provide extensive connectivity options, making it ideal for digital signal processing, prototyping, and educational projects. Whether you’re developing advanced applications or learning FPGA design, the Elbert S7 offers a powerful and flexible platform to bring your ideas to life.

Features

• FPGA: XC7S50 in CSGA324 package, Speed Grade: -1.
• Flash memory: 128 Mb Quadbit SPI flash memory (MT25QU128ABA1ESE-0SIT TR).
• 100MHz CMOS Oscillator.
• FTDI FT2232H based host interface.
• FPGA configuration via JTAG and USB.
• 8 Switches and 8 LEDs for User defined purposes.
• Four PMODs for User defined purposes.
• Seven-Segment Display for numeric output.
• SD Card Slot for external storage.
• HDMI Transmitter for video output.
• Gigabit Ethernet for high-speed networking.
• Audio Jack for audio applications.
• TFT Display Connector for graphical output.

Applications

• Educational tool for Schools and Universities
• Product Prototype Development
• Accelerated computing integration
• Development and testing of custom embedded processors
• Signal Processing
• Communication devices development
• Video processing
