The EagleCore ZU-Plus MPSoC SOM, which uses the part number XCZU3TEG-1SFVC784I, belongs to the UltraScale MPSoC family developed by AMD. This series also includes compatible part numbers such as XCZU3TCG-1SFVC784I, XCZU3CG-1SFVC784I, and XCZU3EG-1SFVC784I. These SoCs combine the processing power of multiple ARM Cortex-A processors with the programmable logic fabric of a field-programmable gate array (FPGA), offering robust performance and flexibility for a wide range of applications.

Additionally, the EagleCore ZU-Plus MPSoC SOM includes RTC (Real-Time Clock) functionality, ensuring precise timekeeping for applications requiring accurate time management. This combination of ARM processing capabilities, FPGA programmable logic, and RTC functionality makes it particularly well-suited for fields where high performance and versatility are crucial.

AMD provides a comprehensive development ecosystem, including the Vivado Design Suite and the Vitis unified software platform, which allows developers to effectively leverage both the ARM and FPGA components and PetaLinux designed for building, customizing, and deploying embedded Linux systems.

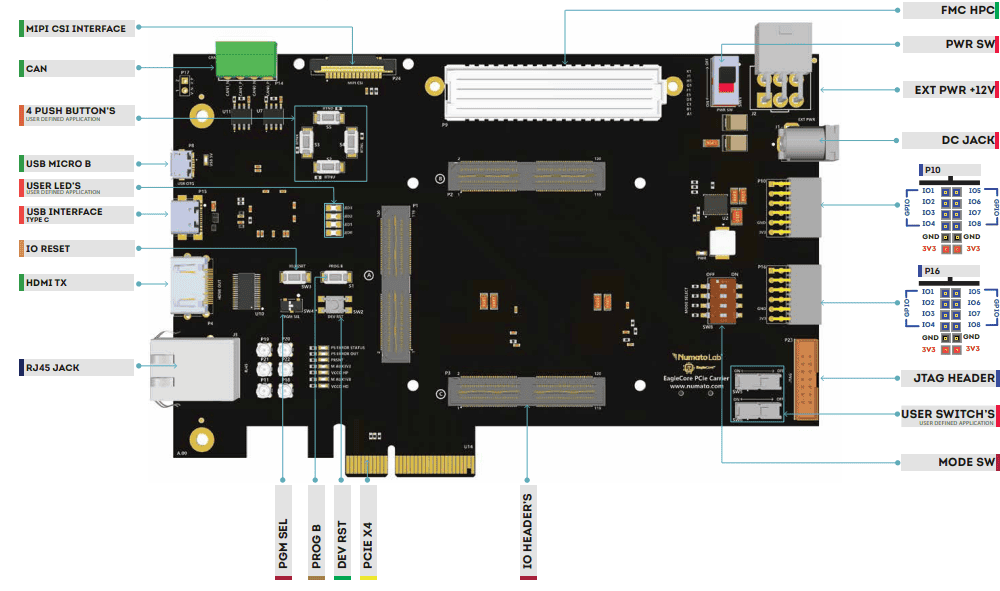

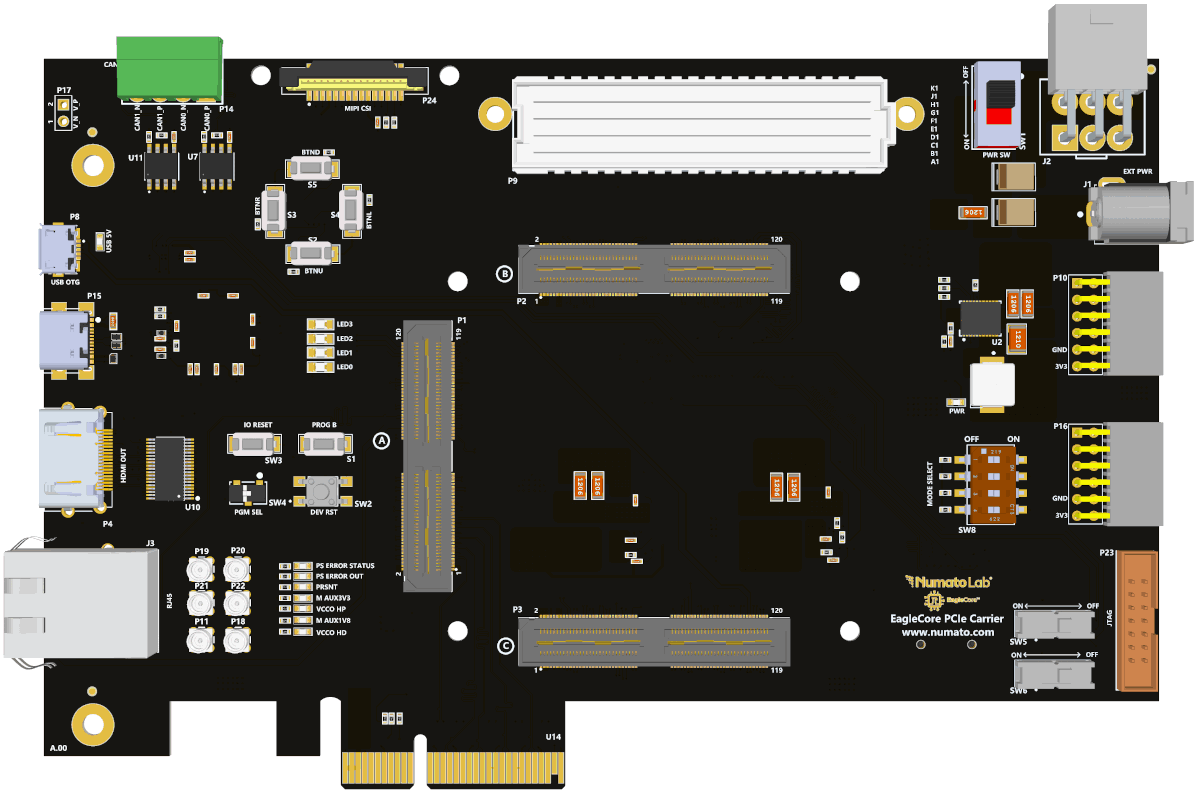

Features

• 3 x CONN RCPT 120POS SMD GOLD
• FTDI FT2232H for FPGA and Host communication
• RJ45 JACK
• USB Type-C connector
• USB micro-B connector for OTG communication
• PCIe male header
• HDMI connector
• 12V DC power supply
• AMD-compatible JTAG Header for programming and debugging.
• FMC connector with a maximum of 154 IOs for a user-defined purpose
• FMC HPC connector with a maximum of 4 x SERDES lines
• 2 x CAN header
• PMIC programming header with EN switch
• User-defined LEDs and switches
• MIPI connector for video and image processing
• 3 x SMA connectors
