The EagleCore C02 carrier is equipped with 3× Q-pair differential mezzanine connectors, enabling compatibility with various AMD System-on-Module (SoM) solutions such as the EagleCore ZU-Plus MPSoC SoM. The carrier introduces FPIC (FPGA Peripheral Interface Connector), a new I/O expansion interface developed by Numato Lab, designed to provide flexible and scalable peripheral connectivity. The board includes a single FPIC interface, where the FPIC standard connector is intended for general-purpose peripheral expansion.

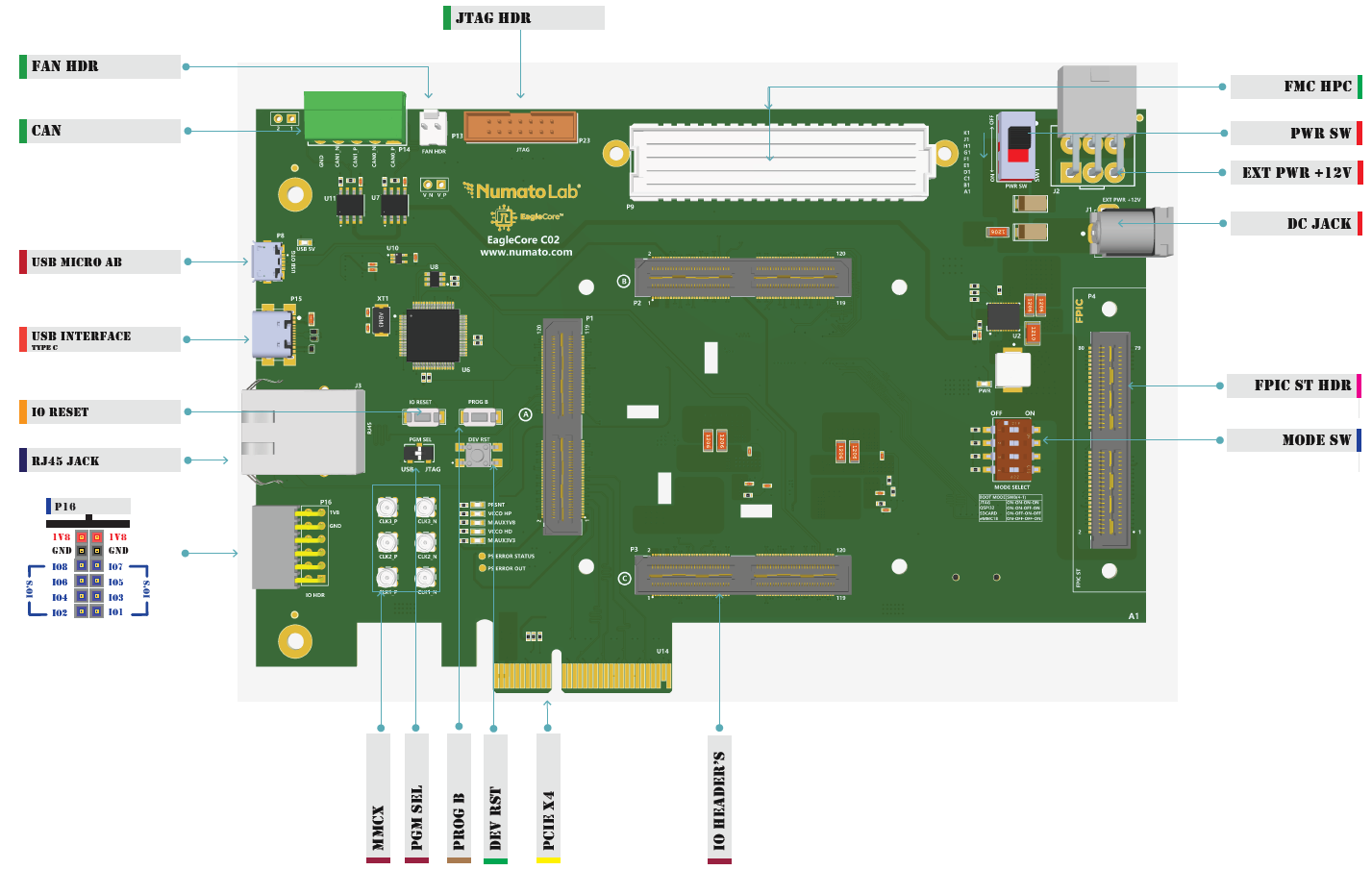

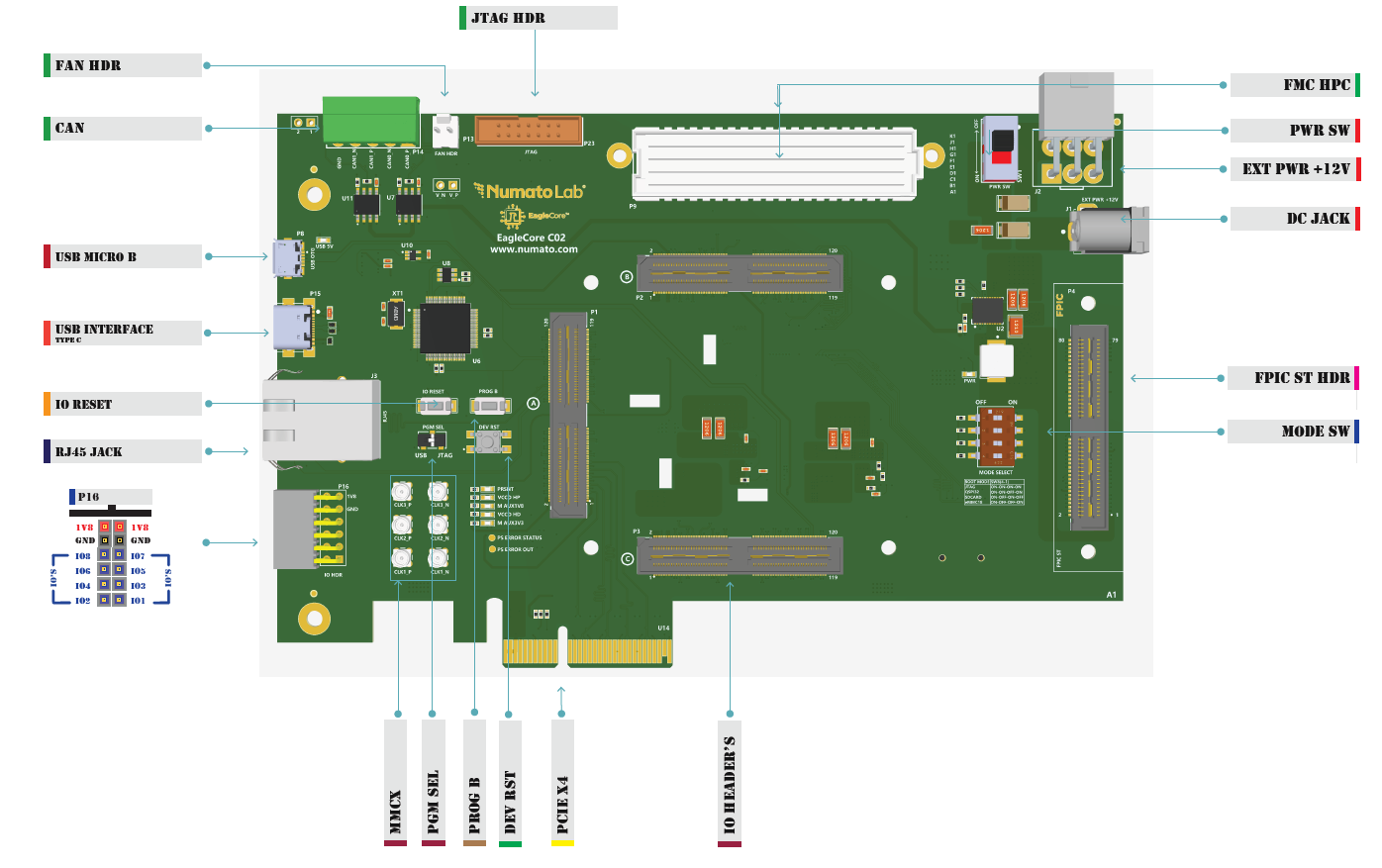

The carrier board integrates a comprehensive set of onboard features to enhance flexibility and ease of use. These include a PCIe x4 connector for high-speed expansion, and an SD card slot for data and program storage. Additional interfaces include a fan header for thermal management, USB OTG support, two CAN headers, MIO header and SMA connectors. The board also features a USB Type-C connector for UART communication and USB-based programming, along with a dedicated JTAG header for debugging and development.
