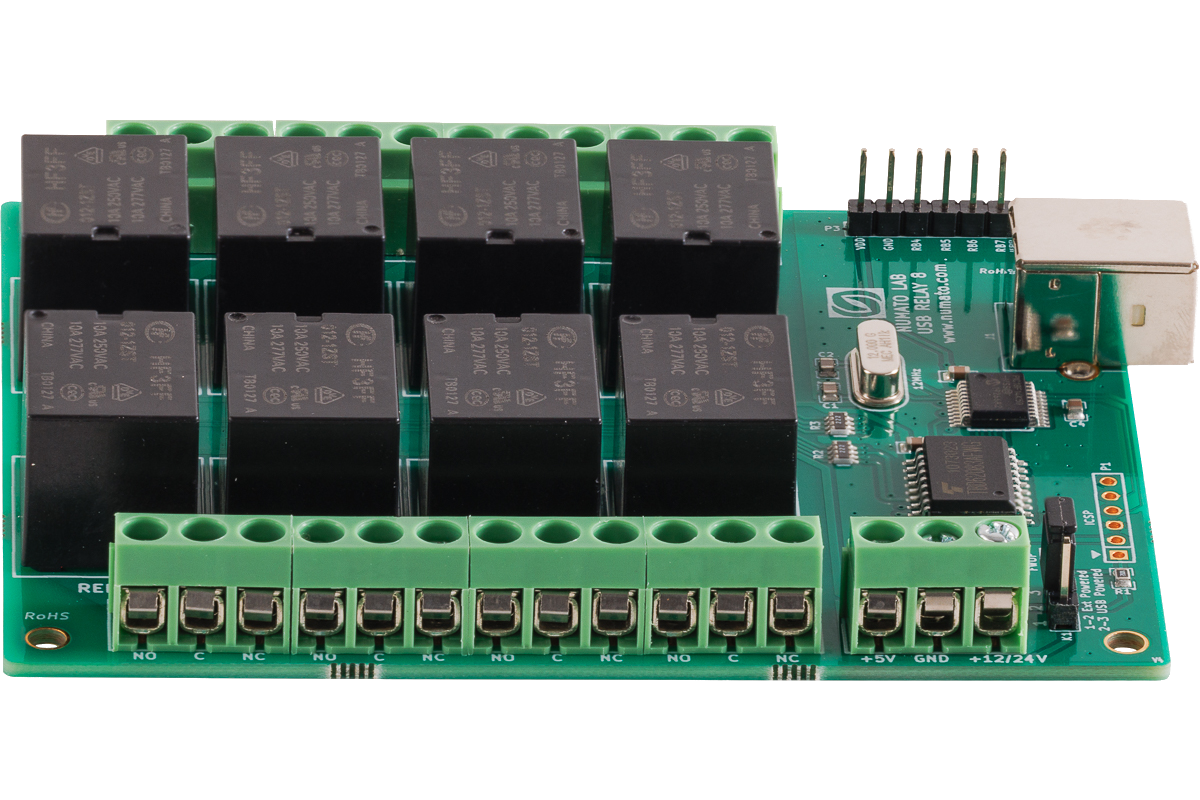

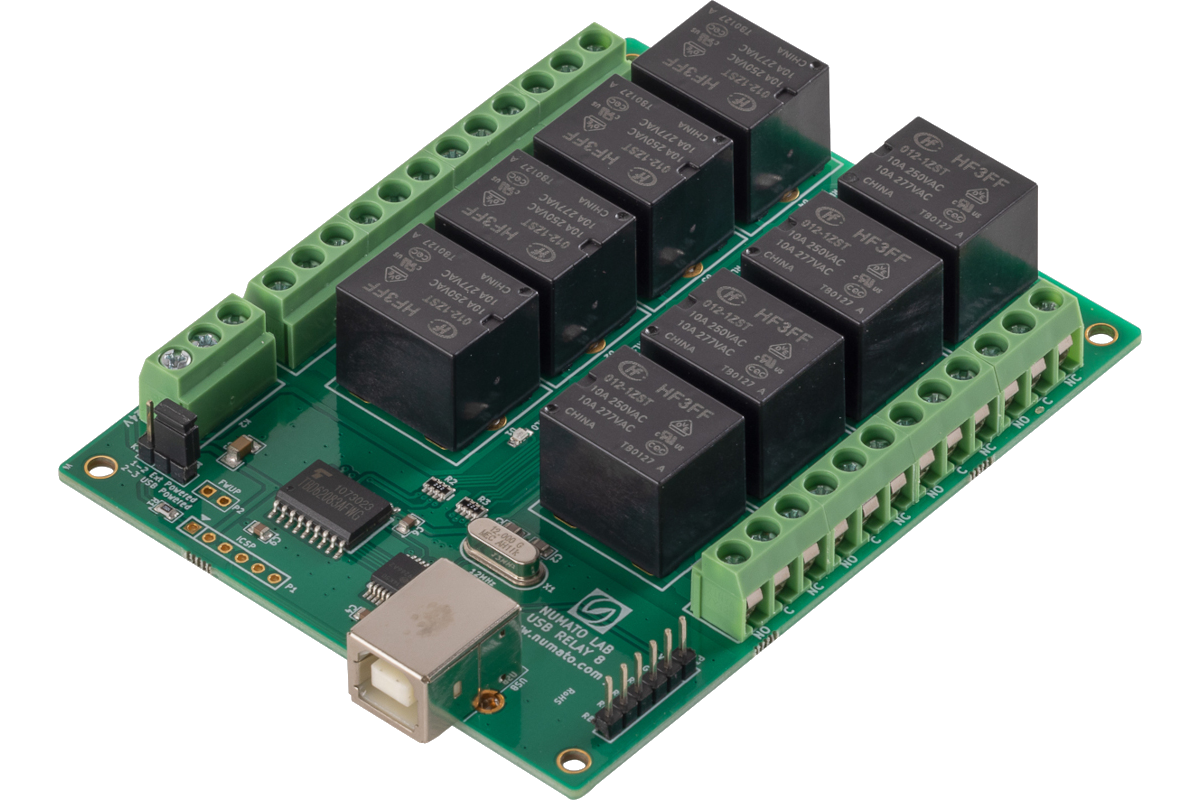

8 Channel USB Relay Module

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$49.95

URMC8 8 Channel USB Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This modules plugs in to your design seamless. Individual relay can be controlled by simple commands.
Features

  • 8 on board 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.

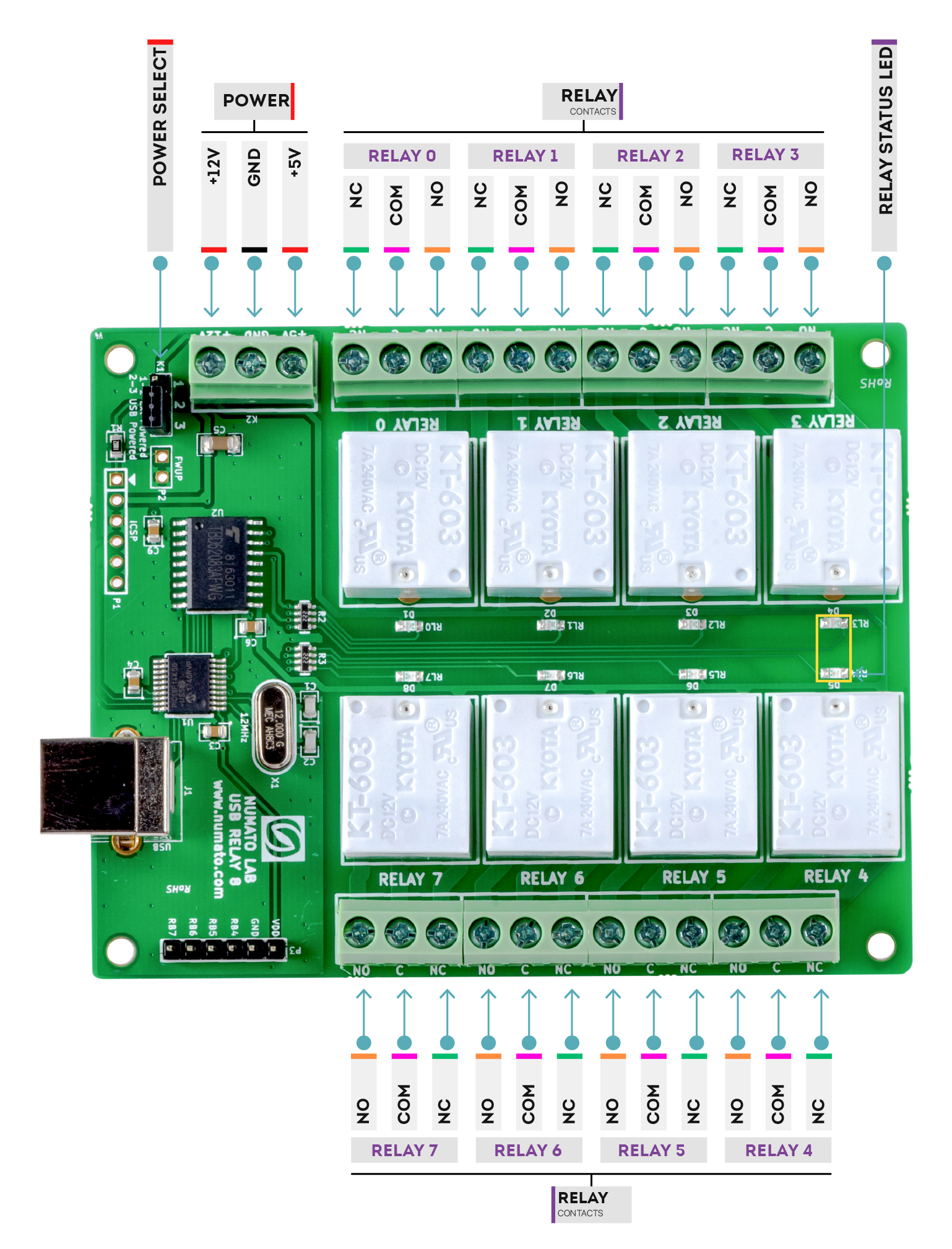

  • Relay contacts available on easy to access screw terminals.
  • Digital circuitry can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby
SKU: RL80001 Category:

Description

URMC8 8 Channel USB Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This modules plugs in to your design seamless. Individual relay can be controlled by simple commands. Numato’s URMC8 8 Channel USB Relay Module provides exceptional value for money.

It has eight on board 12V SPDT relays that can switch up to 10A load.The relays are controlled by USB capable Microchip PIC Microcontroller (PIC18F14K50) and comes with built in firmware that supports simple commands to control relays and read relay status. The board, when attached to a PC/Laptop shows up as a serial port and all you need to control the board is a serial terminal application like HyperTerminal or Putty.
Features

  • 8 on board 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Digital circuitry can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Supporting Operating Systems

  • Windows XP and later
  • Windows 7 Embedded and later
  • Linux
  • Mac OS X
  • Android
  • or any other operating system that supports USB CDC devices.

Languages that can be used for programming

  • C/C++
  • Visual Basic (VB6, VB2008, VB2010 express and other editions)
  • Visual Basic for Applications (Microsoft Office VBA)
  • Perl
  • Python
  • JAVA
  • Android
  • Javascript(Node.js)
  • And many moreā€¦

Additional information

Weight 0.31 lbs
Dimensions 5.00 x 6.00 x 2.00 in
Number Of Relays

8

Relay Type

Max Relay Current Rating

10A

Communication

USB

3D View

Downloads

Numato Lab USB CDC Driver
User Manual
3D Model (STEP)

Accessories

USB A to USB B CableUSB A to USB B CableUSB type A to USB B cable. Can be used with many USB products available from Numato Lab.

Knowledge Base

Understanding readall/writeall commands for RELAY Modules

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
VBAMS Excel 2010 GUIWindowsDownload
VBAMS Word 2010GUIWindowsDownload
Visual Basic JustBASICNAWindowsDownload
JavascriptNode.jsCommand LineWindowsDownload
AutoItAutoItNAWindowsDownload
LabviewLabviewSimple GUIAnyDownload
PerlPerlCommand LineLinuxDownload
PerlPerlCommand LineWindowsDownload

1 review for 8 Channel USB Relay Module

  1. Avatar for Numato Lab
    Rated 5 out of 5

    They could not have made it any easier. I especially like that you can query the module to get the state of any relay. I am a developer and really like how easy the board is to interface with. Have used .net and python so far. If you are not a programmer you can use a program such as Putty to connect to the com port and send commands.
