8 Channel USB Pluggable GPIO Module

SKU:

8 Channel USB Pluggable GPIO Module

SKU:

    Current configuration - Edit
  • IO Headers: Header On Top

$41.99

Features

  • 8 TTL compatible GPIOs (5V)
  • 6 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output and available on easy to plug headers
  • Can be controlled by using standard serial console applications or custom applications
  • readall/writeall support to read/update all GPIOs with a single command

Applications

  • Building automated test fixtures
  • Add more IOs and Analog channels to industrial/modular computers
  • Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
  • Add IOs to Android-based systems (Smartphones, Tabs and custom devices)

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

IO Headers

8 Channel USB Pluggable GPIO Module

SKU:

    Current configuration -
  • IO Headers: Header On Top
Price:

$41.99

Request For QuoteWanna Customize? Drop Us A Line!

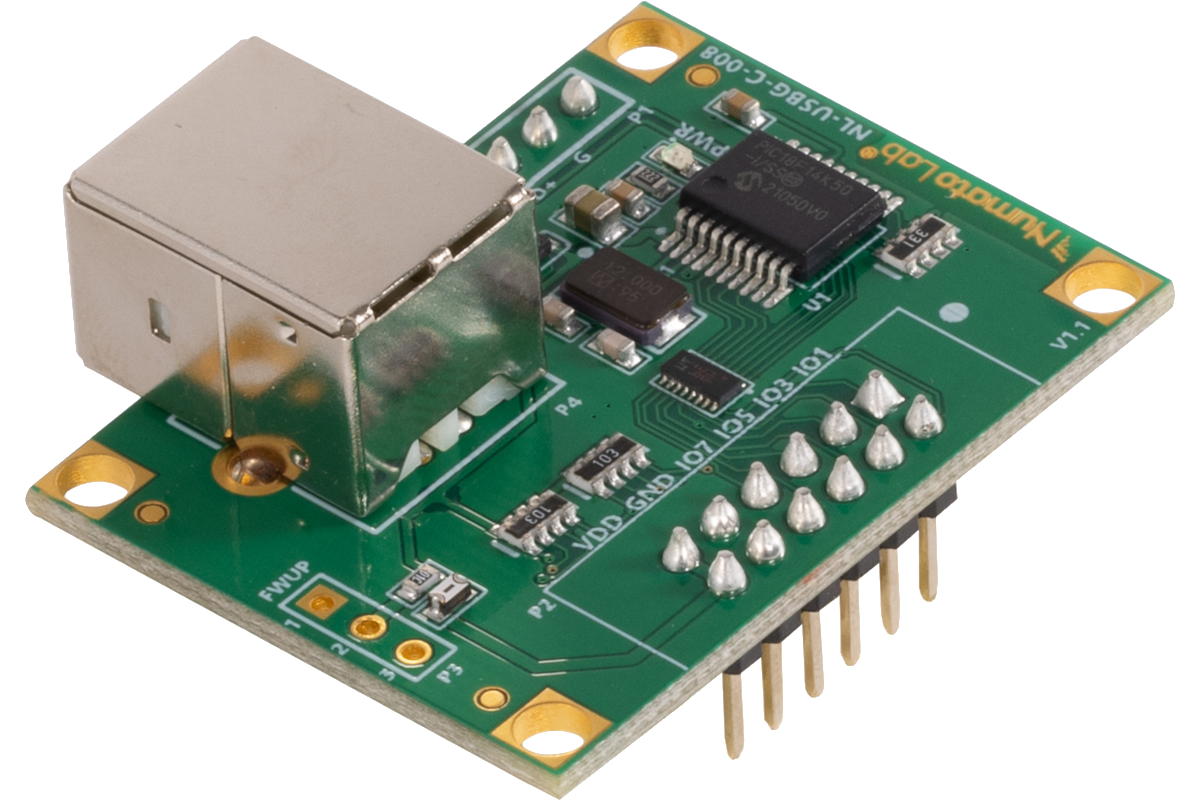

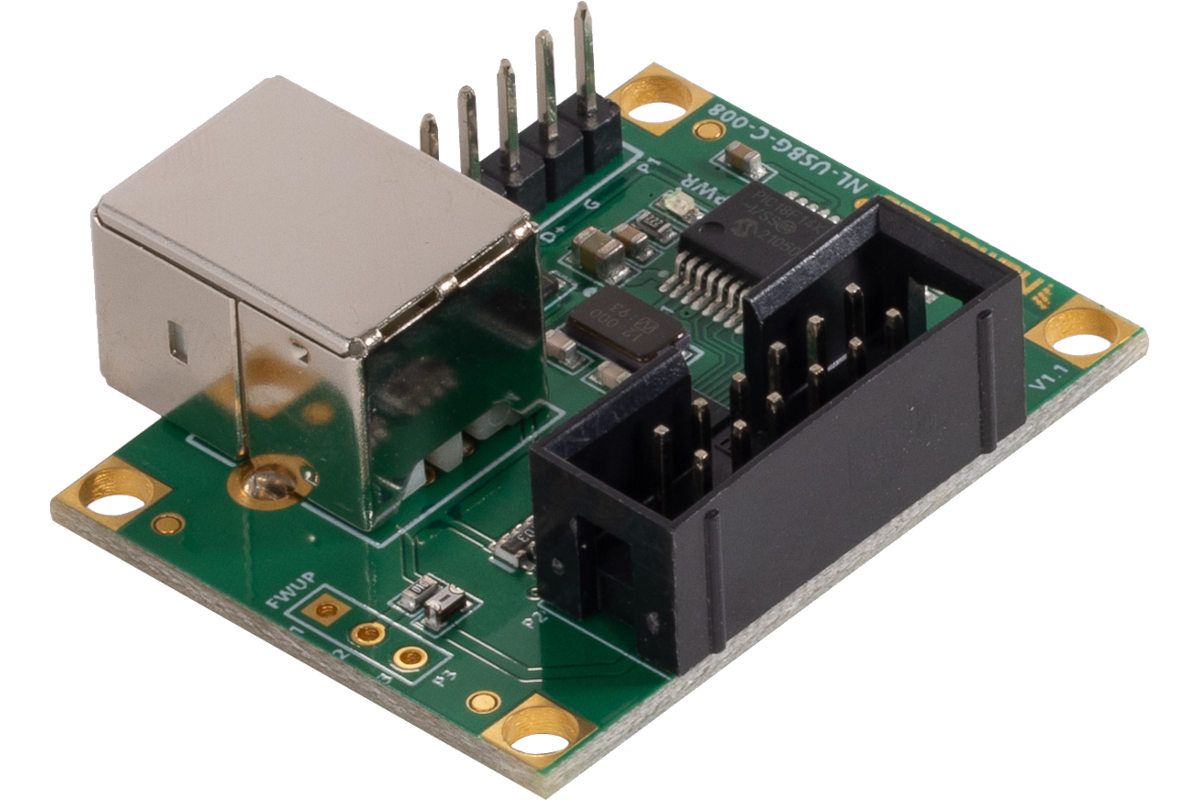

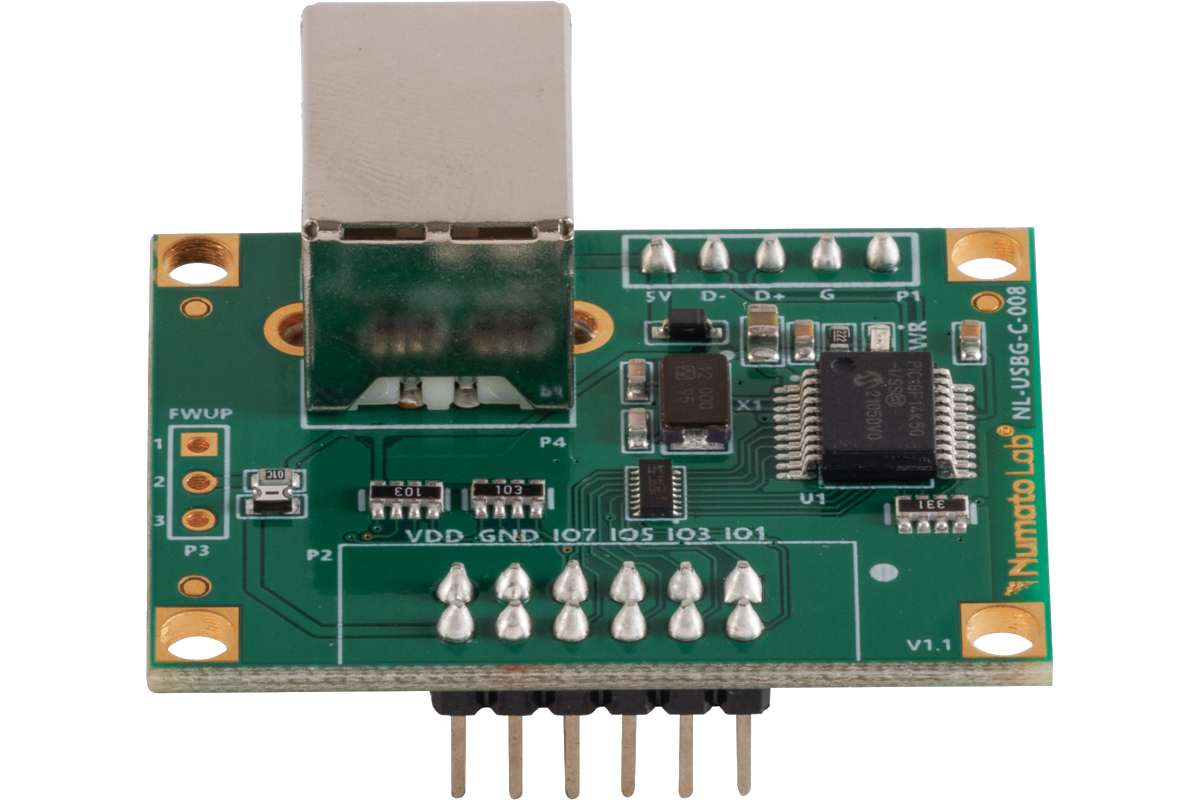

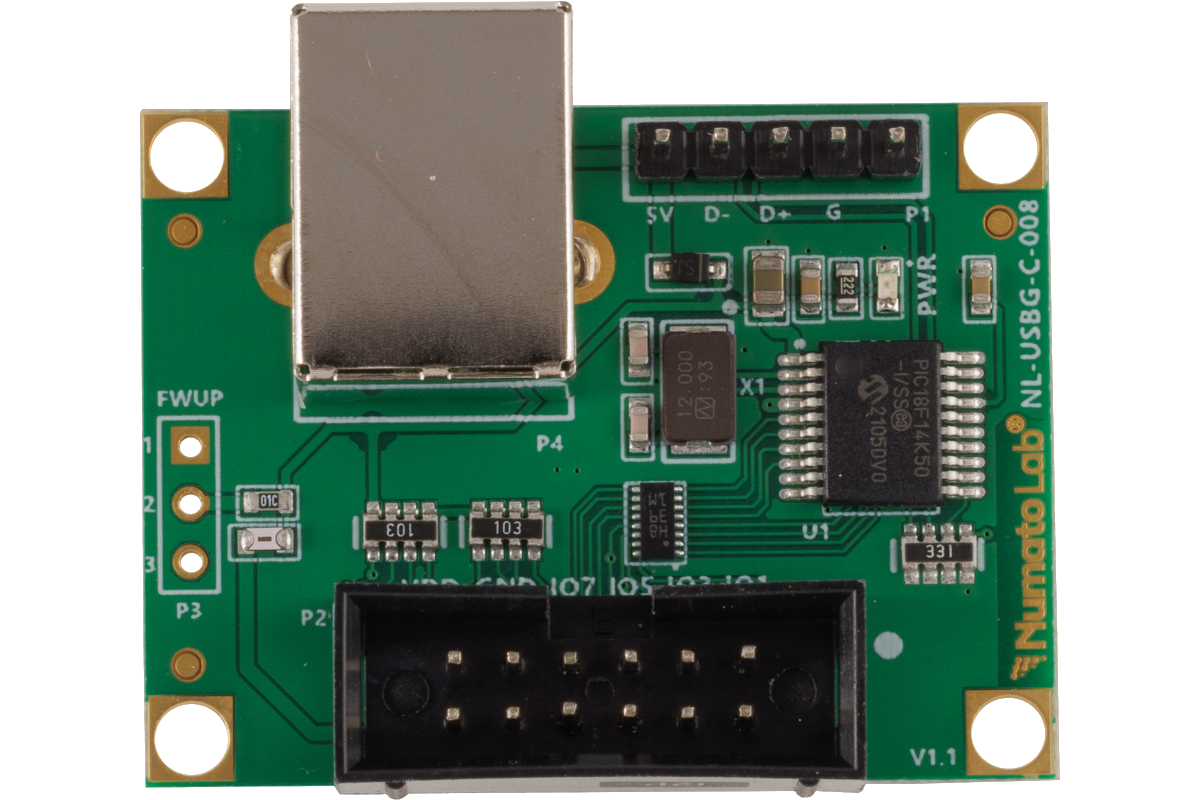

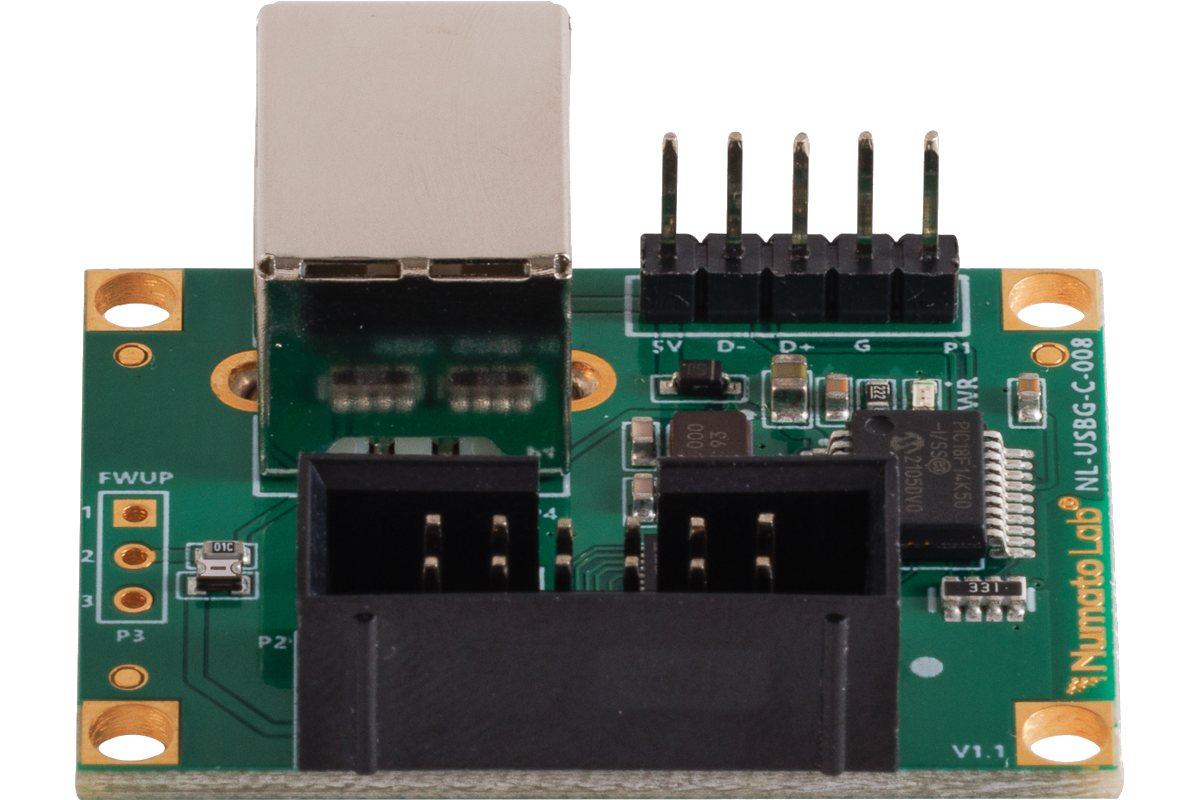

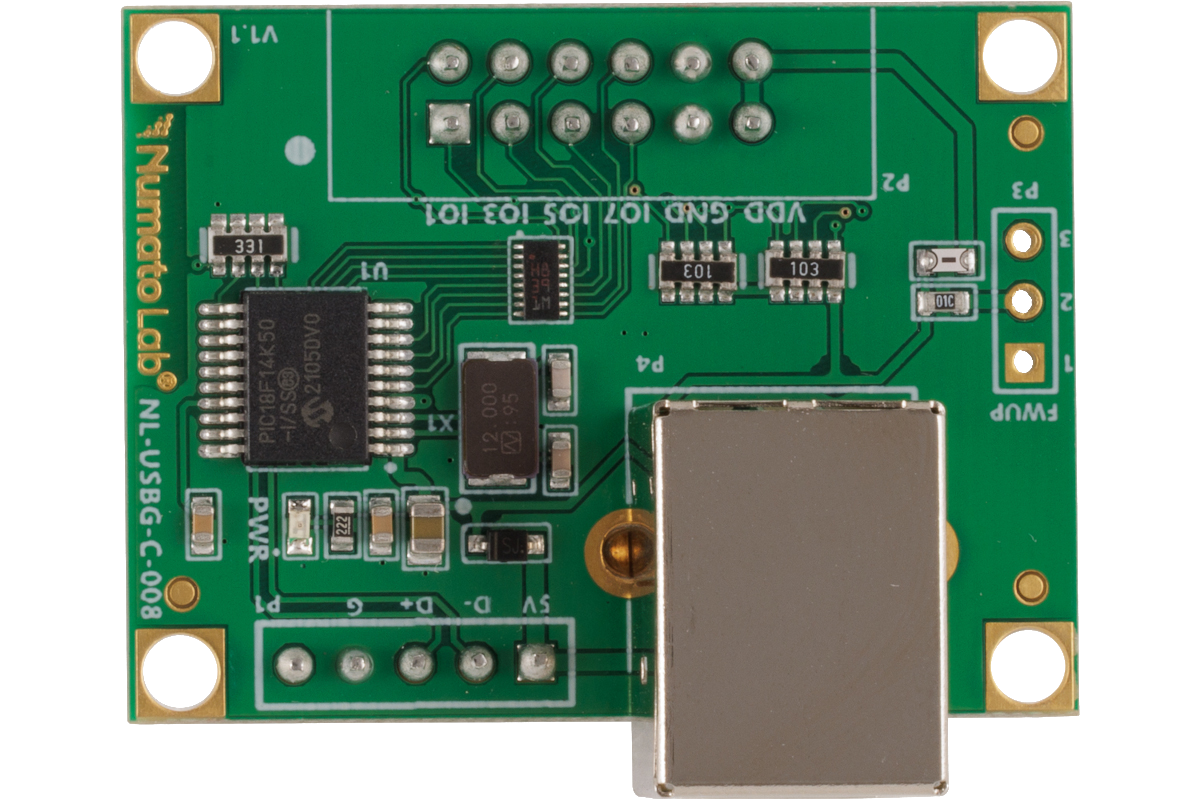

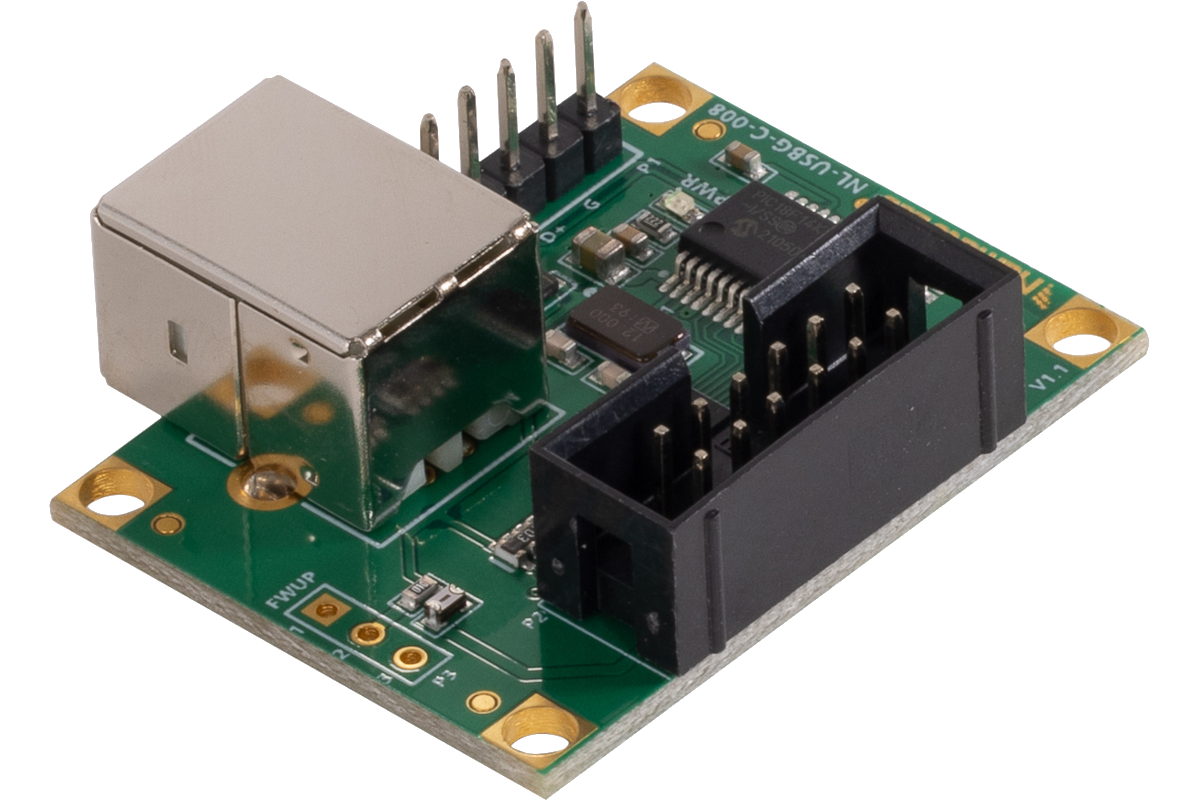

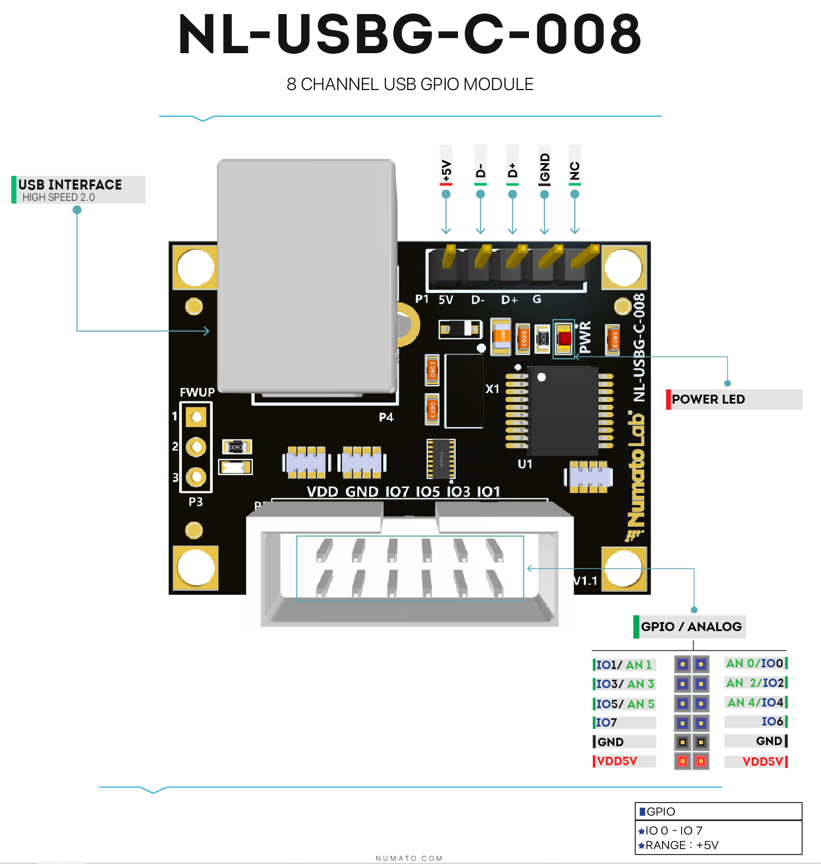

Numato Lab’s 8 Channel USB Pluggable GPIO Module (NL-USBG-C-008) is a small and handy module which helps to connect real-world devices to your computer easily through USB. Built in USB to serial conversion allows the module to be used without any USB specific knowledge. All that you need to operate GPIOs is a standard Serial Terminal Emulator such as PuTTY/Teraterm or your favourite programming language such a C/C++, Python, Perl, etc… Besides providing standard General Purpose IOs, this product has multiple Analog Inputs as well. These Analog inputs can be used to read Analog quantities such as temperature, pressure, etc.. with the help of appropriate sensors.

Features

  • 8 TTL compatible GPIOs (5V)
  • 6 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output and available on easy to plug headers
  • Can be controlled by using standard serial console applications or custom applications
  • readall/writeall support to read/update all GPIOs with a single command

Applications

  • Building automated test fixtures
  • Add more IOs and Analog channels to industrial/modular computers
  • Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
  • Add IOs to Android-based systems (Smartphones, Tabs and custom devices)

General FAQs

Specifications

Attribute Value
Number Of GPIOs (Max)

IO Headers

Header On Top, Header On Bottom

Analog Inputs(Max)

Host Interface

Analog Input Resolution

Multiplexed Analog Inputs

Mating product (Connector)

Molex : 22-55-2122, DF11-12DS-2DSA(05)

Package Contents

Warranty

RoHS

Yes

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
PythonPythonCommand LineWindowsDownload
