8 Channel Bluetooth Relay Module

$59.95

8 Channel Bluetooth Relay Module is great for controlling your devices over Bluetooth link without any RF design knowledge. This module is designed to plug in to your design seamlessly. Individual relay can be controlled by simple commands.
Features

  • 8 on board 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 2 TTL (3.3V)Compatible GPIOs.
  • 1 Analog Input Channel(Multiplexed with GPIOs.
  • 10 Bit Analog Input Resolution.
  • Class 2 Bluetooth Version with 10m Bluetooth Range

Applications

  • Home Automation
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby
SKU: BTRL001 Category:

Description

8 Channel Bluetooth Relay Module is great for controlling your devices over Bluetooth link without any RF design knowledge. This module is designed to plug in to your design seamlessly. Individual relay can be controlled by simple commands. Numato’s 8 Channel Bluetooth Relay Module provides exceptional value for money.

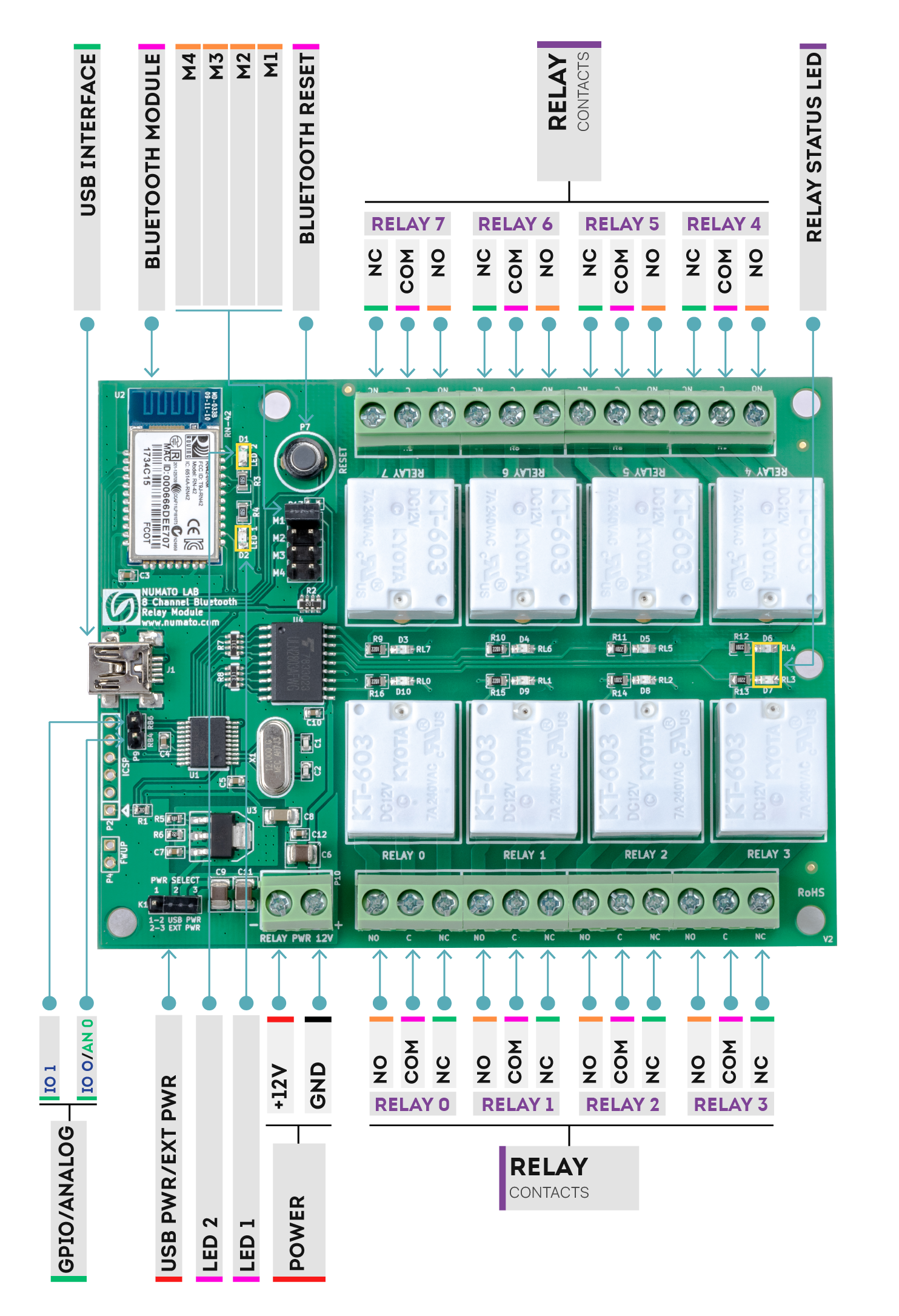

This board has eight on board 12V relays that can switch up to 7A load. The relays are controlled by a Microchip PIC Microcontroller  over Bluetooth link and comes with built in firmware that supports simple commands to control relays and read relay status. This board can easily be controlled by writing simple serial port application in VC++, VB, VBA (Word, Excel etc), Perl, Python etc. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. A USB connector is available on board for firmware upgrade.

Features

  • 8 on board 12V SPDT Relays.
  • 7A Maximum Switching Current.
  • 2 TTL(3.3) Compatible GPIOs.
  • 1 Analog Input Channel(Multiplexed with GPIOs).
  • 10 Bit Analog Input Resolution.
  • On board USB Connector for firmware upgrade.
  • Class 2 Bluetooth Version with 10m Bluetooth Range

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Supporting Operating Systems

  • Windows XP and later
  • Linux
  • Mac
  • And any other operating system that supports Bluetooth devices

Languages that can be used for programming

  • C/C++
  • Visual Basic (VB6, VB2008, VB2010 express and other editions)
  • Visual Basic for Applications (Microsoft Office VBA)
  • Perl
  • Python
  • JAVA
  • And many more…

Additional information

Weight

0.35 lbs

Dimensions

6.00 x 5.00 x 2.00 in

Number of Relays

8

Relay Type

Max Relay Current Rating

7A

Number Of GPIOs (Max)

2

Analog Inputs

1(Multiplexed with IOs)

Analog Input Resolution

10 Bits

Communication

Bluetooth

Downloads

User Manual

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
CVCExpress2008Command Line WindowsDownload
CVCExpress2010Command Line WindowsDownload
Visual BasicVBExpress2008GUIWindowsDownload
Visual BasicVBExpress2010GUIWindowsDownload
Visual BasicVisual Basic 6GUIWindowsDownload
CVisual C++ 6 Command LineWindowsDownload
PythonPythonCommand LineWindowsDownload
JavaNetBeansCommand LineAnyDownload
C# Visual Studio 2012 GUIWindowsDownload
AutoHotkeyAutoHotkeyGUIWindowsDownload
