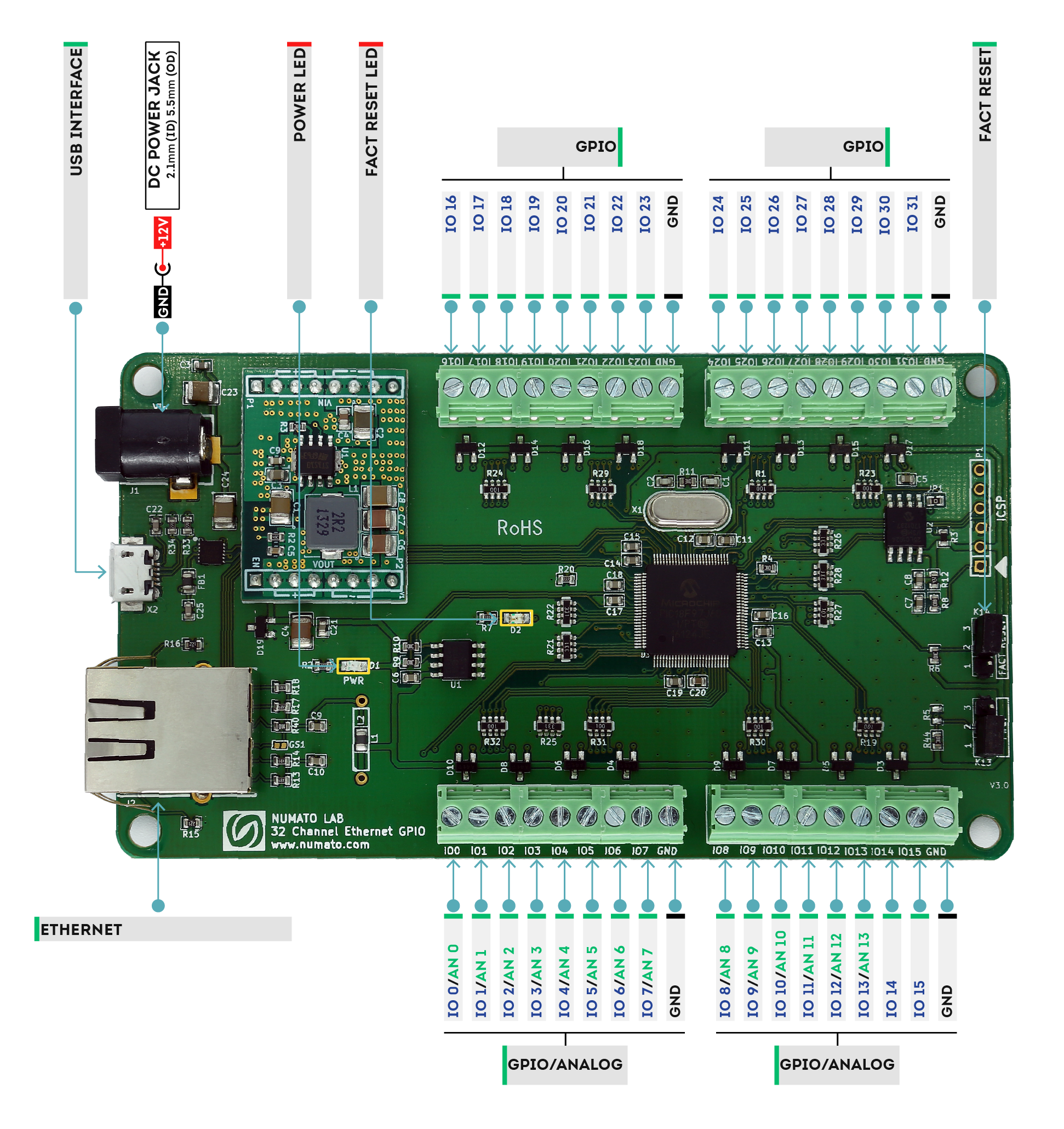

32 Channel Ethernet GPIO Module With Analog Inputs

$69.95

Numato’s 32 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through network. This GPIO module can be accessed through a simple web interface or Telnet.
Features

  • 32 TTL (3.3V) compatible GPIOs available
  • 14 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output
  • Can be controlled by using simple web interface or Telnet
  • No TCP/IP protocol knowledge required
  • Unique MAC Address
  • Password protected Web console and Telnet communication interface

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby
SKU: GPETH320001 Category:

Description

Numato’s 32 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows use of off-the shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling the module with a simple set of human readable commands through Telnet/Web page. For power users, this module can be controlled by writing programs in various programming languages.
Features

  • 32 TTL (3.3V) compatible GPIOs available
  • 14 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output
  • Can be controlled by using simple web interface or Telnet
  • No TCP/IP protocol knowledge required
  • 2,25,8ma Source/Sink capacity(depend on the IOs).
  • Microcontroller: Microchip PIC18F97J60(1-Mbit Flash Microcontroller with 10Mbps Ethernet communication peripheral).
  • Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration.
  • MAC Address: Separate Serial EEPROM(24AA02E48) with Globally Unique value used as MAC Address for the device.
  • Reset Jumper: Resets the board to factory defaults.
  • Password protected Web console and Telnet communication interface.
  • LED indication for Power.

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Additional information

Weight 0.3 lbs
Dimensions 5 x 3 x 2 in
Number Of GPIOs (Max)

32

IO Voltage Max

3.3V

Analog Inputs

14

Analog Input Resolution

10 Bits

Host Interface

Ethernet

User Interface

,

Downloads

User Manual
Device Discoverer
View/Download 3D Model (STEP)
