16 Channel Ethernet Relay Module

$119.95$134.95

Numato Lab 16 Channel Ethernet Relay module allows controlling electrical devices remotely through Ethernet. This is very helpful in those situations where the device that needs to be controlled is located far from the PC and thus can not run USB cable. Numato Lab Ethernet Relay modules are designed to be very easy to set up and use.

Features

  • 16 onboard 12V/ 24V SPDT Relays with individual LEDs for status.
  • 7A Maximum Switching Current.
  • 8 TTL (3.3V)Compatible GPIOs.
  • 8 Analog Input Channel(Multiplexed with GPIOs).
  • 10 Bit Analog Input Resolution.
  • Unique MAC Address.
  • 10BASE-T Ethernet Communication.
  • Password protected Web console and Telnet communication interface.
Clear
SKU: 16ETHRL001 Category:

Description

Numato Lab 16 Channel Ethernet Relay module allows controlling electrical devices remotely through Ethernet. This is very helpful in those situations where the device that needs to be controlled is located far from the PC and thus can not run USB cable. Numato Lab Ethernet Relay modules are designed to be very easy to set up and use.

This product has 16 onboard 12V/ 24V SPDT relays and 8 GPIOs. Each relay/gpio can be individually controlled through the built-in easy to use web interface or through any popular terminal emulator that supports the TELNET protocol. All GPIOs can be used as analog inputs (10 bits resolution) as well. Each 16 Channel Ethernet Relay module is shipped with a unique MAC address. These devices also support assigning and retrieving a custom identification string that can be used for identifying individual devices when there are a large number of devices connected on the same network. All relay terminals are available on screw terminals which makes connecting external devices very easy.

Features

  • Microcontroller: Microchip PIC18F97J60(1-Mbit Flash Microcontroller with 10Mbps Ethernet communication peripheral)
  • Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration options
  • MAC Address: Separate Serial EEPROM(24AA02E48) with Globally Unique value used as MAC Address
  • Reset Jumper: To reset the firmware of board to factory defaults
  • Password protected Web console and Telnet communication interface
  • LED indication for Power and individual relay status
  • Relay: 16 onboard 12V/ 24V SPDT Relays with individual LEDs for status
  • GPIO: 8 GPIOs, each can be configured as analog inputs

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

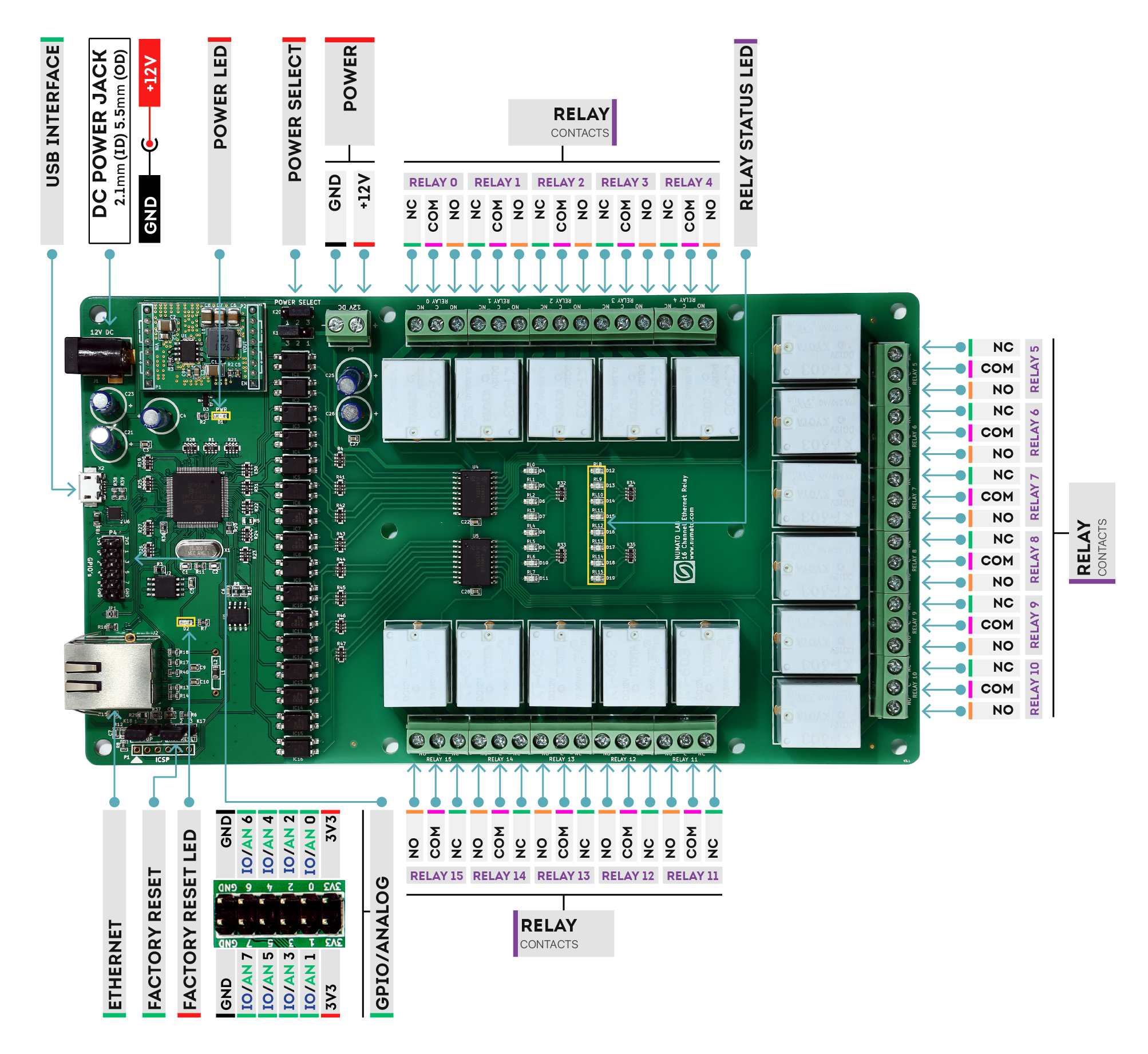

16 Channel Ethernet Relay Module - Wire Diagram

Additional information

Weight 0.80 lbs
Dimensions 10.00 x 5.00 x 2.00 in
Product Dimensions

8.07 x 4.55 x 0.78 in

Number of Relays

16

Relay Type

Relay Coil Voltage

12V, 24V

Max Relay Current Rating

10A

Number Of GPIOs (Max)

8

Analog Inputs(Max)

8 (Multiplexed with IOs)

Analog Input Resolution

10 Bits

Communication

10BASE-T Ethernet

User Interface

,

Downloads

Device Discoverer
User Manual
View/Download 3D Model (STEP)
Rhea Device Management Software for Relay and GPIO

Knowledge Base

Getting started with Rhea Device Management Tool for Numato Lab Relay and GPIO Modules
How to configure Rhea and connected devices
Understanding readall/writeall commands for RELAY Modules

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
JavaNetBeansNAAnyDownload
PerlPerlCommand LineWindowsDownload
PythonPythonCommand LineWindowsDownload
RubyRubyCommand LineWindowsDownload
