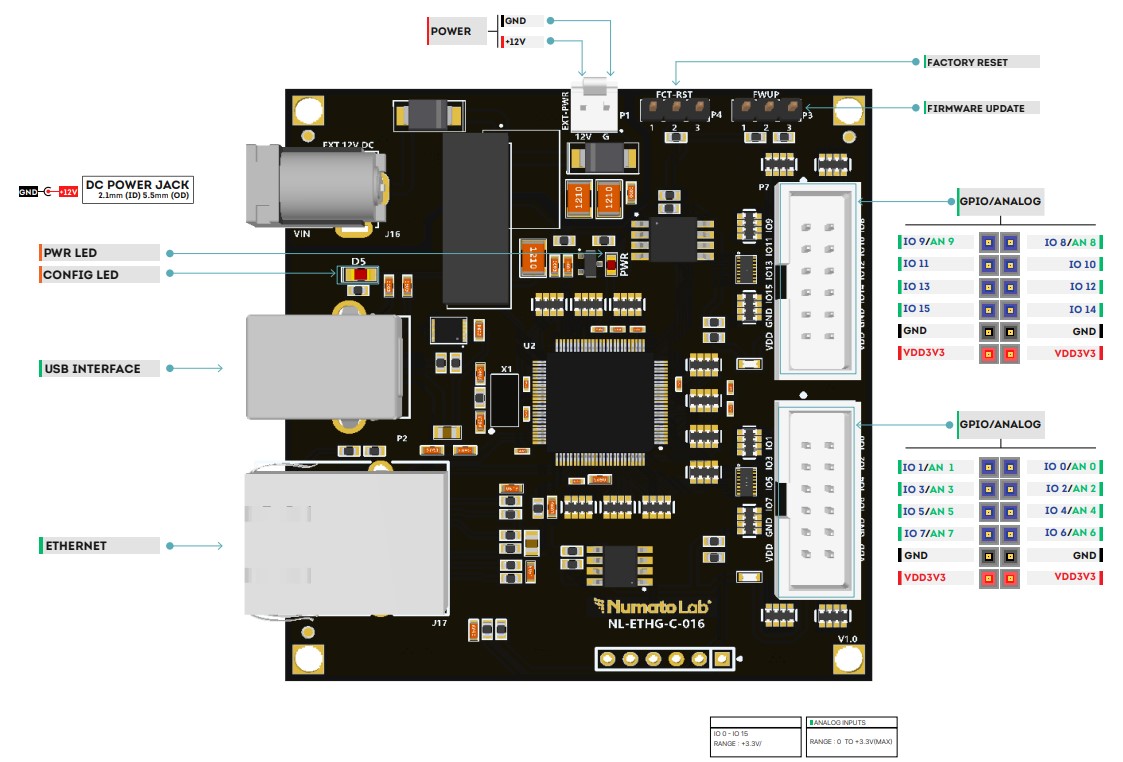

Numato Lab’s 16 Channel Ethernet Pluggable GPIO Module (NL-ETHG-C-016) is a low cost easily deployable solution for connecting your PC to other electronic circuitry through a network. This GPIO module can be accessed through a simple web interface, Telnet, or HTTP commands. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as PuTTY, TeraTerm for controlling the module with a simple set of human-readable commands through TELNET, HTTP, or through an easy-to-use Web interface. For power users, this module can be controlled by writing programs in various programming languages.

Features

• 16 TTL (3.3V) compatible GPIOs
• 10 Analog input channels (Multiplexed with GPIOs)
• 10 Bit Analog input resolution
• All GPIOs can be individually configured as input or output
• GPIO contacts available on easy to plug headers
• Can be controlled by using standard serial console applications through TELNET, web-interface, HTTP or custom applications
• readall/writeall support to read/update all GPIOs with a single command

Applications

• Building automated test fixtures
• Add more IOs and Analog channels to industrial/modular computers
• Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
• Add IOs to Android-based systems (Smartphones, Tabs and custom devices)
