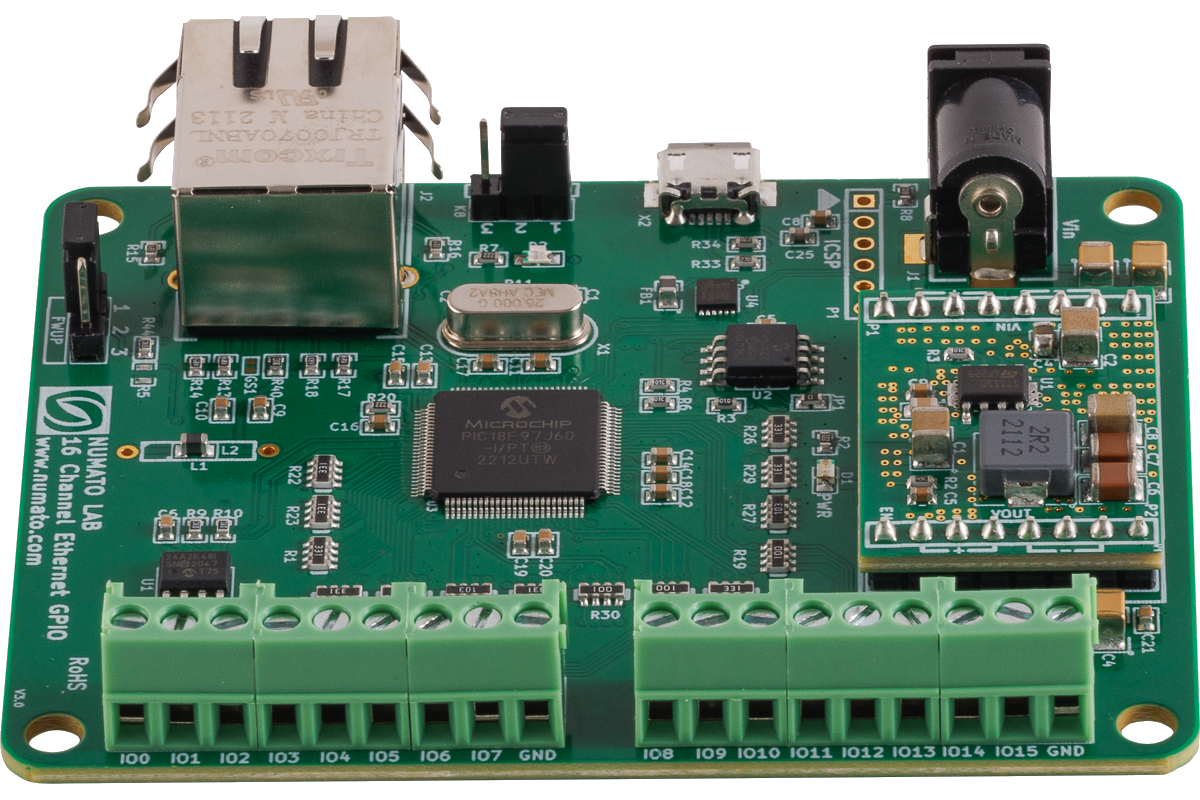

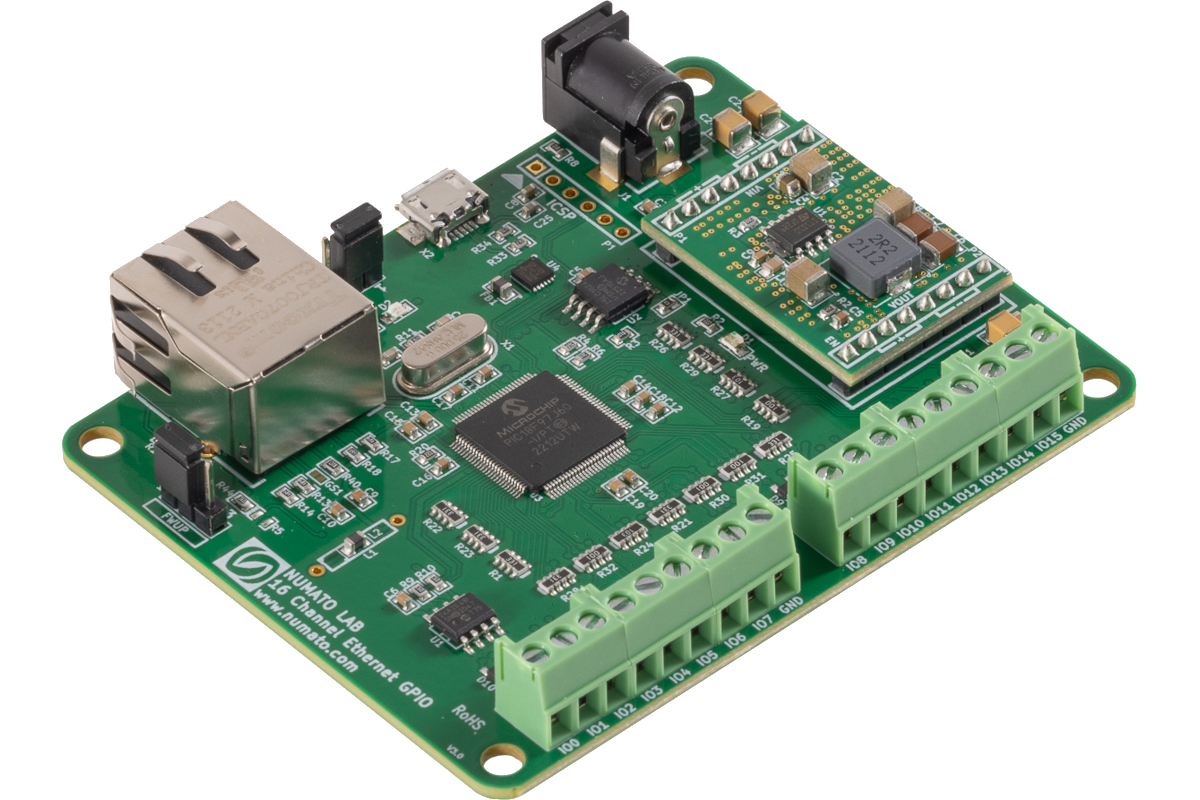

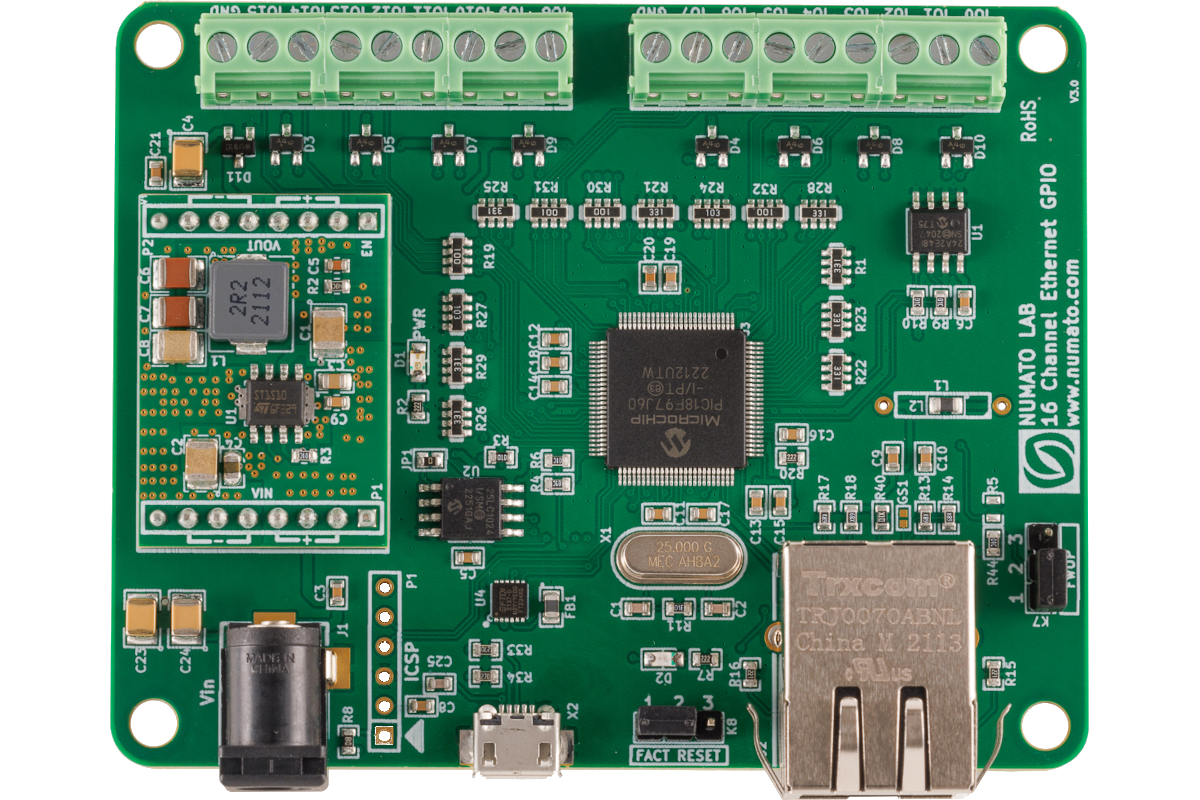

16 Channel Ethernet GPIO Module With Analog Inputs

Rated 4.00 out of 5 based on 1 customer rating
(1 customer review)

$49.95

Numato’s 16 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design.
Features

  • 16 TTL (3.3V) compatible GPIOs available.
  • 10 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • All GPIOs can be individually configured as input or output.
  • Unique MAC Address.
  • Password protected Web console and Telnet communication interface.

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby
SKU: GPETH160001 Category:

Description

Numato’s 16 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through a network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling the module with a simple set of human-readable commands through Telnet or through easy to use Web interface. For power users, this module can be controlled by writing programs in various programming languages.
Features

  • 16 TTL (3.3V) compatible GPIOs available
  • All GPIOs can be individually configured as input or output
  • Can be controlled by using a simple web interface or Telnet
  • No TCP/IP protocol knowledge required
  • 10 Analog input channels (Multiplexed with GPIOs)
  • 10 Bit Analog input resolution
  • 2,25ma Source/Sink capacity(depend on the IOs).
  • Microcontroller: Microchip PIC18F97J60(1-Mbit Flash Microcontroller with 10Mbps Ethernet communication peripheral).
  • Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration.
  • MAC Address: Separate Serial EEPROM(24AA02E48) with Globally Unique value used as MAC Address for the device.
  • Reset Jumper: Resets the board to factory defaults.
  • Password-protected Web console and Telnet communication interface.
  • LED indication for Power.

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

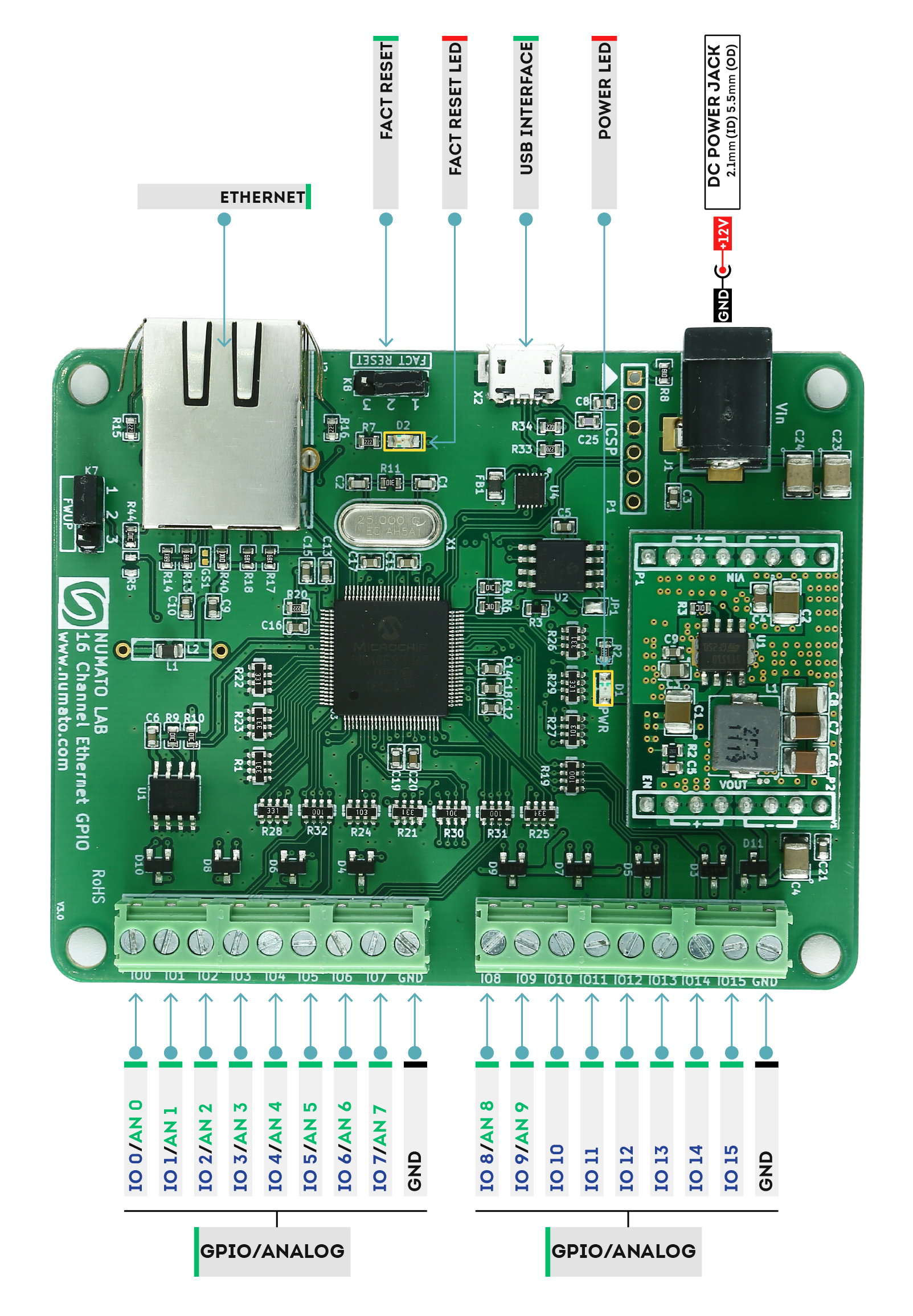

16 Channel Ethernet GPIO Module - Wire Diagram

Additional information

Weight 0.15 lbs
Dimensions 5.00 x 3.00 x 1.00 in
Product Dimensions

3.30 x 2.60 x 0.78 in

Number Of GPIOs (Max)

16

Number of ADC Inputs

10 (Multiplexed with IOs)

ADC Resolution

10Bit

IO Voltage

3.3V

Communication

10BASE-T Ethernet

User Interface

HTML/Web, TELNET

Downloads

User Manual
Device Discoverer
View/Download 3D Model (STEP)
Rhea Device Management Software for Relay and GPIO

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
JavaNetBeansNAAnyDownload
PerlPerlCommand LineWindowsDownload
PythonPythonCommand LineWindowsDownload
RubyRubyCommand LineWindowsDownload
