Galatea PCI Express Spartan 6 FPGA Development Board

$299.95$499.95

Galatea is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA with x1 PCIe interface and two 1Gb DDR3 SDRAM devices. This board features Xilinx XC6SLX45T (or larger) – FGG484 FPGA. Other FPGA configurations are available at request. Two high speed expansion connectors are available on board for the purpose of adding additional features to the board by using custom or off-the-shelf daughter boards.

Features

  • FPGA: Spartan-6 XC6SLX45T in -3FGG484 package (Other devices available at request)
  • x1 lane PCIe Gen1 interface
  • 2 x DDR3: 2Gb SDRAM MT41J128M16
  • Dual Port 100BASE-T Ethernet (Daughter Board)
  • IO Expansion Module (Daughter Board)
  • 128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • USB to UART serial converter
  • 2 x GTP available on 2x SATA connectors
  • MicroSD adapter for bulk data storage
  • Maximum 112 IOs for user defined purposes on FX18 Hirose connectors
  • JTAG and SPI headers for programming and debugging
  • 44 Length matched LVDS33 differential pairs
  • 12 Length matched LVDS1V5 differential pairs
  • 2 x SMA connectors for Clock or other signal input/output
Clear
SKU: FPGAPCIE0001 Category:

Description

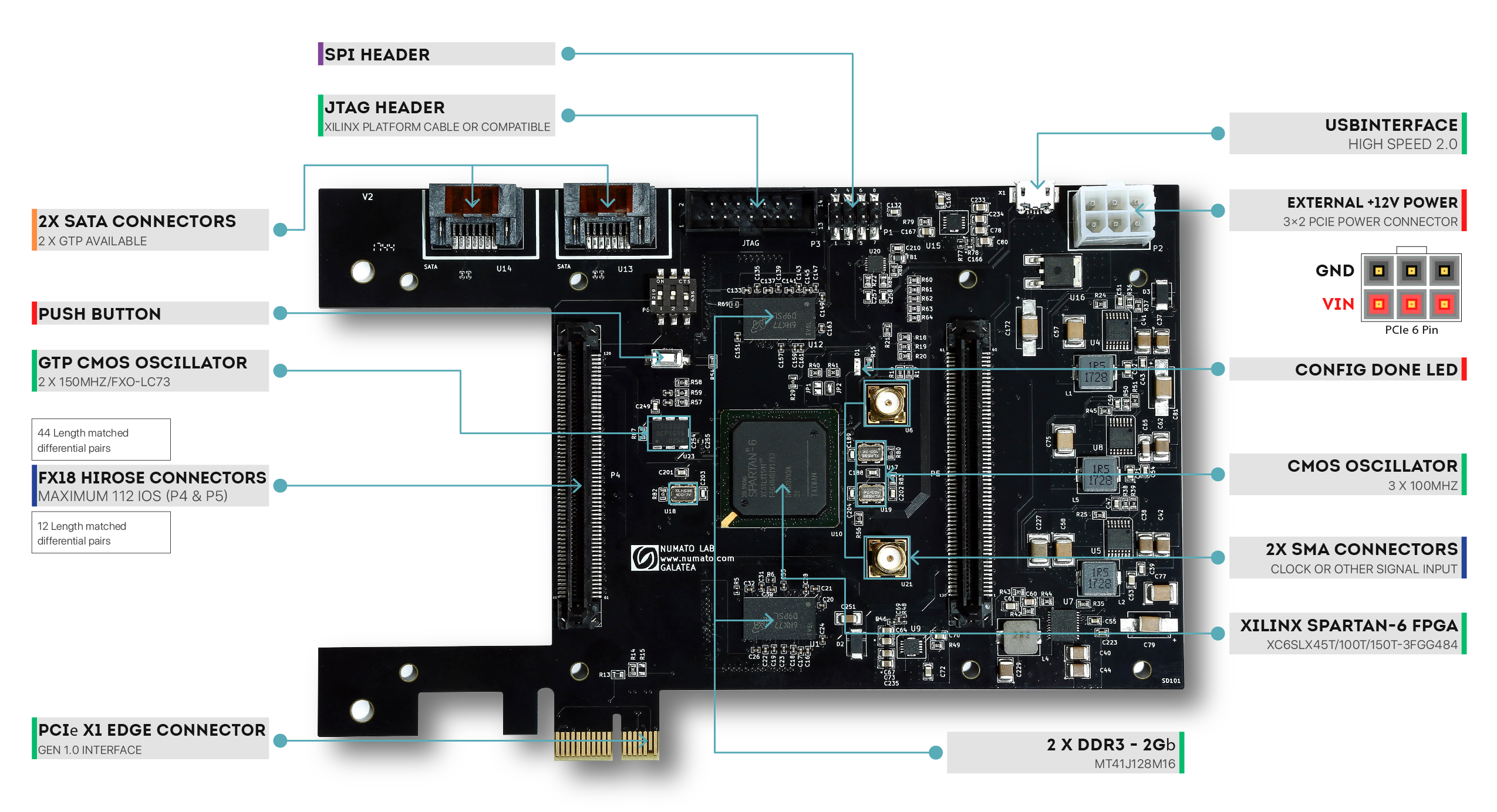

Galatea is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA with x1 PCIe interface and two 1Gb DDR3 SDRAM devices. This board features Xilinx XC6SLX45T (or larger) – FGG484 FPGA. Two high speed expansion connectors are available on board for the purpose of adding additional features to the board by using custom or off-the-shelf daughter boards. A rich set of off-the-shelf expansion modules are available at https://numato.com. Galatea is shipped with a dual port 100BASE-T Ethernet Module and an IO Expansion Module pre-installed.

Features

  • FPGA: Spartan-6 XC6SLX45T in -3FGG484 package (Other devices available at request)
  • x1 lane PCIe Gen1 interface
  • 2 x DDR3: 2Gb SDRAM MT41J128M16
  • Dual Port 100BASE-T Ethernet (Daughter Board)
  • IO Expansion Module (Daughter Board)
  • 128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
  • USB to UART serial converter
  • 3 x 100MHz CMOS oscillator
  • 2 x 150MHz CMOS oscillator for GTP
  • 2 x GTP available on 2x SATA connectors
  • MicroSD adapter for bulk data storage
  • All differential pairs are length matched on the module
  • Maximum 112 IOs for user defined purposes on FX18 Hirose connectors
  • Can be powered from PCIe slot or from an external power supply
  • JTAG and SPI headers for programming and debugging
  • 44 Length matched LVDS33 differential pairs
  • 12 Length matched LVDS1V5 differential pairs
  • 2x SMA connectors for Clock or other signal input/output

Applications

  • Product Prototype Development
  • Development and testing of custom embedded processors
  • Signal Processing
  • Communication devices development
  • Data Acquisition
  • Educational tool for Schools and Universities

Additional information

Weight 1.20 lbs
Dimensions 15.0 x 14.0 x 2.00 in
FPGA Device

XC6SLX45T, XC6SLX100T, XC6SLX150T

Memory

Number Of Clock Sources

3

Communication

PCIe, USB-RS232

Data Storage

Micro SD Slot

Configuration Options

JTAG

Primary Clock Frequency

Number Of GPIOs (Max)

112

Non-Volatile Configuration Storage

SPI Flash (N25Q128A13ESE40E)

Total Number Of GTP

4

Differential Pairs Length Matched

Yes

External Clock Inputs

2x SMA

Downloads

User Manual
Numato Lab Board support files for EDK BSB wizard
User Constraints File

Accessories

Galatea rtl8211e gigabit Ethernet expansion moduleGalatea RTL8211E Gigabit Ethernet Expansion ModuleThe heart of the RTL8211E Gigabit Ethernet Expansion module is RTL8211E-VB, a highly integrated Ethernet transceiver that comply with 10BASE-T, 100BASE-TX and 1000Base-T IEEE 802.3 standards. RTL8211E-VB supports communication with Ethernet MAC layer via standard RGMII interface, thus providing an alternative to the IEEE802.3z GMII interface. RTL8211E Gigabit Ethernet Expansion Module also has Microchip 24AA02E48 2Kbit EEPROM with built in unique MAC address. This MAC address can be read from the EEPROM and used for the Ethernet interface.
Galatea ip4776cz38 HDMI expansion moduleGalatea IP4776CZ38 HDMI Expansion ModuleGalatea IP4776CZ38 HDMI Module features two buffered DVI-D interface with HDMI buffer IP4776CZ38 for better signal strength and signal integrity. The on board DVI-D interface can be used to transmit high quality HD video. This module is designed to be used with Numato Lab’s Galatea PCI Express Spartan 6 FPGA Development Board.
Galatea dual port 100base-t Ethernet expansion moduleGalatea Dual Port 100BASE-T Ethernet Expansion ModuleThe Galatea 100BASE-T Ethernet Expansion Module features LAN8710A, a low-power 10BASE-T/100BASE-TX physical layer (PHY) transceiver. LAN8710A supports communication with Ethernet MAC layer via standard MII (IEEE 802.3u) interface. LAN8710A full-duplex 10-BASE-T/100BASE-TX transceiver and supports 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operation. LAN8710A implements auto-negotiation to automatically determine the best possible speed and mode of operation. HP Auto-MDIX support allows the use of direct connect or cross-over LAN cables. This Expansion Module also has Microchip 24AA02E48 2Kbit EEPROM with built in unique MAC address. This MAC address can be read from the EEPROM and used for the Ethernet interface.
Galatea IO Expansion ModuleGalatea IO Expansion ModuleThis board is an IO breakout solution for Galatea PCI Express Spartan 6 FPGA Development Board. This product allows Galatea's IOs to be broken out in to smaller 2x6 headers that would facilitate easy attachment of other peripheral expansion modules. The board features seven 2×6 expansion connector.
